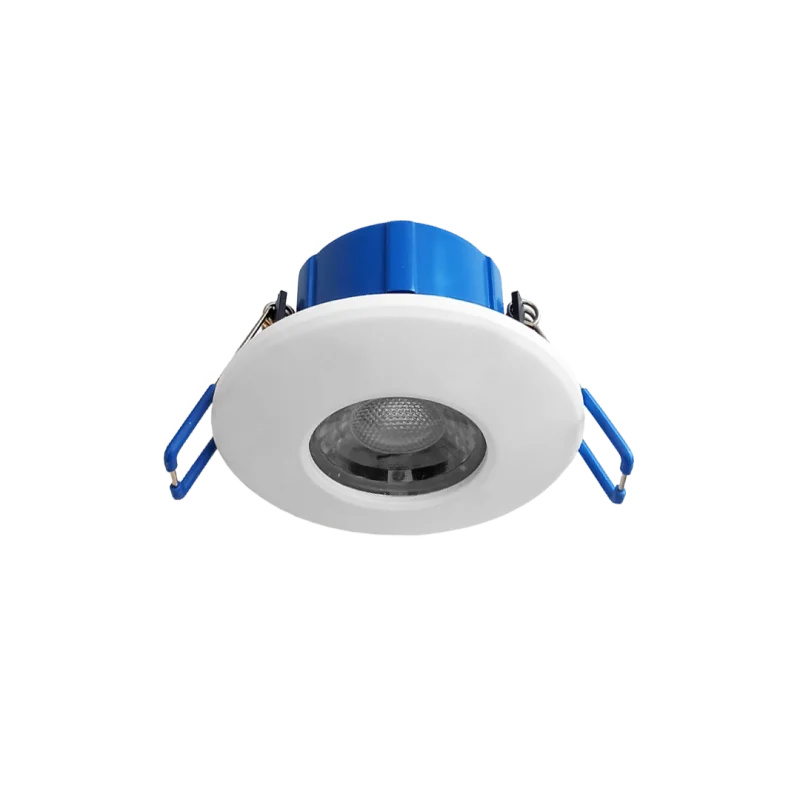

Core Downlight
Core Fire Rated Switchable 3000K or 4000K dimmable integrated downlight
Product Data
| Part Code (s) | R098900 |
| Applications | Interior |
| Warranty | 5 years |
| Certification(s) | CE, RoHS |
Physical Data
| Colour Finish | White (Standard), Black, Chrome |
| Dimensions (mm) | Ø84 x H53 |
| Luminaire Fixing | Recessed |
| Construction Material | Polycarbonate |
| Diffuser Type | Polycarbonate (TP(a) Rated |
Electrical Data
| Wattage | 6W |
| Voltage Range | AC220-240 |
| Power Factor | >0.90 |
| Inrush Current | <30A |
| Running Current | DC71mA |
Dimension Diagram
ricoman.com
Product design and technical data may be subject to change.
0161 877 1399
sales@ricoman.com
Part Code: R098900
Technical Data
| Lumens (±5%) | 600 |
| Efficacy | ~100Lm/W |
| Operating Temperature | -20°C to +45°C |
| Operating Hours | >50000 |
| IK Rating | IK08 |
Light Source Data
| CRI | >85Ra |
| Macadam Ellipse | equal or less than 4 sdcm |
| LEDs | Epistar |

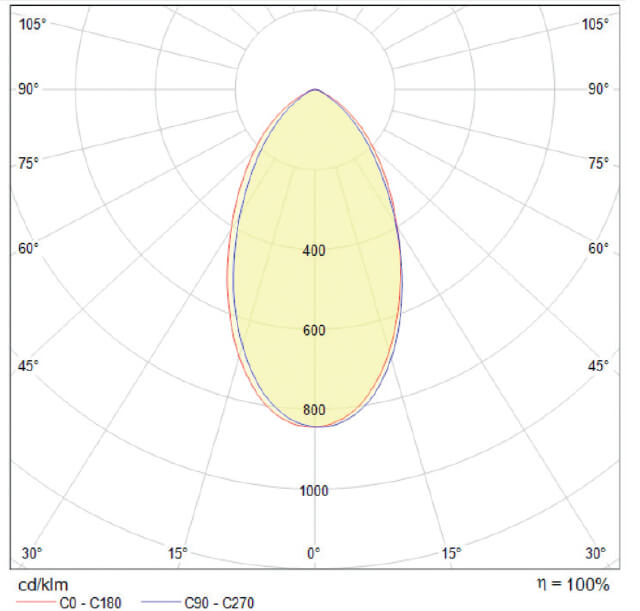

Photometric Diagram
