Flosse
Flosse Wall Pack 13W/18W/28W Switchable, 3000K and 4000K Switchable In Anthracite
Product Data
| Part Code (s) | R301301/AN/CTC/SW |
| Applications | Interior/Exterior |
| Warranty | 5 years |
| Certification(s) | CE, RoHS,UKCA |
Physical Data
| Module | Bulkhead |
| Colour Finish | Anthracite (RAL7016) |
| Body Colour | Anthracite |
| Dimensions (mm) | 319mm x 165mm x 265mm |
| Length | 319mm x 165mm x 265mm |
| Luminaire Fixing | Wall Mounted |
| Construction Material | Die cast aluminium |
| Diffuser Type | Polycarbonate |
Electrical Data
| Wattage | 13W / 18W / 28W |
| Voltage Range | 221 – 240 V |
| Power Factor | >0.09 |
| Inrush Current | 10A for 100μs |
| Running Current | 13W - DC350mA, 18W - DC500mA, 28W - DC725mA |

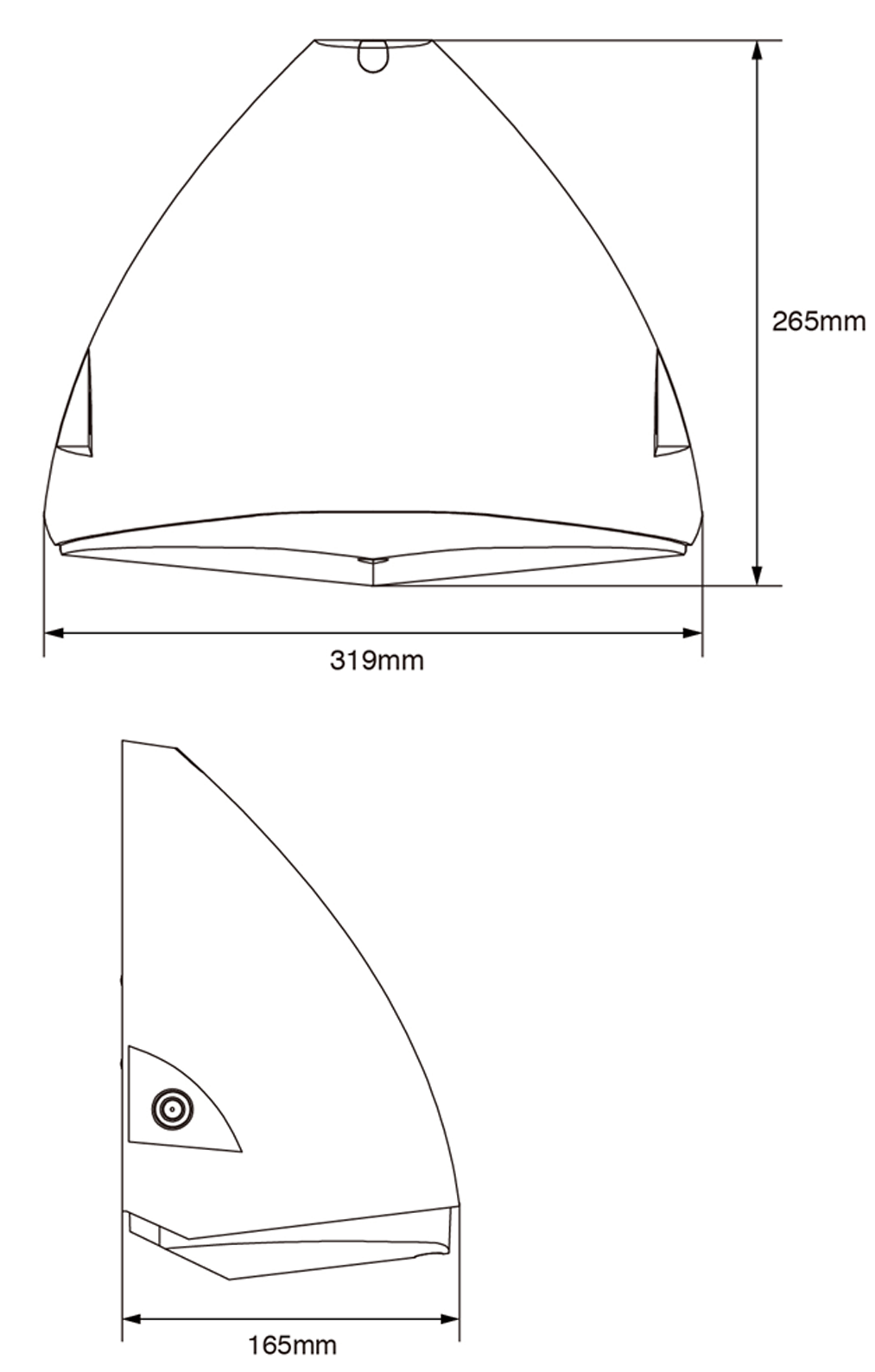

Dimension Diagram
ricoman.com
Product design and technical data may be subject to change.
0161 877 1399
sales@ricoman.com
Part Code: R301301/AN/CTC/SW
Technical Data
| Lumens (±5%) | 13W -1711 @3000K 1757 @4000K, 18W - 2385 @3000K 2453@4000K, 28W 3403 @3000K 3487 @4000K |
| Efficacy | ~125 Lm/W |
| Operating Temperature | -20°C to +40°C |
| Beam Angle | 120 |
| Operating Hours | 50,000 |
| IP Rating | IP65 |
| IK Rating | IK10 |
Light Source Data
| Kelvins | 3000K/4000K |
| CRI | >80Ra |
| Macadam Ellipse | ≤6 sdcm |
Photometric Diagram
