Nexus
Nexus LED Bulkhead with White Open Bezel, Switchable Colour temperature and Wattage
Product Data
| Part Code (s) | R181401 |
| Warranty | 5 years |
| Certification(s) | CE, RoHS |
Physical Data
| Colour Finish | White |
| Body Colour | White |
| Dimensions (mm) | Ø325 x H75 |
| Luminaire Fixing | Surface mounted |
| Construction Material | Polycarbonate |
| Diffuser Type | TP(b) rated |
Electrical Data
| Wattage | 9W / 12W / 16W |
| Voltage Range | AC200-240V |
| Inrush Current | <60A |
| Running Current | 60mA |

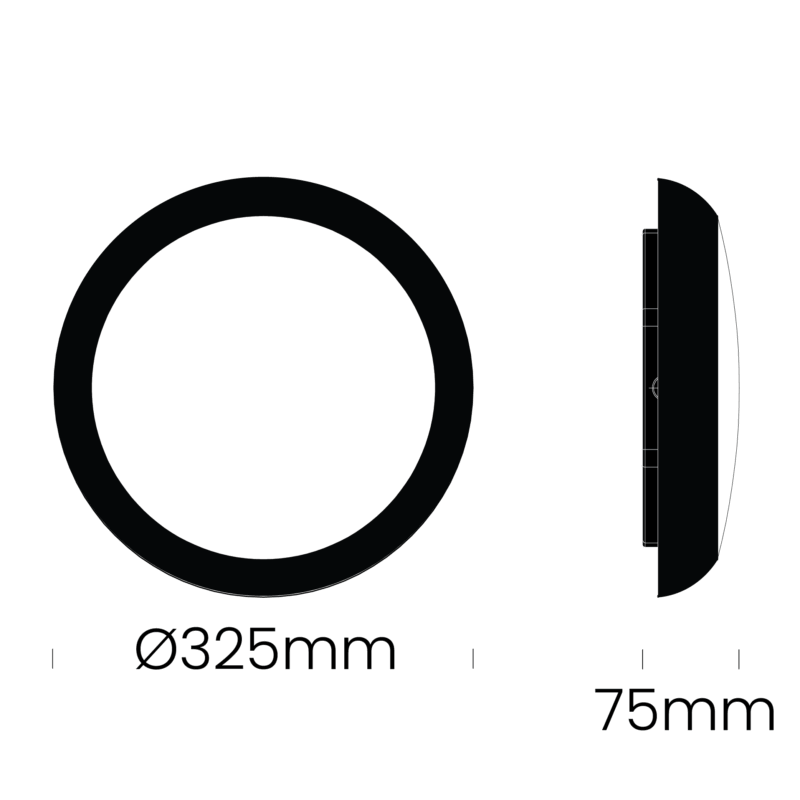

Dimension Diagram
ricoman.com
Product design and technical data may be subject to change.
0161 877 1399
sales@ricoman.com
Part Code: R181401
Technical Data
| Lumens (±5%) | 1253 |
| Efficacy | (9w) 139 Lm/W |
| Beam Angle | 120° |
| Operating Hours | -20°C to +45°C |
| IP Rating | IP65 |
| IK Rating | IK09 |
Light Source Data
| Kelvins | 3000K / 4000K / 5000K / 6000K |
| CRI | 85 Ra |
| Macadam Ellipse | <3 |
Photometric Diagram
