PURE
Pure 500x500 LED Panel 30W 4000K
Product Data
| Part Code (s) | R101191/4K |
| Applications | Interior |
| Warranty | 5 years |
| Certification(s) | CE, RoHS, VDE |
Physical Data
| Colour Finish | White |
| Dimensions (mm) | 495 x 495 x 12.5 |
| Luminaire Fixing | Lay in, surface, burgess, armstrong, SAS, suspended |
| Construction Material | Aluminium |
| Diffuser Type | PMMA |
Electrical Data
| Wattage | 30W |
| Voltage Range | AC200-240V |
| Power Factor | >0.90 |
| Inrush Current | <60A |
| Running Current | DC700mA |

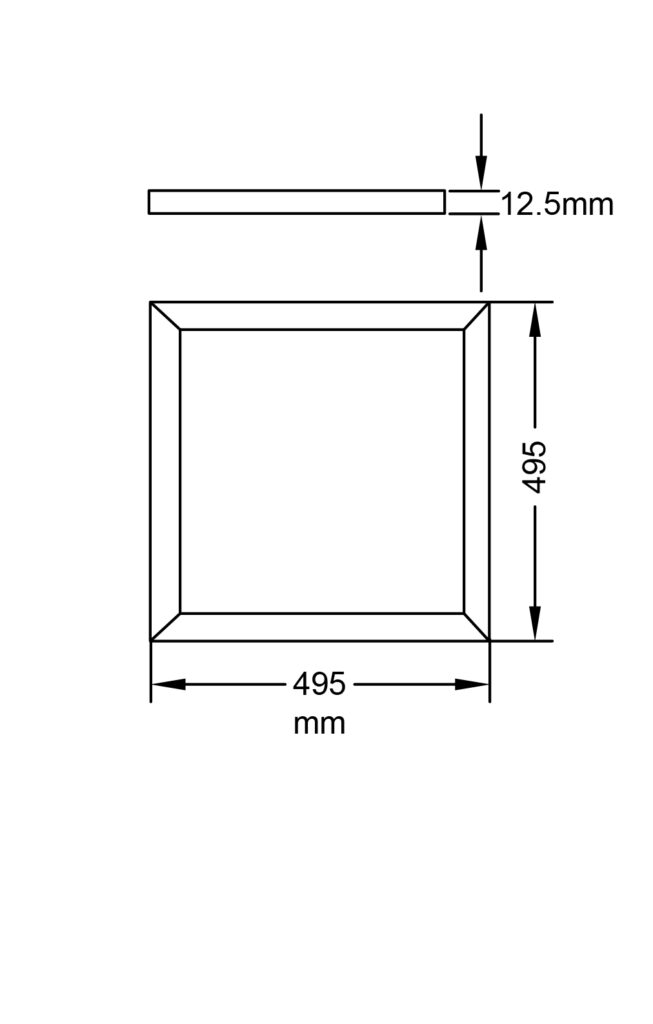

Dimension Diagram
ricoman.com
Product design and technical data may be subject to change.
0161 877 1399
sales@ricoman.com
Part Code: R101191/4K
Technical Data
| Lumens (±5%) | 3152 |
| Efficacy | ~105Lm/W |
| Operating Temperature | -20°C to +45°C |
| Beam Angle | 120° |
| Operating Hours | >50000 |
| IP Rating | IP44 |
| IK Rating | IK08 |
Light Source Data
| Kelvins | 4000K |
| CRI | >85Ra |
Photometric Diagram
