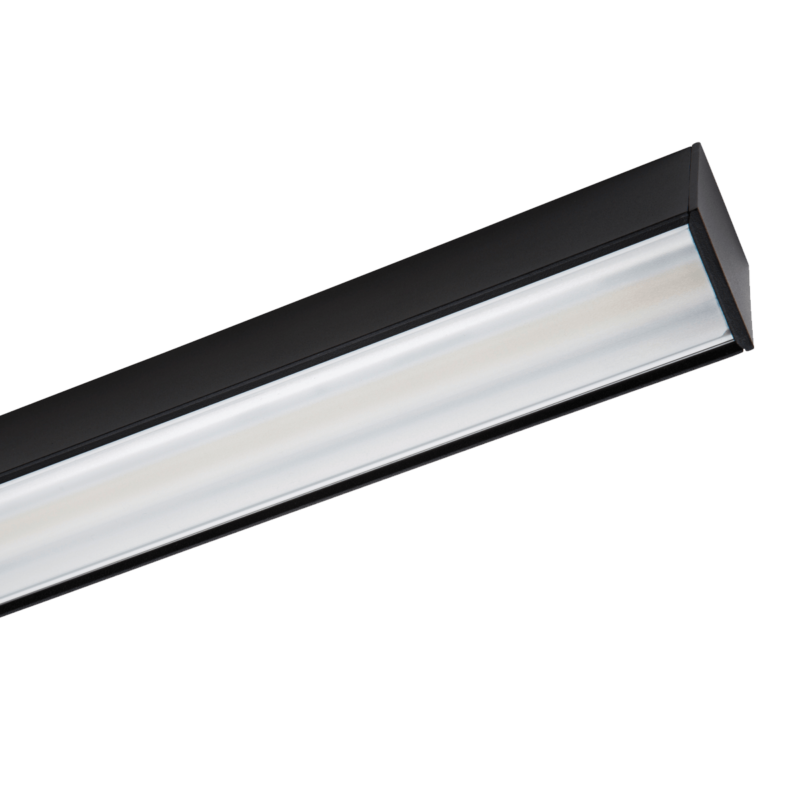

Estrella Pro Wallwash Linear
Architectural surface mounted or suspended linear lighting solution for individual applications and continuous light-line systems.
- TP(a) rated wallwash diffuser with a 60 degree beam angle, engineered for even vertical illumination across walls and surfaces
- Designed to achieve UGR 90 Ra
- Extruded aluminium profile, IP40 and IK08 rated
- Manufactured in the UK
Specification
Light Source Information
- Direct light output
- Option for direct/ indirect (70%/30%) light output
- LED outputs available from 812 to 8731 lm
- Low, standard or high output available, efficacy up to 116lm/W
- Internal drivers supplied
- Flicker-free for maximum eye comfort
- 90 colour rendering index
- Colour Temperature 3000K | 4000K | 5000K | Tunable White (2700-6500) | RGBW (4000K white)
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- Single bin Samsung LEDs with a ≤3 step Macadam ellipse tolerance
Design
- Extruded aluminium profile
- IP40 Rated
- IK08 Rated
- Suspended or surface-mounted
- Available in 4 linear sizes 532mm, 1064mm, 1596mm and 2128mm
- Available in White (RAL9016), Black (RAL9005) or Grey (RAL7046) as standard, custom RAL available on request
- Blank modules available
Optics
- TP(a) rated wallwash diffuser
- 60 degree beam angle
- Designed to achieve UGR<22
Installation
- Surface mounted, suspended, wall mounted, track mounted, solid rod mounted (direct/indirect version can only be suspended)

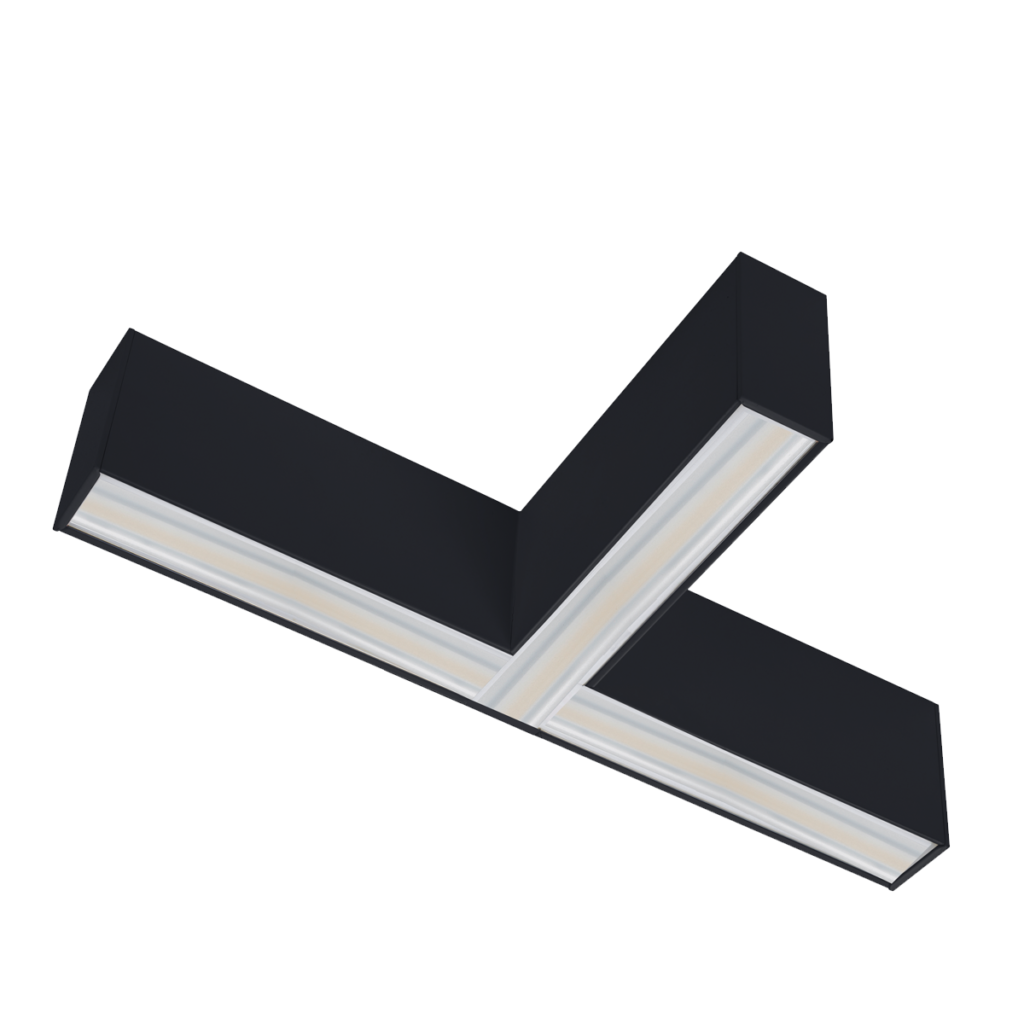

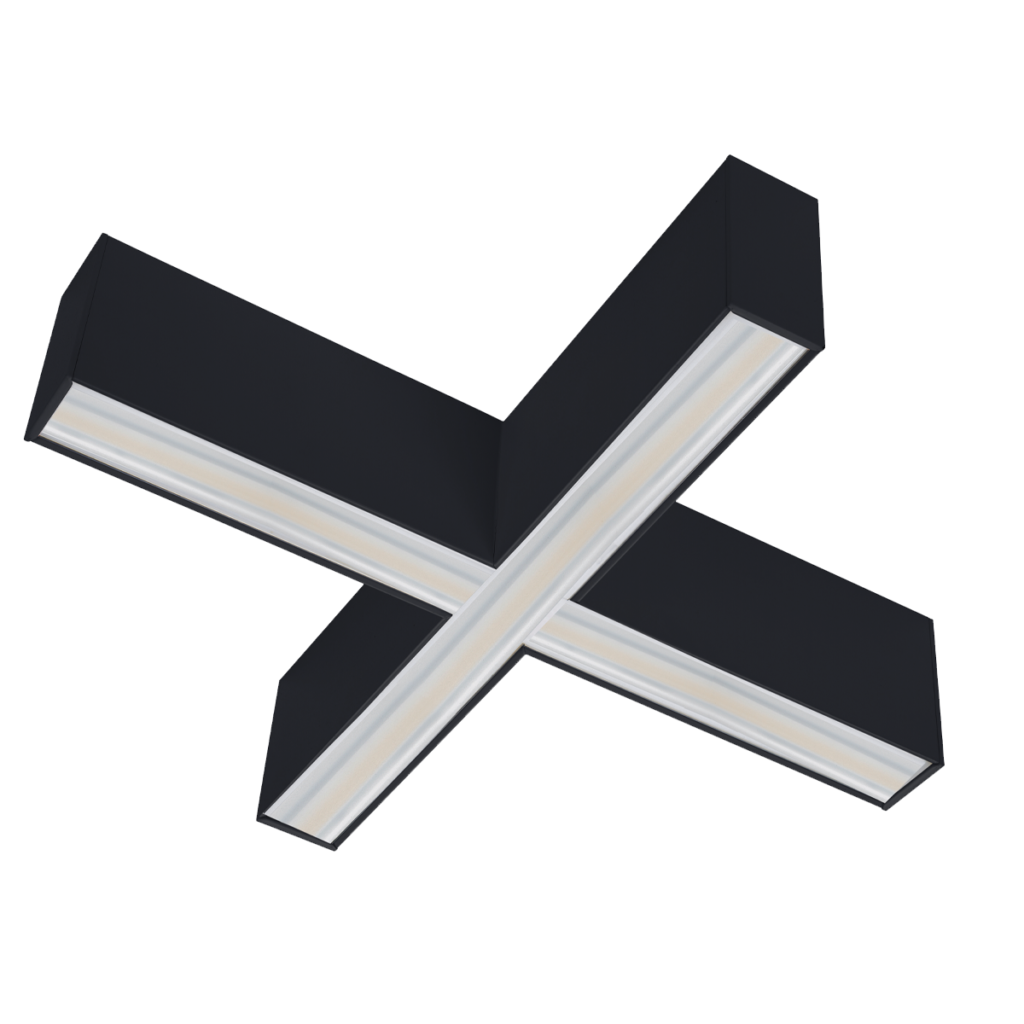

- Can easily be connected into a continuous system
- Quick and simple power and control connection
Dimming
- Non-dimmable as standard
- DALI dimming available
- Tuneable White uses DALI DT 8 control drivers
Controls
- CASAMBI
- CP Sensor
- DMX
- Signify Easy Air
- Customised solution
Emergency
- 3hr integrated emergency available
- DALI addressable emergency
Anti-Microbial Protection
- Steritouch powder coating available
Miscellaneous
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
To specify state:
- Modular linear LED system with wallwashing / grazing optics, for continuous or stand-alone configuration, that can be suspended or surface mounted. Available in a range of colour temperatures and lumen packages, tailored to your specification. Create continuous lines – as RICOMAN Estrella Pro Wallwash.
Features
- TP(a) rated wallwash diffuser with a 60 degree beam angle, engineered for even vertical illumination across walls and surfaces
- Designed to achieve UGR 90 Ra
- Extruded aluminium profile, IP40 and IK08 rated
- Manufactured in the UK
- Available in 3000K | 4000K | 5000K | Tunable white | RGBW
- Ideal for circadian/human centric lighting
- DALI dimming available (Tunable White uses DALI DT8 drivers), non-dimmable as standard
- Compatible with Casambi, DMX, Signify Easy Air and CP Sensor controls
- 3 hour integrated emergency option available
- Other optical options: Square Aperture | Round Aperture | Louvre (Mirror, White, Dark) | Opal
