Soar III

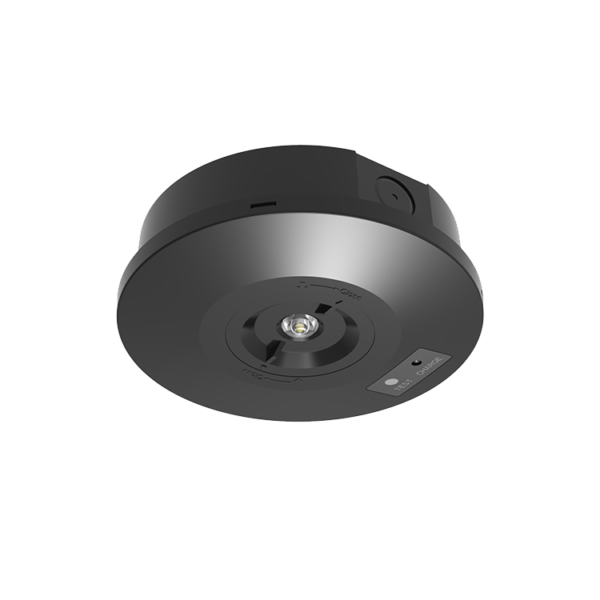

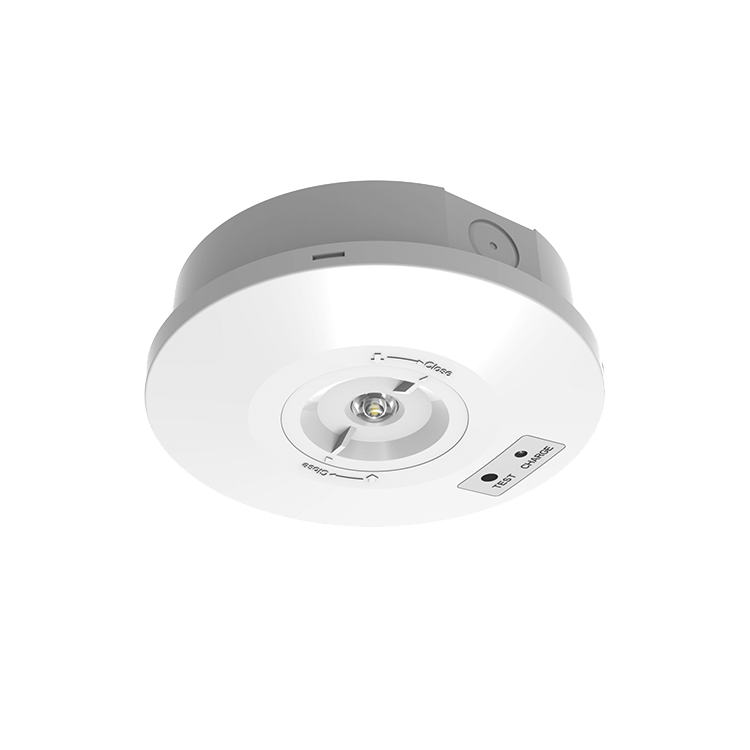

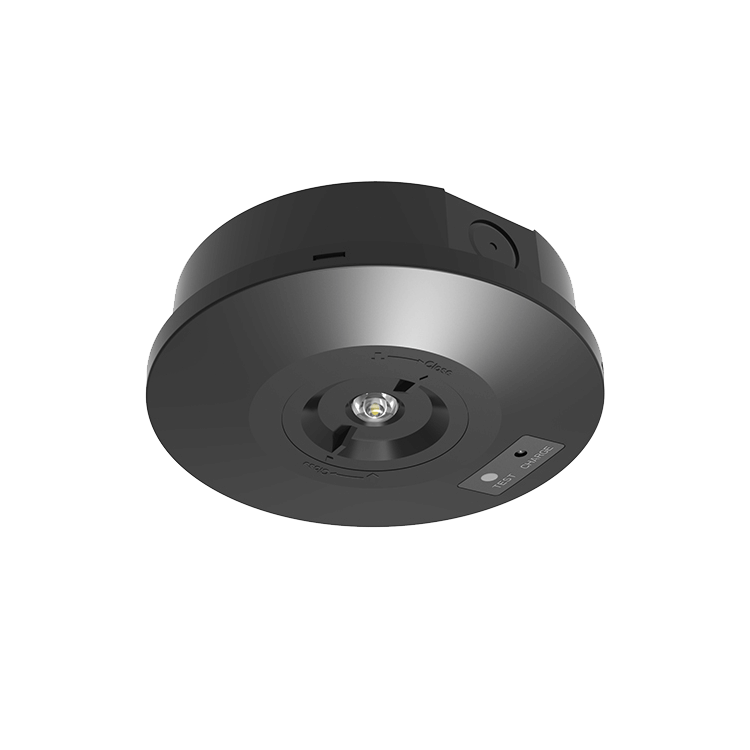

Round Surface Mounted Emergency Downlight
- Switchable between Self test & manual test.
- Black or white versions available for both shapes.

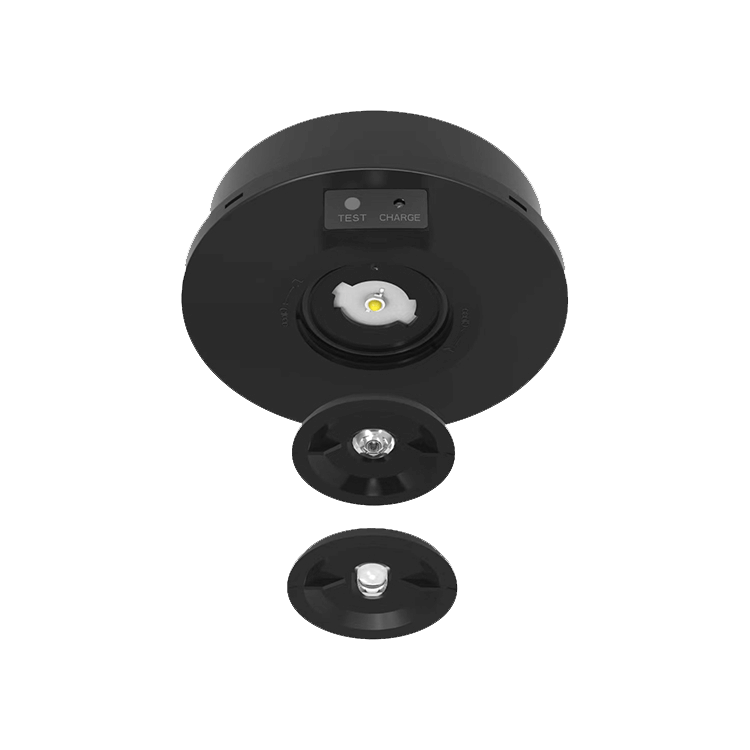

- Both corridor and open area beam angles included.
Specification
Light Source Information
- Direct light output
- Colour Temperature 6500K
Design
- Polycarbonate body
- IP65 Rated
- IK08 Rated
- Surface Mounted
- H46mm x 155mm diameter
Optics
- Polycarbonate diffuser
- 150 or 80×30 degree beam angle
Installation
- Surface mounted
Battery
- Battery type: NiCd
- Battery duration: >3 hours
Miscellaneous
- Non maintained
- Self-test (except for black finish option) or manual test
- 3 year warranty
- To specify state:
- Round surface mounted emergency LED downlight, offering both open area and escape route optics – as RICOMAN’s Soar II.
Dimensions
Features
- Open area and escape route option
- Delivering up to 270 lumens open area and 230 lumens corridor
- Self test (except for black finish option) and manual test available
- Surface mounted with easy installation
- Tough polycarbonate housing
- Minimal maintenance
- Non-maintained
- IP65
- Black or white colour option
SOAR III Emergency Downlight – Switchable Self-Test or Manual Test | Open Area & Corridor Optics
The SOAR III emergency downlight combines flexibility and performance, featuring selectable self-test or manual test functionality and beam angles for both open areas and corridors. Designed for safety and compliance.
SOAR III Emergency Downlight – Style Meets Performance

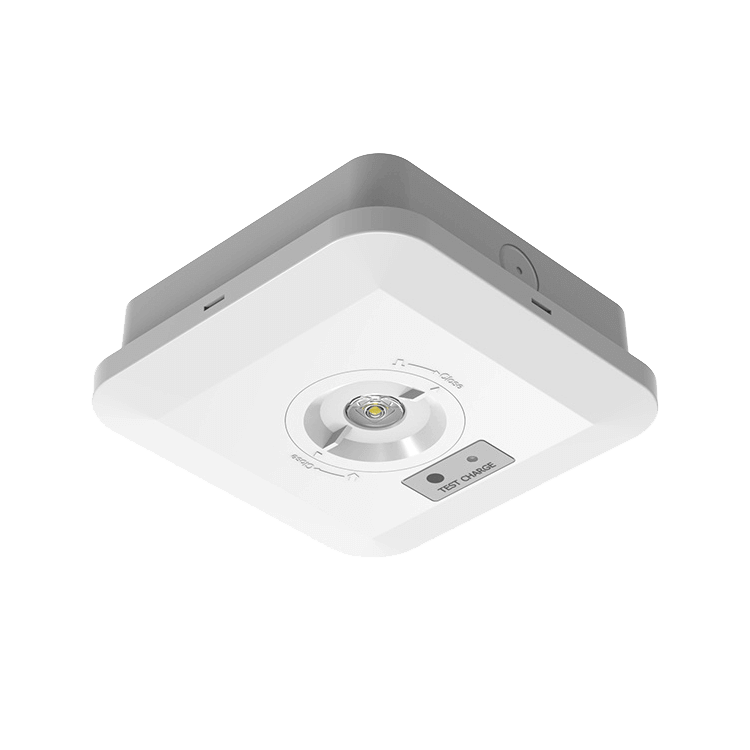

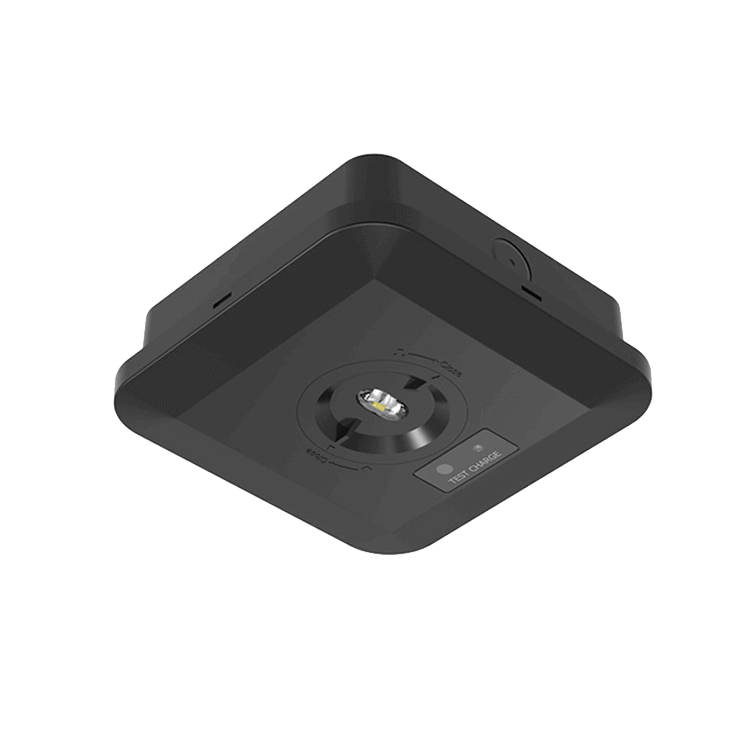

The SOAR III emergency downlight offers flexibility and style with round or square designs in black or white finishes.
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R221562/WT | SOAR III - Round, White Housing, Surface Emergency, Manual & Self Test | Open Area:280 / Corridor: 230 | 2W | 115Lm/W | 6500K | White | Ø155 x H46 | – | – | 3 years | LDT ↓ | Datasheet ↓ |
| R221562/BK | SOAR III - Round, Black Housing, Surface Emergency, Manual & Self Test | Open Area:280 / Corridor: 230 | 2W | 115Lm/W | 6500K | Black | Ø155 x H46 | – | – | 3 years | LDT ↓ | Datasheet ↓ |
 | R221563/WT | SOAR III - Square, White Housing, Surface Emergency, Manual & Self Test | Open Area:280 / Corridor: 230 | 2W | 115Lm/W | 6500K | White | Ø155 x H46 | – | – | 3 years | LDT ↓ | Datasheet ↓ |
 | R221563/BK | SOAR III - Square, Black Housing, Surface Emergency, Manual & Self Test | Open Area:280 / Corridor: 230 | 2W | 115Lm/W | 6500K | Black | Ø155 x H46 | – | – | 3 years | LDT ↓ | Datasheet ↓ |
