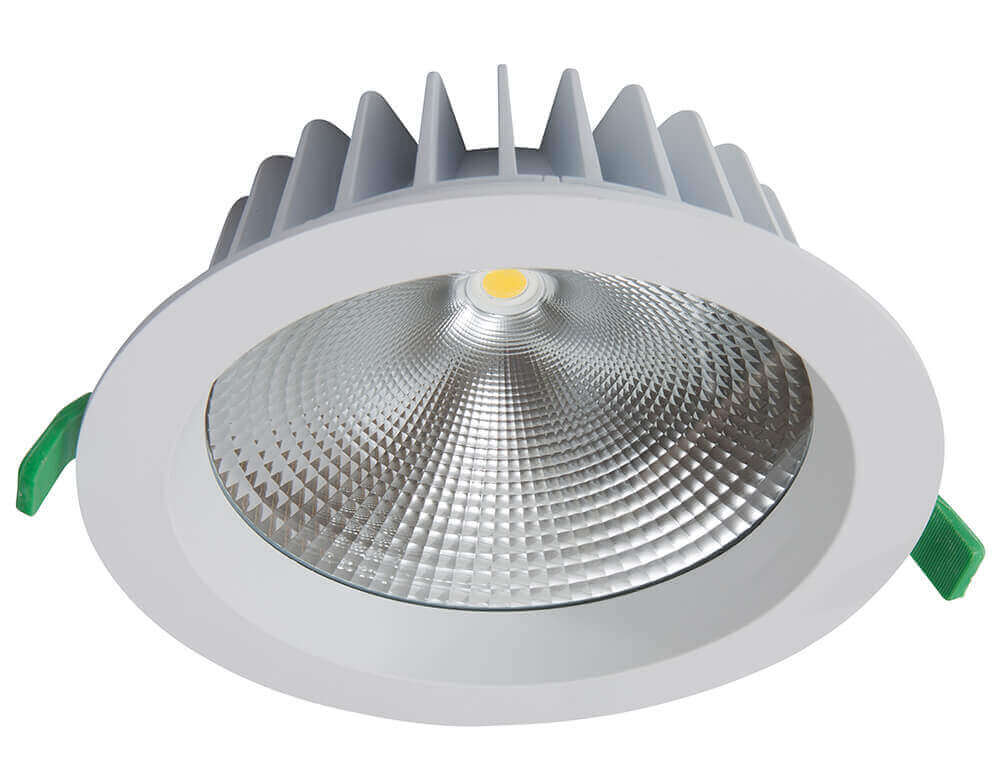

CAPELLA

CAPELLA

Designed to reduce glare and ensure a crisp light effect, ideal for retail and reception applications

  • Recessed light source to reduce glare
  • 9W | 12W | 22W | 30W
  • Excellent efficacy at 105 Lm/W
  • 5000K as standard and 4000K as a special
Request a Lighting Design Apply for a Trade Account
Configure Product Specifications Downloads

Specification

Light Source Information

  • Direct light output
  • 9W | 12W | 22W | 30W delivering up to 3155lm
  • Efficacy of 105lm/W
  • Drivers supplied
  • >90 colour rendering index
  • 5000K colour temperature as standard (4000K as special)
  • L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
  • Single Bin Bridgelux COB with a ≤3 step Macadam ellipse tolerance

Design

  • White aluminium body
  • IP54 rated
  • Recessed installation
  • Cut out extension ring available to cover gaps in oversized cut outs

Cutout

  • 9W = ø90mm
  • 12W = ø120mm
  • 22W = ø165mm
  • 30W = ø200mm (cut out extension ring available 250-270mm)

Optics

  • 60° beam angle
  • Glass diffuser

Dimming

  • Non dimmable as standard
  • Mains, DALI, 0-10V, DSI dimming available

Miscellaneous

  • 3hr emergency available
  • DALI Addressable emergency available
  • Z10 remote control manual or advanced self-test emergency available
  • 5 year warranty
  • To specify state:
  • Recessed LED downlighter with robust aluminium body ensuring excellent thermal control – as RICOMAN’s Capella range

Features

  • Recessed light source to reduce glare
  • 9W | 12W | 22W | 30W
  • Excellent efficacy at 105 Lm/W
  • 5000K as standard and 4000K as a special
  • IP54 rated, suitable for high humidity areas
  • Cut out extension ring available on the 30W version
  • CRI> 90Ra
  • L70 B50 = 100,000 hours    |    L90 B50 = 42,000 hours
  • Single Bin Bridgelux COB with a ≤3 step Macadam ellipse tolerance
  • Dimming options available
  • Emergency options available: Standard | DALI | Remote control testing

Configure Your Product

Part CodeDescriptionLumensWattageEfficacyColour TempColour FinishDimensions (mm)EmergencyReflectorWarrantyLDTDatasheet
R093101/4KCapella COB Downlight 9W 4000K~105Lm/W9W-20°C to +45°C4000KØ110 x H42RecessedNon emergency–CE, RoHSLDT ↓Datasheet ↓
R093104/4KCapella COB Downlight 30W 4000K~105Lm/W30W-20°C to +45°C4000KØ230 x H88RecessedNon emergency–CE, RoHSLDT ↓Datasheet ↓
R093103/4KCapella COB Downlight 22W 4000K~105Lm/W22W-20°C to +45°C4000KØ193 x H75.5RecessedNon emergency–CE, RoHSLDT ↓Datasheet ↓
R093102/4KCapella COB Downlight 12W 4000K~105Lm/W12W-20°C to +45°C4000KØ140 x H53.5RecessedNon emergency–CE, RoHSLDT ↓Datasheet ↓
R093104Capella COB Downlight 30W 5000K~105Lm/W30W-20°C to +45°C5000KØ230 x H88RecessedNon emergency–CE, RoHSLDT ↓Datasheet ↓
R093103Capella COB Downlight 22W 5000K~105Lm/W22W-20°C to +45°C5000KØ193 x H75.5RecessedNon emergency–CE, RoHSLDT ↓Datasheet ↓
R093102Capella COB Downlight 12W 5000K~105Lm/W12W-20°C to +45°C5000KØ140 x H53.5RecessedNon emergency–CE, RoHSLDT ↓Datasheet ↓
R093101Capella COB Downlight 9W 5000k~105Lm/W9W-20°C to +45°C5000KØ110 x H42RecessedNon emergency–CE, RoHSLDT ↓Datasheet ↓
