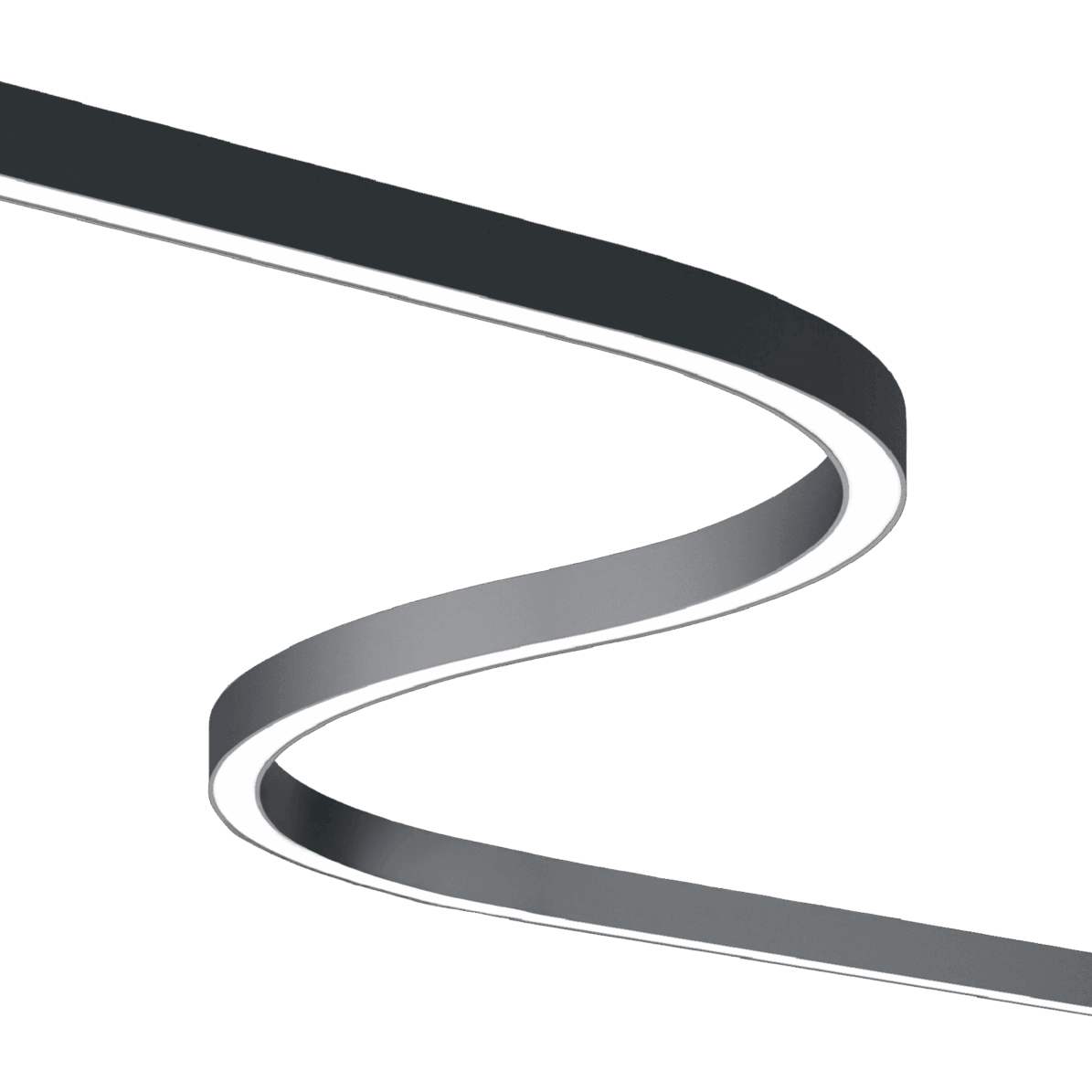

Flow+
Flow + redefines curved linear lighting with custom shapes, recessed options, and versatile profile sizes. Adaptable designs with limitless creativity.
- Flexible Curved Designs - Various arc angles, diameters, and L-corner options for bespoke ceiling layouts.
- Easy Installation - Modular system with seamless joins, ideal for commercial and hospitality fit-outs.
- High-Quality, Feature Lighting - Smooth, uniform LED illumination with accurate colour rendering for premium spaces.
Specification
Light Source Information
- 20W/M delivering 135Lm/W
- External drivers supplied (Driver box available)
- >90 colour rendering index
- Colour Temperatures 2700k, 3000K, 4000k, 5000k or 6000K
- . RGB options available
Design
- Finishes available: Black (RAL9005), Custom RAL
- IP20 Rated
Dimming
- Non-dimmable as standard
- DALI and Casambi dimming options available
Miscellaneous
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- Curved Linear LED luminaire available in black. Constructed from aluminium housing with a silicon diffuser and downwards lighting direction. L shapes, Arcs, Rings and Straight profiles available – as RICOMAN’s Flow+
Dimensions
Features
- CRI >90
- Straight lines up to 2.4m line with the possibility to cut to custom lengths
- Arcs in 45°, 60°, 90°, 120° and 180° from a range of diameters from 450mm to 3000mm
- L shapes in 60°, 90°and 120°
- Ring shapes from ø450mm to ø3000mm
- 2700K, 3000K, 4000K, 5000K and 6000K colour temperature options
- Available in RGB
- Aluminium body profile
- Black and Custom RAL body finish
- Flexible silicone diffuser, no light leakage
- Pendant, surface-mounted or recessed versions
- Remote driver
- Drivers sold separately
- Modules can be easily connected for a continuous lighting system
- A range of accessories are available
Configure Your Product
Loading the configurator…
Accessories
You may also like
Frequently asked questions
What is Flow+ and what makes it different from a standard linear fitting?

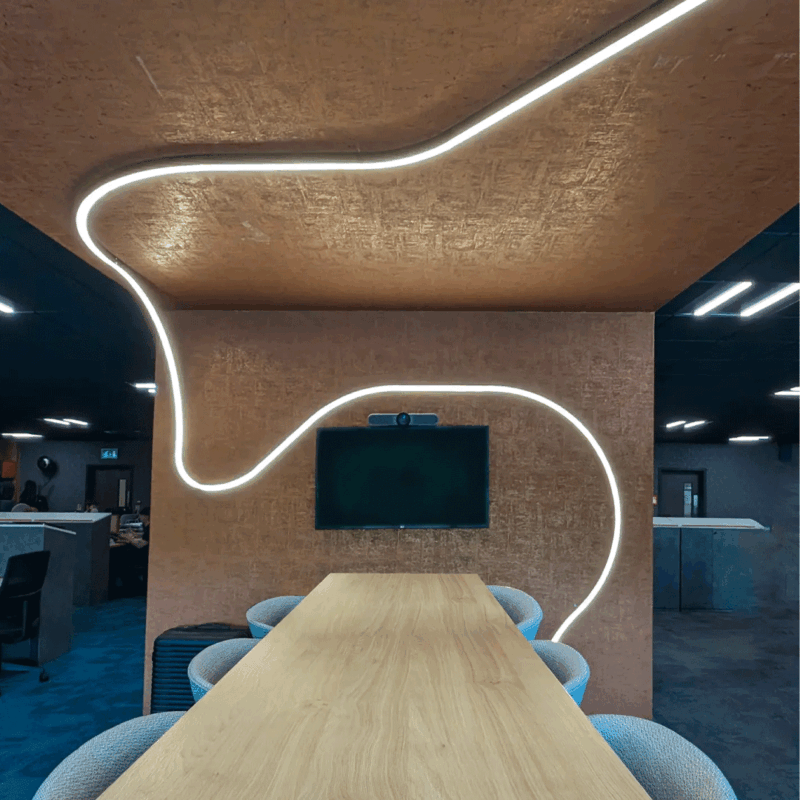

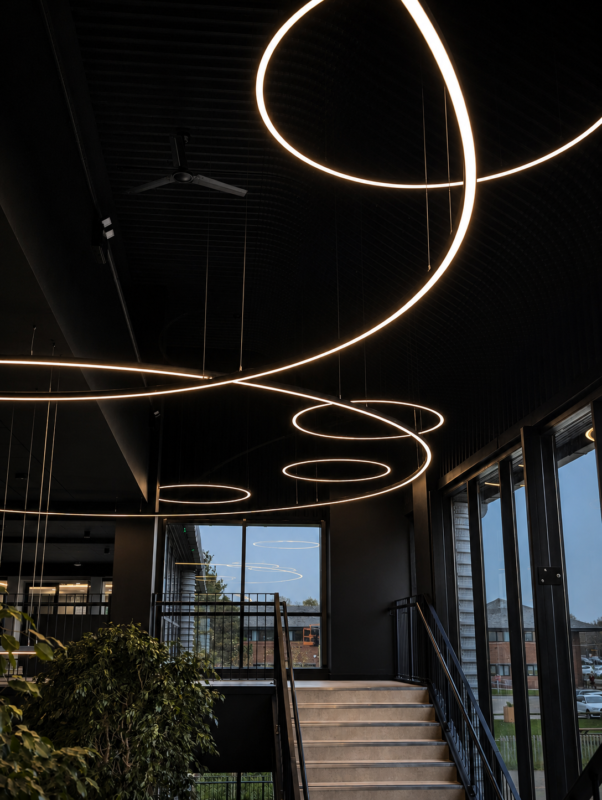

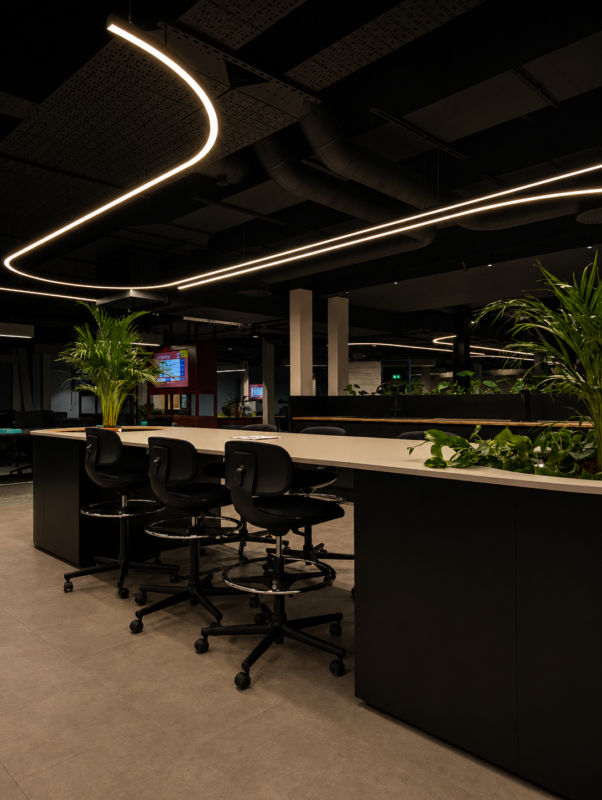

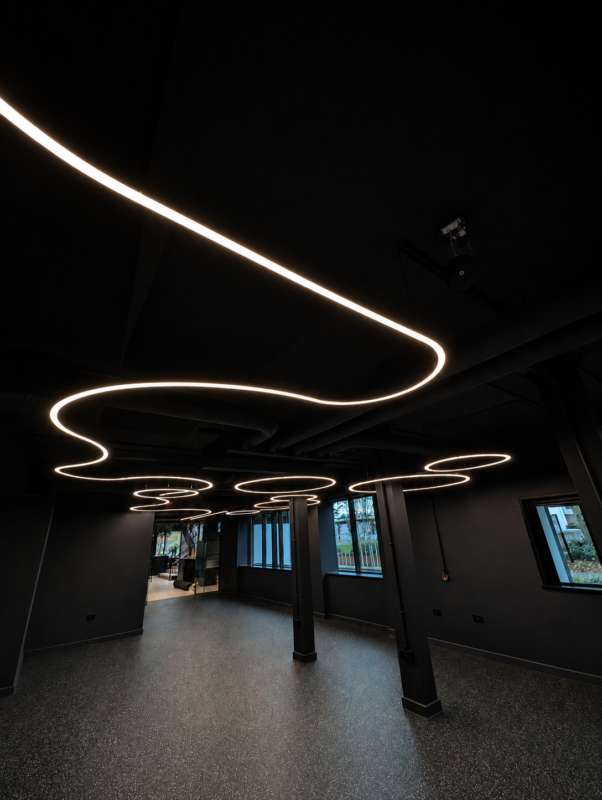

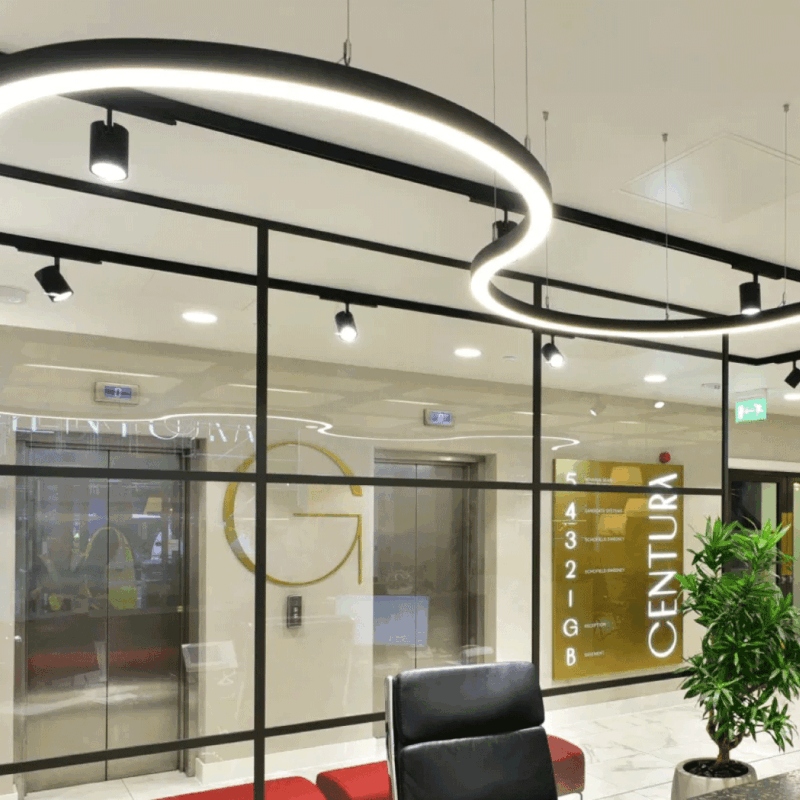

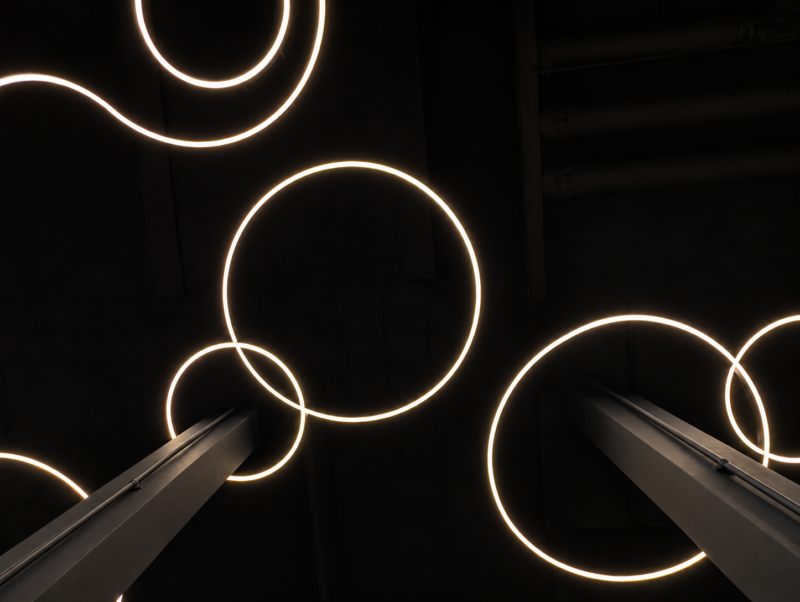

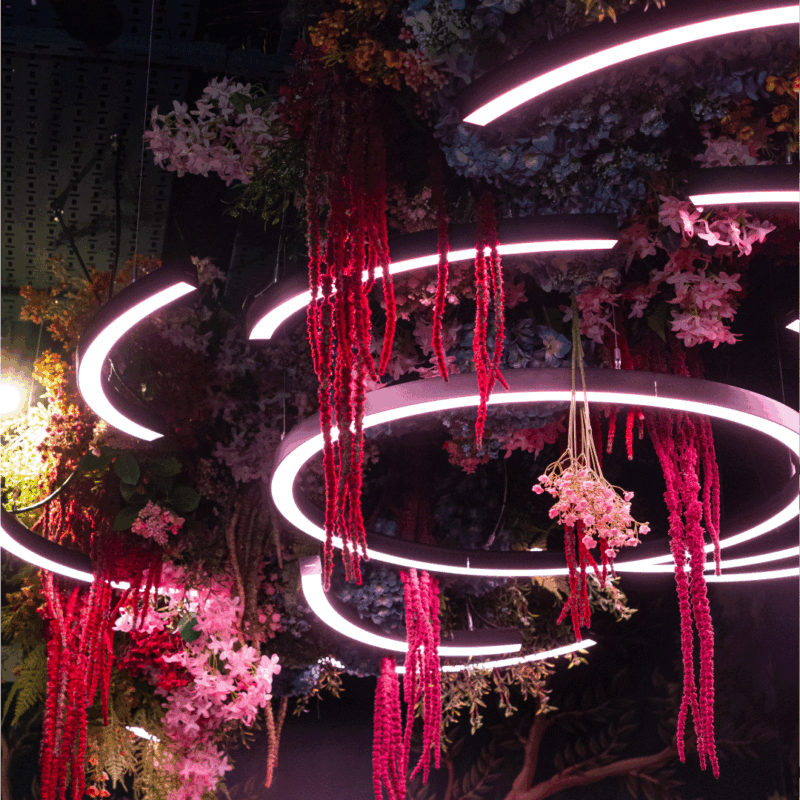

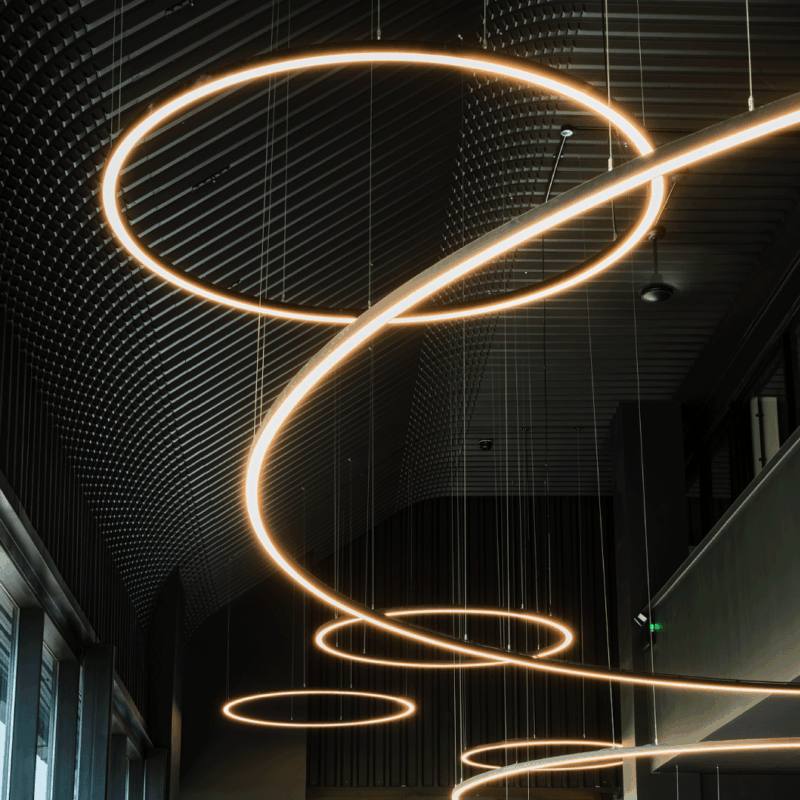

Flow+ is a linear lighting system built from straight, arc and ring shaped modules that combine to create curved lighting features rather than being limited to fixed straight runs. Sections can be joined into rings, waves and interlocking curves, moving the design from a straight line into a genuine three dimensional feature. This makes Flow+ a strong choice for feature lighting in reception areas, stairwells and hospitality spaces where a sculptural ceiling or wall element is wanted.
Can Flow+ be made to a custom length for my project?
Yes. While standard lengths and shapes are listed for ordering ease, Flow+ can be produced to any length or shape required, since Ricoman bends and produces it in-house rather than sourcing fixed lengths from a supplier. This means a specifier isn't constrained by a standard part-code list when a space calls for something bespoke. It makes Flow+ a genuine made-to-spec solution rather than a product forced to fit the room.
What makes Flow+'s curves and shapes possible?
Flow+ is bent and produced using Ricoman's own bending machine, the only one of its kind for lighting in the UK. This means curves, rings and arcs are formed in-house to the exact geometry a project needs, rather than being limited to a set of pre-moulded shapes. It gives specifiers a level of design freedom that's difficult to get from a standard linear lighting range.
What kind of shapes and layouts can Flow+ create?
Flow+ can be formed into straight runs, full rings, arcs from 45 to 180 degrees, and L-shapes at 60, 90 or 120 degrees, and because Ricoman bends it in-house, these aren't the only options available. This gives designers real freedom to create a layout that's unique to the project rather than adapting a design to fit a standard product. It suits feature ceilings and architectural layouts where the lighting is meant to stand out as part of the design itself.
How is a Flow+ installation mounted and put together?

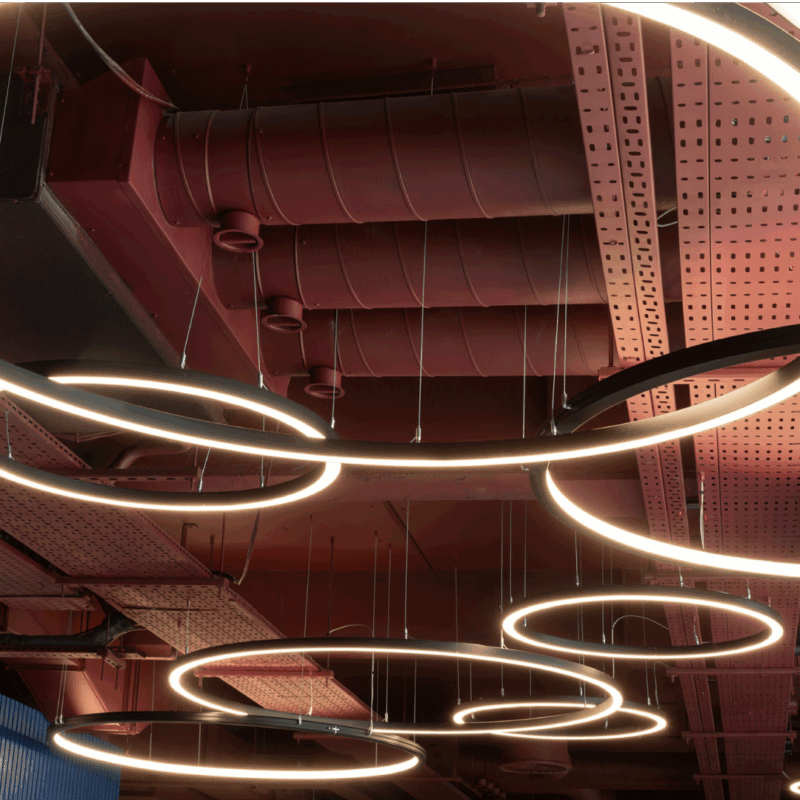

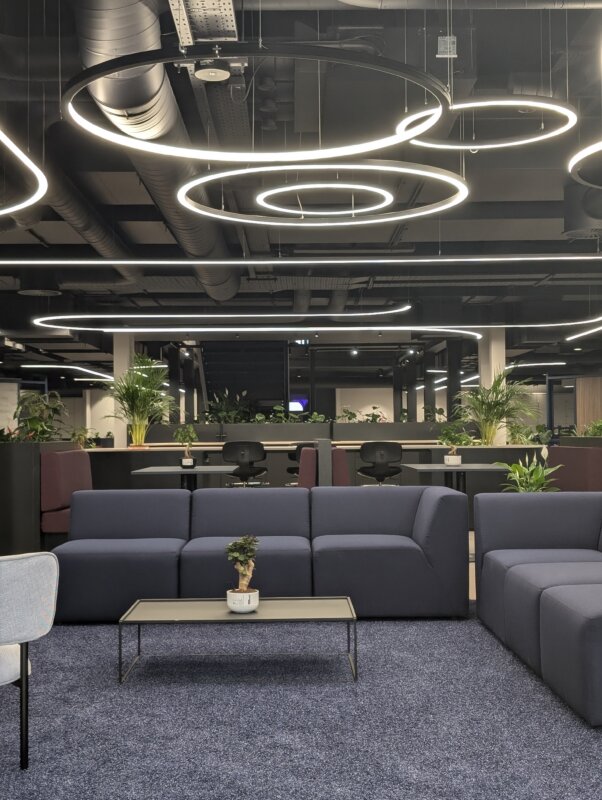

Flow+ can be recessed, suspended or surface mounted, with end caps, connection packs, surface mounting kits, suspension kits and recessed clips available to complete the installation. Ring features up to 1200mm diameter include a ceiling rose as standard, while larger rings are supplied divided into arcs with suspensions rather than one fixed rose.
