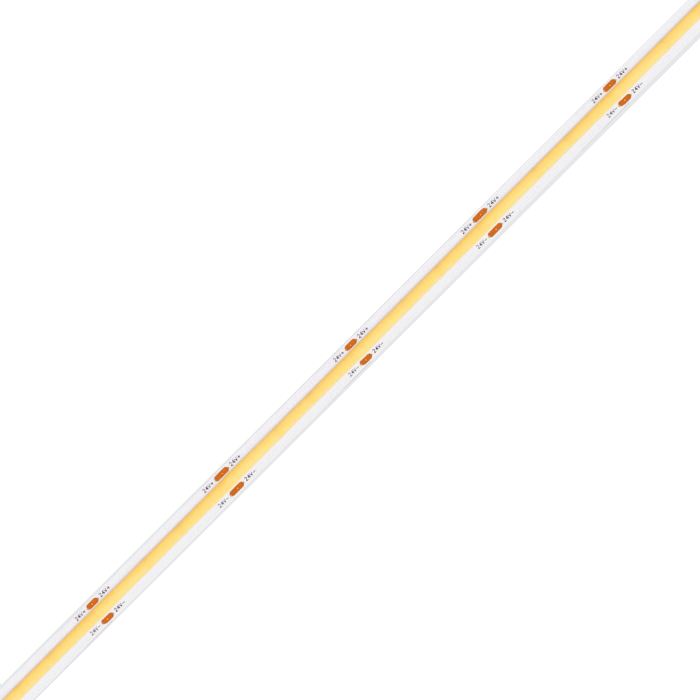

RICOStrip COB LED Strip
This ‘dot free’ COB LED Strip lighting. The term COB refers to the Chip On Board manufacturing process of the LED Strip lighting. The LED’s are mounted in direct contact with the PCB meaning a much denser amount of LED’s per Metre.
- CRI >90, 800 to 1000 lumens per metre, 4 colour temperatures from 2700K to 6500K
- IP20 or IP65 rated, cuttable every 50mm, custom lengths up to 5m
- Solderless push connections, Casambi & Lutron compatible
Specification
Light Source Information
- Direct light output
- LED outputs available from 800 to 1000 lumens to per meter
- 2700K, 3000K, 4000K, 6500K colour temperatures
- >90 colour rendering index
Design
- Cut points every 50mm
- 8mm wide
- IP20 Rated or IP65 Rated
- Surface-mounted 3m tape
- 12cm Supply lead as standard. Custom lengths available·
- Jumper leads available
- Corner L, straight solderless electrical connectors for IP20 LED strip
Installation
- Can easily be push connected into a continuous system.
- Quick and simple power and control connection which push into place
Dimming
- Dimmable driver as available
Controls
- Casambi available
- Lutron available
Miscellaneous
- 5 year warranty
- To specify state:
- Compact and flexible LED COB (Chip On Board) strip with self-adhesive tape on the reverse for fast installation. Available in IP20 and IP65 and a choice of 2700K, 3000K, 4000K, 6500K colour temperatures, CRI 90, 8mm width, supplied in custom lengths up to 5m with a 12cm supply lead.
Dimensions
Features
- High-Performance COB LED: Experience brilliant illumination with the COB LED technology, providing spotless light.
- Voltage: Operates on a reliable 24VDC for consistent and efficient lighting.
- Slim Design: With an 8mm width, this LED strip seamlessly integrates into various spaces.
- Color Temperature Options: Tailor the ambiance with options of 2700K, 3000K, 4000K, 6500K
- Cut Points: Flexibility is key—cut the strip at every 50mm to achieve the desired length.
- High Color Rendering Index (CRI): Enjoy true-to-life colors with a CRI exceeding 90.
- Energy-Efficient: Achieve efficiency with 9.6W/m, balancing performance and sustainability.
- Custom Lengths: Tailor your lighting solution with custom lengths available up to 5 meters.
- IP Ratings: Choose between IP20 and IP65 versions based on your specific environmental needs.
- Luminous Output: Illuminate with precision, ranging from 800 lumens per meter to 1000 lumens per meter.
- Supply Lead: Standard 12cm supply lead, with custom lengths available for added flexibility.
- Jumper Leads: Enhance connectivity with available jumper leads.
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R081010/27K/IP20 | Ricostrip COB 2700K IP20 | 800Lm/M | 9.6W/M | ~84Lm/W | 2700K | N/A | Up to 5m length, 8mm wide, 50mm cutting unit | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R081010/3K/IP20 | Ricostrip COB 3000K IP20 | 800Lm/M | 9.6W/M | ~84Lm/W | 3000K | N/A | Up to 5m length, 8mm wide, 50m cutting unit | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R081010/4K/IP20 | Ricostrip COB 4000K IP20 | 910Lm/M | 9.6W/M | ~95Lm/W | 4000K | N/A | Up to 5m length, 8mm wide, 50m cutting unit | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R081010/65K/IP20 | Ricostrip COB 6500K IP20 | 1000Lm/M | 9.6W/M | ~104Lm/W | 6500K | N/A | Up to 5m length, 8mm wide, 50mm cutting unit | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R081010/27K/IP65 | Ricostrip COB 2700K IP65 | 800Lm/M | 9.6W/M | ~84Lm/W | 2700K | N/A | Up to 5m length, 10mm wide, 50mm cutting unit | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R081010/3K/IP65 | Ricostrip COB 3000K IP65 | 800Lm/M | 9.6W/M | ~84Lm/W | 3000K | N/A | Up to 5m length, 10mm wide, 50mm cutting unit | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R081010/4K/IP65 | Ricostrip COB 4000K IP65 | 910Lm/M | 9.6W/M | ~95Lm/W | 4000K | N/A | Up to 5m length, 10mm wide, 50mm cutting unit | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R081010/65K/IP65 | Ricostrip COB 6500K IP65 | 1000Lm/M | 9.6W/M | ~104Lm/W | 6500K | N/A | Up to 5m length, 10mm wide, 50mm cutting unit | – | – | 5 years | LDT ↓ | Datasheet ↓ |
You may also like
Frequently asked questions
What is Ricostrip COB and where is it used?

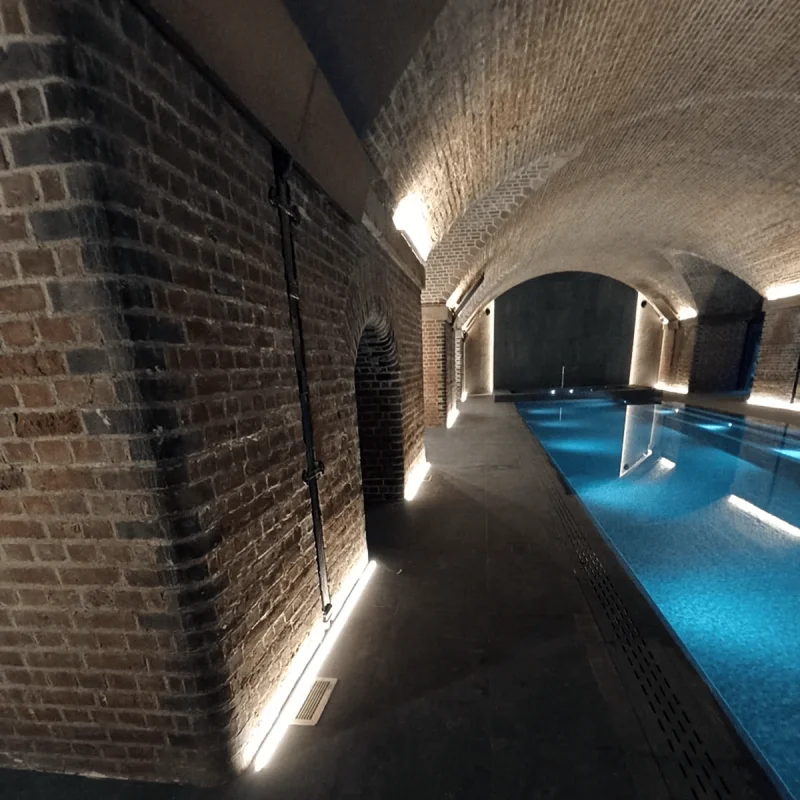

Ricostrip COB is a flexible COB LED strip that produces a smooth, dot free line of light rather than individually visible diodes, making it well suited to decorative detailing where the light source itself should not be visible. It is commonly specified for coving, shelving, joinery and display lighting in commercial interiors. Because it is supplied as a continuous flexible strip, it can be cut and routed to follow the exact line needed on site.
What colour temperature and output does Ricostrip COB offer?
Ricostrip COB is available in four colour temperatures from 2700K up to 6500K, with a typical output of 9.6W per metre and up to 1000 lumens per metre and 104 lumens per watt at the top end of the range. This gives specifiers a warm to cool white choice from a single, consistent light source technology. A CRI above 90 Ra across the range supports accurate colour rendering for retail and display applications.
What IP ratings are available for Ricostrip COB?
Ricostrip COB is available with an IP20 or IP65 option, so the same strip range can be specified for dry indoor joinery or for locations with some exposure to moisture. Confirming which IP rated version is needed for the installation environment is an important step during specification, since accessories such as the electrical connectors are only available for the IP20 version.
Can Ricostrip COB be cut to length on site?
Ricostrip COB has a defined cutting unit of 50mm, meaning the strip can be cut at set points along its length to suit the exact run required rather than only being available in fixed lengths. Each run has a maximum length of 5 metres and a minimum bend diameter of 60mm, which is worth checking against tight corners or curves in the design. Ordering the correct metre length in advance still helps minimise on-site cutting and waste.
What's the difference between Ricostrip COB and Ricostrip SMD?
The core difference is the LED technology. Ricostrip COB uses chip-on-board LEDs packed closely together to create a continuous, dot-free line of light, while Ricostrip SMD uses individual surface-mount LEDs spaced along the strip at a 6.25mm pitch, giving a more traditional point-source look when viewed closely. Both run at 24V, cut in 50mm units up to a 5 metre maximum length, and carry the same 5 year warranty, so the choice mainly comes down to whether a perfectly smooth glow or a standard LED strip appearance suits the application.
