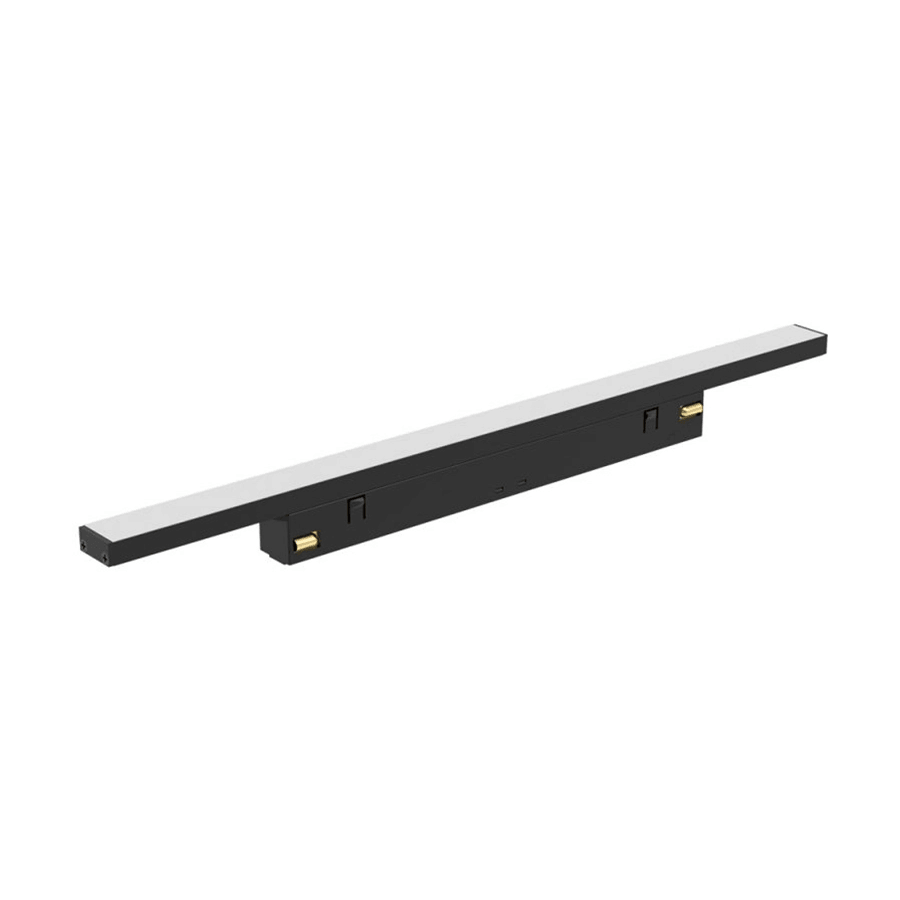

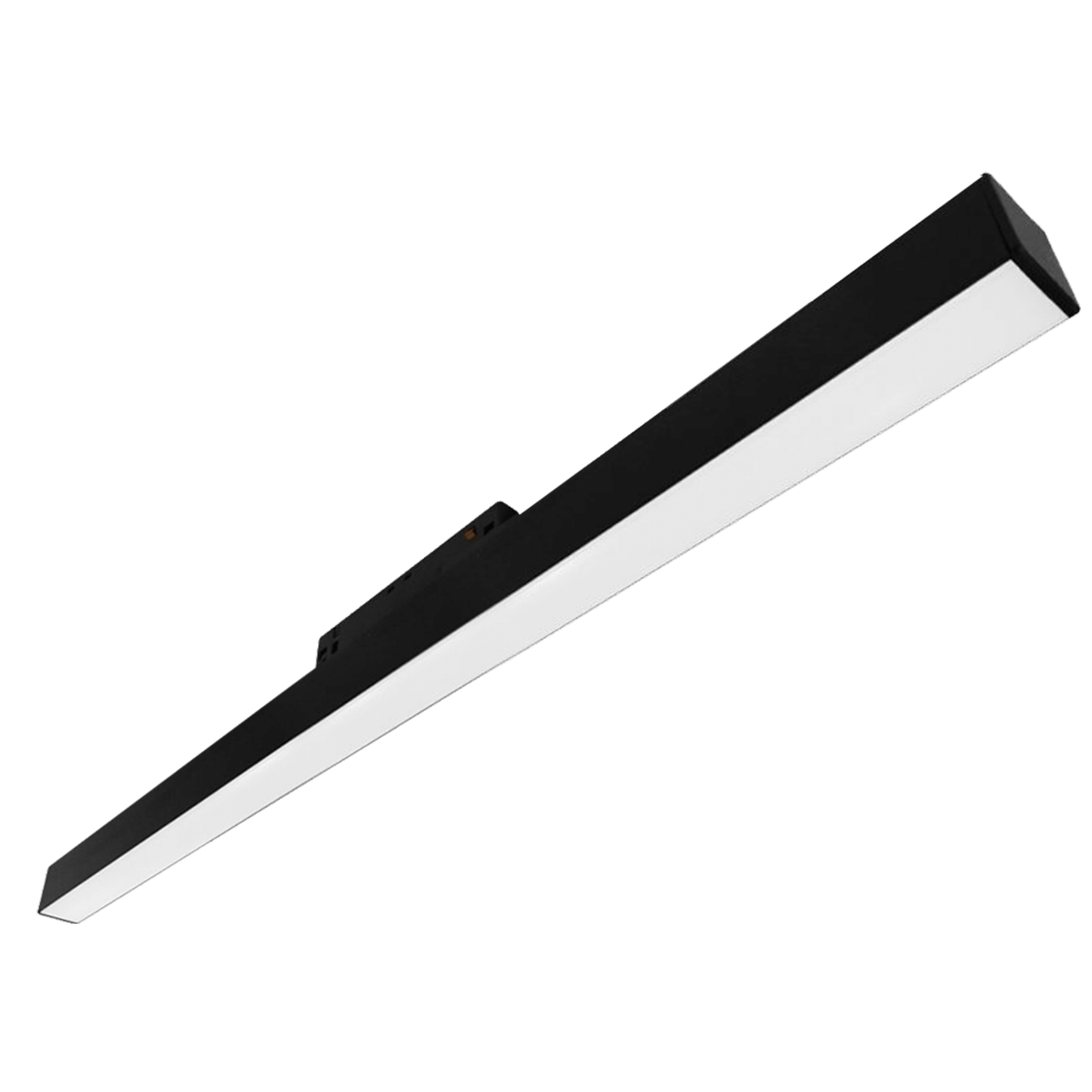

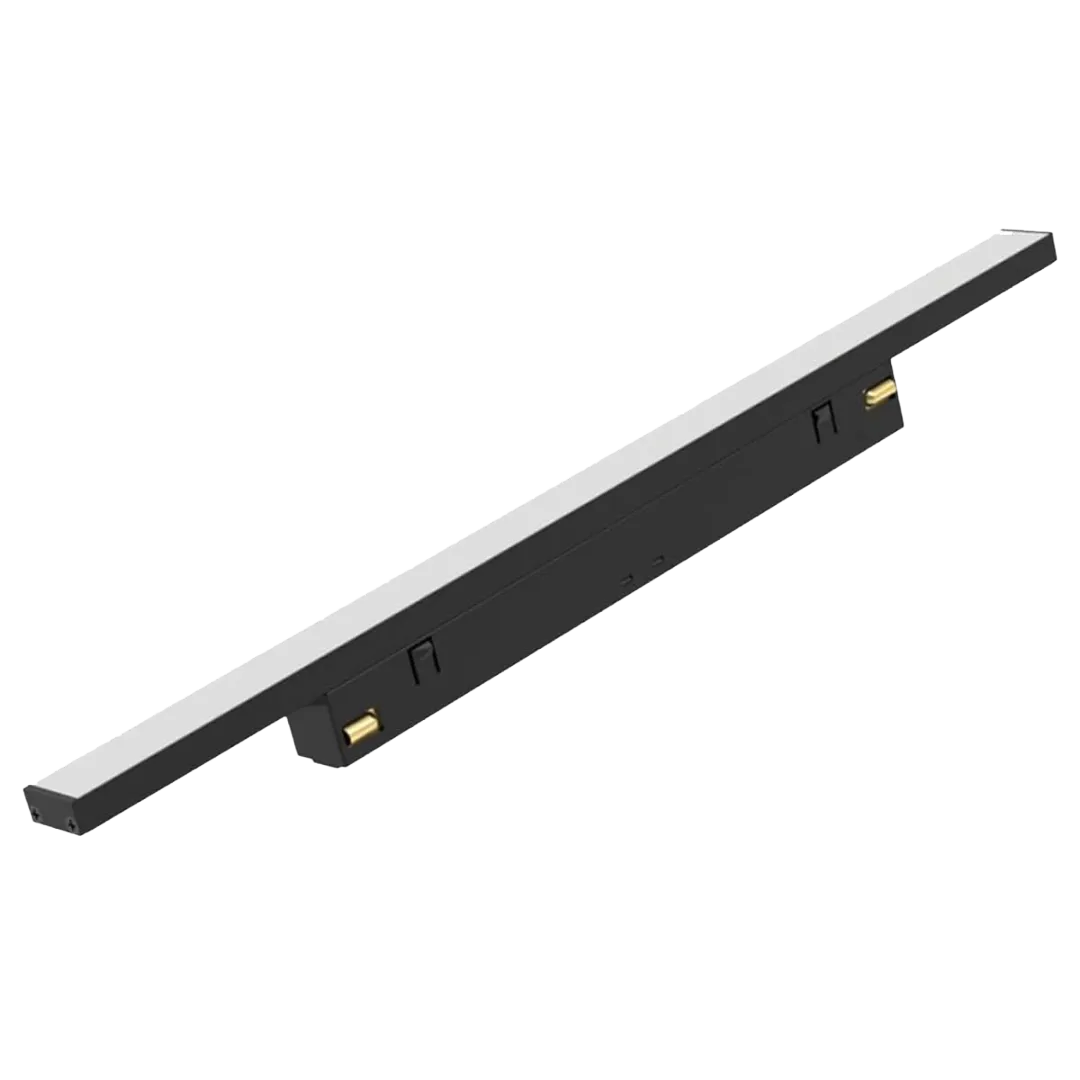

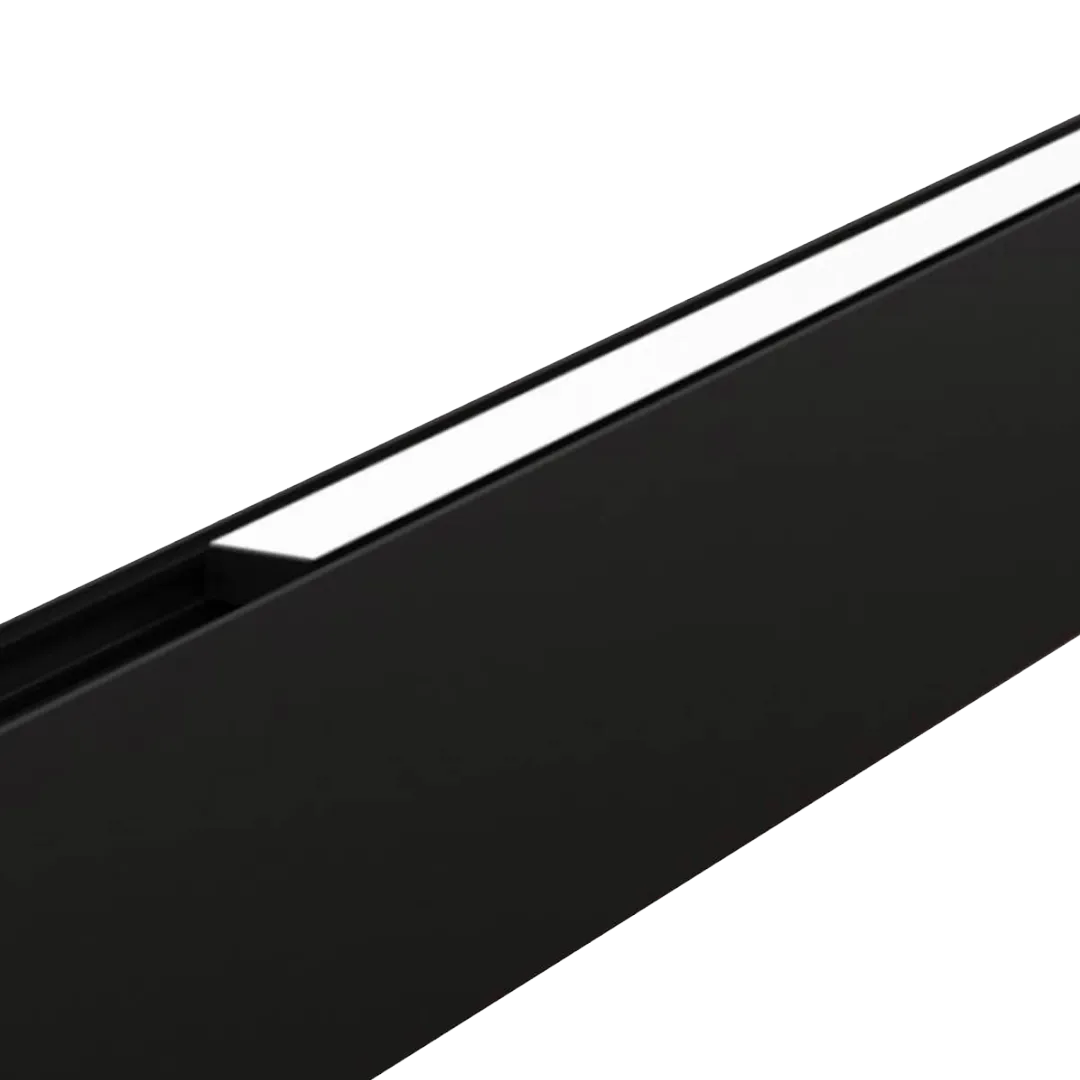

Zodiac Linear
The Zodiac Linear lights are designed to fit seamlessly into the 48V track system, providing a versatile and energy-efficient lighting solution. These lights come in direct or indirect opal versions, with lengths ranging from 300mm to 600mm.
- Available in 3000K and 4000K colour temperatures
- Direct and indirect opal linear options are available
- Direct version comes in 300mm and 600mm lengths, delivering 7W and 15W respectively
- Indirect version delivers 5W and is 300mm in length
Specification
Light Source Information
- Even and smooth light distribution
- Colour Temperature 3000K and 4000K
- 350 Lumens at 7W and 750 Lumens at 15W
- 250 Lumens at 5W for Indirect Linear
Design
- IP20Rated
- Track mounted
Installation
- push-in/out mechanism for use with Zodiac 48V Track range
Miscellaneous
- 5 year warranty
- To specify state:
Dimensions
Features
- Available in 3000K and 4000K colour temperatures
- Direct and indirect opal linear options are available
- Direct version comes in 300mm and 600mm lengths, delivering 7W and 15W respectively
- Indirect version delivers 5W and is 300mm in length
- Fast and easy push in/out mechanism for use with Zodiac 48V Track range
- To be used with the Zodiac 48V Track range
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R112022/4K | Zodiac 48V Track Linear 15W 600mm 3000K | – | – | – | 4000K | Black | 600mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R112022/3K | Zodiac 48V Track Linear 15W 600mm 4000K | – | – | – | 3000K | Black | 600mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R112021/4K | Zodiac 48V Track Linear 7W 300mm 4000K | – | – | – | 4000K | Black | 300mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
 | R112028/4K | Zodiac 48V Track Linear Up 5W 300mm 4000K | 309 | 5W | 62Lm/W | 4000K | Black | 300x16.5x16x5x27 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R112021/3K | Zodiac 48V Track Linear 7W 300mm 3000K | – | – | – | 3000K | Black | 300mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R112028/3K | Zodiac 48V Track Linear Up 5W 300mm 3000K | 300 | 5W | 60Lm/W | 3000K | Black | 300x16.5x16x5x27 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
