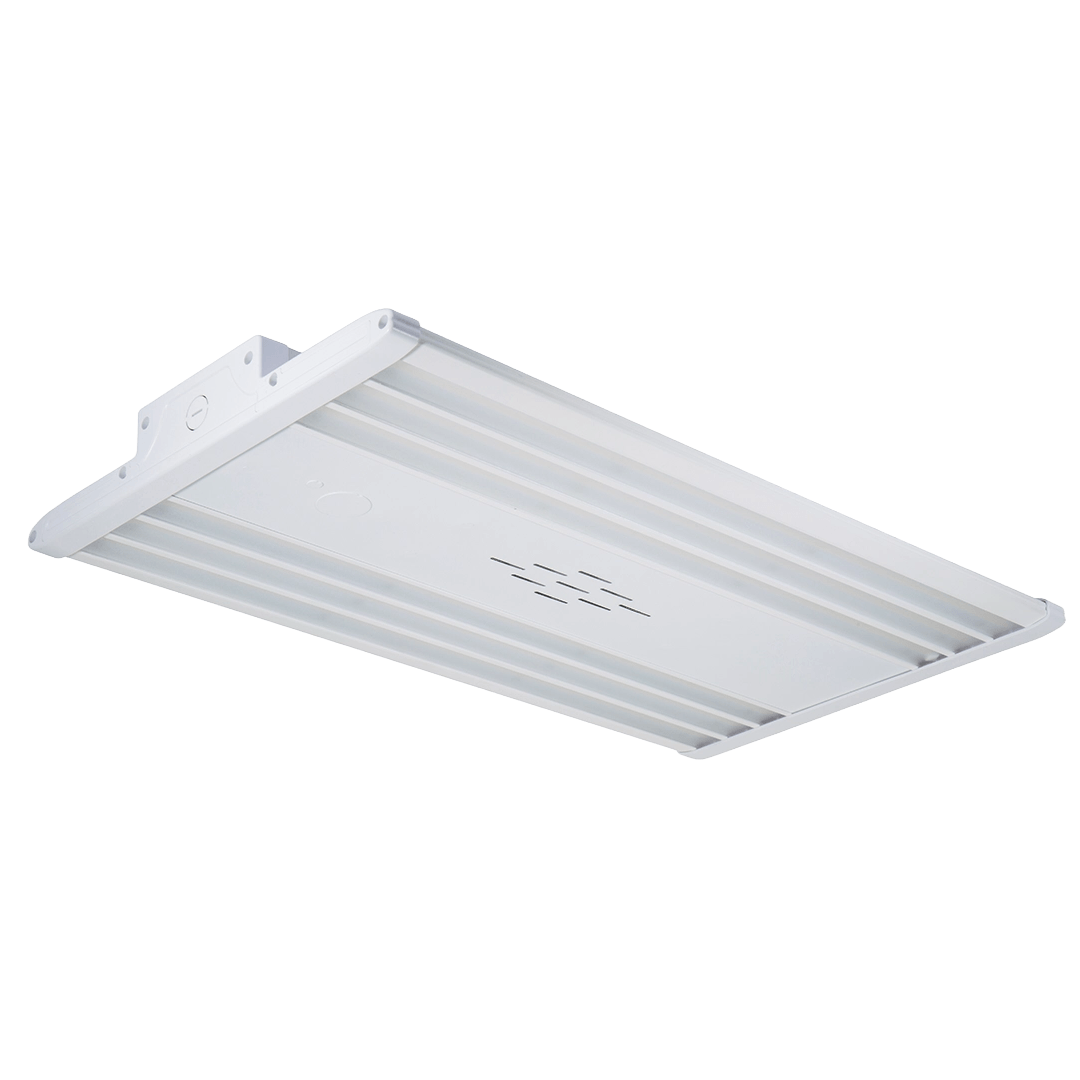

Thanos
Ideal for sports hall, aisles, supermarkets or big box retail lighting
- Built to perform in demanding spaces - Wide power range (70W–320W) and multiple lengths (600–1200mm) mean Thanos adapts effortlessly from smaller retail zones to large warehouse environments.
- Enhanced protection in high-risk areas - Optional wire guard with IK10 impact rating protects the luminaire in sports halls and industrial environments.
- Installer-friendly design — Built-in rear spirit level speeds up alignment, ensuring a clean, professional finish every time.
Specification
Light Source Information
- Direct light output
- LED outputs available from 10500lm to 30,000lm
- Five wattage options – 70W, 100W, 150W, 200W and 320W
- Efficiency of 150lm/W
- Internal Drivers supplied
- >80 colour rendering index
- Colour Temperature 4000K
- L80 B50 = 90,000 hours
- Epistar LEDs with a ≤3 step Macadam ellipse tolerance
Design
- IP40 Rated
- IK10 with guard IK08 without
- Compact and lightweight (600mm version is 4Kg, 1200mm version is 7.5Kg)
- Chain suspension, conduit rod suspension or multiple application fixing bracket
Optics
- Opal or clear diffuser
- 30°, 60° and 120° optic options
Installation
- Push-in terminals for quick and simple installation
Controls
- Integrated PIR options
- Integrated CP Sensor options
- Customised solution
Dimming
- 0-10V dimmable as standard
- DALI / DSI dimming available
Miscellaneous
- 3hr Emergency available
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- Suspended, surface or rod mounted LED multibay which is suitable for low to medium bay applications. Choice of speciality beam angles of 30°, 60° and 120° depending on the required spread. IK08 as standard and IK10 available with wire guard – as RICOMAN Thanos
Dimensions
Features
- Choice of optics to adjust beam angles between 30°, 60° and 120°
- Compact and lightweight, down to only 4Kg
- Chain or conduit rod suspension
- 70W to 320W options 600mm to 1200mm length
- Typical applications include supermarkets, big box retail, warehouse aisles and racking and sports halls
- 3 hour emergency option
- Optional wire guard
- IK10 rated with use of guard
- Optional integrated sensor options
- Excellent efficacy of 150 lumens per watt
- High quality Meanwell driver
- Smart spirit level at the rear
- 0-10V dimming as standard
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R141400/70W/B30 | Thanos 70W 30 Degree | 10682 | 70W | ~152Lm/W | 4000K | White | L600 x w345 x H56mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R141400/70W/B60 | Thanos 70W 60 Degree | 10682 | 70W | ~152Lm/W | 4000K | White | L600 x w345 x H56mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R141400/70W/120D | Thanos 70W 120 Degree | 10682 | 70W | ~152Lm/W | 4000K | White | L600 x w345 x H56mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R141400/100W/B30 | Thanos 100W 30 Degree | 15010 | 100W | ~150Lm/W | 4000K | White | L600 x w345 x H56mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R141400/100W/B60 | Thanos 100W 60 Degree | 15010 | 100W | ~150Lm/W | 4000K | White | L600 x w345 x H56mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R141400/100W/B120 | Thanos 100W 120 Degree | 15010 | 100W | ~150Lm/W | 4000K | White | L600 x w345 x H56mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R141400/150W/B30 | Thanos 150W 30 Degree | 22530 | 150W | ~150Lm/W | 4000K | White | L600 x w345 x H56mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R141400/150W/B60 | Thanos 150W 60 Degree | 22530 | 150W | ~150Lm/W | 4000K | White | L600 x w345 x H56mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R141400/150W/B120 | Thanos 150W 120 Degree | 22530 | 150W | ~150Lm/W | 4000K | White | L600 x w345 x H56mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R141400/200W/B30 | Thanos 200W 30 Degree | 28015 | 200W | ~140Lm/W | 4000K | White | L600 x w345 x H56mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R141400/200W/B60 | Thanos 200W 60 Degree | 28015 | 200W | ~140Lm/W | 4000K | White | L600 x w345 x H56mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R141400/200W/B120 | Thanos 200W 120 Degree | 28015 | 200W | ~140Lm/W | 4000K | White | L600 x w345 x H56mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
 | R141400/320W/B60 | Thanos 320W 30 Degree | 41857 | 320W | ~140Lm/W | 4000K | White | L1200 x w345 x H56mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R141400/320W/B60 | Thanos 320W 60 Degree | 41857 | 320W | ~140Lm/W | 4000K | White | L1200 x w345 x H56mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R141400/320W/B120 | Thanos 320W 120 Degree | 41857 | 320W | ~140Lm/W | 4000K | White | L1200 x w345 x H56mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What is Thanos and where is it typically used?

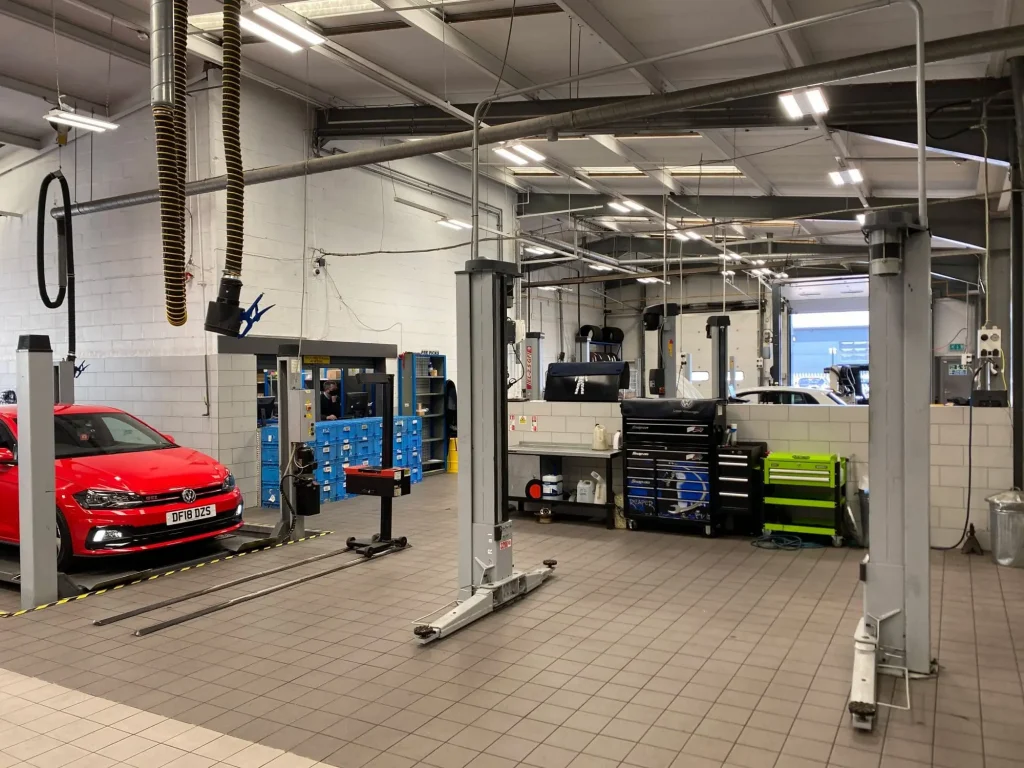

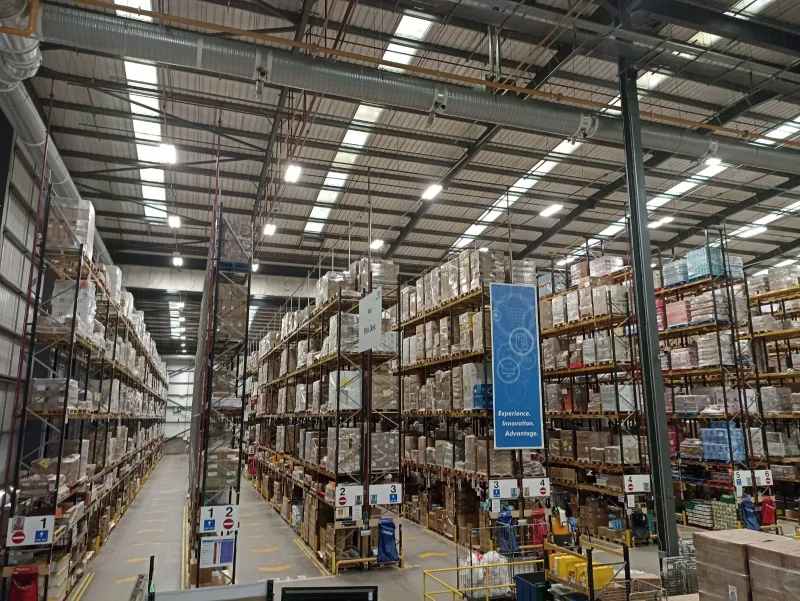

Thanos is a linear LED multibay built specifically for racking aisle lighting, using a narrow lens to direct light down the length of an aisle. It has been installed in warehouse and workshop settings including NHS warehouses in Rugby and Bridgewaters, as well as a VW garage in Crewe. Ricoman backs Thanos with a 5 year warranty, supporting its use in demanding storage environments.
What beam angle options does Thanos offer for aisle lighting?
Thanos offers a choice of speciality beam angles of 30, 60 or 120 degrees, letting specifiers direct light down narrow racking aisles rather than spreading it across a wide floor area. The 120 degree option is standard, with 30 and 60 degree narrower beams available where a more focused throw of light is needed. This flexibility helps light reach the full length and depth of a racking aisle rather than being lost to the sides.
What power and length options does Thanos come in?
Thanos is available in five power outputs from 70W up to 320W, across two lengths of 600mm for the 70W to 200W versions and 1200mm for the 320W version. Lumen output ranges from around 10,862 lumens on the 70W version up to around 41,857 lumens on the 320W version. This range lets specifiers match the fitting to the height and depth of the racking being lit.
What control options are available with Thanos?
Thanos comes with 0-10V dimming as standard, and also supports DALI dimming, wireless Casambi control, a PIR sensor and integral emergency operation. Having 0-10V dimming built in as standard is useful on warehouse schemes where lighting levels are tied to occupancy or daylight controls. This range of options lets Thanos cover both general aisle lighting and emergency duty from one fitting.
What should installers know before fitting Thanos?
Thanos can be chain suspended, surface mounted, solid rod mounted or trunking mounted, with back cable entry and a smart spirit level built into the back of the fitting for punctual installation. It weighs 4.0kg for the 70W to 200W versions and 7.5kg for the 320W version, and accessories such as a conduit rod suspension kit, suspension chain and fixing bracket are available. These details help keep aisle lighting level and consistent once installed.
