Titan
Ideally suited to industrial applications that require ingress protection from dirt, dust, water and impact resistance
- High-performance output that reduces the total fixture count and slashes operational carbon footprint.
- Tool-less internal access allows for rapid wiring and mounting without dismantling the unit on-site.
- Dust-tight, water-resistant, and high-impact polycarbonate build for maximum durability in car parks and warehouses.
Specification
Light Source Information
- Direct light output
- LED outputs available up to 12800 lumens (from 12W to 80W)
- Efficiency of up to 160lm/W
- Internal Drivers supplied
- >80 colour rendering index
- Colour Temperature 4000K
- L70 B50 = 70,000 hours | L90 B50 = 25,000 hours
- Epistar LEDs with a ≤4 step Macadam ellipse tolerance
Design
- IK08 impact resistant
- Anti-Corrosive
- IP65 Rated
- Ceiling Suspended or surface-mounted

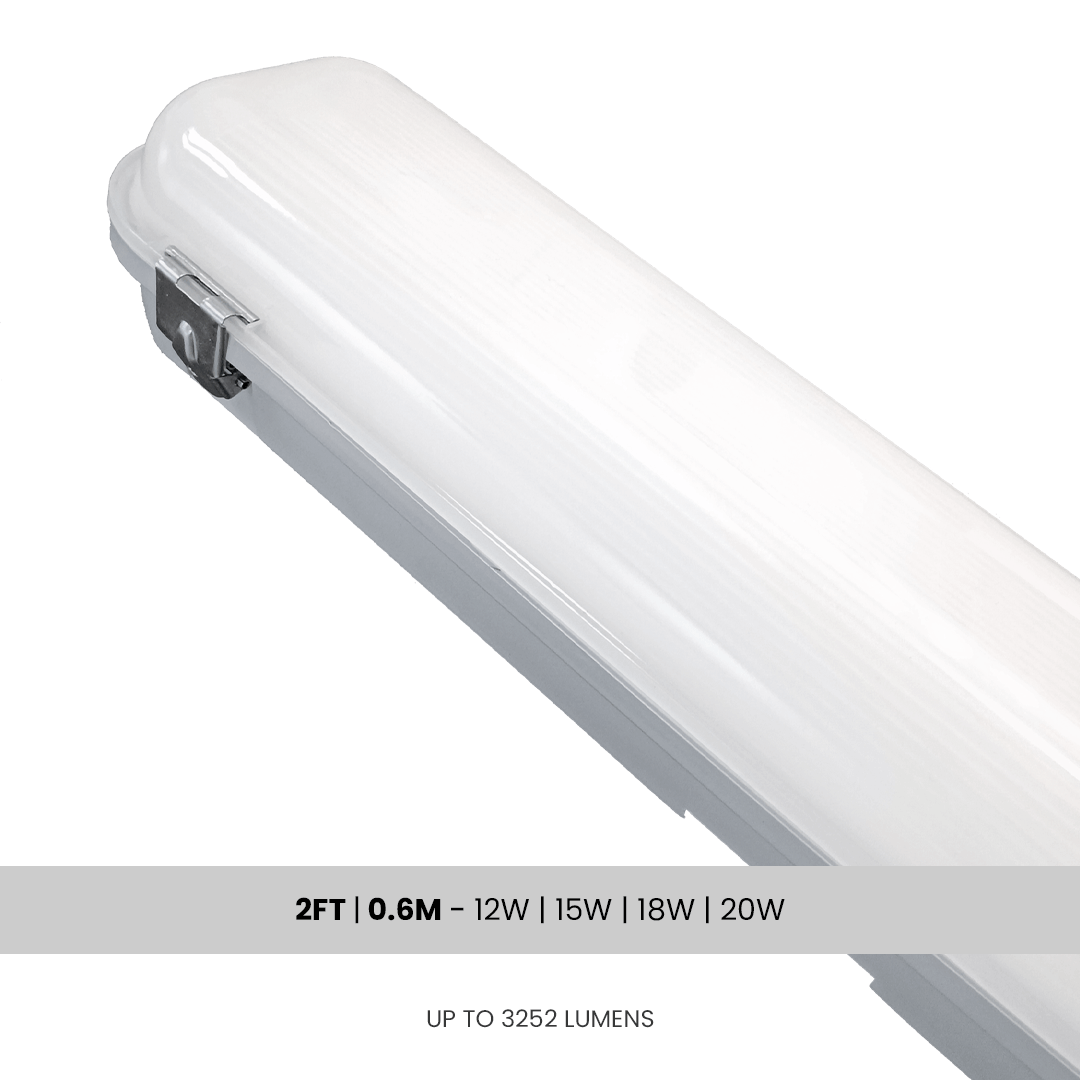

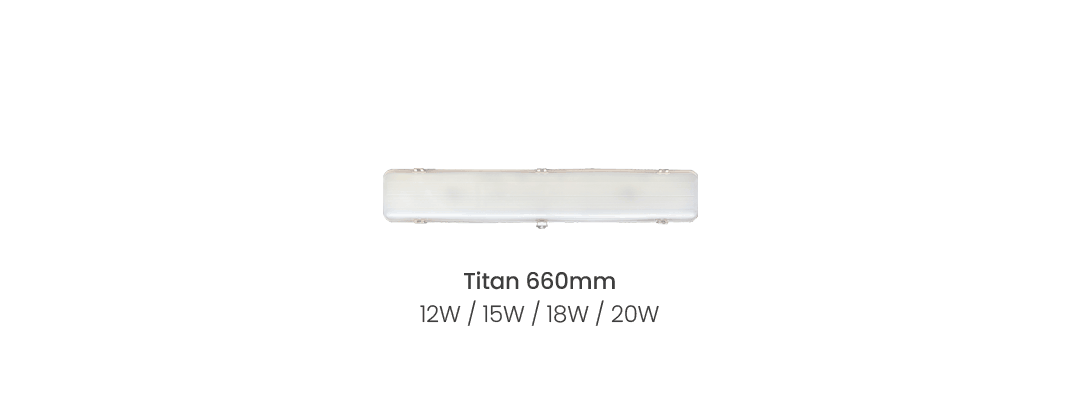

- Available in 4 linear sizes 660mm, 1268mm, 1567mm and 1867mm

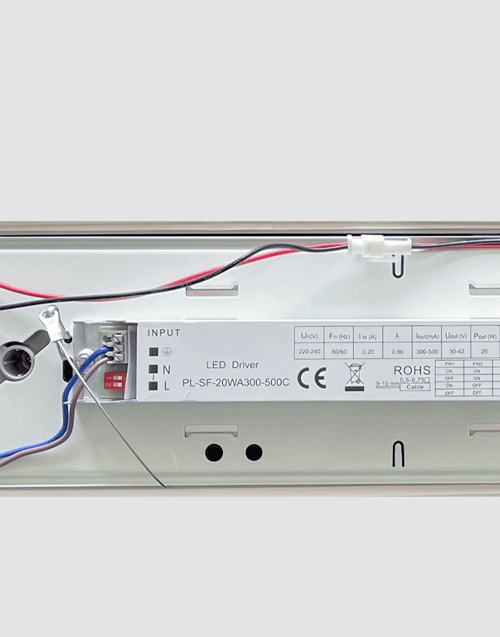

- . Tool-less access with a twist lock gear tray mechanism
- . Base of the housing is entirely free for ease of installation and tool-less access with a twist lock gear tray mechanism

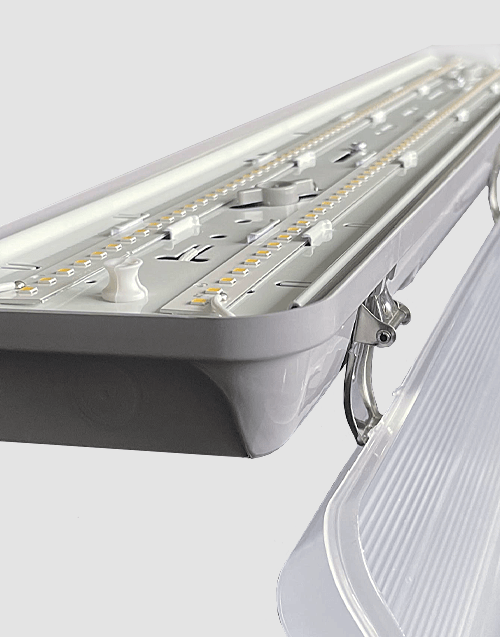

- . Hinged diffuser for ease of installation.
- . Gear tray suspension wire.
Optics
- TP(a) opal diffuser
Installation
- Pre-wired with flex for quick and simple installation
Controls
- Microwave Sensor Option
- CP Sensor
- Customised solution
Integral Emergency
- 3hr Emergency available
- DALI addressable emergency
- Z10 remote control manual or advanced self-test emergency available
Miscellaneous
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- Polycarbonate, non-corrosive linear lighting with an outstanding optical performance. Tpa rated as standard with optional 3 hour emergency, and sensor options. IK08 impact resistant and IP65 ingress protection – as RICOMAN’s Titan range.
Dimensions
Features
- Polycarbonate anti-corrosive body
- Available in 4000K
- Four lengths, 0.6m, 1.2m, 1.5m and 1.8m
- From 12W to 80W delivering up to 12800 lumens
- TP(a) rated diffuser
- Pre-wired with flex
- Excellent efficacy of 160 lumens per watt
- Optional integrated sensor options
- Integral Emergency options available: Standard | DALI | Remote control testing

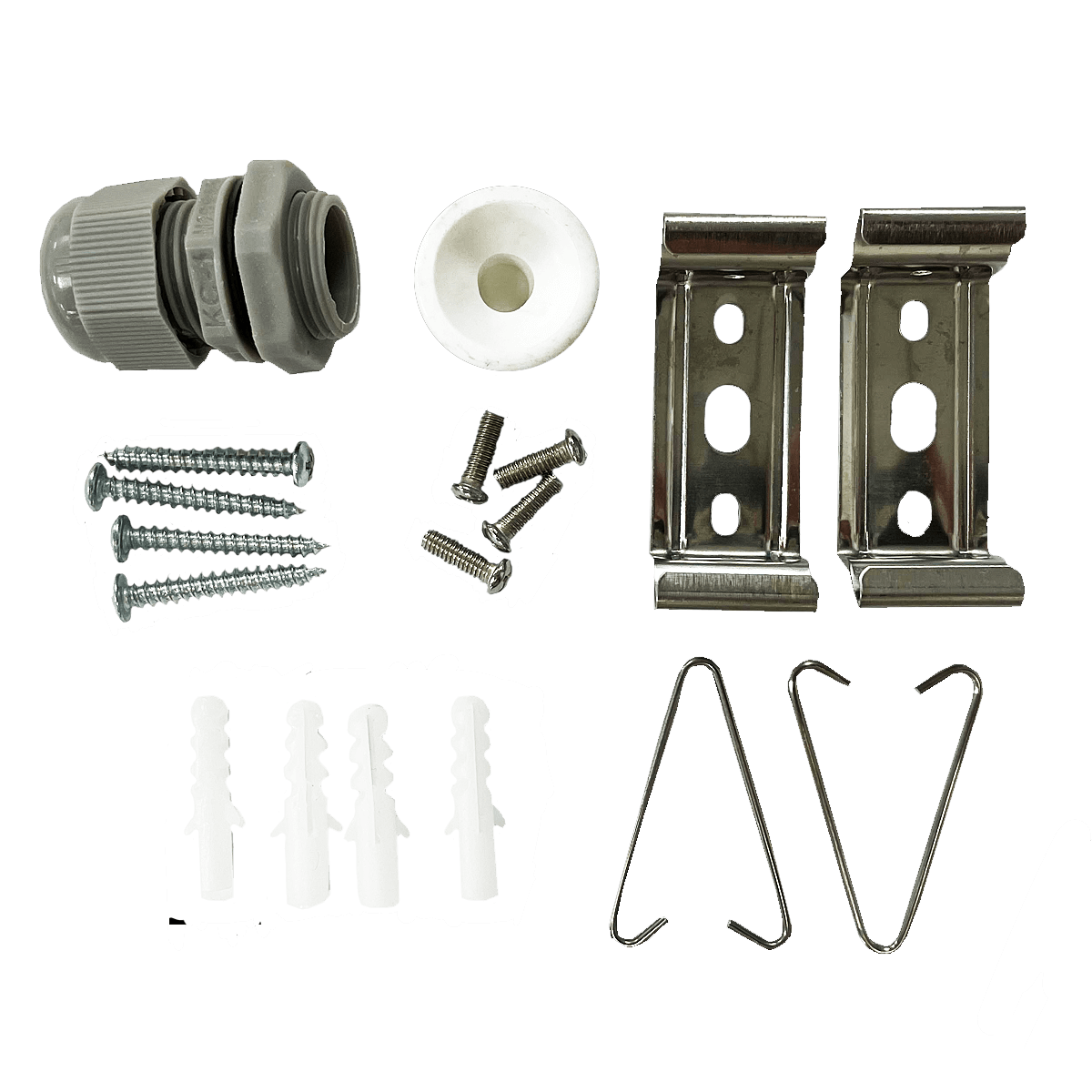

- Surface mounting brackets and 20mm IP65 cable gland included
- Base of the housing is entirely free for ease of installation and tool-less access with a twist lock gear tray mechanism
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R151006/E | Titan 0.6m Switchable 12W/15W/18W/20W in 4000K With Emergency | 1933 | 2411 | 2894 | 3252 | 12W | 15W | 18W | 20W | ~160 Lm/W | 4000K | Grey | H75 x L660 x W116 | Emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R151018 | Titan 1.8m Switchable 48W/54W/70W/80W in 4000K | 7690 | 8688 | 11339 |12645 | 48W | 54W | 70W | 80W | ~160 Lm/W | 4000K | Grey | H75 x L1867 x W116 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R151015 | Titan 1.5m Switchable 35W/46W/52W/60W in 4000K | 5605 | 7382 | 8374 |9611 | 35W | 46W | 52W | 60W | ~160 Lm/W | 4000K | Grey | H75 x L1567 x W116 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R151012 | Titan 1.2m Switchable 24W/30W/37W/40W in 4000K | 3844 | 4827 | 5955 |6403 | 24W | 30W | 37W | 40W | ~160 Lm/W | 4000K | Grey | H75 x L1268 x W116 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R151006 | Titan 0.6m Switchable 12W/15W/18W/20W in 4000K | 1933 | 2411 | 2894 | 3252 | 12W | 15W | 18W | 20W | ~160 Lm/W | 4000K | Grey | H75 x L660 x W116 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What is Titan and where can it be used?
Titan is a non-corrosive luminaire designed for both interior and exterior applications, with an IP65 rating that suits damp or dusty environments as well as standard interior spaces. Its hinged diffuser and toolless twist lock gear tray keep maintenance straightforward once installed. Ricoman backs Titan with a 5 year warranty, giving specifiers confidence for mixed interior and exterior use.
How durable is Titan against moisture and how efficient is it to run?
Titan carries an IP65 rating against dust and moisture ingress along with an IK08 rating for impact resistance, and its TP(a) rated diffuser adds a fire safety benefit for specifiers working to compliance requirements. It also delivers an efficacy of around 160 lumens per watt, one of the highest figures in the Ricoman range. This combination of protection and efficiency suits both wet interior areas and general exterior use.
What wattage and length options does Titan come in?
Titan is available across four lengths from 660mm up to 1867mm, with power outputs ranging from 12W up to 80W depending on the length chosen. This range lets specifiers match the fitting to the size of a corridor, plant room or exterior walkway without changing product family. All versions run at 4000K, keeping the colour temperature consistent across a project.
What control and emergency options can Titan be specified with?
Titan supports DALI 2, 0-10V and DSI dimming, along with wireless Casambi control, so it can be integrated into most standard lighting control systems. It can also be specified with a microwave sensor, other than on the 0.6m version, or with integral emergency, DALI emergency, or a Z10 remote control integral emergency version. A factory fitted emergency pack is available for the 0.6m version, while a plug and play emergency pack suits the longer 1.2m, 1.5m and 1.8m versions.
What warranty and colour rendering does Titan offer?
Titan is backed by a 5 year warranty and an L70 B50 rating of 70,000 hours, giving specifiers a long service life to quote on a project. Its CRI is above 85 Ra, providing accurate colour rendering suited to both interior spaces and exterior areas where appearance matters. These standards support Titan's use across mixed interior and exterior schemes.
