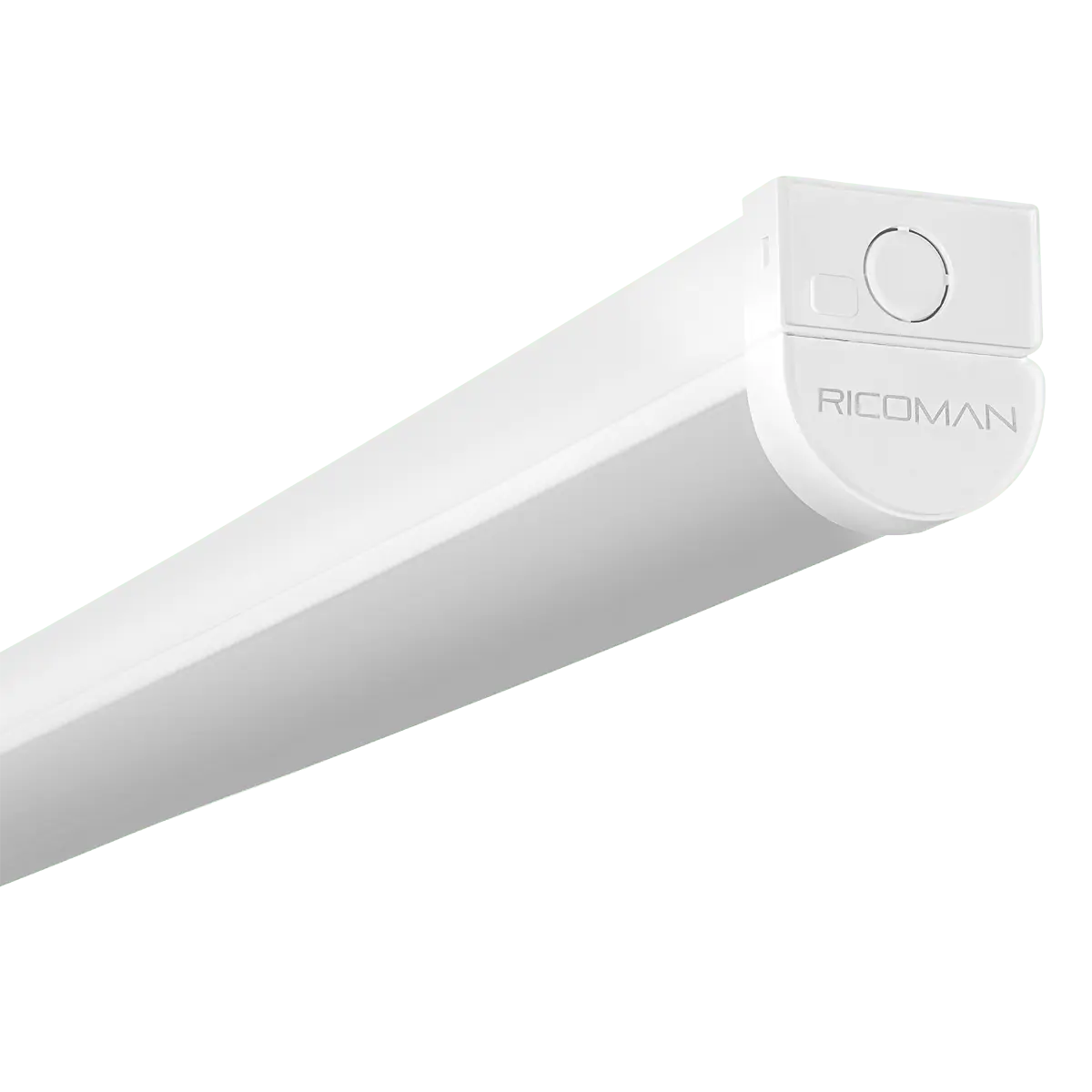

Orion
The ultra efficient LED batten coming in three lengths plus high output versions
- Exceptional Efficiency: One of the most energy-efficient battens in its class, perfect for cutting energy bills in commercial and industrial spaces at 130 lm/W
- Flexible Output - Up to 9,100lm. Available in standard or high output versions, scaling from 3,250lm to 9,100lm to suit everything from corridors to large warehouses.
- Three Sizes, Multiple Mounting Options: Choose from 1200mm, 1500mm, or 1800mm, with surface mount or suspended installation to fit any space.
Specification
Light Source Information
- Direct light output
- LED outputs available from 3250lm to 9100lm
- Standard or higher wattage
- Efficiency of 130lm/W
- Internal Drivers supplied
- >85 colour rendering index
- Colour Temperature 5000K
- L70 B50 = 70,000 hours | L90 B50 = 25,000 hours
- Epistar LEDs with a ≤4 step Macadam ellipse tolerance
Design
- IP20 Rated
- Ceiling Suspended or surface-mounted
- Can be connected to a BESA box
- Available in 3 linear sizes 1200mm, 1500mm and 1800mm
Optics
- Opal diffuser
- 120 degree beam angle
Installation
- Push-in terminals for quick and simple installation
Controls
- PIR options
- CP Sensor options
- Customised solution
Dimming
- Non-dimmable as standard
- DALI / 0-10V / DSI dimming available
Integral Emergency
- 3hr Emergency available
- DALI addressable emergency
- Z10 remote control manual or advanced self-test emergency available
Miscellaneous
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- LED batten luminaire for surface, suspended or trunking mounting.

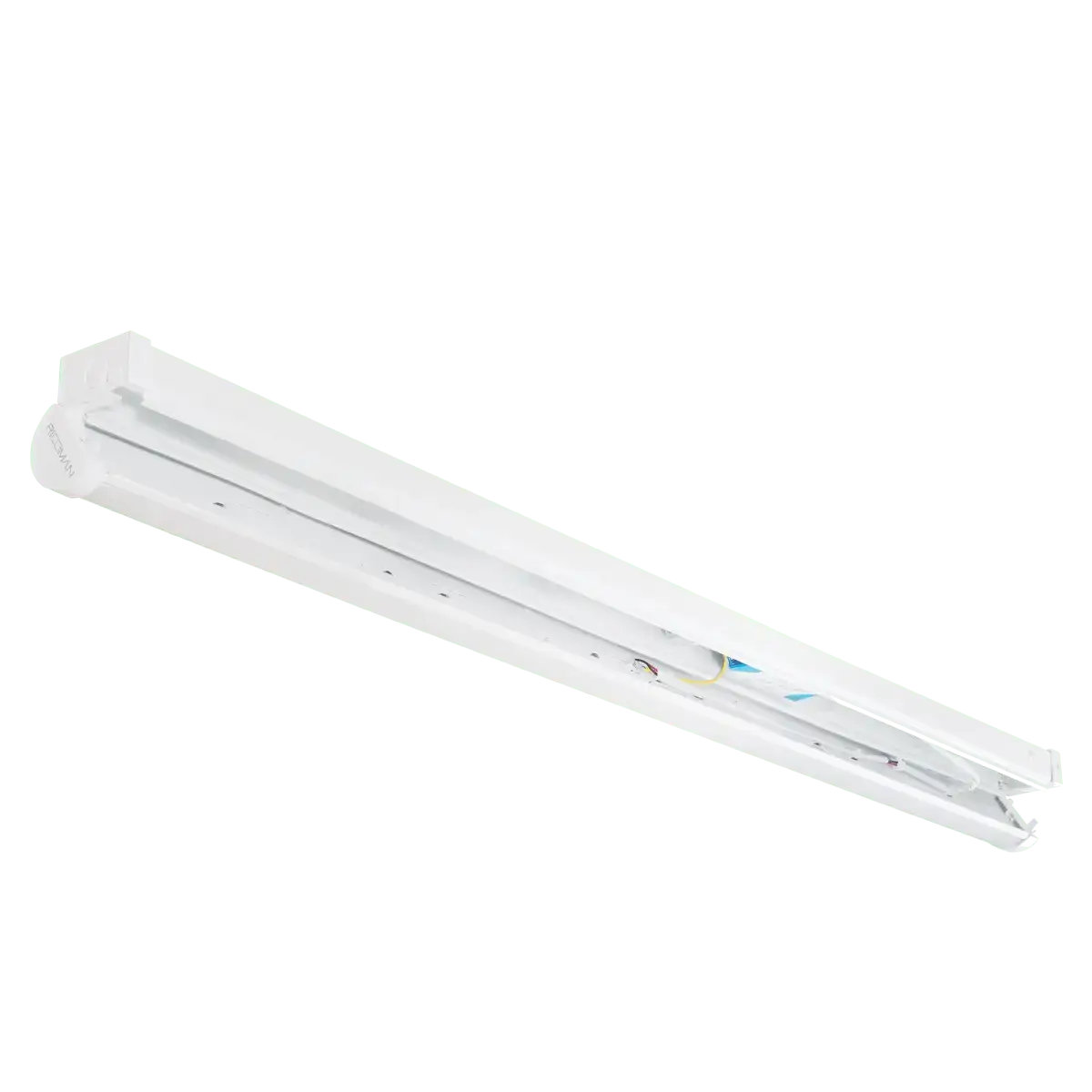

- Steel body and opal polycarbonate diffuser delivering between 3250 and 9100 lumens. Integral emergency and lighting controls options. Simple first fix mounting plate and a choice of cable entry points for flexibility and ease of installation – as RICOMAN’s Orion Batten range

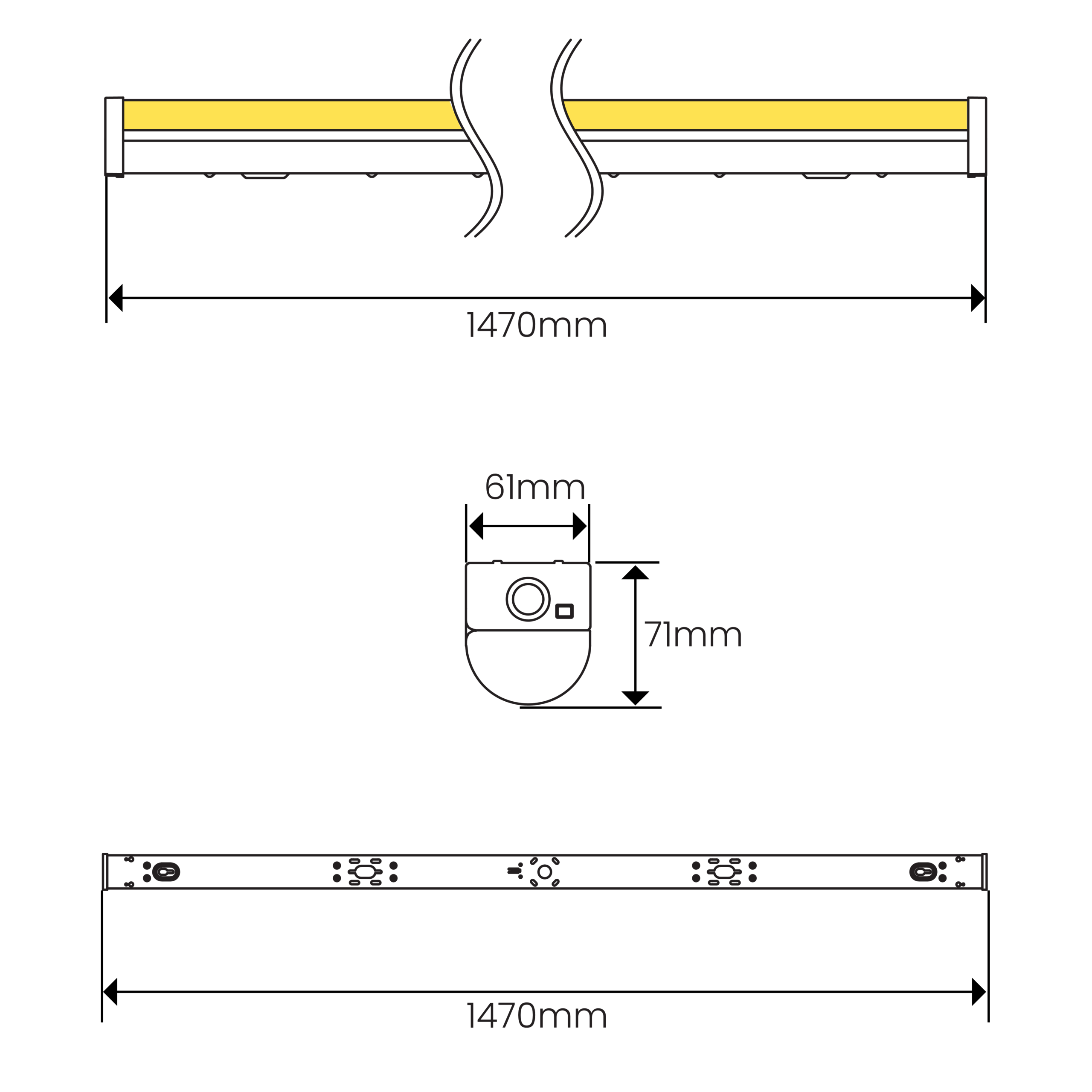

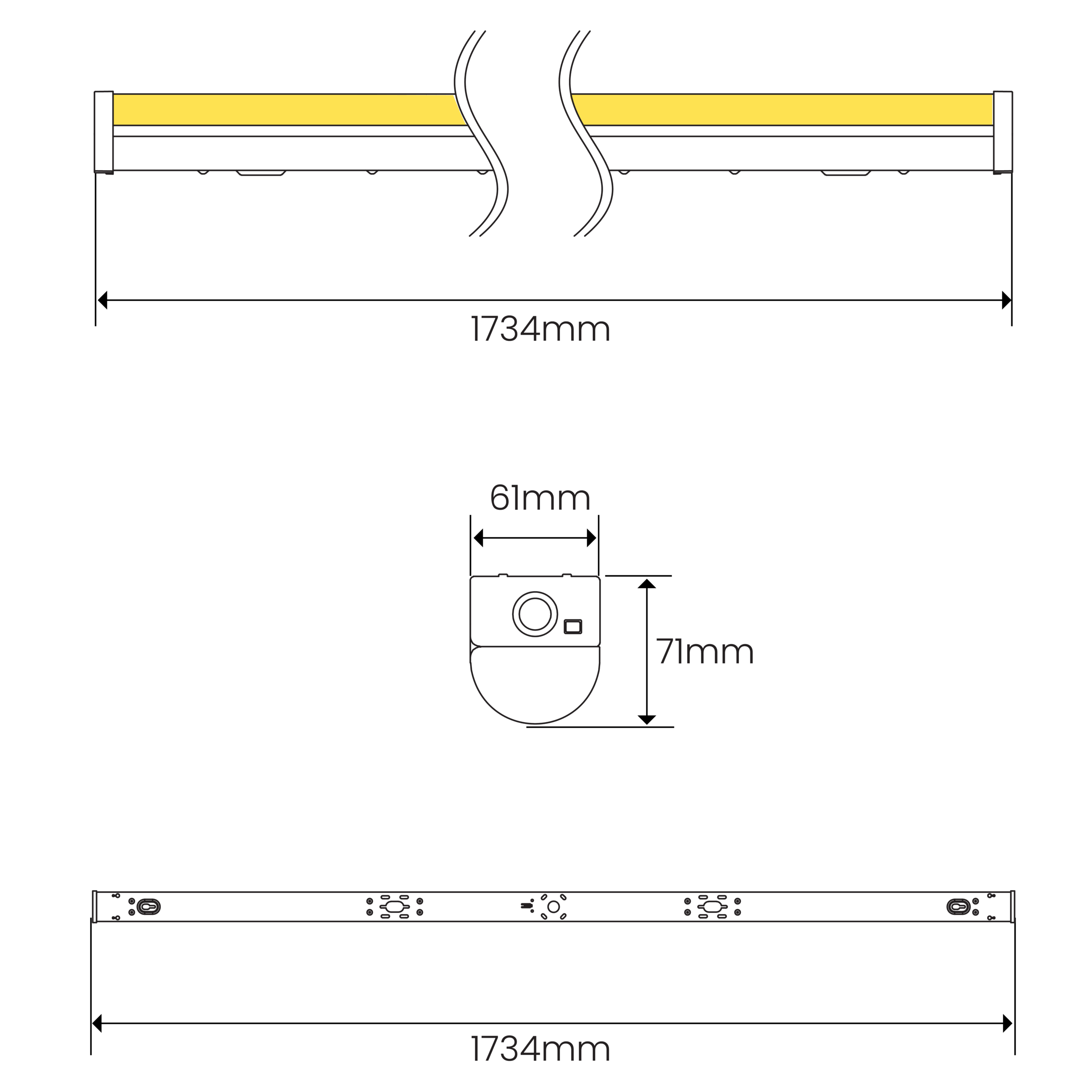

Dimensions
Features
- Exceptional efficacy 130 lumens per watt
- Surface mounted or suspended
- Available in 1200mm | 1500mm | 1800mm
- Ability to connect to BESA boxes
- Standard or high output versions
- Dimming options available
- Integral Emergency options available: Standard | DALI | Remote control testing
- Optional integrated sensor options
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R280101 | Orion 1200mm Batten 25W 5000K | 3250 | 25W | ~130Lm/W | 5000K | White | L1170 x W61 x H70 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R280302 | Orion 1800mm Batten 70W 5000K | 9100 | 70W | ~130Lm/W | 5000K | White | L1734 x W61 x H70 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R280302/4K | Orion 1800mm Batten 70W 4000K | 9464 | 70W | ~135Lm/W | 4000K | White | L1734 x W61 x H70 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R280202/4K | Orion 1500mm Batten 60W 4000K | 8112 | 60W | ~135Lm/W | 4000K | White | L1470 x W61 x H70 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R280301/4K | Orion 1800mm Batten 45W 4000K | 5850 | 45W | ~130Lm/W | 4000K | White | L1734 x W61 x H70 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R280201/4K | Orion 1500mm Batten 35W 4000K | 4550 | 35W | ~130Lm/W | 4000K | White | L1470 x W61 x H70 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R280102/4K | Orion 1200mm Batten 45W 4000K | 6084 | 45W | ~135Lm/W | 4000K | White | L1170 x W61 x H70 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R280101/4K | Orion 1200mm Batten 25W 4000K | 3380 | 25W | ~135Lm/W | 4000K | White | L1170 x W61 x H70 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What is Orion and where is it typically used?
Orion is a highly efficient LED batten designed for surface, suspended or trunking mounting inside interior spaces. It is available in three lengths plus higher output versions, giving it the range to suit many different applications from offices to warehouses. Ricoman backs Orion with a 5 year warranty, giving specifiers confidence in its long-term performance.
What efficacy does Orion offer?
Orion delivers an efficacy of over 130 lumens per watt, one of the higher figures in the Ricoman interior range, which keeps running costs down on schemes lit for long hours. Its steel body and polycarbonate diffuser carry an IK08 impact rating for added durability. This combination of efficiency and impact resistance suits busy interior spaces such as warehouses and retail units.
What wattage and colour temperature options does Orion come in?
Orion is available across three lengths of 1170mm, 1470mm and 1734mm, with power outputs from 25W up to 70W depending on the length and whether a higher output version is chosen. Most sizes are available in 4000K, with 5000K offered on limited sizes, giving some flexibility to match the tone of a wider lighting scheme. This range of lengths and outputs lets one product family cover different room sizes and light level requirements.
What should installers know before fitting Orion?
Orion can be surface mounted, suspended, or trunking mounted, with a choice of side or back cable entry to suit the wall or ceiling construction on site. Its steel body keeps weight manageable, from 1.74kg on the shortest version up to 2.72kg on the longest, and an optional 1.5m suspension kit is available for pendant installations. This range of mounting methods keeps installation straightforward across different interior layouts.
What warranty and build quality does Orion meet?

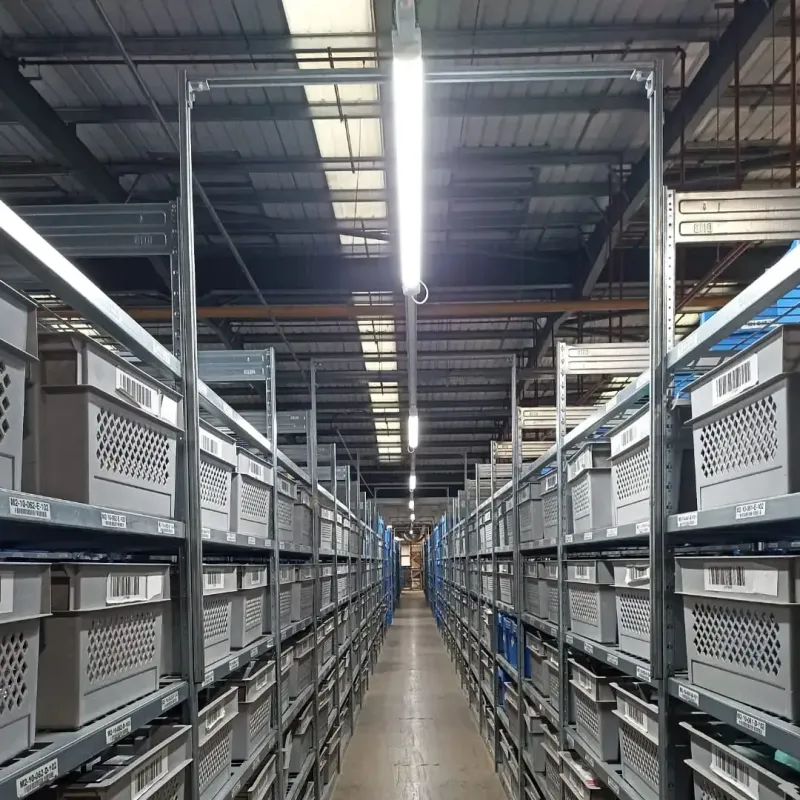

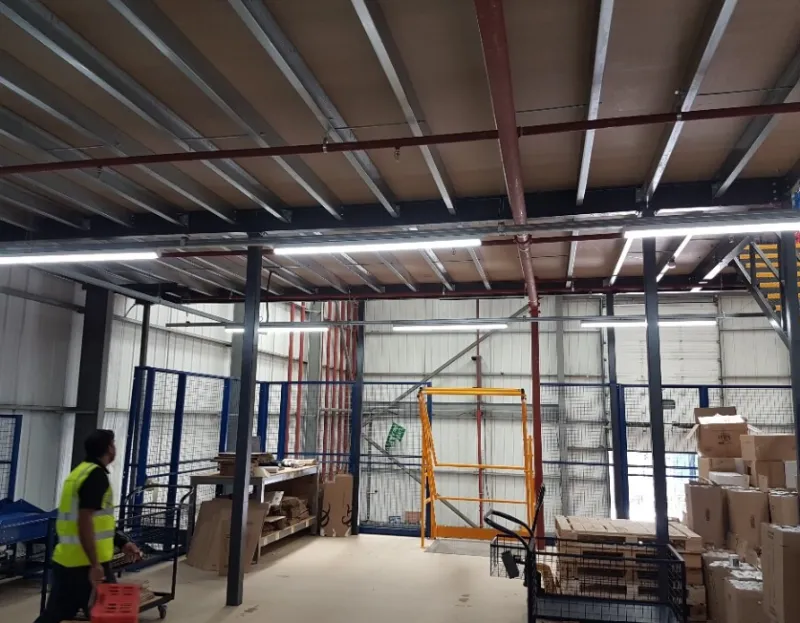

Orion is backed by a 5 year warranty and an L70 B50 rating of 70,000 hours, giving specifiers a long service life to quote on a project. Its CRI is above 85 Ra, so colours render accurately enough for retail and office interiors, not just utilitarian spaces. These standards have supported installations including an NHS warehouse in Alfreton and Graham and Brown in the UK.
