CANOPUS
Multi purpose high bay / low bay industrial luminaire
- Adjustable modules to adjust beam angles between 120° and 180°
- Adjustable stirrup arm allows multiple mounting locations
- 3 hour integral emergency option
- Optional integrated sensor options
Specification
To specify state:
IP65 aluminium multipurpose high bay/ low bay luminaire with adjustable beam angles and adjustable stirrup arm for ultimate flexibility in beam angle positioning. Available in 100W, 150W and 200W versions all covered by a 7 year warranty. Robust build quality proven by an IK09 impact resistance – as RICOMAN’s Canopus range.
Dimensions
Features

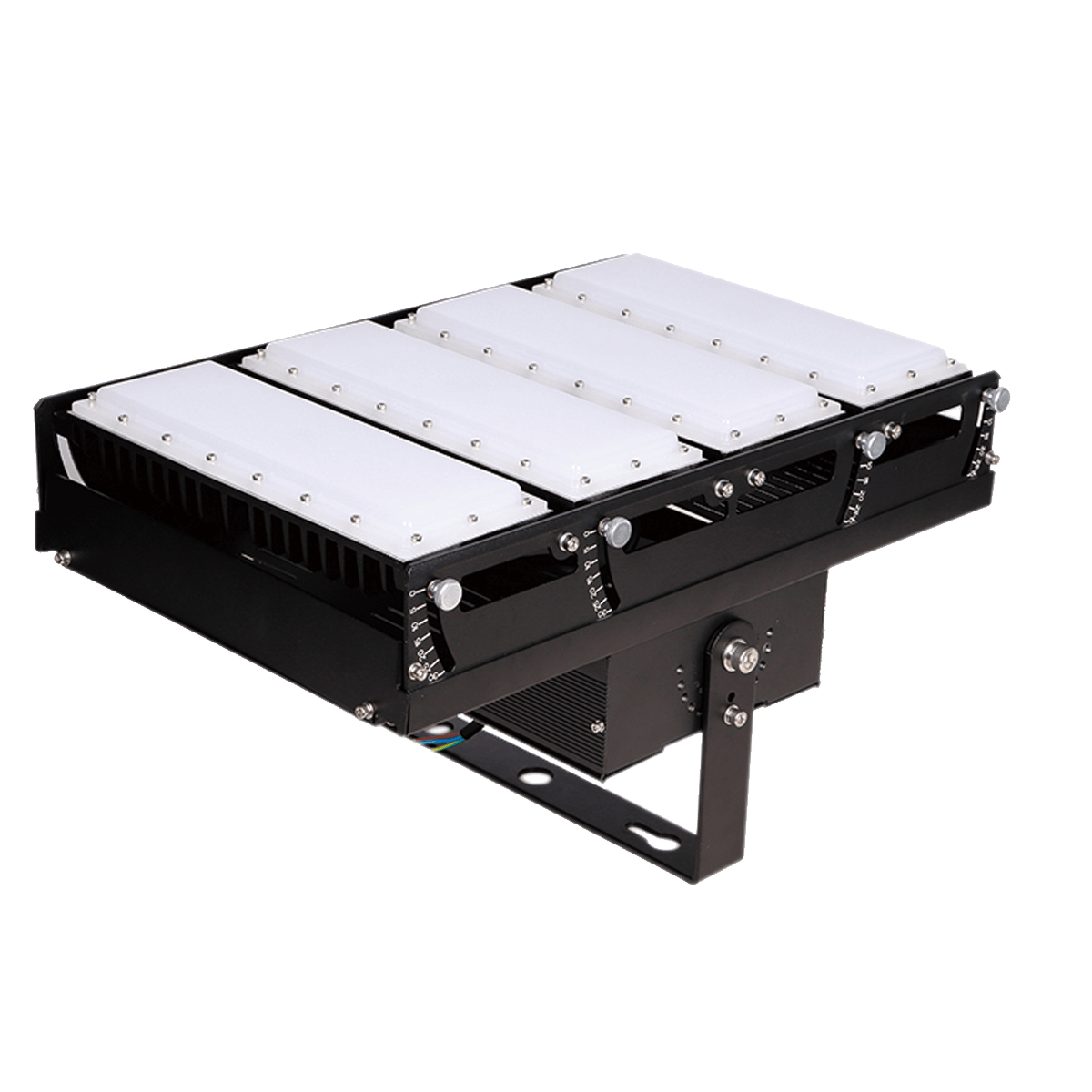

- Adjustable modules to adjust beam angles between 120° and 180°
- Adjustable stirrup arm allows multiple mounting locations
- 3 hour integral emergency option
- Optional integrated sensor options
- TP(a) rated diffuser
- Excellent efficacy of ~142-149 lumens per watt
- High quality quality meanwell driver
- Emergency Warranty: 3 years
- Standard Warranty: 7 years
- L70 B50 = 70,000 hours | L90 B50 = 25,000 hours
- Epistar LEDs with a ≤4 step Macadam ellipse tolerance
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

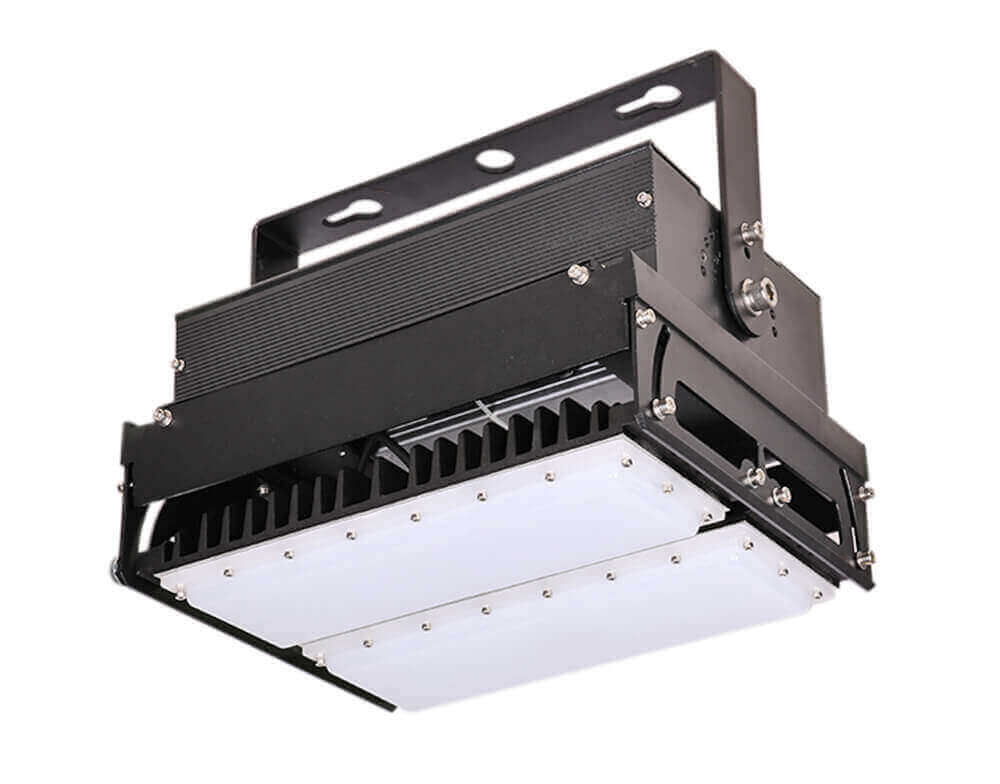

 | R123101 | Canopus 100W Multi Purpose Fitting 5000K Emergency | 14559 | 100W | ~148Lm/W | 5000K | Black | H272 x L257 x W333 | Non emergency | – | 7 years | LDT ↓ | Datasheet ↓ |

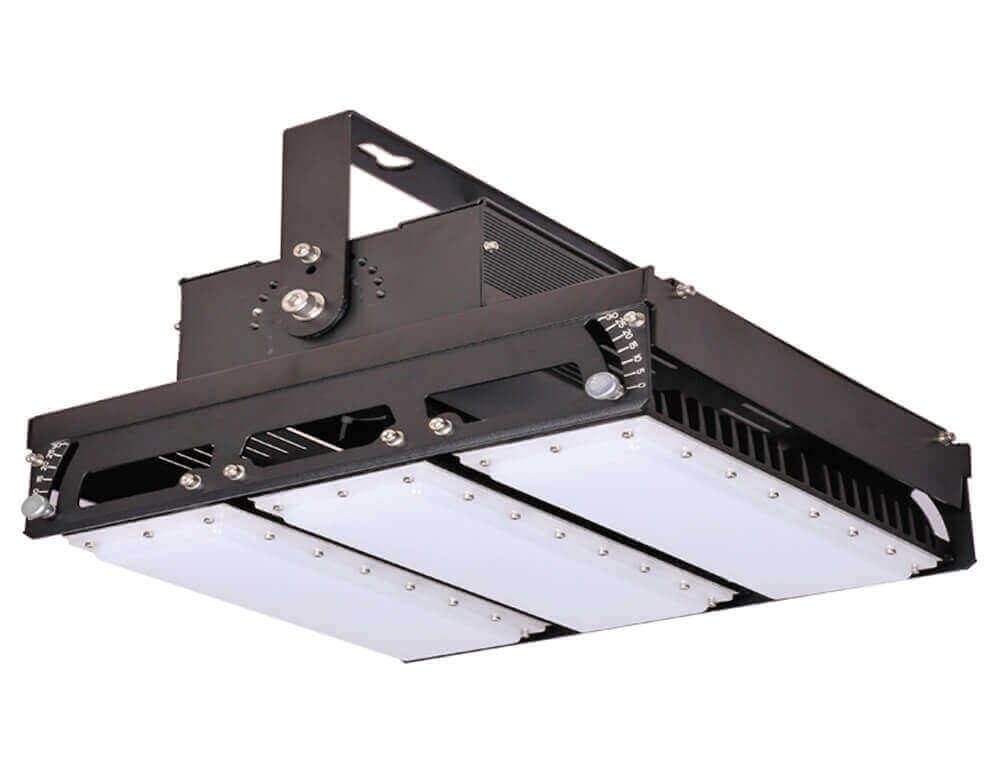

 | R123102 | Canopus 150W Multi Purpose Fitting 5000K Emergency | 21453 | 150W | ~142Lm/W | 5000K | Black | H272 x L380 x W333 | Non emergency | – | 7 years | LDT ↓ | Datasheet ↓ |
 | R123103 | Canopus 200W Multi Purpose Fitting 5000K Emergency | 28787 | 200W | ~145Lm/W | 5000K | Black | H272 x L499 x W333 | Non emergency | – | 7 years | LDT ↓ | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What is Canopus and where is it used?

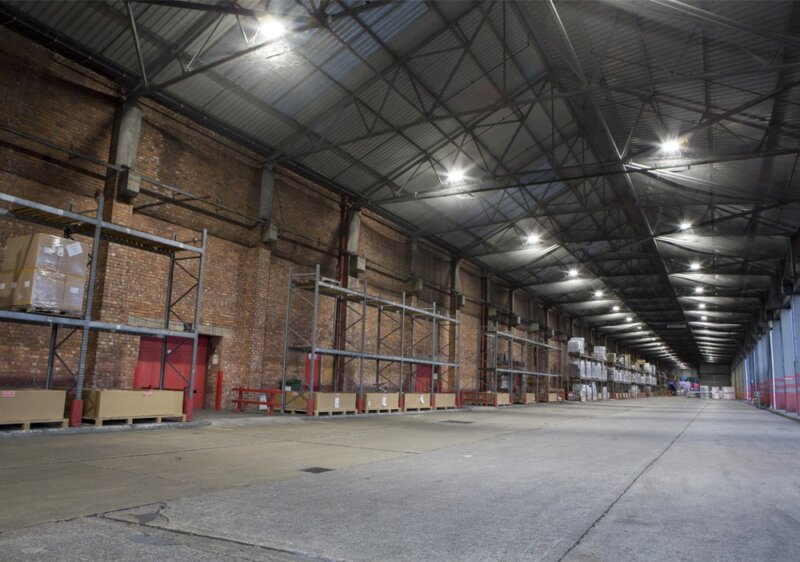

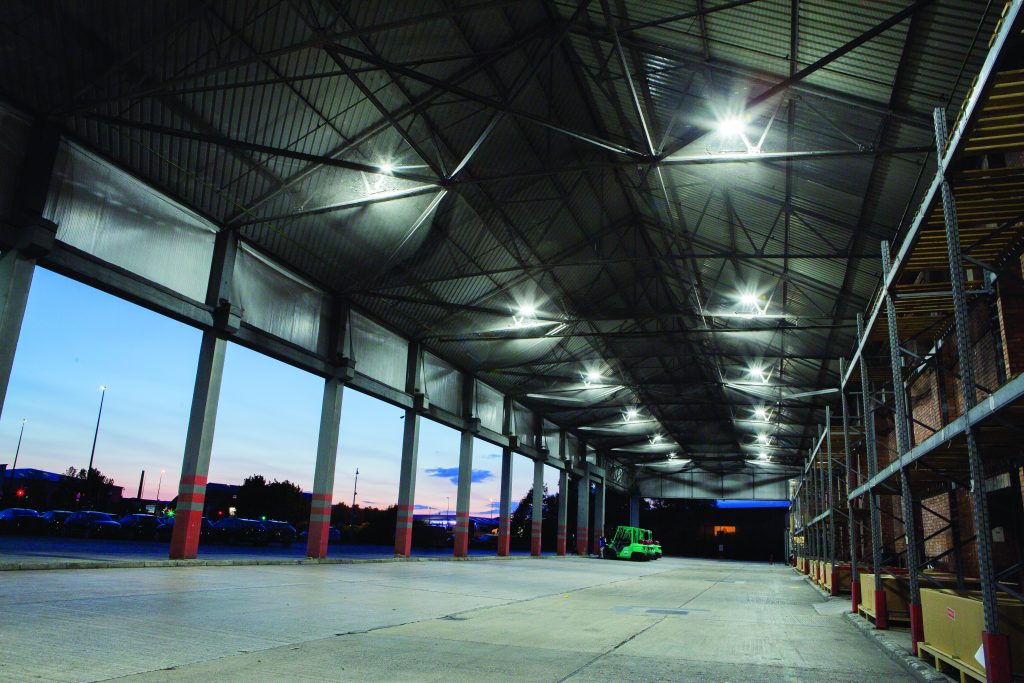

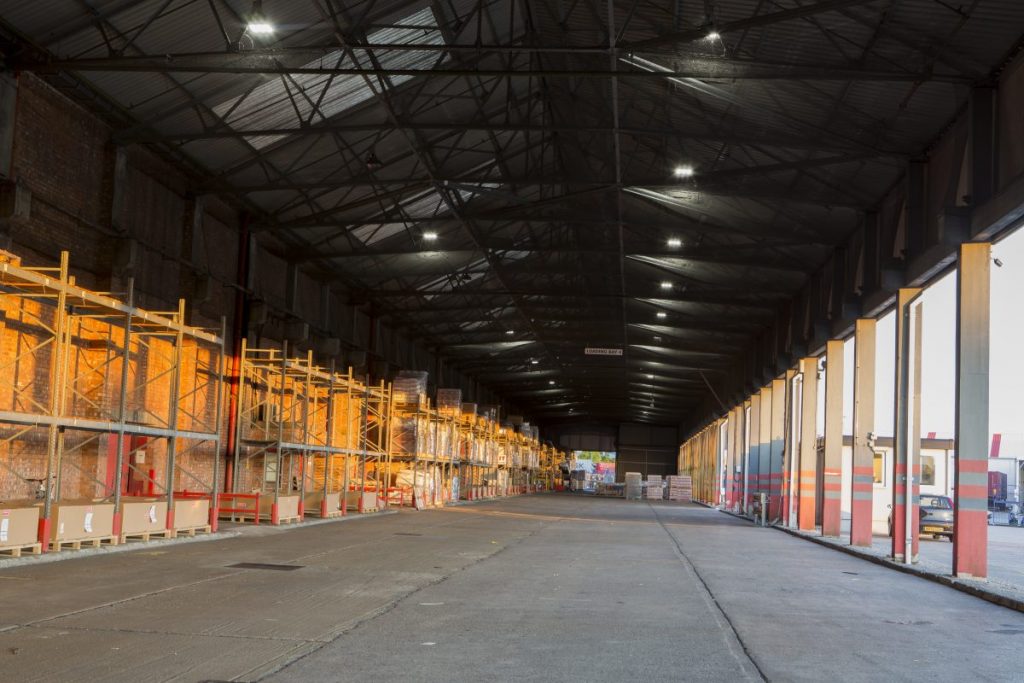

Canopus is a robust IP65 aluminium high bay and low bay LED luminaire designed to work across interior and exterior industrial spaces. It has already been installed in warehouse, dealership and workshop settings including AKW Warehouse in Manchester and an Audi dealership in Stafford. Ricoman backs Canopus with a 7 year warranty, reflecting its build quality for demanding industrial use.
How adjustable is the beam angle on Canopus?
Canopus features an adjustable stirrup arm that lets the beam angle be positioned between 60 and 120 degrees, giving installers control over how light is directed once the fitting is mounted. This flexibility is useful in warehouses and workshops where aisle widths or racking layouts vary across a building. Being able to adjust the angle on site reduces the need for multiple fitting types across a mixed-use industrial space.
Can Canopus be used in cold storage or unheated industrial environments?
es, Canopus is rated to operate down to minus 35 degrees Celsius, a notably wider cold tolerance than many industrial fittings, making it suitable for cold storage facilities, unheated warehouses or exposed exterior applications. This means specifiers don't need a separate cold-rated product for the coldest parts of a site.
What control options are available with Canopus?
Canopus supports DALI, 0-10V and DSI dimming, and can also be specified with an integral PIR sensor for automatic control in areas with variable occupancy. A 3 hour emergency pack accessory is available to add emergency lighting cover to the fitting where needed. These options let one high bay body cover general lighting, occupancy-controlled lighting and emergency duty depending on how it is specified.
What should contractors consider when installing Canopus?

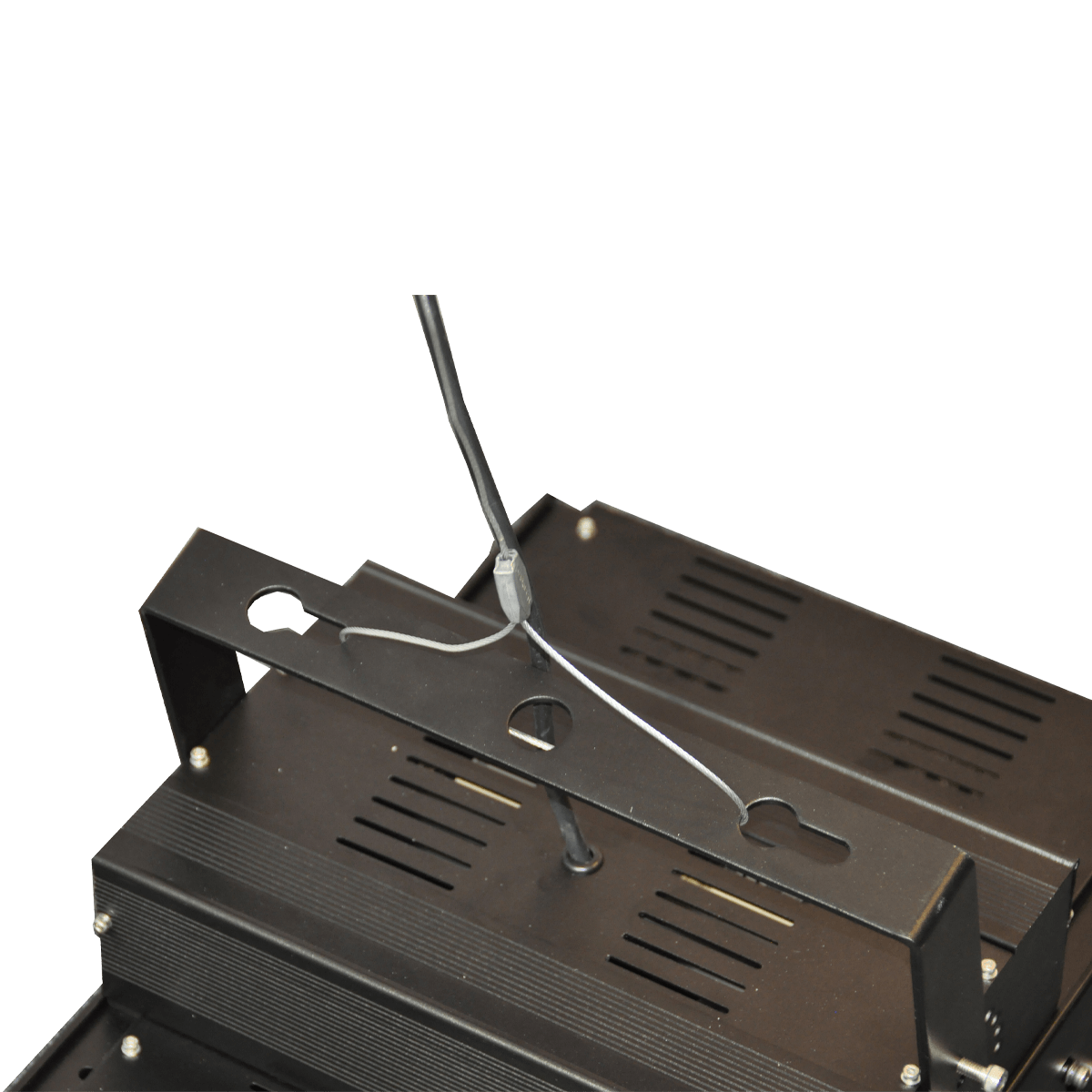

Canopus can be wall, ceiling, pole or arm mounted, or suspended, with back cable entry to keep wiring routes tidy across different mounting styles. Unit weight ranges from 5.43kg to 9.7kg depending on the output chosen, and an optional 1m suspension chain is available for pendant installations. This range of mounting methods makes Canopus adaptable to different building structures on industrial sites.
What durability and warranty standards does Canopus meet?
Canopus is rated IP65 against dust and moisture and IK09 against impact, with a black aluminium body built for demanding industrial environments. It is backed by a 7 year warranty and an L70 B50 rating of 70,000 hours, longer cover than many fittings in the range. This combination of protection and warranty length supports its use in busy warehouses and vehicle workshops.
