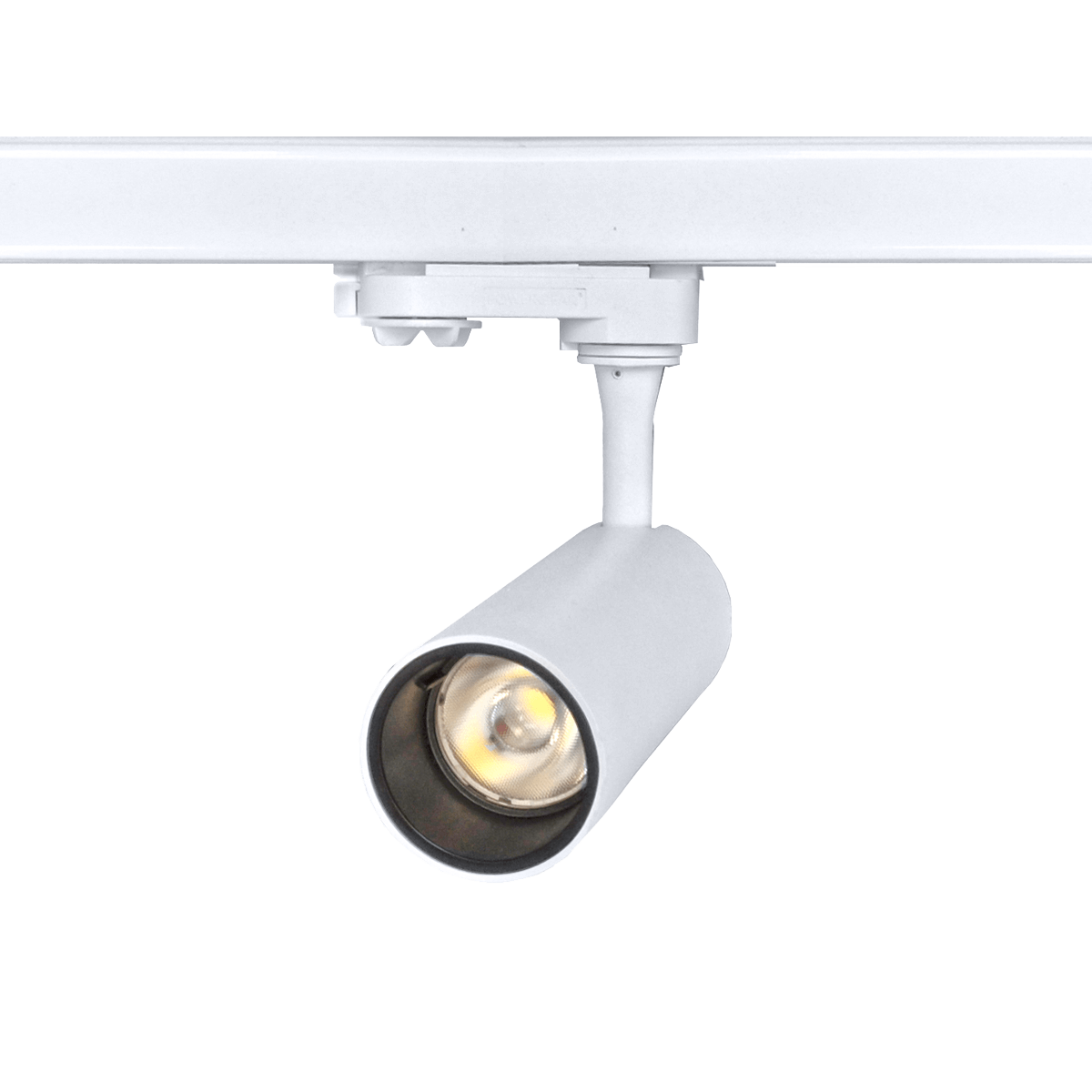

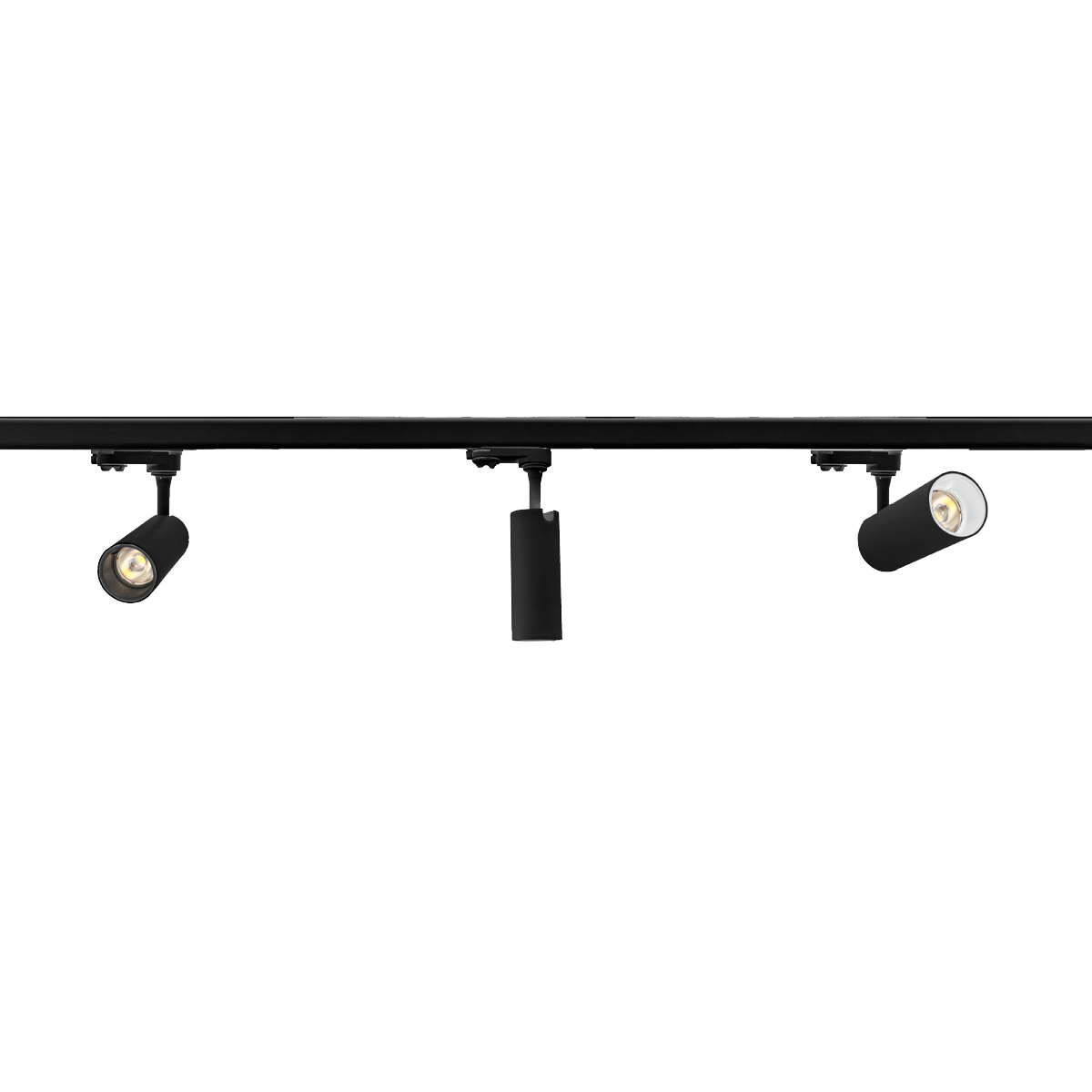

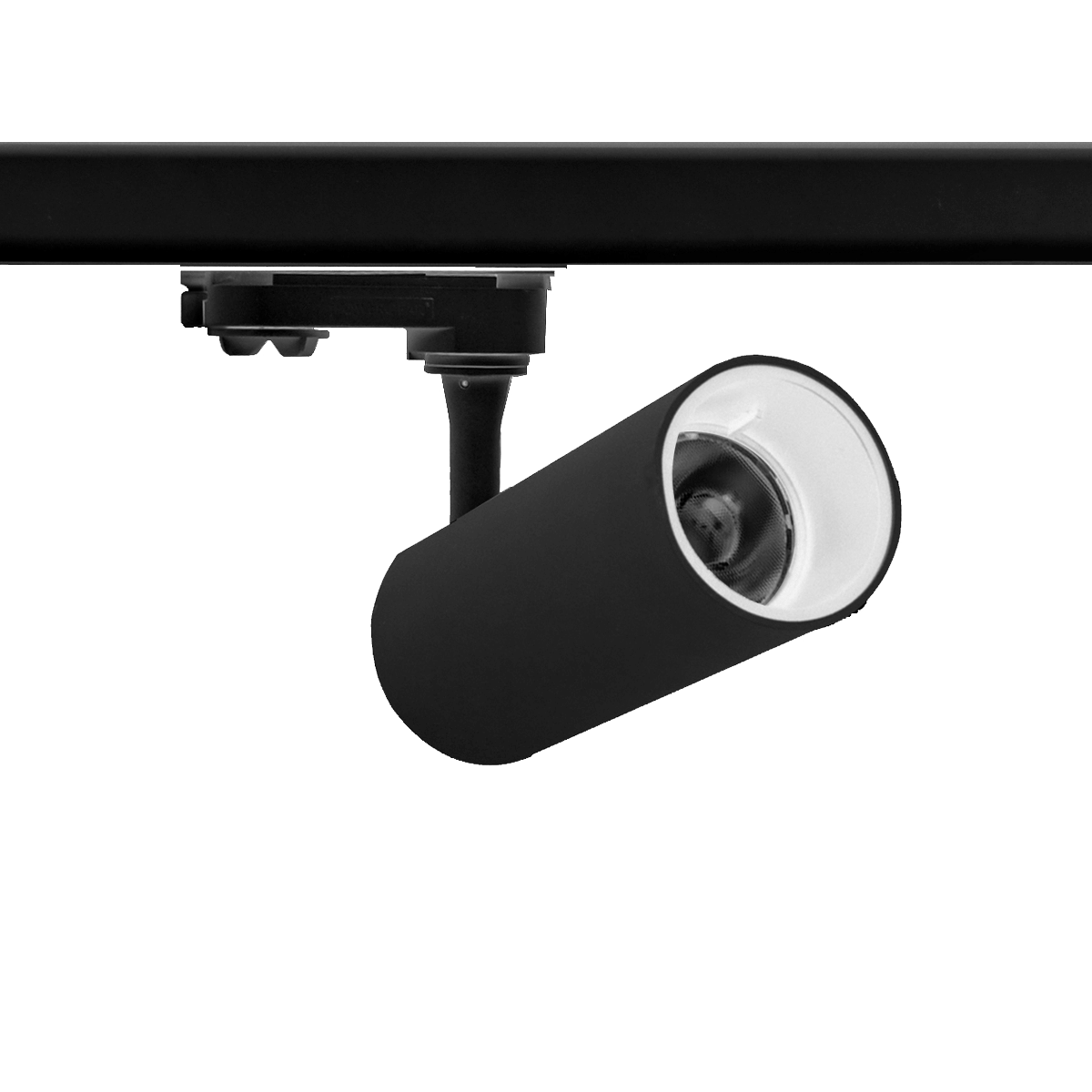

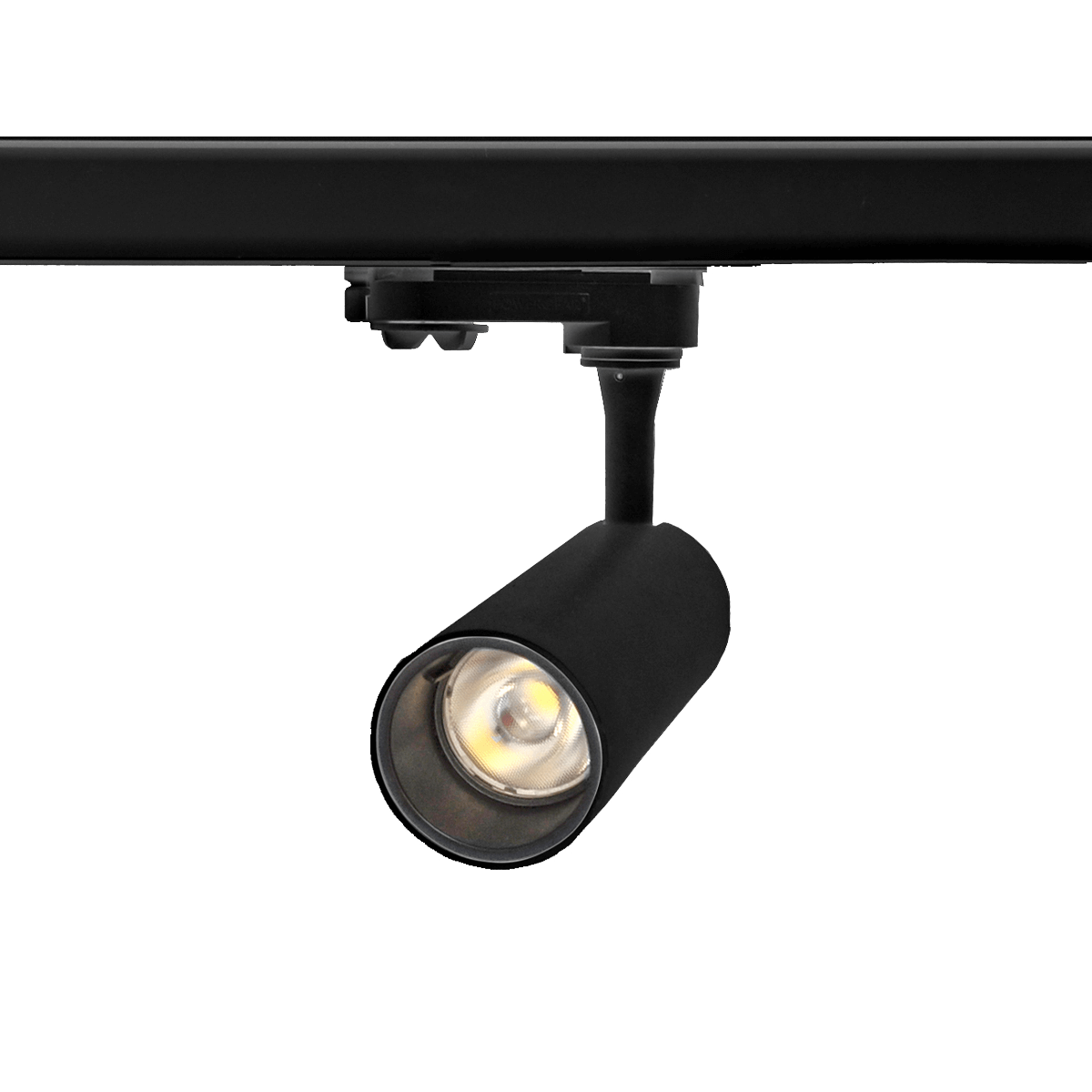

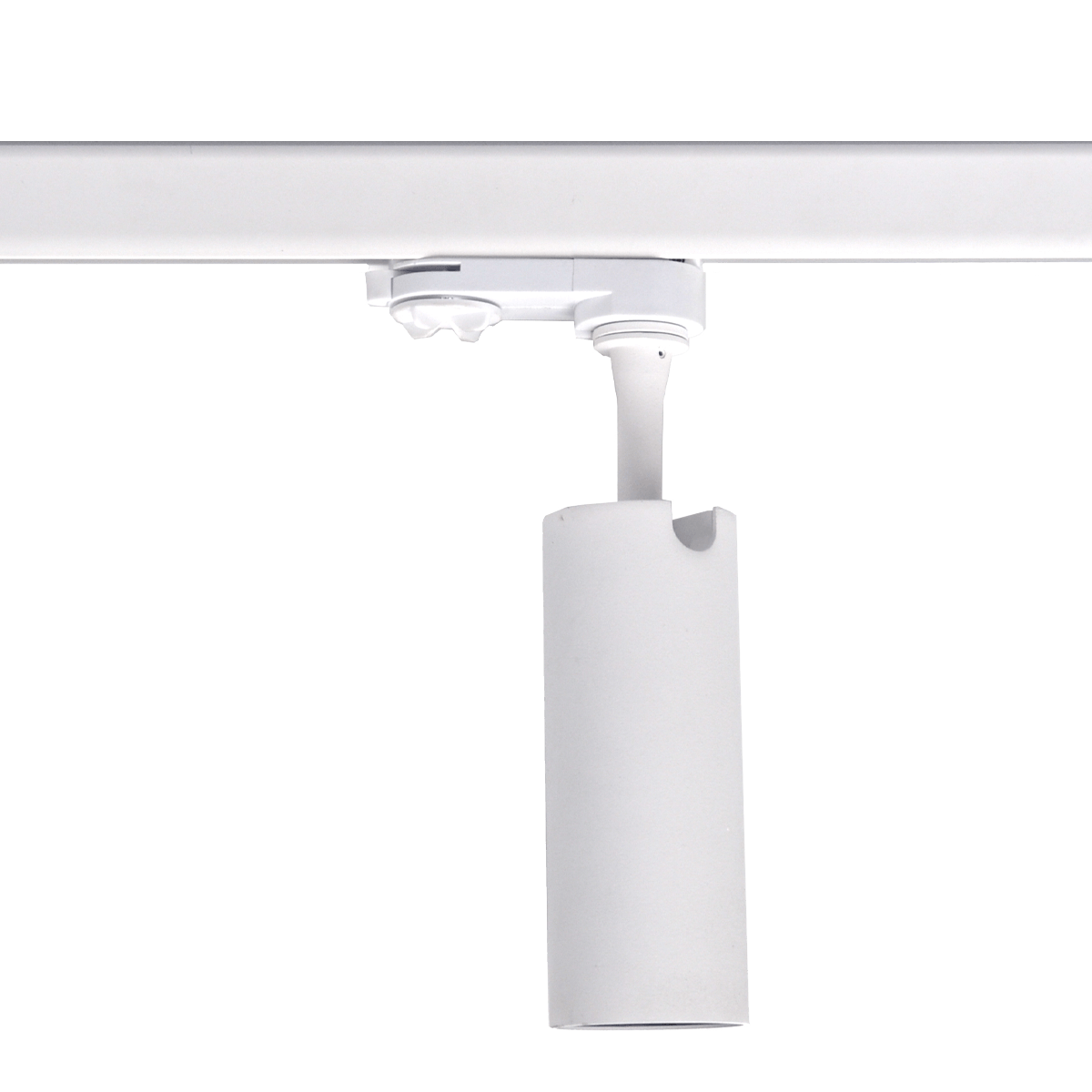

PULSAR LITE
A modern angle and rotation adjustable track light
- Adjustable Accent Track Lighting - Tiltable and rotatable spotlight for flexible lighting schemes in retail, galleries and commercial spaces, helping highlight products and architectural features.
- Custom Optics & High Light Quality - Multiple beam angles with CRI > 90 for accurate colour rendering and refined lighting control.
- Clean, Contemporary Design - Durable aluminium body in black or white that integrates seamlessly with modern track lighting systems and UK fit‑out aesthetics.
Specification
Light Source Information
- Direct light output
- 12W delivering up to 1200lm
- Efficiency of up to 100lm/W
- Drivers supplied
- >90 colour rendering index
- Colour Temperature options of 3000K and 4000K
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- Single Bin Bridgelux COB with a ≤3 step Macadam ellipse tolerance
Design
- Matte white (RAL9016) or black (RAL9005) body
- Black or white reflector options
- IP20 rated
- Rotates 350° and angle adjustable 0-90°
- Track mounted (recess mounted and surface mounted version available)
Optics
- PMMA diffuser as standard
- Customisable with 15°, 24°, 38° and 55° beam angles
- Honeycomb louvre diffuser available -TP(a) rated
Dimming
- Non dimmable as standard
Miscellaneous
- 5 year warranty
- To specify state:
- Elegant cylindrical rotation and angle adjustable track mounted LED spotlight with a cast aluminium body, choice of white or black reflector and integral driver. Available in 3000K and 4000K colour temperature and customisable with 15°, 24°, 38° and 55° beam angles – as RICOMAN’s Pulsar Lite Track.
Dimensions
Features
- Stylish, contemporary design
- Black or white finish options
- Black or white reflector options
- Angle adjustable and rotatable
- 4000K or 3000K colour temperature
- Excellent colour rendering index, CRI>90 Ra
- Durable aluminium construction
- Customisable with 15°, 24°, 38° and 55° beam angles
- 12W delivering 1200 lumens
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- Single Bin Bridgelux COB with a ≤3 step Macadam ellipse tolerance
- Honeycomb louvre diffuser available
- Also available in: surface mounted | recessed | pendant
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R096701 | Pulsar Track Light White Finish & Reflector 12W 3000K 24° | 1202 | 12W | ~100Lm/W | 3000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096701/15 | Pulsar Track Light White Finish & Reflector 12W 3000K 15° | 1238 | 12W | ~100Lm/W | 3000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096701/38 | Pulsar Track Light White Finish & Reflector12W 3000K 38° | 1238 | 12W | ~100Lm/W | 3000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096701/55 | Pulsar Track Light White Finish & Reflector 12W 3000K 55° | 1250 | 12W | ~100Lm/W | 3000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096702/38 | Pulsar Track Light White Finish & Reflector 12W 4000K 38° | 1262 | 12W | ~100Lm/W | 4000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096702/15 | Pulsar Track Light White Finish & Reflector 12W 4000K 15° | 1238 | 12W | ~100Lm/W | 4000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096702 | Pulsar Track Light White Finish & Reflector 12W 4000K 24° | 1206 | 12W | ~100Lm/W | 4000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096702/55 | Pulsar Track Light White Finish & Reflector 12W 4000K 55° | 1262 | 12W | ~100Lm/W | 4000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
 | R096701/BR | Pulsar Track Light White Finish Black Reflector 12W 3000K 24° | 1202 | 12W | ~100Lm/W | 3000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096701/15/BR | Pulsar Track Light White Finish Black Reflector 12W 3000K 15° | 1238 | 12W | ~100Lm/W | 3000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096701/38/BR | Pulsar Track Light White Finish Black Reflector 12W 3000K 38° | 1238 | 12W | ~100Lm/W | 3000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096701/55/BR | Pulsar Track Light White Finish Black Reflector 12W 3000K 55° | 1262 | 12W | ~100Lm/W | 3000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096702/38/BR | Pulsar Track Light White Finish Black Reflector 12W 4000K 38° | 1238 | 12W | ~100Lm/W | 4000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096702/15/BR | Pulsar Track Light White Finish Black Reflector 12W 4000K 15° | 1238 | 12W | ~100Lm/W | 4000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096702/BR | Pulsar Track Light White Finish Black Reflector 12W 4000K 24° | 1266 | 12W | ~100Lm/W | 4000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096702/55/BR | Pulsar Track Light White Finish Black Reflector 12W 4000K 55° | 1262 | 12W | ~100Lm/W | 4000K | White (RAL 9016) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
 | R096701/BK | Pulsar Track Light Black Finish White Reflector 12W 3000K 24° | 1262 | 12W | ~100Lm/W | 3000K | Black (RAL 9005) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096701/BK/15 | Pulsar Track Light Black Finish White Reflector 12W 3000K 15° | 1238 | 12W | ~100Lm/W | 3000K | Black (RAL 9005) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096701/BK/38 | Pulsar Track Light Black Finish White Reflector 12W 3000K 38° | 1242 | 12W | ~100Lm/W | 3000K | Black (RAL 9005) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096701/BK/55 | Pulsar Track Light Black Finish White Reflector 12W 3000K 55° | 1250 | 12W | ~100Lm/W | 3000K | Black (RAL 9005) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096702/BK/38 | Pulsar Track Light Black Finish White Reflector12W 4000K 38° | 1206 | 12W | ~100Lm/W | 4000K | Black (RAL 9005) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096702/BK/15 | Pulsar Track Light Black Finish White Reflector 12W 4000K 15° | 1206 | 12W | ~100Lm/W | 4000K | Black (RAL 9005) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096702/BK | Pulsar Track Light Black Finish White Reflector 12W 4000K 24° | 1206 | 12W | ~100Lm/W | 4000K | Black (RAL 9005) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096702/BK/55 | Pulsar Track Light Black Finish White Reflector 12W 4000K 55° | 1206 | 12W | ~100Lm/W | 4000K | Black (RAL 9005) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
 | R096701/BK/BR | Pulsar Track Light Black Finish & Reflector 12W 3000K 24° | 1262 | 12W | ~100Lm/W | 3000K | Black (RAL 9005) | Ø52 x H220mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
You may also like
Frequently asked questions
What is the Pulsar Lite downlight?
Pulsar Lite is a modern, angle and rotation adjustable downlight with a durable aluminium body, and it can be installed surface mounted, recessed, or track mounted depending on the ceiling type. It is finished in white or black lens options to suit different interior styles. Its adjustable angle and rotation allow the beam to be aimed after installation rather than being fixed.
What beam angle options does Pulsar Lite offer?
Pulsar Lite is available in four different beam angles, a standard 24 degrees plus 15, 38, and 55 degree options, giving specifiers flexibility to match the beam spread to the task, whether tight accent lighting or a broader wash. A 40mm honeycomb louvre accessory is also available for additional glare control. Two colour temperature options, 3000K or 4000K, are offered alongside the beam angle choices.
Can Pulsar Lite be used consistently across different fitting types on one project?
The same style of Pulsar Lite luminaire is also available in a pendant format and integrated into Ricoman's Estrella Pro linear lighting system, allowing a single visual style to be used consistently throughout a project regardless of whether a room needs a recessed, surface, track, pendant, or linear solution. This is useful where a specifier wants one coherent look across reception areas, corridors, and open-plan spaces with different ceiling conditions. It reduces the need to mix visually different product families on the same job.
What finish options does Pulsar Lite offer?
Pulsar Lite is available with a white or black body, with a black reflector option to contrast against the body colour, giving specifiers a choice of finish combinations to suit different ceiling colours and interior styles. This flexibility applies across its recessed, surface, and track mounted formats. The finish choice is independent of the beam angle and colour temperature options.
What spaces does Pulsar Lite excel in?
Pulsar Lite is an angle and rotation adjustable spotlight, with 350 degrees of rotation and four beam angle options, making it well suited to spaces needing directional accent lighting rather than general room illumination. This includes retail displays, galleries, hospitality interiors and office feature areas where specific objects, walls or zones need to be picked out.
