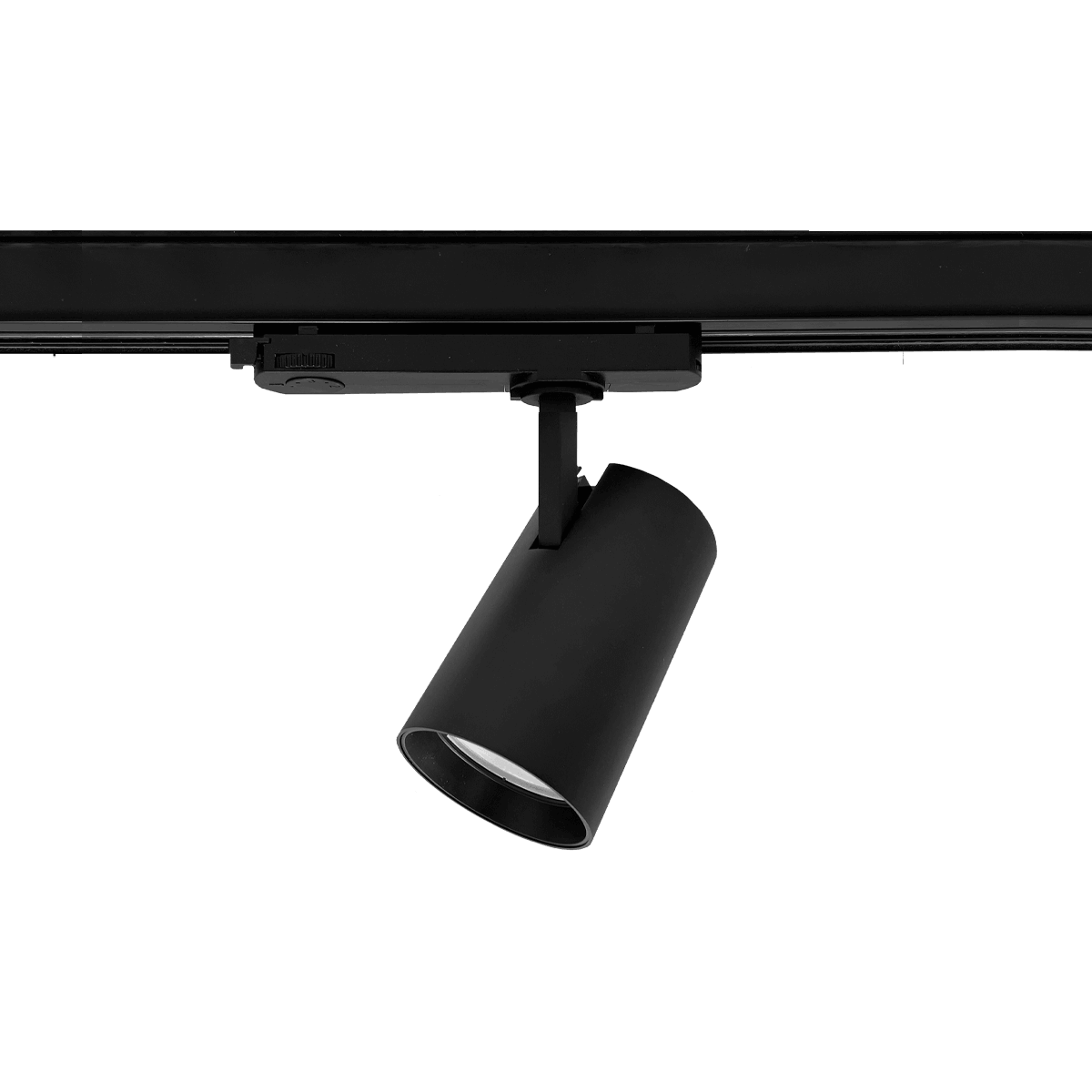

Zenith
The Zenith 3 Circuit Track Light is a cutting-edge solution for versatile and adjustable LED spotlighting. With switchable watages, Zenith was designed with precision and performance in mind, this track-mounted luminaire offers a range of features to meet your lighting needs.
- Adjustable output and colour temperature let users tailor lighting mood precisely
- Excellent colour rendering (CRI>90) ensures vibrant, accurate illumination
- Swivel and tilt adjustment delivers targeted lighting where needed most
Specification
Light Source Information
- Direct light output
- Switchable wattage from 12W-42W delivering from 1140 to 4098 lumens
- Efficacy of 98lm/W
- >90 colour rendering index
- 2700K, 3000K, 4000K colour temperature
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- Single Bin Cree COB with a ≤3 step Macadam ellipse tolerance
Design

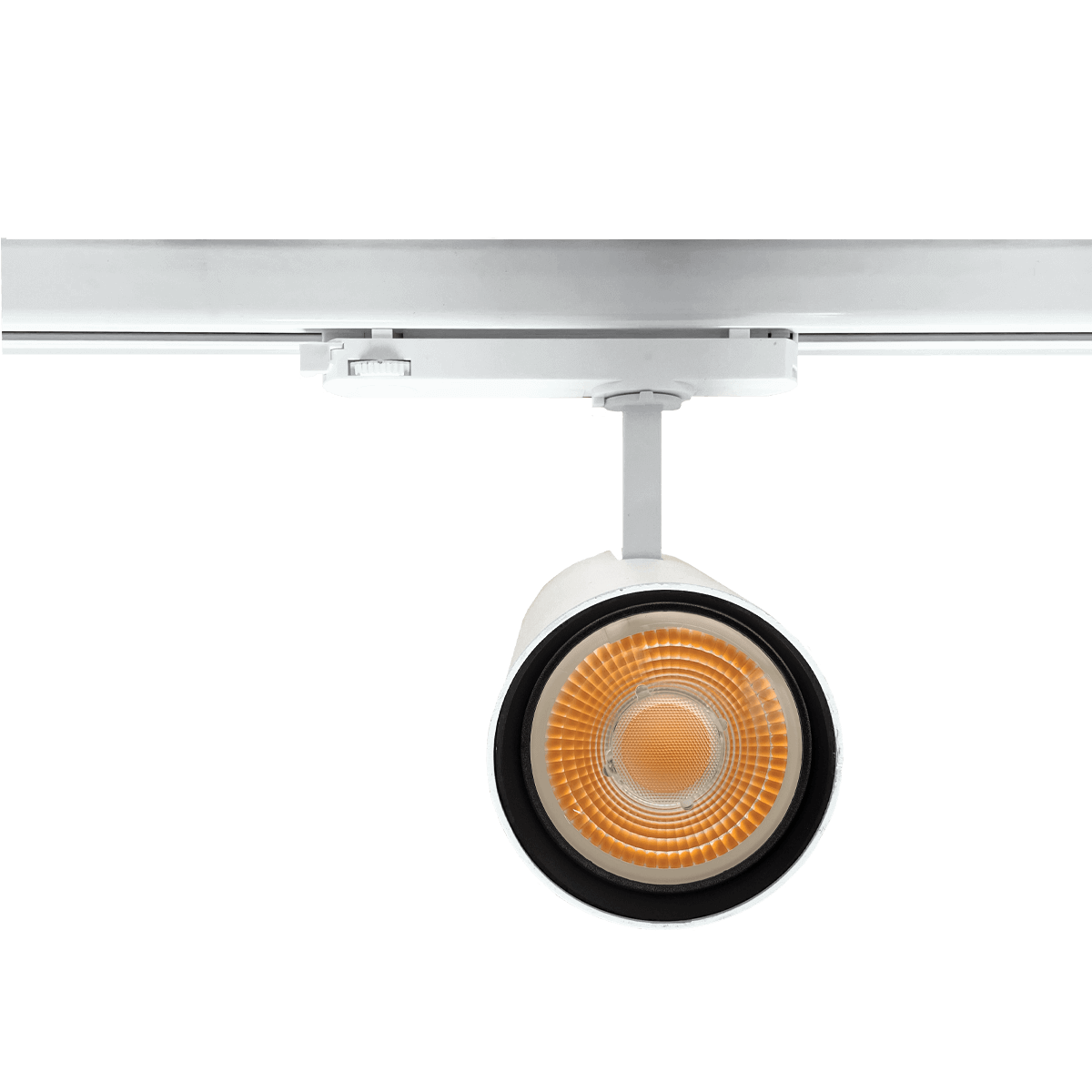

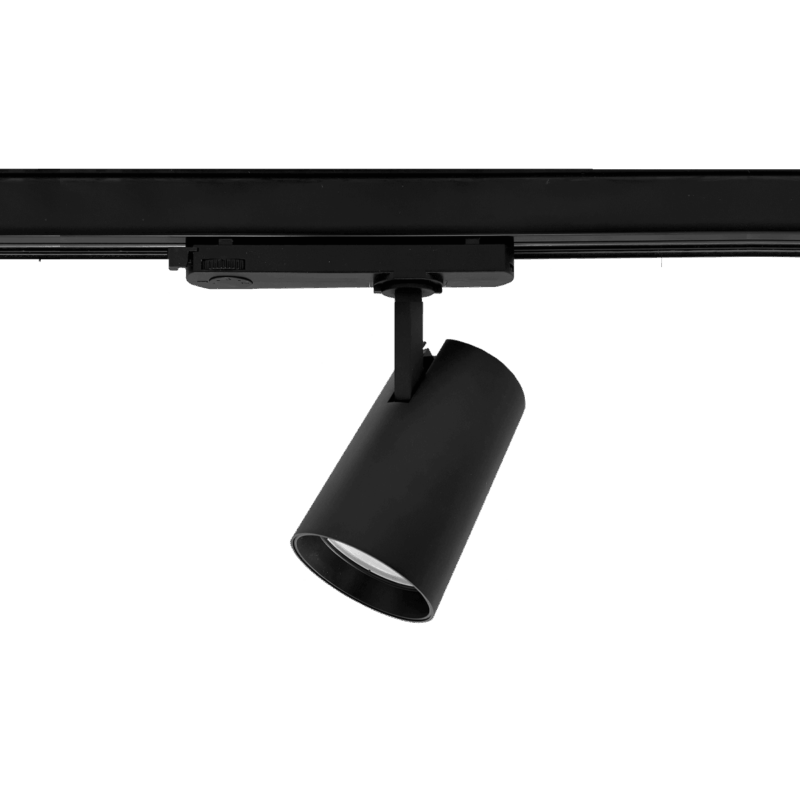

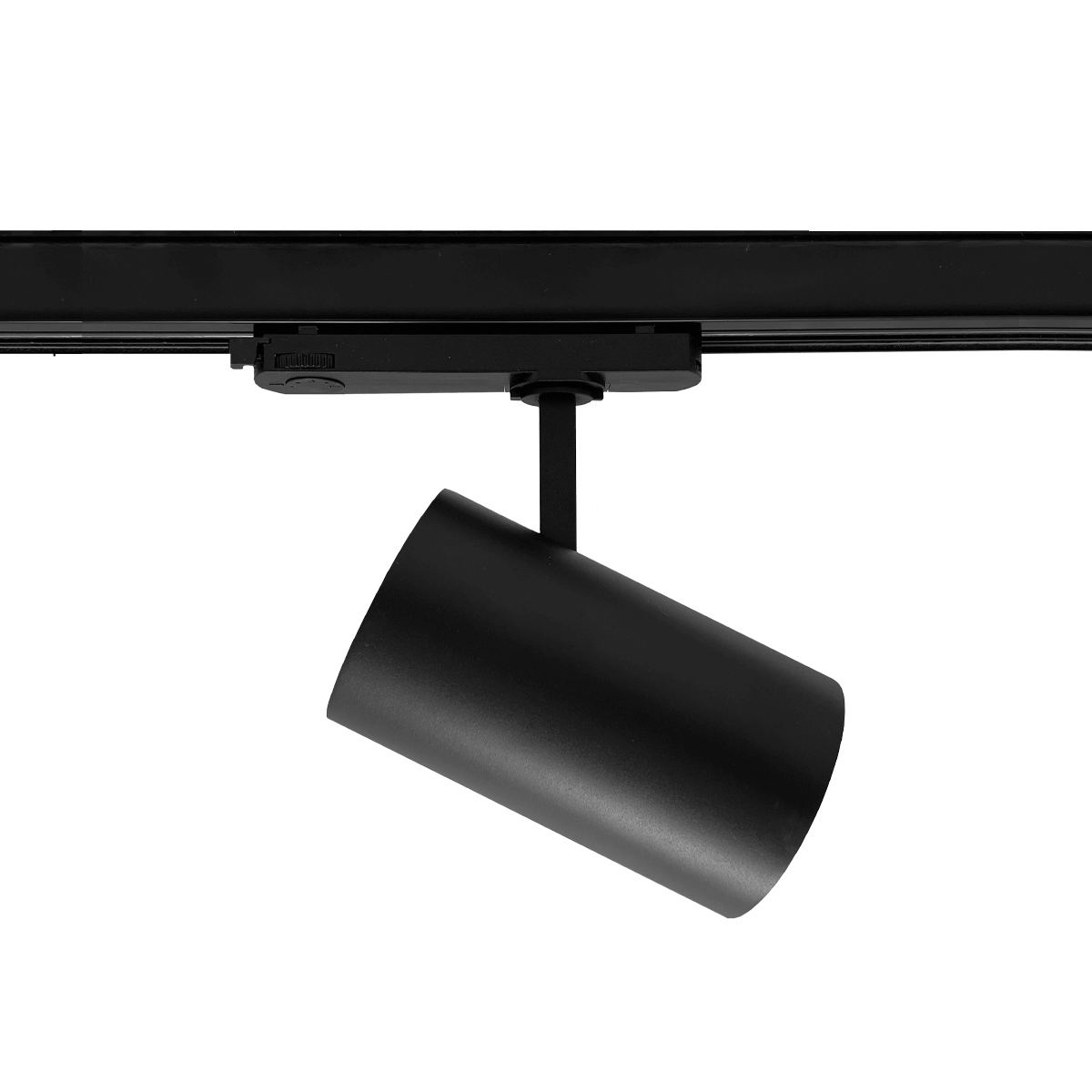

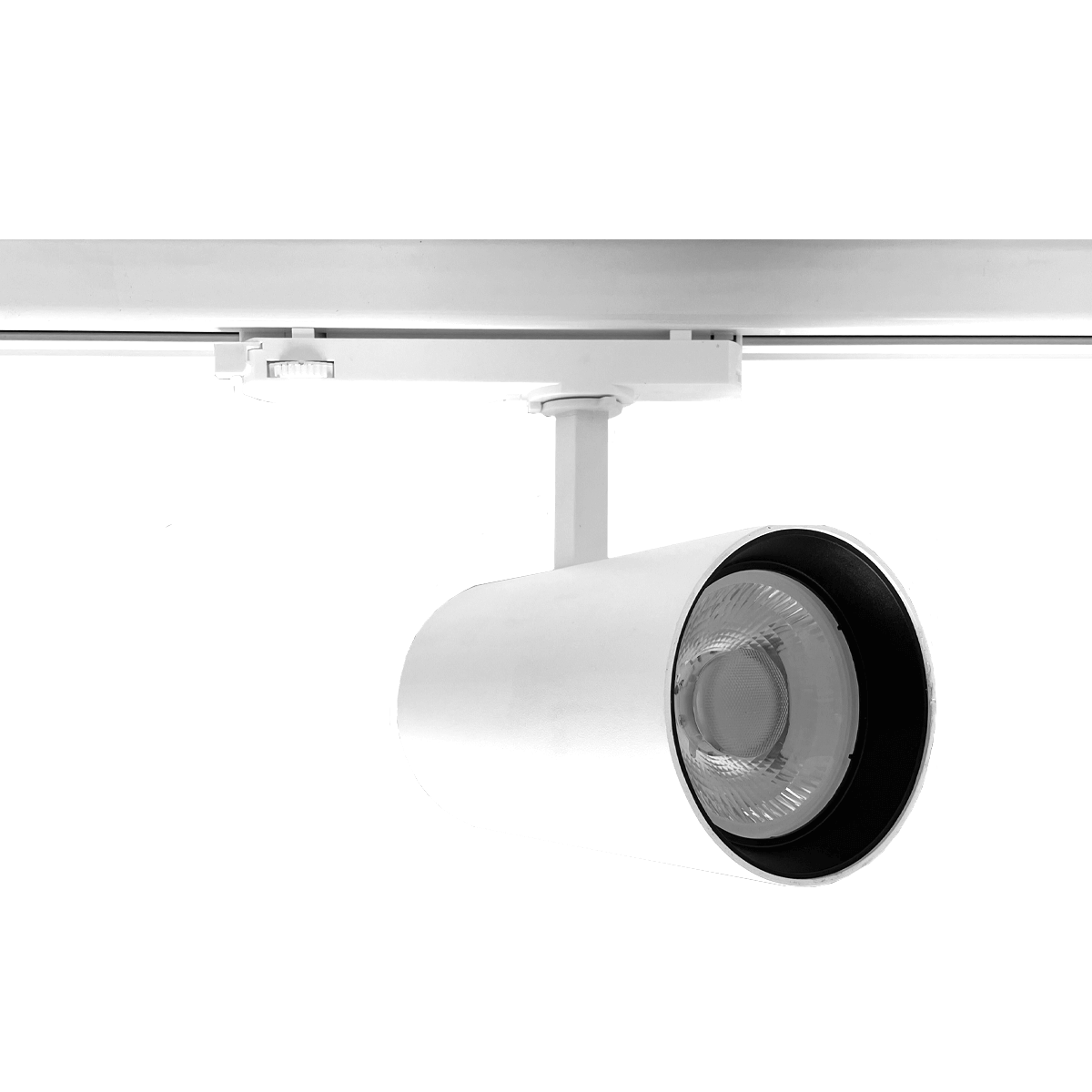

- Aluminium white or black body with black accent reflector
- IP20 Rated
- IK08 Rated
- 90° tilt and 350° rotation
Mounting Options

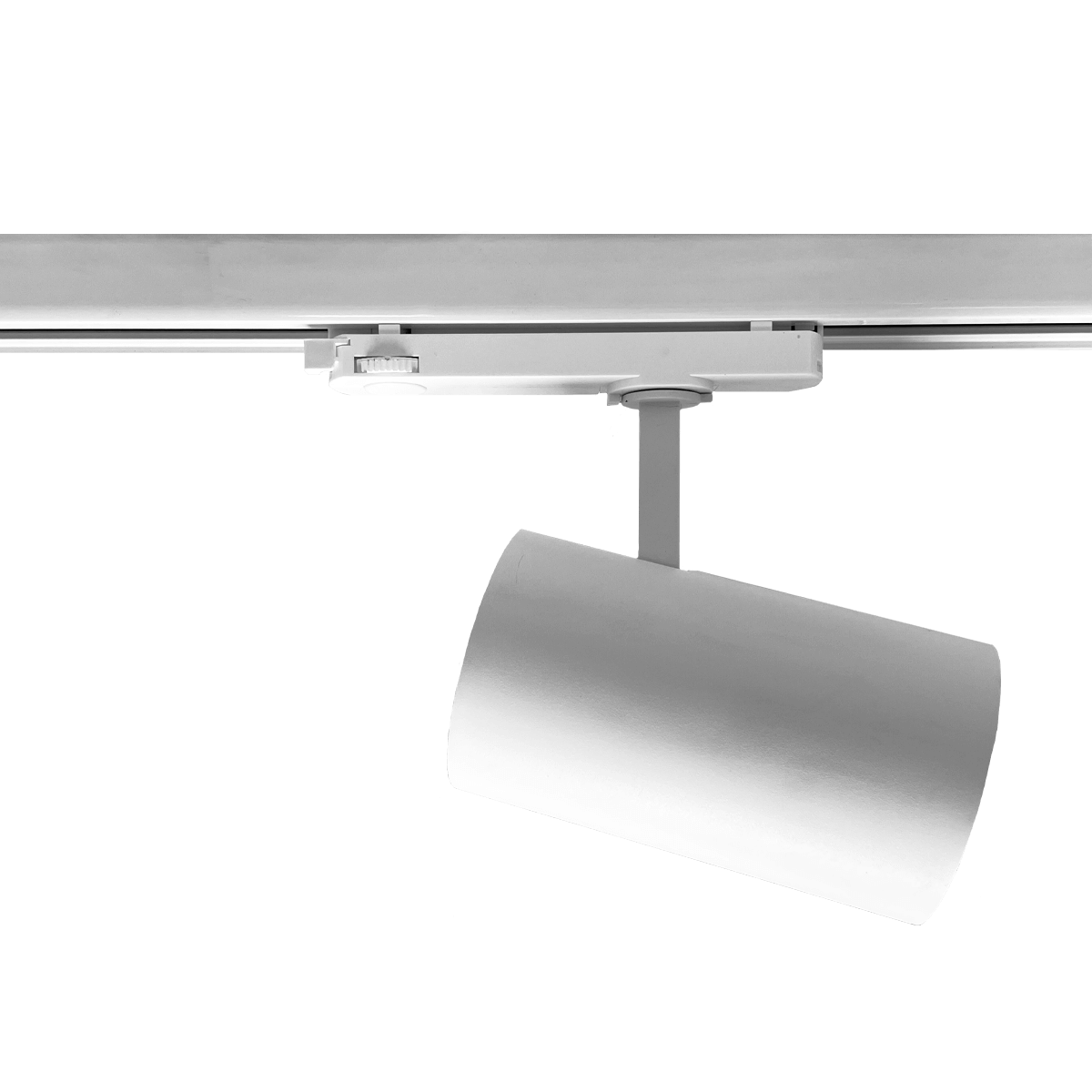

- Track mounted
- Global 3-Circuit 230V:16A mains voltage track system available from RICOMAN
Optics
- 24° beam angle as standard
- Acrylic diffuser as standard

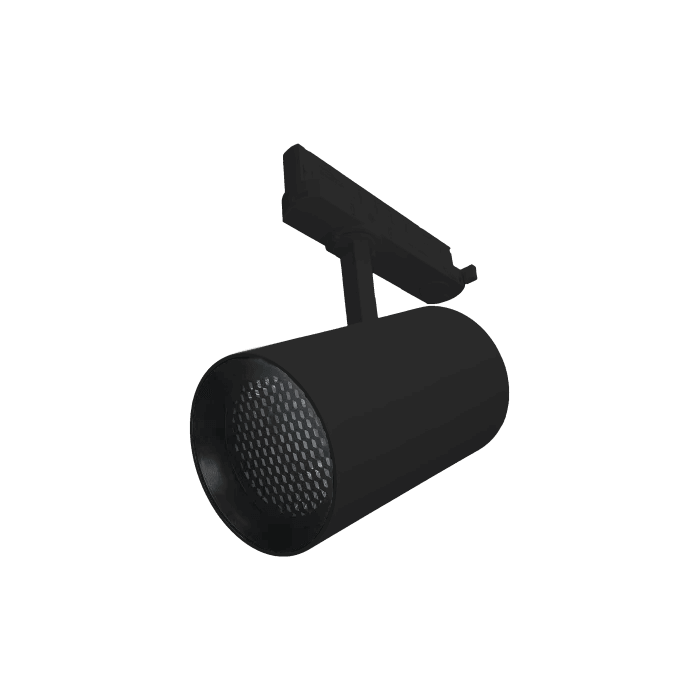

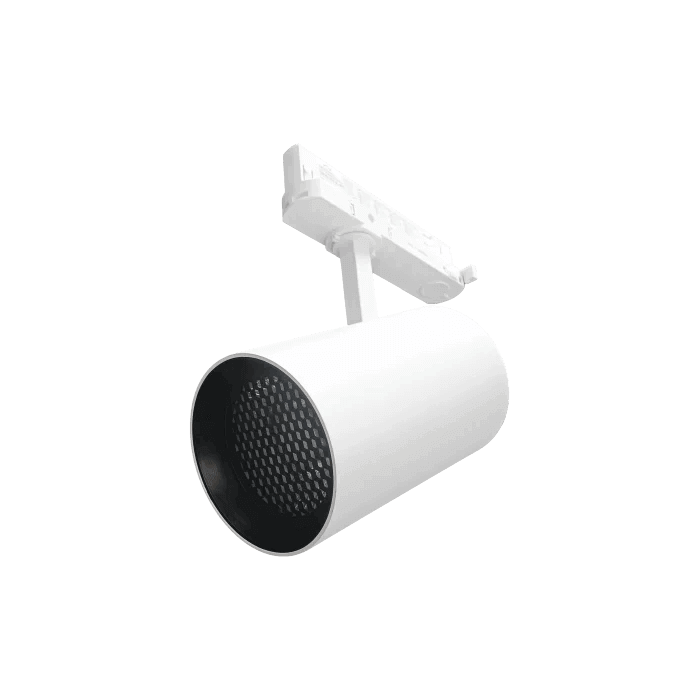

- Honeycomb louvre diffuser available -TP(a) rated
Dimming
- Non-dimmable as standard
- DALI / Casambi dimming available
Miscellaneous
- 5 year warranty
To specify state:
- Track mounted LED spotlight. Switchable wattage from 12W to 42W, delivering up to 4098 lumens. Extruded aluminium body with fully adjustable swivel and tilt delivering a 24° distribution as standard with options for 15°, 38°, or 45° beams. Available in 2700K, 3000K and 4000K colour temperatures, available, with a honeycomb diffuser for reduced glare – as RICOMANs Zenith track lights
Dimensions
Features
- Adjustable Track Light: Tailor the intensity of your lighting with a wattage range switchable from 12W to 42W, providing flexibility for various settings.
- High Colour Rendering Index (CRI): Experience true-to-life colours with a CRI exceeding 90Ra, ensuring exceptional colour accuracy.
- Durable Build: The extruded aluminum body guarantees durability, while the white or black finish with a black accent reflector adds a touch of sophistication to any environment.
- Versatility in Adjustment: Enjoy full control over rotation and angle adjustments, allowing you to direct light precisely where you need it.
- Colour Temperature Options: Tailor the ambiance with colour temperature choices of 2700K, 3000K, or 4000K to suit various settings and moods.

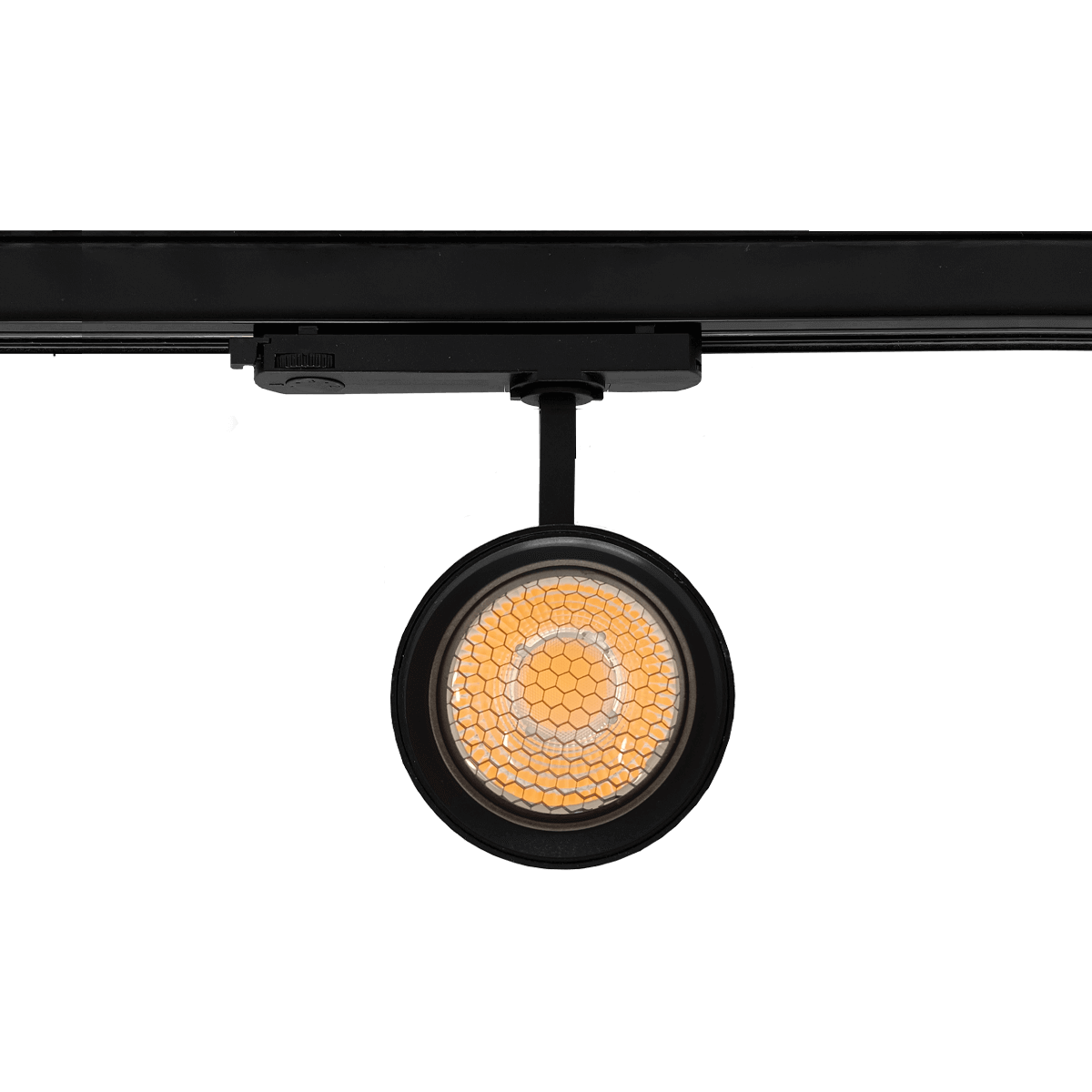

- Low Glare Option: Opt for the honeycomb louvre diffuser for ultra-low glare, perfect for environments where visual comfort is paramount.
- Conversion Flexibility: Easily convert the track-mounted spotlight to a surface-mounted one with the track surface point outlet.
- Extended Lifespan: Benefit from long-lasting performance with L70 B50 at 100,000 hours and L90 B50 at 42,000 hours.
- Precision Lighting Source: The single bin Cree COB ensures uniform light quality with a ≤3 step Macadam ellipse tolerance.
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R111401/BK/27K | Zenith Switchable Wattage Black Finish 2700K | 1140Lm (12W) | 2136Lm (24W) | 3344Lm (42W) | 12W | 24W | 42W | 79-95 Lm/W | 2700K |3000K | 4000K | Black | 90mm diameter x 158mm x 150mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R111401/BK/3K | Zenith Switchable Wattage Black Finish 3000K | 1189Lm (12W) | 2256Lm (24W) | 3350Lm (42W) | 12W | 24W | 42W | 79-99 Lm/W | 2700K |3000K | 4000K | Black | 90mm diameter x 158mm x 150mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R111401/BK/4K | Zenith Switchable Wattage Black Finish 4000K | 1431Lm (12W) | 2707Lm (24W) | 4098Lm (42W) | 12W | 24W | 42W | 98-119 Lm/W | 2700K |3000K | 4000K | Black | 90mm diameter x 158mm x 150mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
 | R111401/WT/27K | Zenith Switchable Wattage White Finish 2700K | 1140Lm (12W) | 2136Lm (24W) | 3344Lm (42W) | 12W | 24W | 42W | 79-95 Lm/W | 2700K |3000K | 4000K | White | 90mm diameter x 158mm x 150mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R111401/WT/3K | Zenith Switchable Wattage White Finish 3000K | 1189Lm (12W) | 2256Lm (24W) | 3350Lm (42W) | 12W | 24W | 42W | 79-99 Lm/W | 2700K |3000K | 4000K | White | 90mm diameter x 158mm x 150mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R111401/WT/4K | Zenith Switchable Wattage White Finish 4000K | 1431Lm (12W) | 2707Lm (24W) | 4098Lm (42W) | 12W | 24W | 42W | 98-119 Lm/W | 2700K |3000K | 4000K | White | 90mm diameter x 158mm x 150mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
 | R111401/BK/27K/R09-HC75 | Zenith Switchable Wattage Black Finish 2700K Honeycomb Diffuser | 862Lm (12W) |1621Lm (24W) | 2437Lm (42W) | 12W | 24W | 42W | 58-71 Lm/W | 2700K |3000K | 4000K | Black | 90mm diameter x 158mm x 150mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R111401/BK/3K/R09-HC75 | Zenith Switchable Wattage Black Finish 3000K Honeycomb Diffuser | 886Lm (12W) |1665Lm (24W) | 2594Lm (42W) | 12W | 24W | 42W | 61-74Lm/W | 2700K |3000K | 4000K | Black | 90mm diameter x 158mm x 150mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R111401/BK/4K/R09-HC75 | Zenith Switchable Wattage Black Finish 4000K Honeycomb Diffuser | 1046Lm (12W) |1963Lm (24W) |3019Lm (42W) | 12W | 24W | 42W | 71-87 Lm/W | 2700K |3000K | 4000K | Black | 90mm diameter x 158mm x 150mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
 | R111401/WT/27K/R09-HC75 | Zenith Switchable Wattage White Finish 2700K Honeycomb Diffuser | 862Lm (12W) |1621Lm (24W) | 2437Lm (42W) | 12W | 24W | 42W | 58-71 Lm/W | 2700K |3000K | 4000K | White | 90mm diameter x 158mm x 150mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R111401/WT/3K/R09-HC75 | Zenith Switchable Wattage White Finish 3000K Honeycomb Diffuser | 886Lm (12W) |1665Lm (24W) | 2594Lm (42W) | 12W | 24W | 42W | 61-74Lm/W | 2700K |3000K | 4000K | White | 90mm diameter x 158mm x 150mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R111401/WT/4K/R09-HC75 | Zenith Switchable Wattage White Finish 4000K Honeycomb Diffuser | 1046Lm (12W) |1963Lm (24W) |3019Lm (42W) | 12W | 24W | 42W | 71-87 Lm/W | 2700K |3000K | 4000K | White | 90mm diameter x 158mm x 150mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
