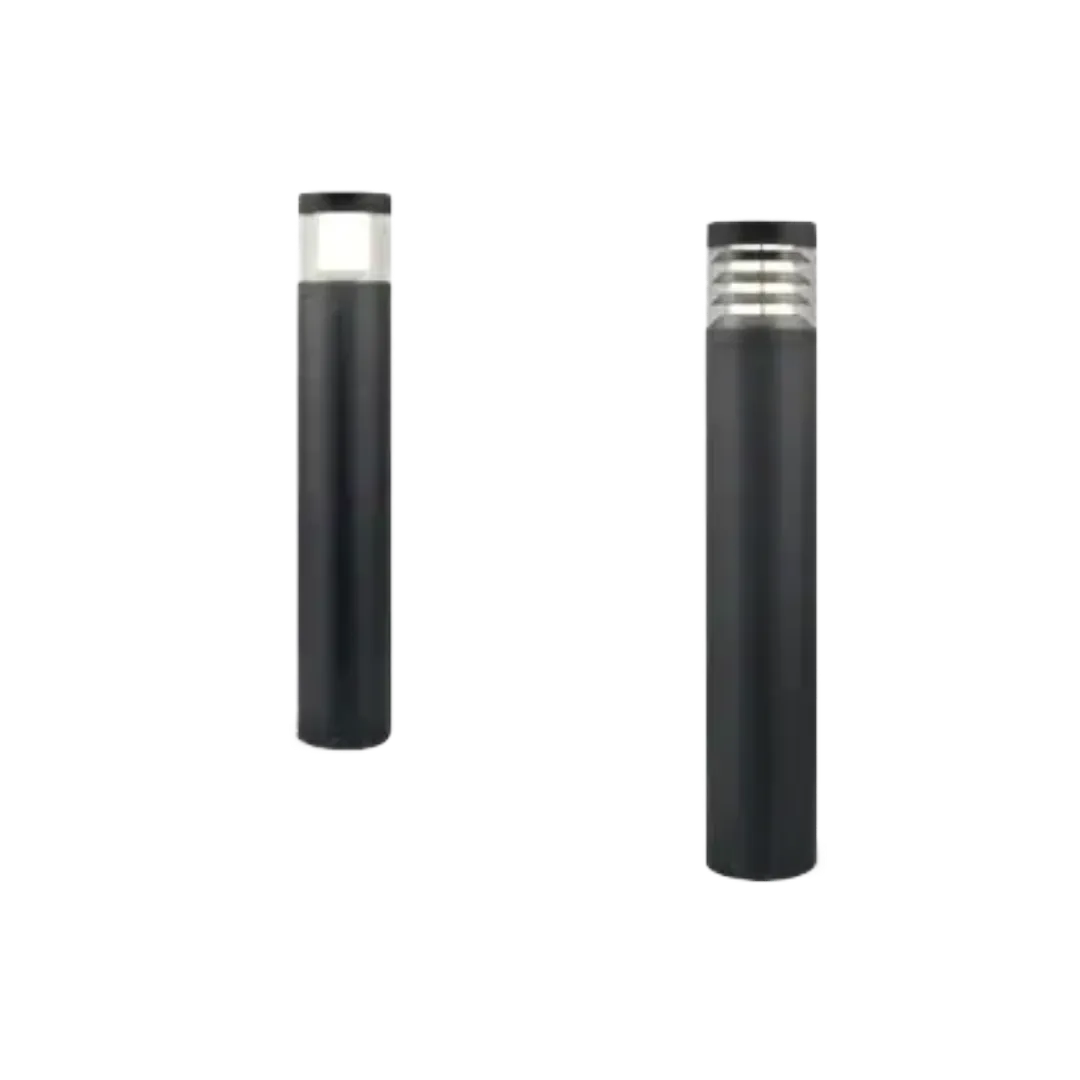

Beacon
Robust bollards with head options
- Robust die-cast aluminium body
- 25W delivering 2000 lumens

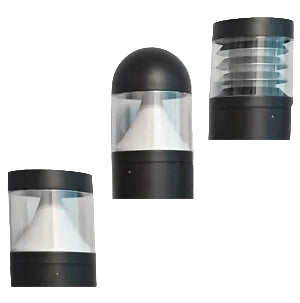

- Dome, flat or louvre effect available
- Root mount kit available
Specification
Light Source Information
- Direct light output
- 25W delivering 720 to 1200lm
- Drivers supplied
- >80 colour rendering index
- Colour Temperature options of 3000K and 4000K
Design
- Die cast aluminium black finish
- IP65 Rated
- Flange or Root Mounted (Root Mount Kit R3010-01)
Optics
- Glass diffuser
- Dome, flat or louvre effect
Dimming
- Non dimmable
Miscellaneous
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- 25W exterior die-cast aluminium LED bollard in 3000K or 4000K with dome, flat or louvre effect – as RICOMAN’s Beacon.
Dimensions
Features
- Robust die-cast aluminium body
- 25W delivering 2000 lumens
- Dome, flat or louvre effect available
- Root mount kit available
- Easy and fast installation
- Matte black finish
- 1000mm height
- Available in 3000K or 4000K
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R301014/3K/25W | Beacon Dome Bollard 25W 3000K | 2000 | 25W | ~80 Lm/W | 3000K | Black | 1000mmx168mm | – | – | 6 years | LDT ↓ | Datasheet ↓ | |
| R301024/3K/25W | Beacon Flat Top Bollard 25W 3000K | 2000 | 25W | ~80 Lm/W | 3000K | Black | 1000mmx168mm | – | – | 6 years | LDT ↓ | Datasheet ↓ | |
| R301034/3K/25W | Beacon Louvre Bollard 25W 3000K | 2000 | 25W | ~80 Lm/W | 3000K | Black | 1000mmx168mm | – | – | 6 years | LDT ↓ | Datasheet ↓ | |
| R301014/4K/25W | Beacon Dome Bollard 25W 4000K | 2000 | 25W | ~80 Lm/W | 4000K | Black | 1000mmx168mm | – | – | 6 years | LDT ↓ | Datasheet ↓ | |
| R301024/4K/25W | Beacon Flat Top Bollard 25W 4000K | 2000 | 25W | ~80 Lm/W | 4000K | Black | 1000mmx168mm | – | – | 6 years | LDT ↓ | Datasheet ↓ | |
| R301034/4K/25W | Beacon Louvre Bollard 25W 4000K | 2000 | 25W | ~80 Lm/W | 4000K | Black | 1000mmx168mm | – | – | 6 years | LDT ↓ | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What is the Beacon bollard and where is it typically used?

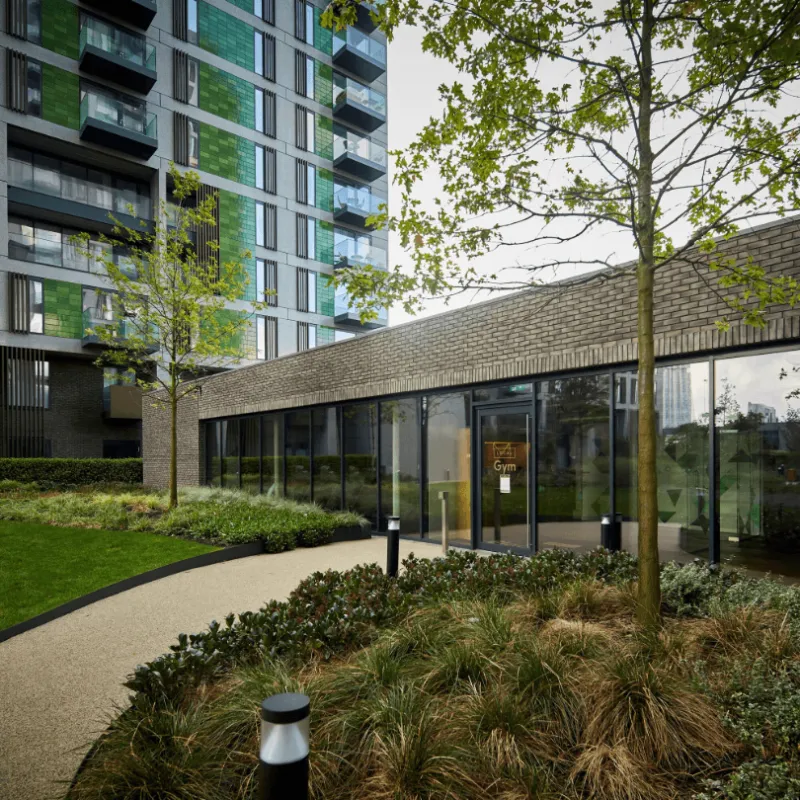

Beacon is a robust exterior die-cast aluminium LED bollard with a classic look, built for driveways, footpaths and other low-level landscape lighting. Its die-cast construction and glass diffuser give it the strength to sit safely alongside busy pedestrian routes, and Ricoman backs it with a 5 year warranty. This makes it a straightforward specification for path and driveway lighting on commercial and residential schemes.
How well does Beacon handle exposure to rain, dust and knocks?
Beacon carries an IP65 rating against dust and moisture ingress along with an IK07 rating for impact resistance, so it holds up to the weather and accidental knocks found along paths and driveways. The die-cast aluminium body and glass diffuser add further physical resilience over time. This combination reduces the likelihood of water damage or cracked housings shortening the bollard's working life.
What colour temperature and head style choices does Beacon offer?
Beacon is available in 3000K or 4000K colour temperatures, letting specifiers match the warmth of the light to the rest of a landscape scheme. It also comes with a choice of dome, flat top or louvre effect heads, each giving a slightly different beam character and appearance. This range of options means one bollard family can suit both traditional and more contemporary exterior designs.
How is Beacon installed on site?
Beacon is ground mounted using a flange fixing, which keeps installation straightforward for contractors setting bollards along a path or driveway. Where a below-ground fixing is preferred, the optional Beacon Root Mount Kit can be specified alongside the fitting. At 6.95kg, it is substantial enough to sit securely once installed.
Is Beacon efficient for schemes with long operating hours?
Beacon delivers an efficacy of around 30 to 80 lumens per watt at 25W, with a power factor above 0.95, so it stays efficient even when running for long hours each night. Its 50,000 hour operating life reduces how often lamps or fittings need replacing along a lit route. This makes it a practical choice for driveways and footpaths that are lit from dusk to dawn.
