Neon Flex

Flexible and creative lightlines

  • Upto 5 Metre Continuous Flexible Light Lines Allowing Creative Installations
  • Even and smooth light distribution
  • Suitable for indoor or outdoor use
  • IP67

Specification

Light Source Information

  • Even and smooth light distribution
  • External drivers supplied
  • Colour Temperature 27000K, 3000K, 4000k
  • >80 colour rendering index
  • L70 B50 = 70,000 hours | L90 B50 = 25,000 hours
  • Epistar LEDs with a ≤4 step Macadam ellipse tolerance

Design

  • IP67 rated
  • Surface mounted
  • Upto 5 metre continuous length
  • Only 12mm wide and 15mm high

Installation

  • Supplied with mounting brackets

Controls

  • Customised solutions

Dimming

  • Non-dimmable as standard
  • DALI/ 0-10V / DSI dimming available

Miscellaneous

  • 3 year warranty
  • To specify state:
  • 12mm wide sleek smooth lightlines that can flow and flex to create unique light shapes.   IP67 as standard –  As RICOMAN’s Neon Flex

Dimensions

Neon Flex dimensions

Features

  • Upto 5 Metre Continuous Flexible Light Lines Allowing Creative Installations
  • Even and smooth light distribution
  • Suitable for indoor or outdoor use
  • IP67
  • Only 12mm wide and 15mm high
  • 2700K, 3000K and 4000K
  • L70 B50 = 70,000 hours    |    L90 B50 = 25,000 hours
  • Single Bin Epistar LEDs with a ≤4 step Macadam ellipse tolerance

Configure Your Product

Part CodeDescriptionLumensWattageEfficacyColour TempColour FinishDimensions (mm)EmergencyReflectorWarrantyLDTDatasheet
R710102Neon Flex 5 metre linear IP68700 per metre12W per MetreWhiteL5000 x H20 x W12mmNon emergency3 yearsLDT ↓Datasheet ↓
R710101Neon Flex 5 metre linear IP66700 per metre12W per MetreWhiteL5000 x H20 x W12mmNon emergency3 yearsLDT ↓Datasheet ↓
N/ANeon Flex 5 metre linear IP68N/AN/AN/ANon emergencyN/ADatasheet ↓

Frequently asked questions

What is Neon Flex and what is it used for?

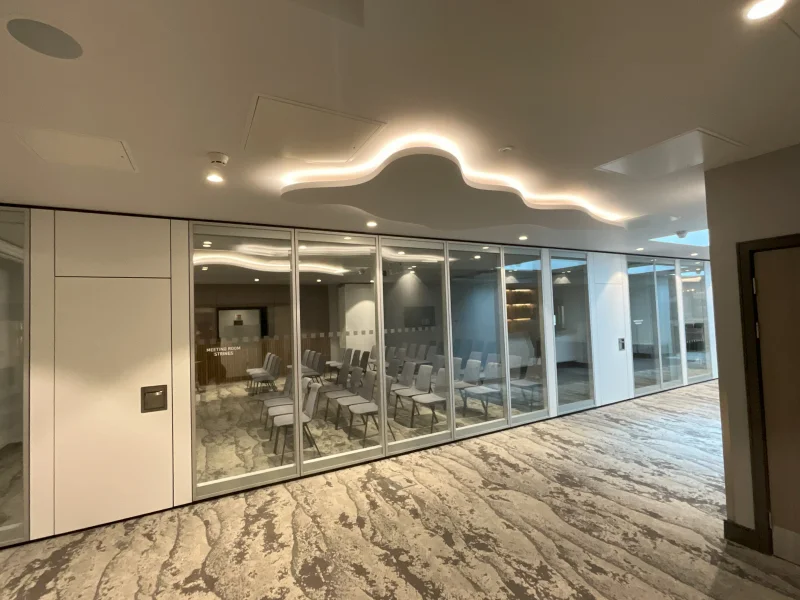

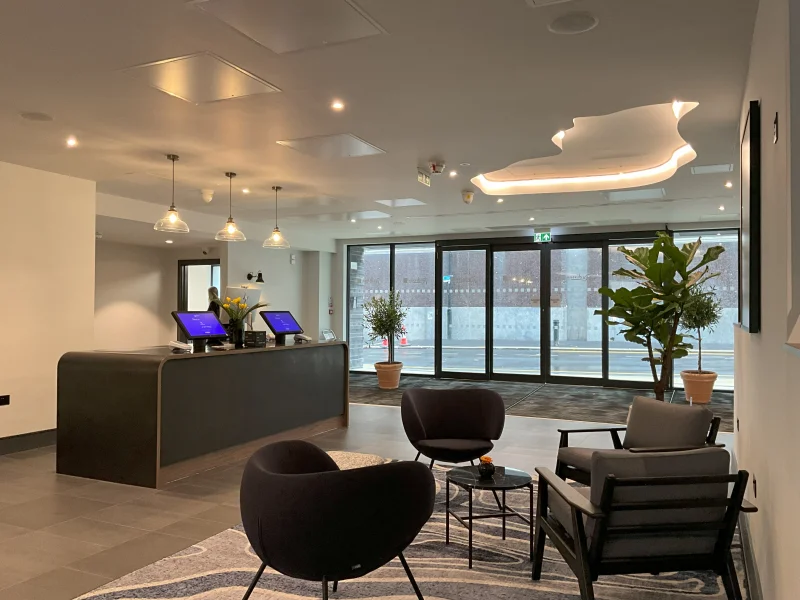

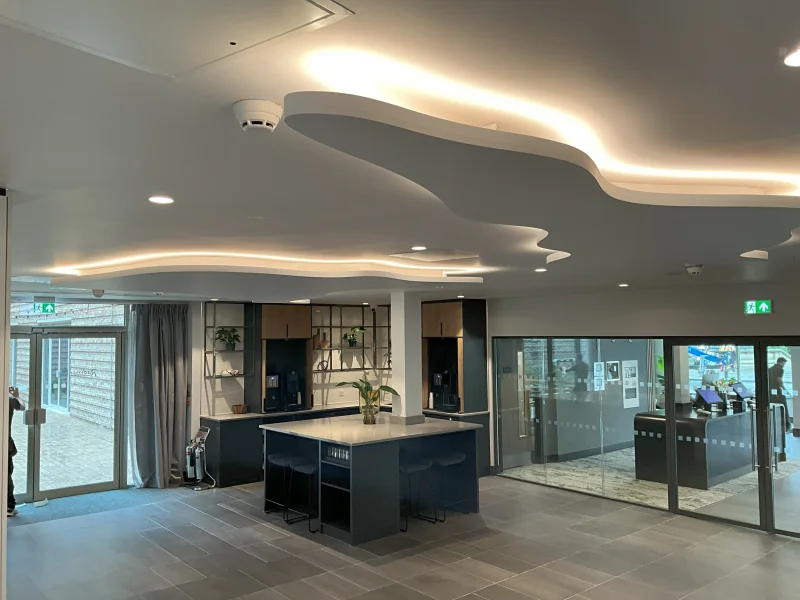

Neon Flex is a flexible, sleek 13mm wide light line that flows and bends to create smooth continuous shapes rather than a series of visible individual LEDs. It suits both indoor and outdoor applications, so the same product can be specified across a building's interior and exterior detailing. It has been used in hospitality and residential projects including Hallam Tower Apartments in Sheffield and Studio Powers Architects in Manchester.

Is Neon Flex suitable for outdoor or wet areas?

Neon Flex is rated IP66 as standard, covering protection against dust and powerful water jets, which makes it suitable for many outdoor and exterior applications. An IP68 version is available as a special order for installations that need a higher level of water protection, such as areas with prolonged water contact. This gives specifiers a standard option for most outdoor work and a clear upgrade path for wetter or more demanding locations.

What's the maximum length of a single Neon Flex run?

Neon Flex can run up to 5 metres from a single point, giving specifiers a practical reference for planning driver placement and joins on longer installations. Runs beyond this length would need to be planned with additional driver points, which is worth factoring in early when laying out a continuous light line across a larger space.

What colour temperature options does Neon Flex offer?

Neon Flex is available in 2700K, 3000K or 4000K, giving specifiers a warmer or more neutral white to suit the setting, from a cosy residential feel to a cleaner commercial look. This range means one product can cover different mood requirements across a project without switching to a different light line.

Will Neon Flex look consistent in colour along a long run?

Yes, Neon Flex has a Macadam ellipse tolerance of 4 steps or less, meaning colour consistency is tightly controlled along its length and between separate runs. This matters on longer or more visible installations, where any noticeable shift in white point would stand out against a continuous line of light.
