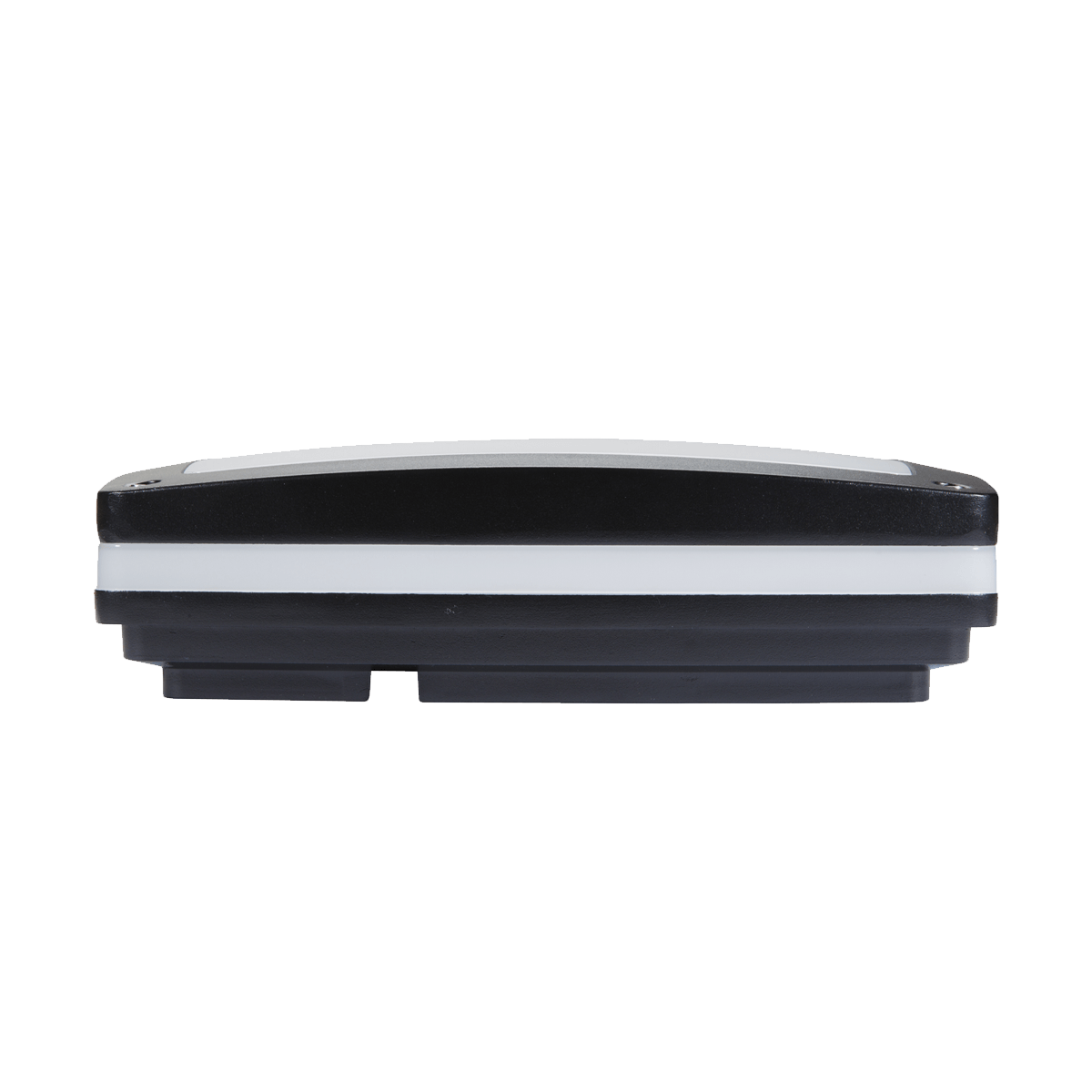

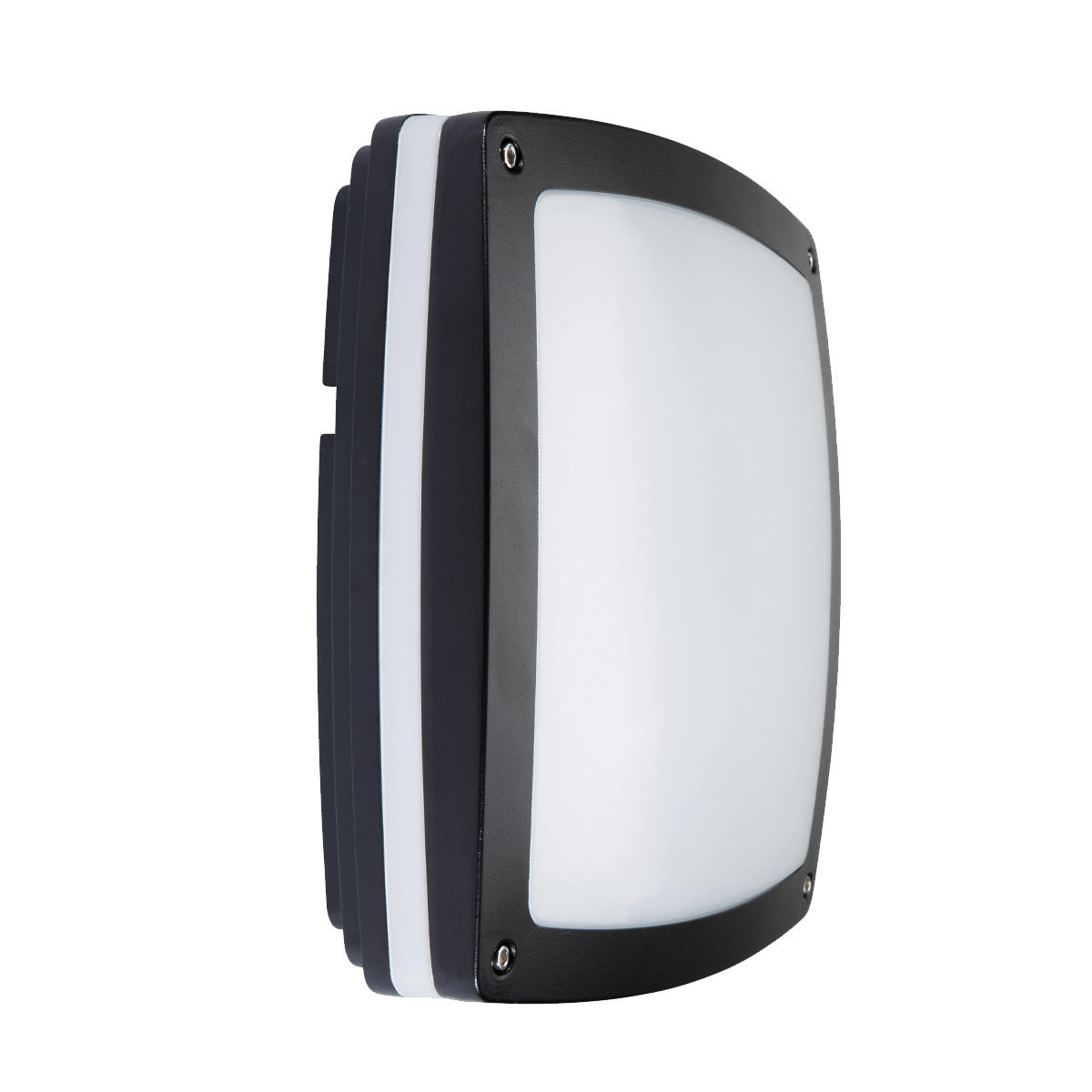

ALPHARD SQUARE
Square surface mounted architectural halo bulkhead
- Modern architectural ’rounded square’ styling
- Surface mounted as standard with optional suspension
- Black as standard, white option as a special
- Available with integrated microwave, emergency or combination
Specification
Light Source Information
- Direct light output
- Side light emitted
- LED output of 24W delivering 2038 lm
- Efficacy of 85lm/W
- >83 colour rendering index
- 5000K colour temperature as standard
- L70 B50 = 70,000 hours | L90 B50 = 25,000 hours
- 2-3 bin Epistar LEDs with a ≤4 step Macadam ellipse tolerance
- Design
- Black cast aluminium body, IK10 rated
- White body as an option
- IP65 Rated
Mounting Options
- Surface mounted
- Suspended
Optics
- 120° beam angle
- Opal TPa rated diffuser
- Dimming
- Non-dimmable as standard
- Mains/ DALI/ 0-10V / DSI dimming available
- Extras
- Integrated microwave sensor available
- Integrated Emergency available
- Z10 remote control manual or advanced self-test emergency available
Miscellaneous
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:

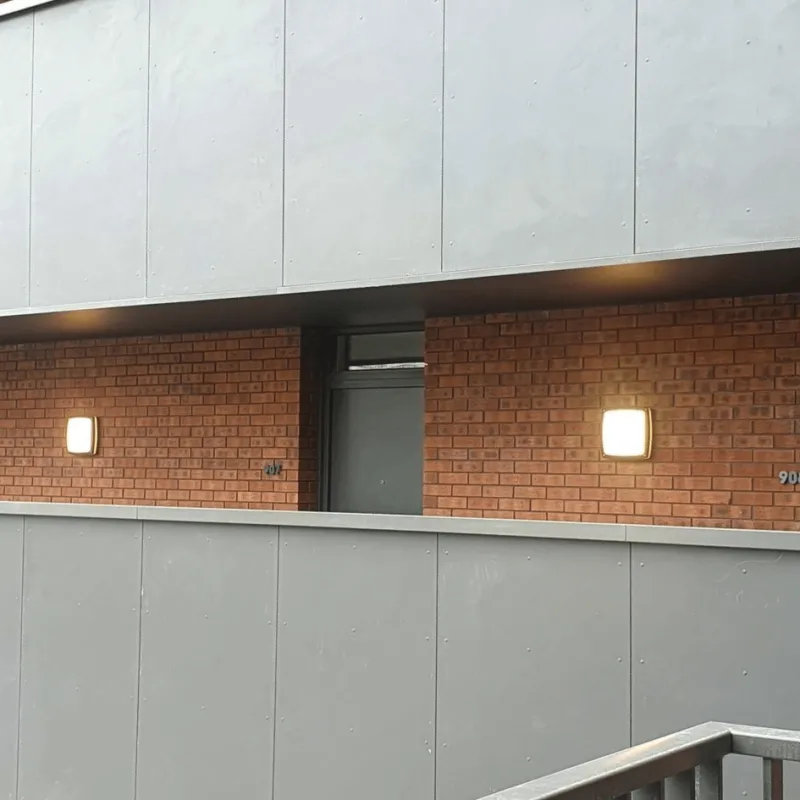

- LED square surface mounted circular luminaire with a unique superior design for optimal light diffusion, ideal for decorative interior and exterior applications. Front and halo light emitted through a TPa front and side opal diffuser. Optional integrated microwave presence detector with ON/OFF – as RICOMANs Alphard Square
Dimensions
Features
- Modern architectural ’rounded square’ styling
- Surface mounted as standard with optional suspension
- Black as standard, white option as a special
- Available with integrated microwave, emergency or combination
- IP65 Rated for high humidity areas
- Halo side light emitted
- Cast aluminium IK10 rated body
- L70 B50 = 70,000 hours | L90 B50 = 25,000 hours
- Epistar LEDs with a ≤4 step Macadam ellipse tolerance
- Also available in round shape
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R181301/4K/E | Alphard Square LED Emergency Bulkhead 24W 4000K | 2416 | 24W | ~101 Lm/W | 4000K | Black | 300 x 300 x H90 | Emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R181301/4K/MW/E | Alphard Square LED Emergency Bulkhead with Microwave 24W 4000K | 3416 | 24W | ~101 Lm/W | 4000K | Black | 300 x 300 x H90 | Emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R181301/4K/MW | Alphard Square LED Bulkhead with Microwave 24W 4000K | 2416 | 24W | ~101 Lm/W | 4000K | Black | 300 x 300 x H90 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R181301/4K | Alphard Square LED Bulkhead 24W 4000K | 2416 | 24W | ~101 Lm/W | 4000K | Black | 300 x 300 x H90 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
