Estrella Pro Opal Linear
Architectural surface mounted or suspended linear lighting solution for individual applications and continuous light-line systems.
- Opal TP(a) diffuser suitable for general area lighting applications for a high uniformity
- Stand alone and continuous modules allow a creative design of continuous light lines
- Multiple luminaires on a single power entry point
- Tool free mechanical and electrical connections
Specification
Light Source Information
- Direct light output
- Option for direct/ indirect (70%/30%) light output
- LED outputs available from 827 to 8989 lm (~1650 to 3140 lumens per metre)
- Low, standard or high output available with efficacy of up to 120 Lumens per Watt
- Internal drivers supplied
- 90 colour rendering index
- Flicker-free for maximum eye comfort
- Colour Temperature 3000K | 4000K | 5000K | Tunable White (2700-6500) | RGBW (4000K white)
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- Single bin Samsung LEDs with a ≤3 step Macadam ellipse tolerance
Design
- Extruded aluminium profile
- IP40 Rated as standard, IP54 as extra option (opal only)
- IK08 Rated
- Suspended or surface-mounted
- Available in 4 linear sizes 532mm, 1064mm, 1596mm and 2128mm

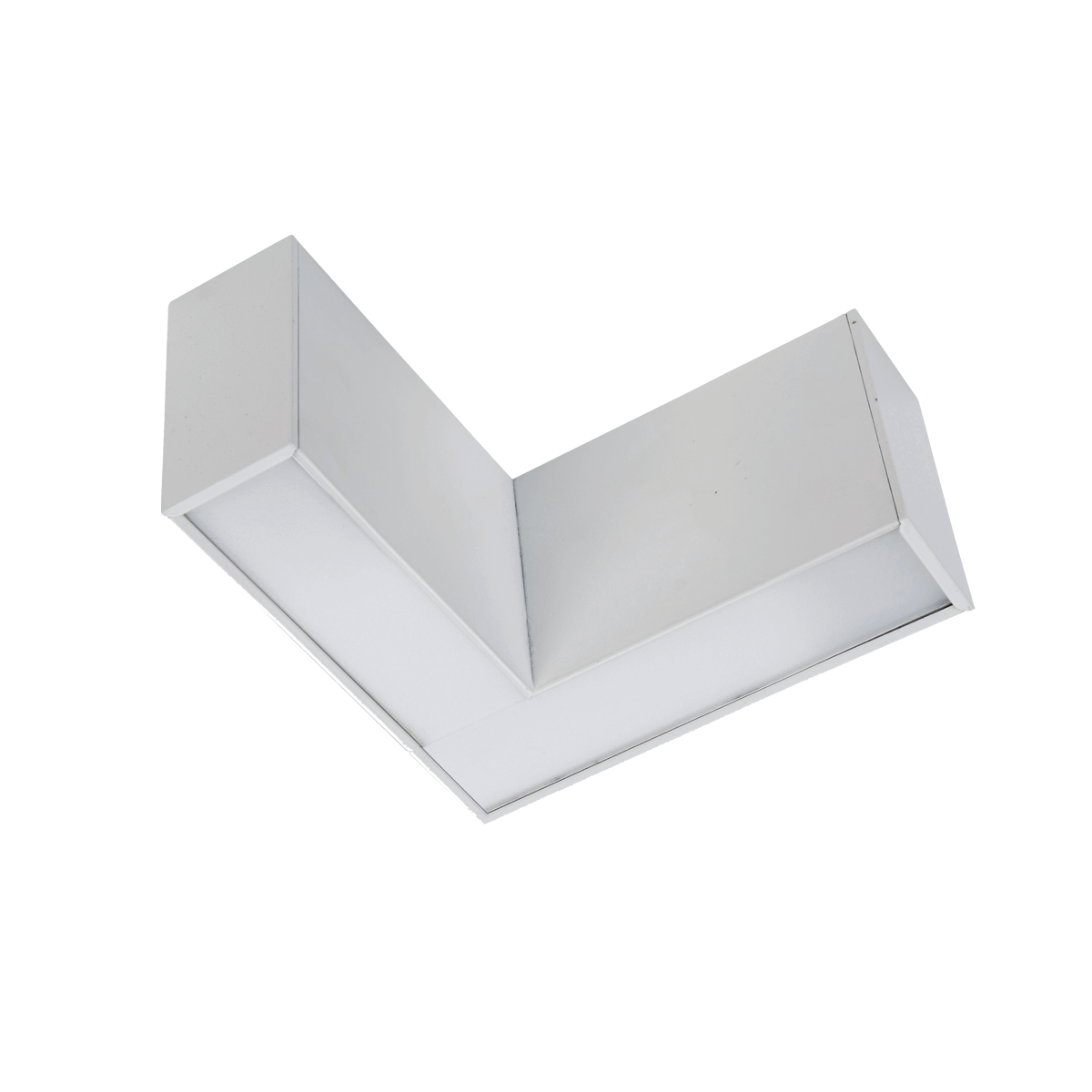

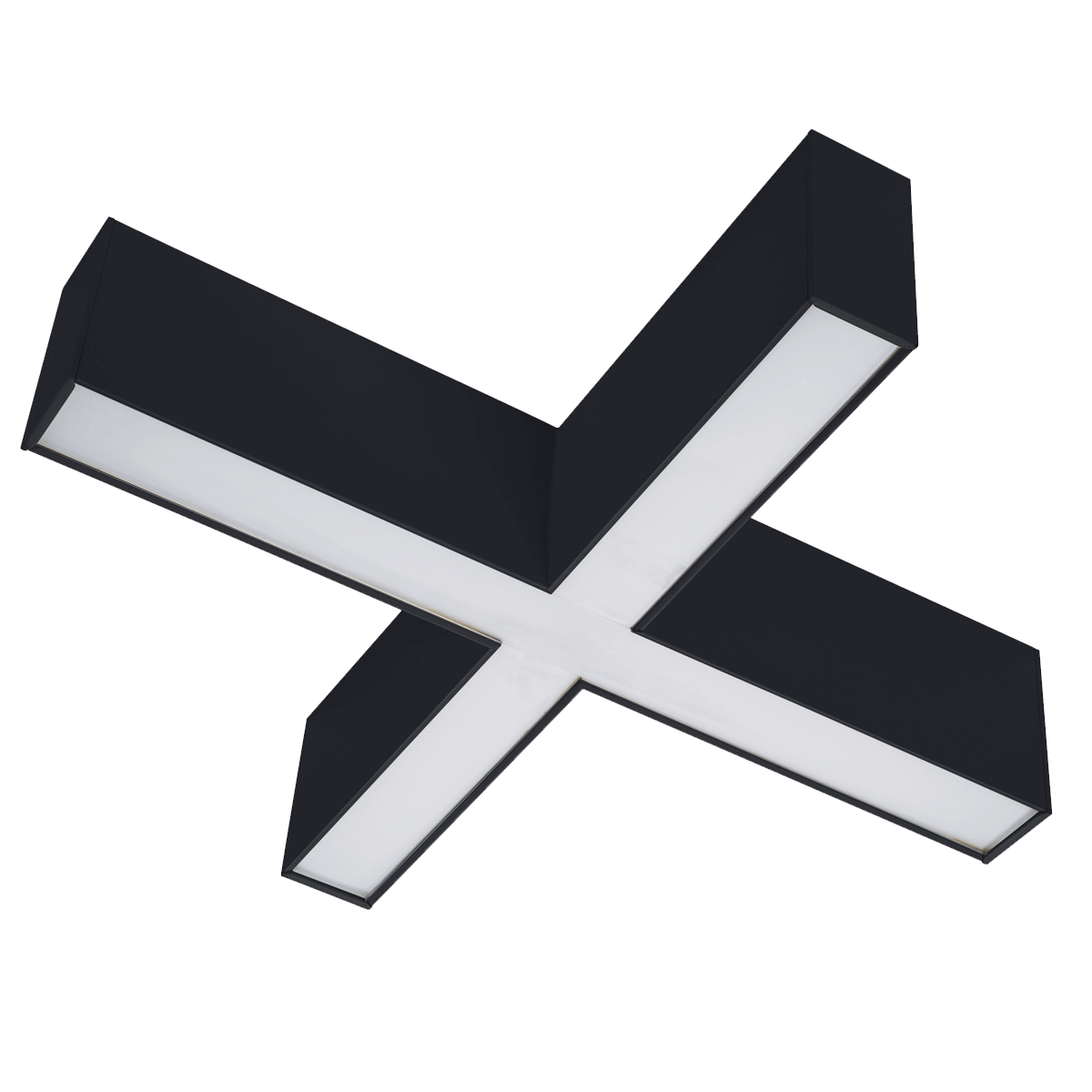

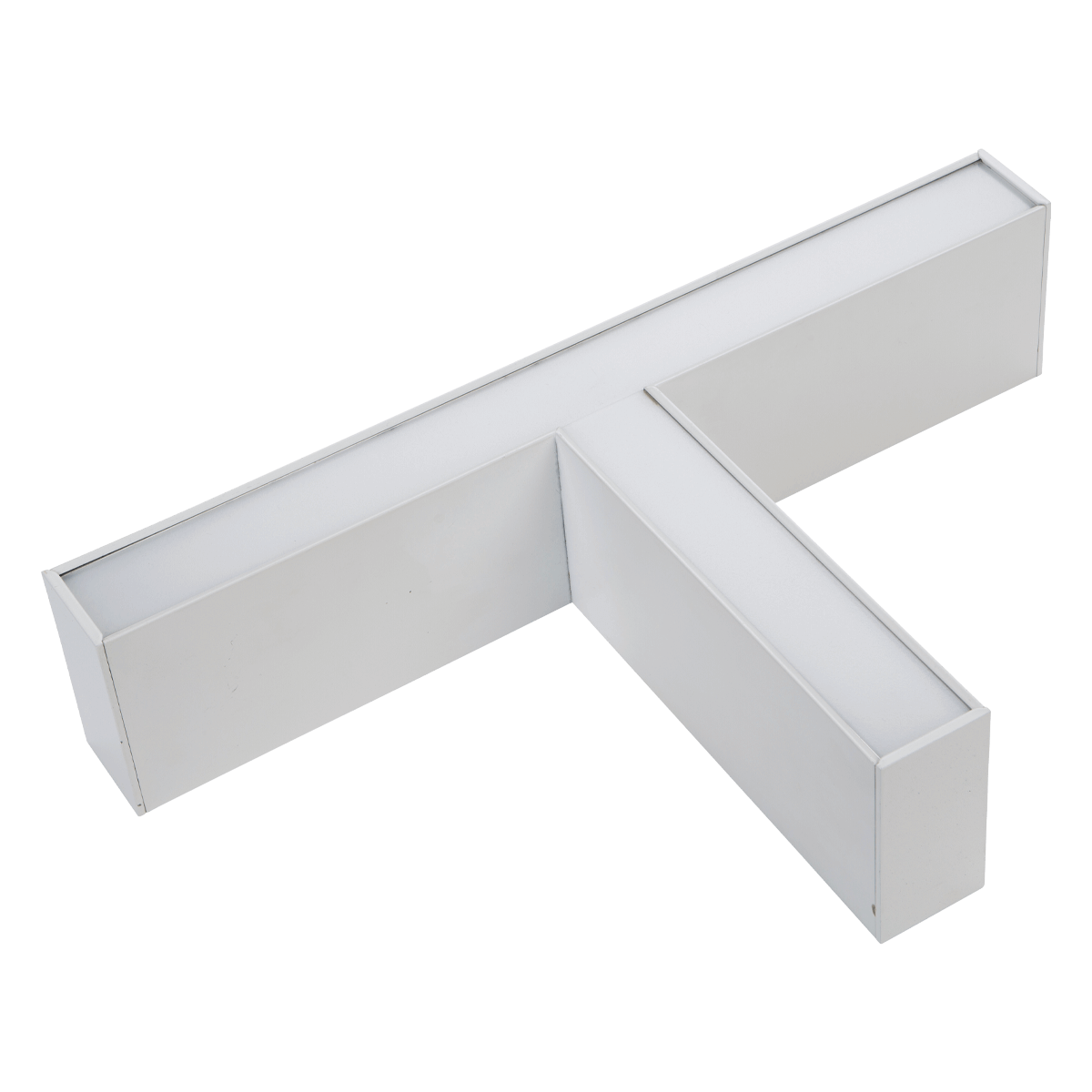

- Cross, corner and tee connections

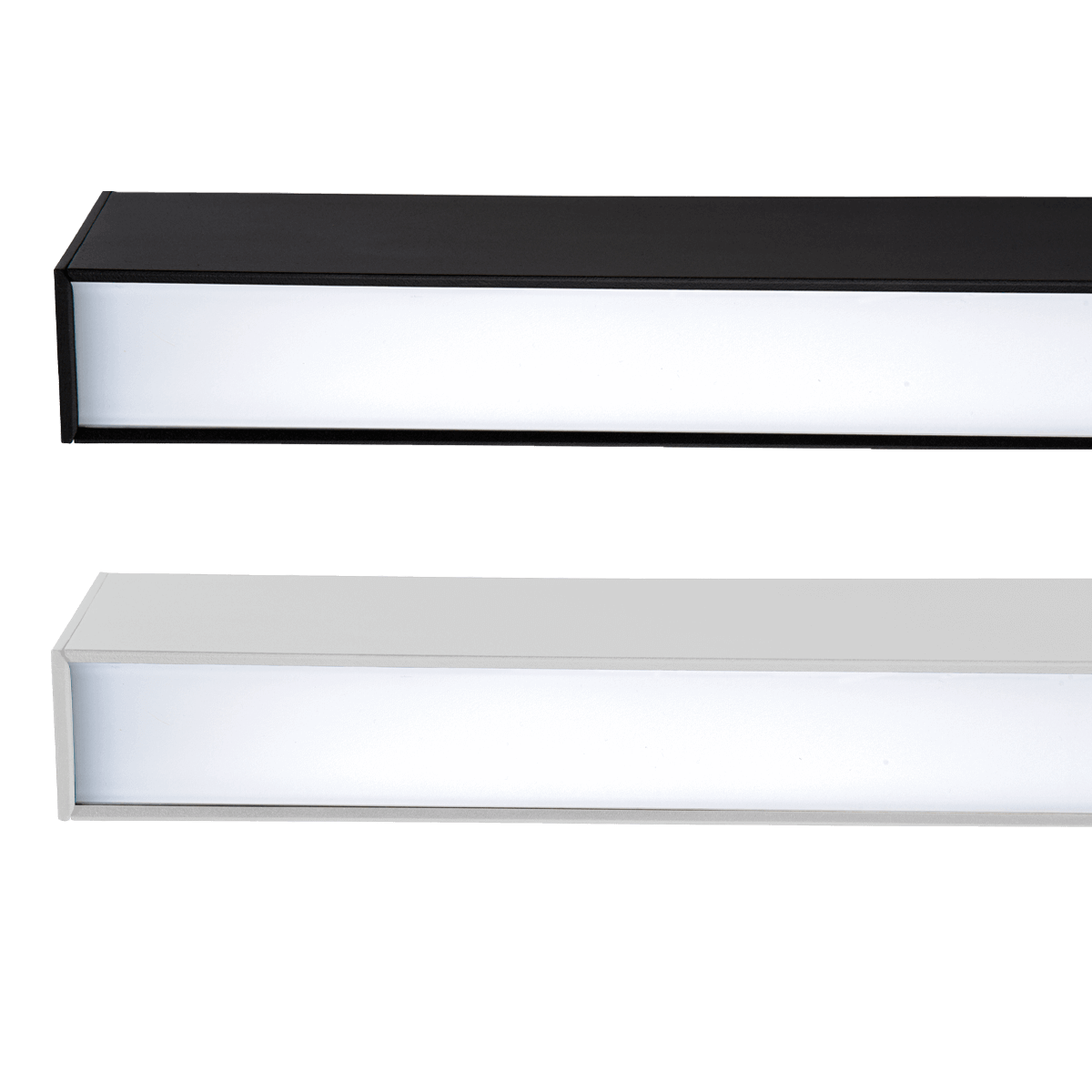

- Available in White (RAL9016), Black (RAL9005) or Grey (RAL7046) as standard, custom RAL available on request
- Blank modules available
Optics
- Opal polycarbonate diffuser (TPa rated)
- 100 degree beam angle
- Designed to achieve UGR<24
Installation
- Surface mounted, suspended, wall mounted, track mounted, solid rod mounted (direct/indirect version can only be suspended)
- Can easily be connected into a continuous system
- Quick and simple power and control connection
Dimming
- Non-dimmable as standard
- DALI dimming available
- Tunable White uses DALI DT 8 control drivers
Controls
- CASAMBI
- CP Sensor
- DMX
- Signify Easy Air
- Customised solution
- Integral Emergency
- 3hr Emergency available
- DALI addressable emergency
- Z10 remote control manual or advanced self-test emergency available
Anti-Microbial Protection
- Steritouch powder coating available
Miscellaneous
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
To specify state:
Modular linear LED system with a smooth opal diffuser and architectural aesthetic, for continuous or stand-alone configuration, that can be suspended or surface mounted. Available in a range of colour temperatures and lumen packages, tailored to your specification. Create continuous lines or angles of light – as RICOMAN Estrella Pro Opal.
Dimensions
900mm
Features
- Opal TP(a) diffuser suitable for general area lighting applications for a high uniformity
- Stand alone and continuous modules allow a creative design of continuous light lines
- Multiple luminaires on a single power entry point
- Tool free mechanical and electrical connections
- Matte Black or white as standard, custom made RAL colours
- Available in four linear sizes from 532mm to 2128mm, corner, T and + shapes
- Low, standard or high output, efficacy up to 120 Lm/W
- Ceiling mounted, wall mounted, suspended or track mounted, with optional direct/indirect light output
- Excellent colour rendering index, CRI >90 Ra
- Manufactured in the UK
- Available in 3000K | 4000K | 5000K | Tunable white | RGBW
- Ideal for circadian/human centric lighting
- Integrated tiltable spotlight available (Pulsar Lite)
- Other optical options: Square Aperture | Wallwash | Louvre (White, Dark)
