Libra

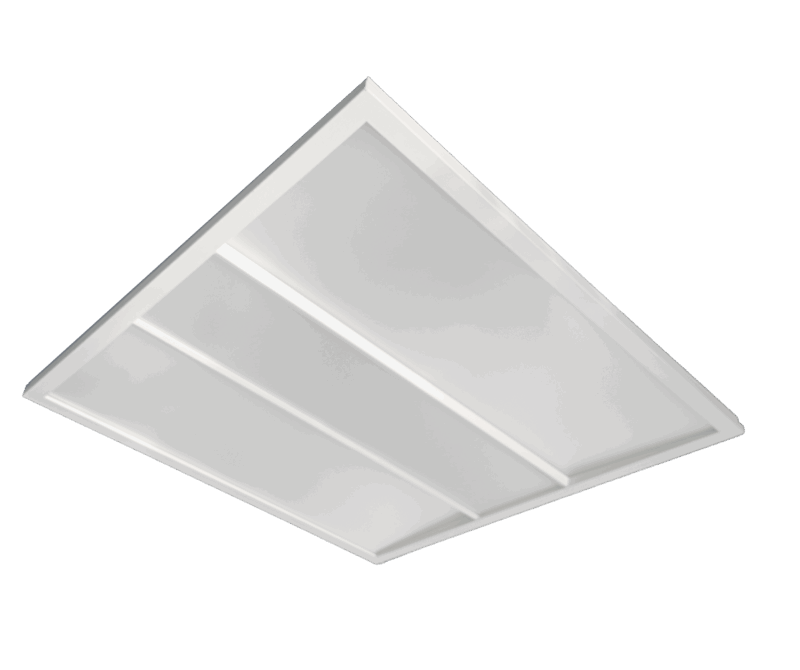

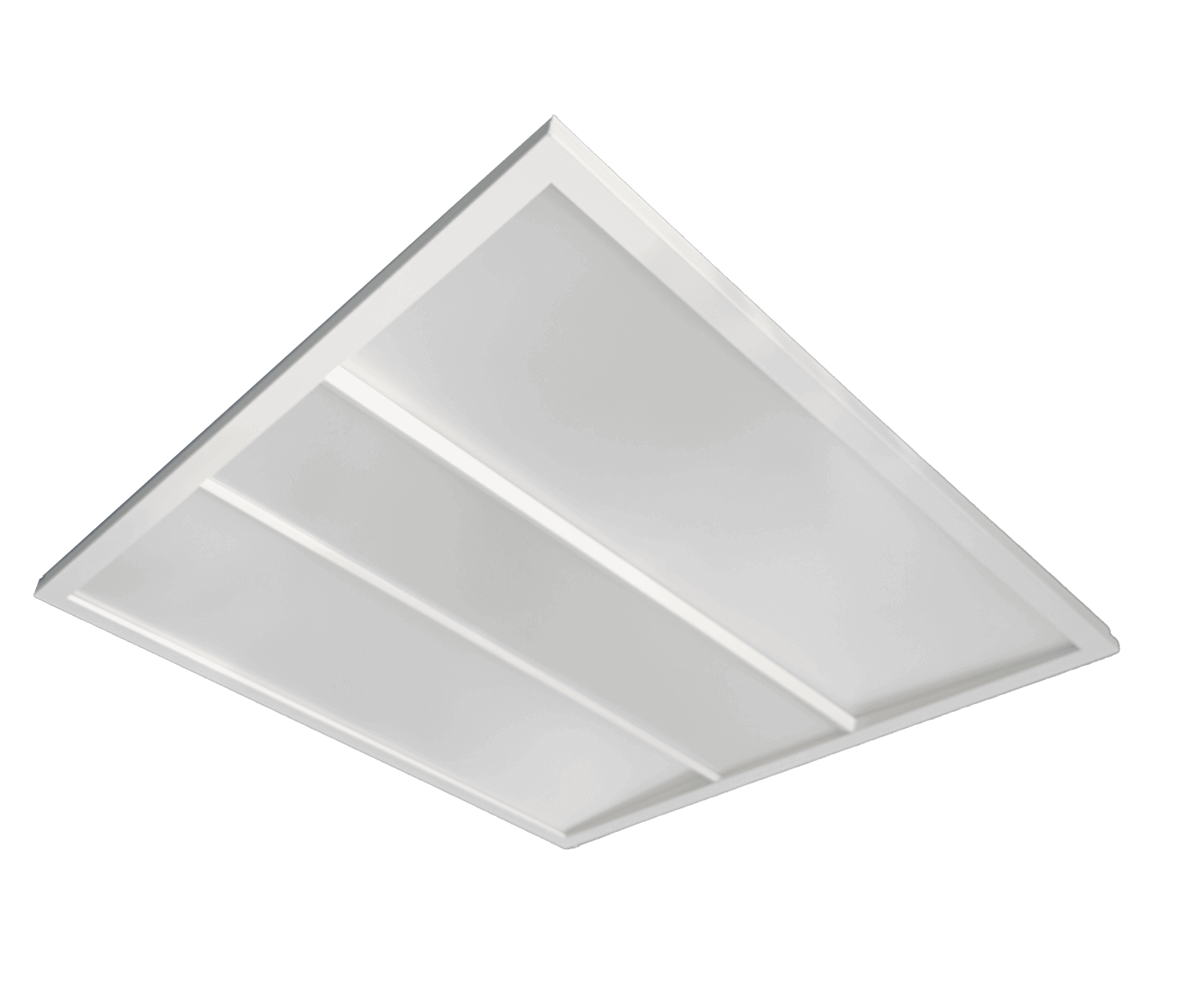

Libra is a cutting-edge low glare panel light that seamlessly blends functionality with a sleek and stylish design. This innovative lighting solution is equipped with the unique ability to switch between wattages and colour temperatures, offering users unparalleled flexibility and control over their lighting environment.
- Switchable between 24W & 36W and 3000K, 4000K & 5700K in a single fitting
- TP(a) polycarbonate diffuser delivering up to 3921 lumens at 112lm/W
- DALI, Casambi & Lutron dimming compatible
Specification
Light Source Information
- 24W and 36W delivering 3698 Lm @3000K, 3921 Lm @4000K and 3887 Lm @5700K
- Efficacy of 112 Lm/W at 24W, and 107 Lm/W at 36W
- 3000K, 4000K and 5700K switchable colour temperatures
Design
- IP20 rated
- T-grid ceiling, surface mounted, suspended, burgess/metal pan/armstrong ceiling mounted.
- Choice of mounting accessories
Optics
- Polycarbonate – TP(a) rated
Dimming
- Casambi, DALI, PIR, Hubsense, Lutron
Miscellaneous
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- Low glare sleek and stylish panel light, with switchable colour temperatures available in 3000K, 4000K and 5700K and switchable wattages 24W and 36W. Offering a range of mounting options with several installation accessories.
Dimensions
Features

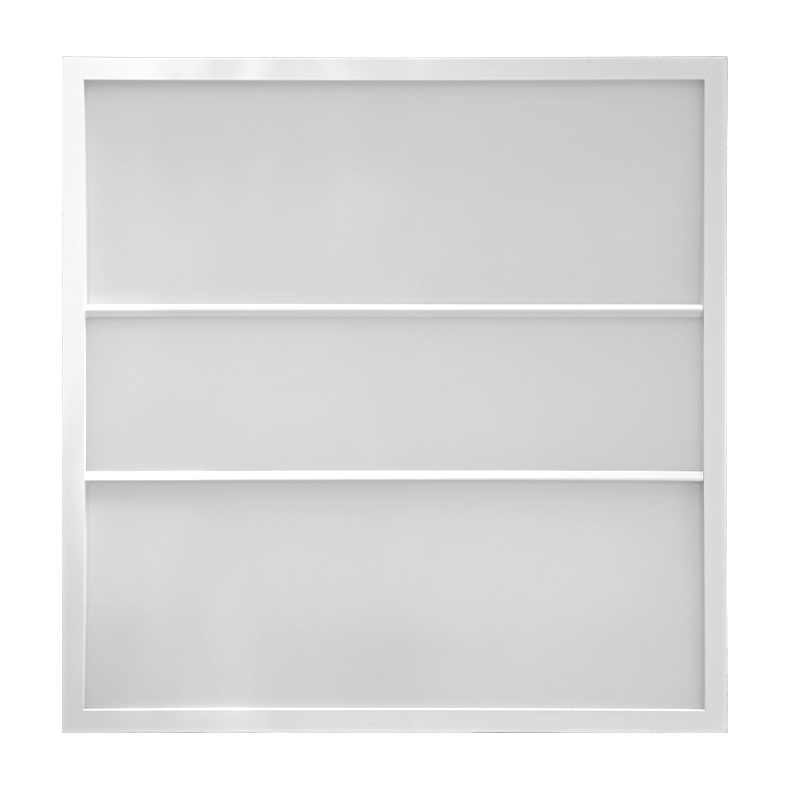

- Advanced optical control married with all-time-classic styling

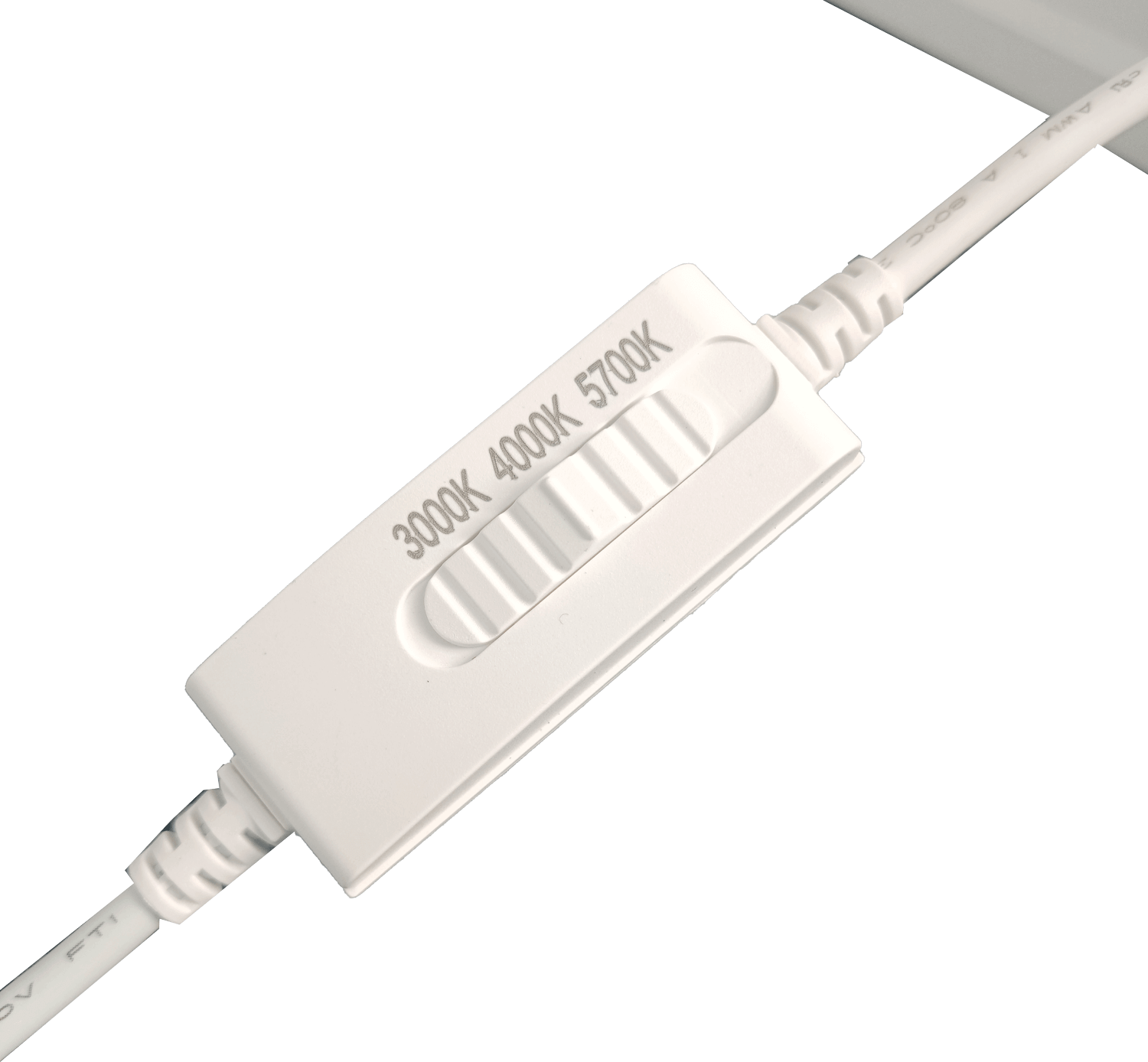

- Switch between wattages 24W – 36W and colour temperatures from 3000K, 4000K and 5700K.

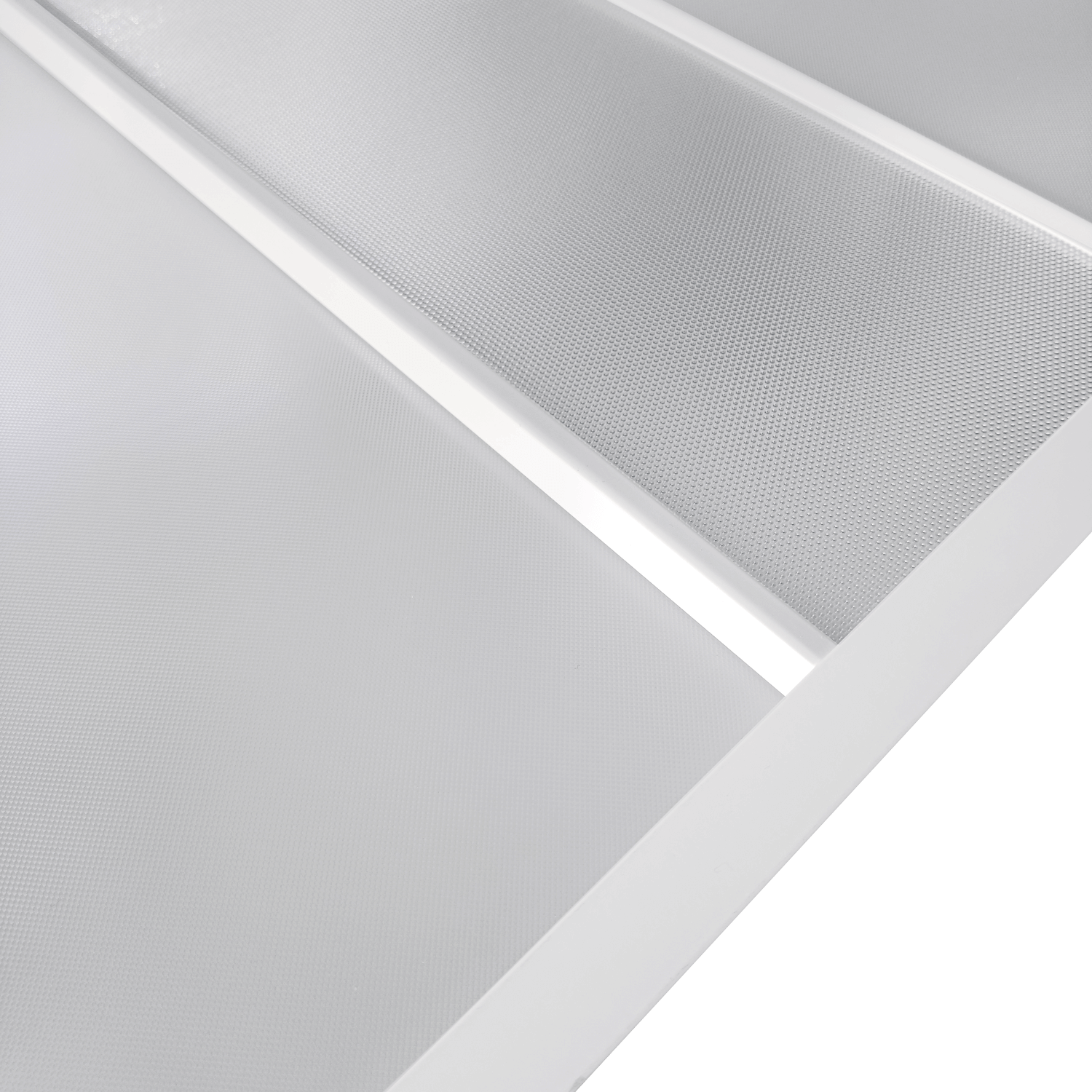

- Polycarbonate – TP(a) rated diffuser designed to control glare
- Delivering up to 3887 Lm
- 595 x 595mm by 47mm depth with a range of accessories to cover almost any installation scenario
- Dimming options available
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R172201 | Libra Switchable Wattage and Kelvin | 3698-3887 Lm | 24W | 36W | 107-112 Lm/W | 3000K | 4000K | 5700K | White | 595 x595 x 47mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What is Libra and what makes its design different?
Libra is a low glare panel light that combines a sleek, contemporary design with switchable wattage and colour temperature, letting one luminaire cover several output requirements. This reduces the number of separate products a specifier needs to hold for different rooms. It suits projects where both visual comfort and appearance matter alongside performance.
What does switchable wattage and colour temperature mean for Libra?
Libra can be switched between 24W and 36W outputs, and between 3000K, 4000K and 5700K colour temperatures, all from the same fitting. This lets an installer select the exact output and colour needed for a specific room on site, rather than the specifier having to order multiple fixed-spec panels in advance. At 36W, output ranges from around 3,700 to 3,900 lumens depending on the colour temperature chosen.
What control options are available with Libra?
Libra supports mains dimming, DALI, 0-10V and DSI dimming, plus PIR sensing, Casambi wireless control, HubSense and Lutron compatibility. This covers both wired lighting control protocols and wireless control, so Libra can be specified into projects with different control infrastructure, including schemes wanting app-based or Bluetooth control without extensive rewiring.
What size is Libra and how deep is the fitting?
Libra is built to a 600x600mm format (595x595mm actual) with a 47mm depth, deeper than some of Ricoman's other panels in the range. This is worth checking against the available ceiling void on a project, particularly where a shallower panel has previously been specified. It still fits the standard ceiling grid used across most commercial suspended ceilings.
What environment is Libra suited to and how long is it rated to last?
Libra carries an IP20 rating, meaning it is intended for dry, indoor commercial environments rather than areas with moisture or washdown requirements. It is rated for 50,000 operating hours, giving specifiers a lifetime figure to use in maintenance and replacement planning for offices and similar interiors.
