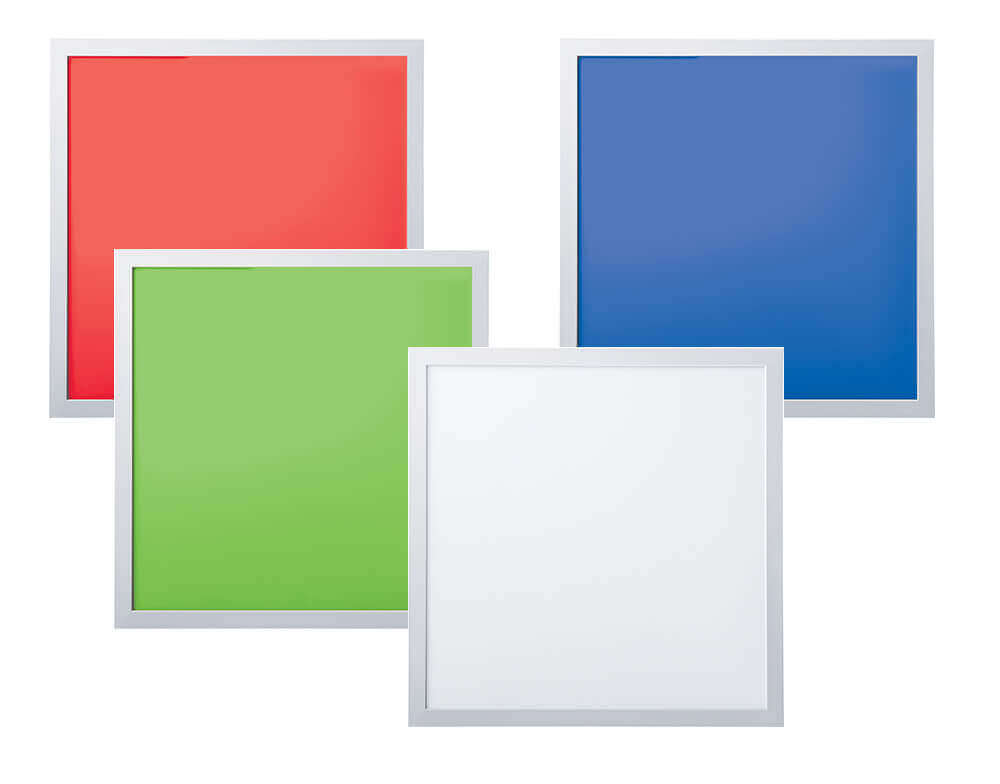

RGBW PANEL
RGBW Colour Changing LED Panel with innovative back channel
- RGBW colour changing 600×600 panel
- Colour changing dimmable panel light ideal for creating a unique atmosphere
- App control, DMX control, wall control, remote control options
- Ability to synchronise up to 99 panels
Specification
Light Source Information
- Direct light output
- LED output of 36W delivering on average 3780 lumens
- RGBW colour changing
- RGBW features 4000K colour temperature
- >81 colour rendering index
- L70 B50 = 70,000 hours | L90 B50 = 25,000 hours
- Single Bin Epistar LEDs with a ≤4 step Macadam ellipse tolerance
Design
- Slim edge-lit design with white frame
- IP44 Rated
- Flicker free to reduce eyestrain
- Innovative backchannel containing captive nuts which allow for many mounting options with RICOMAN accessories
- Ability to synchronise up to 99 panels
Mounting Options
- Lay in grid ceiling
- Suspended – 4 Point suspension (RE01), Y suspension (RE06)
- Burgess/metal pan ceiling – Burgess Clips (RE10)
- Solid ceiling – Offset Brackets (RE07), Linear Clips (RE08), Surface Frame (RE60)
- Plasterboard ceiling – Z-Clips (RE02), Offset Brackets (RE07), Linear Clips (RE08), Surface Frame (RE60), 4 Point suspension (RE01)
Optics
- TP(b) rated diffuser
Controls (Dimming and Colour Changing)
- Radio frequency
- DMX compatibility
- Casambi (App or wall control)
- (Drivers also required, subject to configuration, please get in touch)
Miscellaneous
- 5 year warranty
- To specify state:
- LED 600mm x 600mm panel with RGBW LEDs to adjust the light colour output between the colour spectrum. Features an innovative back channel containing captive nuts which allow for many mounting options with RICOMAN accessories including SAS Ceiling, Burgess ceiling, T grid ceiling, plasterboard ceiling and solid ceiling types. Features an opal diffuser for general, circulation and feature areas. – as RICOMAN’s RGBW Panel.
Dimensions
Features
- RGBW colour changing 600×600 panel
- Colour changing dimmable panel light ideal for creating a unique atmosphere
- App control, DMX control, wall control, remote control options
- Ability to synchronise up to 99 panels
- RGBW features 4000K colour temperature
- A range of accessories to cover almost any installation scenario
- L70 B50 = 70,000 hours | L90 B50 = 25,000 hours
- Single Bin Epistar LEDs with a ≤4 step Macadam ellipse tolerance
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R101106/RGBW | RGBW Colour Changing 600x600 Panel | 3780 | 36W | ~105Lm/W | RGBW | White | 596 x 596 x 12.5 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What is the RGBW panel and what is it used for?
RGBW is a colour changing, dimmable LED panel designed for creating a unique atmosphere, making it suited to feature areas, hospitality spaces or any interior where mood lighting is wanted alongside general illumination. It is built in a 600x600mm format (595x595mm actual, 11.9mm deep), the same footprint as several other panels in the range.
How is the RGBW panel powered, and does that affect installation?
GBW runs on a 24V DC supply rather than standard mains voltage, which means it needs a remote driver to step down the supply. This is worth factoring into containment and driver placement planning at first fix stage, since it differs from a standard mains-fed panel.
What size is the RGBW panel available in?
RGBW is available as a 600x600mm dimmable LED panel, matching the standard ceiling grid size used across much of Ricoman's recessed modular range. This makes it straightforward to mix RGBW feature panels with standard white panels on the same ceiling grid within a single project.
What warranty applies to the RGBW panel?
RGBW is supplied with a five year warranty and rated for 50,000 operating hours, consistent with the warranty offered across Ricoman's recessed modular panel range. This gives specifiers a like-for-like comparison point when choosing between RGBW and standard fixed white panels for a scheme.
Can the RGBW panel produce plain white light as well as colour?
Yes, the W in RGBW refers to a dedicated white channel alongside the red, green and blue channels, and the panel carries a CRI rating above 80. This means it can be used for functional white lighting as well as colour effects, rather than being limited to colour only, which is useful where a feature area still needs to double as usable working light.
