CTC

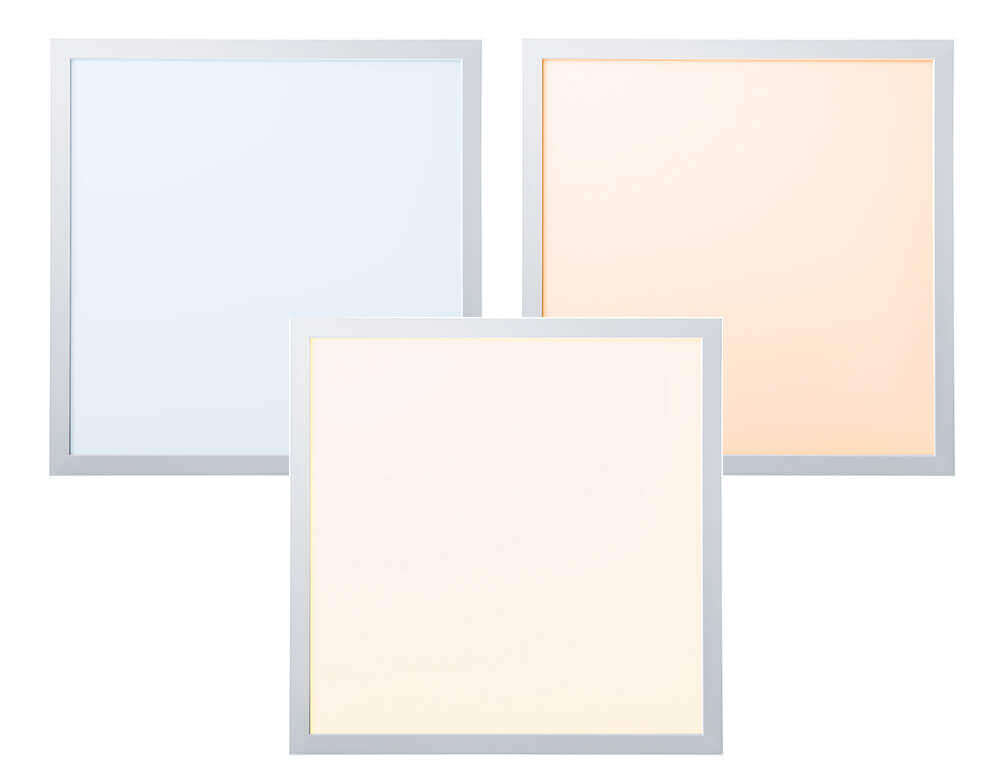

Tunable white 2500-6500K LED Panel with innovative back channel
- Comprehensive colour temperature changing and dimming
- CTC changing with wall mounted, remote control, or app
- Tunable white 2500-6500K
- Ideal for circadian/human centric lighting
Specification
Light Source Information
- Direct light output
- LED output of 36W
- Average effifacy of 99 lumens per watt
- 3492 lm (2700K)
- 3456 lm (3000K)
- 3528 lm (3500K)
- 3780 lm (4000K)
- 3600 lm (5000K)
- 3456 lm (6500K)
- CTC / tuneable white colour changing
- CTC features 2500- 6500K colour temperature
- >85 colour rendering index
- L70 B50 = 70,000 hours | L90 B50 = 25,000 hours
- Single Bin Epistar LEDs with a ≤4 step Macadam ellipse tolerance
Design
- Slim edge-lit design with white frame
- IP44 Rated
- Flicker free to reduce eyestrain
- Innovative backchannel containing captive nuts which allow for many mounting options with RICOMAN accessories
- Ability to synchronise up to 99 panels
Mounting Options
- Lay in grid ceiling
- Suspended – 4 Point suspension (RE01), Y suspension (RE06)
- Burgess/metal pan ceiling – Burgess Clips (RE09)
- Solid ceiling – Offset Brackets, Linear Clips, Surface Frame
- Plasterboard ceiling – Z-Clips, Offset Brackets, Linear Clips , Surface Frame , 4 Point suspension
- Burgess/metal pan/armstrong ceiling – Burgess clips
Optics
- TPa rated diffuser
Dimming
- Dimmable via controls (radio frequency)
Controls
- Wall control
- Handheld remote control
Miscellaneous
- 5 year warranty
- To specify state:
- LED 600mm x 600mm dimmable panel with tunable white LEDs to adjust the colour temperature between 2500K and 6500K. Features an innovative back channel containing captive nuts which allow for many mounting options with RICOMAN accessories including SAS Ceiling, Burgess ceiling, T grid ceiling, plasterboard ceiling and solid ceiling types. Features an opal diffuser for general, circulation and feature areas. – as RICOMAN’s CTC Panel
Dimensions
Features
- Comprehensive colour temperature changing and dimming
- CTC changing with wall mounted, remote control, or app
- Tunable white 2500-6500K
- Ideal for circadian/human centric lighting
- Wall (RE22) and remote control (RE23) options
- 36W delivering on average 3500 lumens
- A range of accessories to cover almost any installation scenario
- Dimmable by remote or wall switch as standard
- Works with radio frequency, Casambi or DMX controls
- L70 B50 = 70,000 hours | L90 B50 = 25,000 hours
- Single Bin Epistar LEDs with a ≤4 step Macadam ellipse tolerance
- Flicker free
- TP(a) rated diffuser
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R101107 | CTC Tuneable White 600x600 Panel | 3015 | 36W | ~85Lm/W | – | White | 596 x 566 x 12.5 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What is the CTC panel and what does tunable white mean for specifiers?
CTC is a tunable white LED panel adjustable across a wide colour temperature range of roughly 2700K to 6500K, letting one luminaire move from warm to cool white light to support circadian lighting schemes. This means a specifier can use the same panel to suit different times of day or different room moods without installing separate fixed colour temperature products. Control is available via a wall mounted unit or a remote control as standard.
Is the CTC panel suitable for circadian or human-centric lighting?
Yes, CTC is designed with circadian lighting in mind, offering tunable white from 2700K to 6500K so the colour temperature can shift through the day to support occupant wellbeing, controlled via a wall switch or remote.
How is the CTC panel installed and what mounting options are available?
CTC uses a back channel design that allows for a number of installation methods, helping maximise mounting versatility across ceiling types. It is supported by accessories including a suspension kit, Z-clips for plasterboard ceilings, a Y suspension kit, offset brackets, linear clips, Burgess clips and metal pan ceiling brackets, so the same panel can be adapted to suspended, surface or plasterboard ceiling installations without changing product.
What control methods does the CTC panel support?
CTC can be controlled via a wall mounted control unit or a remote control as standard, with additional DMX and Casambi options available for more advanced tunable white schemes. This range suits both simple installations and more sophisticated colour-tuning setups where lighting needs to change through the day.
How slim is the CTC panel and does it suit shallow ceiling voids?
CTC has a 12.5mm depth in its 595x595mm (600x600mm nominal) format, making it a slim option where the ceiling void above a suspended ceiling is limited. This is a useful practical check for retrofit projects where the void depth is fixed and cannot be altered to fit a deeper luminaire.
