CORE UGR
Backlit LED 60x60 recessed TP(a) slim panel
- Contractor range office panel light
- TP(a) rated glare control diffuser
- Backlit with optimal LED’s spread for increased light uniformity
- Aluminium body finished white
Specification
Light Source Information
- Direct light output
- LED output of 24W delivering 2525 lumens, 32W delivering 3358 lm or 45W delivering 4727 lumens
- Efficacy of 105lm/W
- External drivers supplied
- >83 colour rendering index
- Colour Temperatures of 4000K
- MTS LEDs with a ≤6 step Macadam ellipse tolerance
Design
- Backlit for increased uniformity
- White frame
- IP40 Rated
- Flicker free to reduce eyestrain
Mounting Options
- Lay in grid ceiling
- Suspended – 4 Point suspension (RE01), Y suspension (RE06)
- Burgess/metal pan ceiling – Burgess Clips (RE10)
- Solid ceiling – Surface Frame (RE60)
- Plasterboard ceiling – Surface Frame (RE60), Core-Verve Point suspension (RE36)
Optics
- Opal TP(a) rated diffuser
- Designed for excellent glare control
Dimming
- Non-dimmable as standard
- Mains / DALI / 0-10V / DSI dimming available
Controls
- CP Sensor
- Customised solution
Miscellaneous
- 3hr Emergency available
- DALI addressable panel emergency pack
- Z10 remote control manual or advanced self-test emergency available
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- Recessed LED 600mm x 600mm backlit panel luminaire with slim line aluminium body and an opal TP(a) rated diffuser for low glare rating. Suitable for lay in exposed T ceilings – as RICOMAN’s Core UGR Panel.
Dimensions
Features
- Contractor range office panel light
- TP(a) rated glare control diffuser
- Backlit with optimal LED’s spread for increased light uniformity
- Aluminium body finished white
- 24W | 32W | 45W delivering up to 4727 lumens
- A range of accessories to cover almost any installation scenario
- Solutions for T-grid, solid, plasterboard and burgess/metal pan ceilings
- Dimming options available
- Emergency options available: Standard | DALI | Remote control testing
- Available also in 12×3 and 12×6 sizes
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R101282 | Core UGR LED Panel 32W 4000K | 3358 | 32W | ~105Lm/W | 4000K | White | 595 x 595 x 30.5 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R101282/DH | Core UGR LED Panel 32W 4000K Mains Dim | 3358 | 32W | ~105Lm/W | 4000K | White | 595 x 595 x 30.5 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R101282/DD | Core UGR LED Panel 32W 4000K DALI Dim | 3358 | 32W | ~105Lm/W | 4000K | White | 595 x 595 x 30.5 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R101282/DL | Core UGR LED Panel 32W 4000K 0-10V Dim | 3358 | 32W | ~105Lm/W | 4000K | White | 595 x 595 x 30.5 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R101282/45W/DH | Core UGR LED Panel 45W 4000K Mains Dim | 4727 | 45W | ~105Lm/W | 4000K | White | 595 x 595 x 30.5 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R101282/45W/DD | Core UGR LED Panel 45W 4000K DALI Dim | 4727 | 45W | ~105Lm/W | 4000K | White | 595 x 595 x 30.5 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R101282/45W/DL | Core UGR LED Panel 45W 4000K 0-10V Dim | 4727 | 45W | ~105Lm/W | 4000K | White | 595 x 595 x 30.5 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R101282/45W | Core UGR LED Panel 45W 4000K | 4727 | 45W | ~105Lm/W | 4000K | White | 595 x 595 x 30.5 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R101282/24W | Core UGR LED Panel 24W 4000K | 2525 | 24W | ~105Lm/W | – | White | 595 x 595 x 30.5 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R101282/24W/DL | Core UGR LED Panel 24W 4000K 0-10V Dim | 2525 | 24W | ~105Lm/W | – | White | 595 x 595 x 30.5 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R101282/24W/DD | Core UGR LED Panel 24W 4000K DALI Dim | 2525 | 24W | ~105Lm/W | – | White | 595 x 595 x 30.5 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R101282/24W/DH | Core UGR LED Panel 24W 4000K Mains Dim | 2525 | 24W | ~105Lm/W | 4000K | White | 595 x 595 x 30.5 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| N/A | Core UGR LED Panel 32W 4000K | N/A | – | Polycarbonate TP(a) Rated | – | N/A | Non emergency | – | – | N/A | — | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What is Core UGR and how does it differ from a standard panel light?

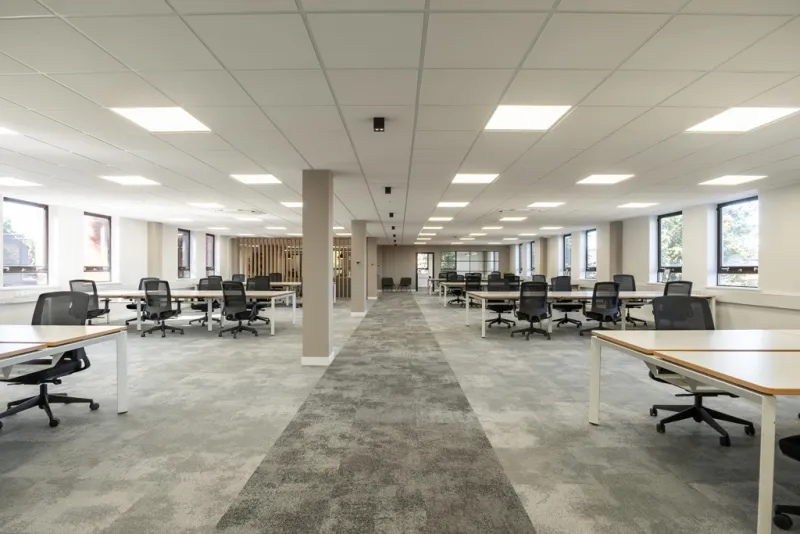

Core UGR is a backlit, flicker-free LED panel built around an opal, TP(a) rated diffuser designed to reduce glare from the ceiling, reflected in its name referencing Unified Glare Rating. This makes it a suitable choice for desk-based and screen-based work areas, including classrooms and offices, where visual comfort is a priority. It is offered in three sizes so it can be matched to different ceiling grids on the same project.
What sizes and ceiling types does Core UGR support?
Core UGR is available in 600x600mm, 1200x300mm and 1200x600mm formats, covering the common grid sizes used on commercial ceilings. It can be installed into lay-in exposed T ceilings, surface mounted, suspended, or fitted into Burgess and metal pan ceilings, so one product range can be specified across several ceiling constructions on the same job. This reduces the number of separate panel products a contractor needs to source.
What does the TP(a) rated diffuser mean for specification?
The Core UGR diffuser is a polycarbonate component carrying a TP(a) fire classification, a rating for plastics used in ceiling void applications that specifiers and building control often check on commercial projects. Specifying a panel with this rating built in removes the need to separately source or verify a compliant diffuser. It is a useful reference point when compiling fire safety documentation for a scheme.
Has Core UGR been used in education sector projects?
Yes, Core UGR has been installed at Lynch Hill Academy in Slough, Willow Wood Primary School, and Elements Primary School, showing it performing across multiple education settings where low glare matters for classroom comfort and screen-based work.
What light quality does Core UGR provide?
Core UGR offers a CRI above 83 and a 110 degree beam angle, giving an even spread of light suited to open-plan offices, classrooms and similar spaces. Colour consistency is rated at SDCM 6 or better, which helps keep appearance uniform across multiple panels in the same ceiling. Combined with its low glare diffuser, this makes it a suitable specification for areas with sustained screen or desk-based work, and it has been used on education projects including Lynch Hill Academy and Elements Primary School.
