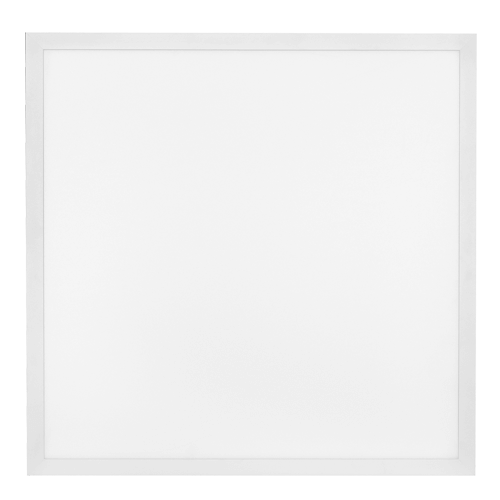

AQUAVANCE IP66
IP66 rated LED Panel with innovative back channel
- A range of accessories to cover almost any installation scenario
- IP66 rated for maximum protection against dust and humidity
- 36W or 48W with an efficacy of 100Lm/W
- 4000K
Specification
Light Source Information
- Direct light output
- LED output of 36W or 48W delivering up to 5042lm
- Efficacy of 100lm/W
- External drivers supplied
- >85 colour rendering index
- Colour Temperature of 4000K
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- Single Bin Epistar LEDs with a ≤3 step Macadam ellipse tolerance
Design
- Slim edge-lit design with white frame
- IP66 Rated
- Flicker free to reduce eyestrain
- Innovative backchannel containing captive nuts which allow for many mounting options with RICOMAN accessories
- Other sizes also available: 1200 x 300 | 1200 x 600
Mounting Options
- Lay in grid ceiling
- Suspended – 4 Point suspension (RE01), Y suspension (RE06)
- Burgess/metal pan ceiling – Burgess Clips (RE10)
- Solid ceiling – Offset Brackets (RE07), Linear Clips (RE08), Surface Frame (RE60)
- Plasterboard ceiling – Z-Clips (RE02), Offset Brackets (RE07), Linear Clips (RE08), Surface Frame (RE60, RE123, RE126), 4 Point suspension (RE01)
Optics
- Opal TPa diffuser
Dimming
- Non-dimmable as standard
- Mains / DALI/ 0-10V / dimming available
Controls
- CP Sensor
- Customised solution
Miscellaneous
- 3hr emergency available
- DALI Addressable emergency available
- Z10 remote control manual or advanced self-test emergency available
- Antimicrobial coating available
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- LED 600mm x 600mm IP66 panel luminaire with an innovative back channel containing captive nuts which allow for many mounting options with RICOMAN accessories including SAS Ceiling, Burgess ceiling, T grid ceiling, plasterboard ceiling and solid ceiling types. Features an opal diffuser for general, circulation and feature areas. – as RICOMAN’s Aquavance Panel Range
Dimensions
Features
- A range of accessories to cover almost any installation scenario
- IP66 rated for maximum protection against dust and humidity
- 36W or 48W with an efficacy of 100Lm/W
- 4000K
- Dimming options available
- Aluminium body finished white
- Slim body profile
- Emergency options available: Standard | DALI | Remote control testing
- Other sizes also available: 1200 x 300 | 1200 x 600
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R101103/4K | Aquavance IP66 600x600 36W 4000K | 4320 | 36W | ~120Lm/W | 4000K | White | 595 x 595 x 12.5 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R101101/4K | Aquavance IP66 600x600 48W 4000K | 5760 | 48W | ~120Lm/W | 4000K | White | 595 x 595 x 12.5 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R101101 | Aquavance IP66 600x600 48W 5000K | 5042 | 48W | ~105Lm/W | 5000K | White | 595 x 595 x 12.5 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R101103 | Aquavance IP66 600x600 36W 5000K | 3865 | 36W | ~107Lm/W | 5000K | White | 595 x 595 x 12.5 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What is Aquavance and where should it be specified?
Aquavance is an IP66 rated, flicker-free LED panel designed for environments where moisture, washdown or high humidity would rule out a standard panel light. It is suited to medical applications and high humidity areas, making it a fit for clinical and healthcare settings as well as similarly demanding spaces. It is available across different sizes and wattages, giving flexibility for a range of areas and uses.
What does the IP66 rating mean for durability?
An IP66 rating on the front of the panel means Aquavance is built to resist dust ingress and powerful water jets, backed by an IK08 impact rating for resistance to knocks. This is why it is positioned for washdown or high humidity settings rather than a standard office ceiling, lowering the risk of luminaire failure in spaces that are cleaned frequently or exposed to steam and condensation. It gives specifiers a starting point for sealed luminaire requirements on healthcare or similarly demanding projects.
What warranty and lifetime rating does Aquavance carry?
Aquavance is supplied with a five year warranty and carries an L70 B50 rating of 100,000 hours, ahead of the 50,000 to 70,000 hour ratings seen elsewhere in Ricoman's panel range. This longer rated lifetime is a useful factor for healthcare and high humidity projects, where accessing sealed ceiling voids to replace a failed luminaire can be disruptive. It supports whole-life cost planning alongside the sealed IP66 build.
How consistent is the colour output across Aquavance panels?
Aquavance offers a CRI above 85 and colour consistency rated at SDCM 3 or better, a tighter tolerance than most other panels in Ricoman's recessed modular range. This matters in clinical environments, where consistent, accurate colour rendering across multiple panels supports both visual comfort and clinical observation. It gives specifiers a stronger basis for colour matching across a large installation such as a hospital or medical centre.
Has Aquavance been used on healthcare or care sector projects?
Yes, Aquavance IP66 panels have been installed in medical centre settings and care home kitchens in the UK, alongside use at Rise School in Feltham. These reference projects give specifiers real-world examples of the panel being used in exactly the type of high humidity, hygiene-sensitive environment it is designed for. This is a useful proof point when comparing sealed panel options for a healthcare or care sector fit-out.
