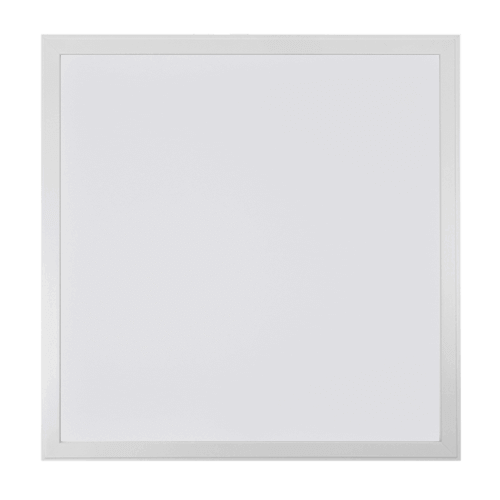

PURE

Innovative back channel allows various mounting options

  • A range of accessories to cover almost any installation scenario
  • 30W delivering 3152 lumens
  • Dimming options available
  • Aluminium body finished white

Specification

Light Source Information

  • Direct light output
  • LED output of 30W delivering up to 3152 lm
  • Efficacy of up 110lm/W
  • External drivers supplied
  • >85 colour rendering index
  • Colour Temperature of 4000K
  • L70 B50 = 70,000 hours | L90 B50 = 25,000 hours
  • Single Bin Epistar LEDs with a ≤4 step Macadam ellipse tolerance

Design

  • Slim edge-lit design with white frame
  • IP44 Rated
  • Flicker free to reduce eyestrain
  • Innovative backchannel containing captive nuts which allow for many mounting options with RICOMAN accessories

Optics

  • Opal diffuser

Dimming

  • Non-dimmable as standard
  • Mains DALI/ 0-10V / DSI dimming available

Controls

  • CP Sensor
  • Customised solution

Miscellaneous

  • 3hr emergency available
  • DALI Addressable emergency available
  • Z10 remote control manual or advanced self-test emergency available
  • Antimicrobial coating available
  • Standard Warranty: 5 years
  • Emergency Warranty: 3 years
  • To specify state:
  • LED 500mm x 500mm panel luminaire with an innovative back channel containing captive nuts which allow for many mounting options with RICOMAN accessories including SAS Ceiling, Burgess ceiling,  T grid ceiling, plasterboard ceiling and solid ceiling types. Features an opal diffuser for general, circulation and feature areas.  – as RICOMAN’s Pure Panel Range

Dimensions

PURE dimensions

Features

  • A range of accessories to cover almost any installation scenario
  • 30W delivering 3152 lumens
  • Dimming options available
  • Aluminium body finished white
  • Slim body profile
  • IP44 protection
  • Flicker free to reduce eyestrain
  • L70 B50 = 70,000 hours    |    L90 B50 = 25,000 hours
  • Single Bin Epistar LEDs with a ≤4 step Macadam ellipse tolerance
  • Emergency options available: Standard | DALI | Remote control testing
  • Available in :500 x 500

Configure Your Product

Part CodeDescriptionLumensWattageEfficacyColour TempColour FinishDimensions (mm)EmergencyReflectorWarrantyLDTDatasheet
R101191/4KPure 500x500 LED Panel 30W 4000K315230W~105Lm/W4000KWhite495 x 495 x 12.5Non emergency5 yearsLDT ↓Datasheet ↓

Frequently asked questions

What is Pure Panel and what applications suit it best?

Pure Panel is an LED panel light designed for general commercial applications, making it a straightforward option for offices, retail and similar spaces needing reliable, even illumination. It is offered in a 5x5 format with an IP44 rating, giving it a level of protection suited to standard commercial ceiling environments. Dimming and emergency options are both available, giving flexibility to adapt it to different project requirements.

What size is Pure Panel and what are its core specifications?

Pure Panel measures 500x500mm (495x495mm actual, 12.5mm deep) and is supplied as a 30W fixture at 4000K, producing 3,152 lumens. It has a CRI above 85 and a 120 degree beam angle, giving good colour accuracy and a reasonably wide, even spread of light for a general commercial panel. Its slim 12.5mm depth also suits ceiling voids with limited space.

How impact resistant is Pure Panel?

Pure Panel carries an IK08 impact rating, giving it a reasonable level of protection in areas with a higher risk of accidental knocks, such as busy circulation routes or communal areas, without needing a specialist impact-rated fitting.

Does Pure Panel offer an emergency lighting option?

Yes, emergency options are available on the Pure Panel range, useful where a project wants the same panel to provide escape lighting in corridors or general areas rather than fitting a separate emergency luminaire. This keeps the appearance of emergency and general lighting consistent using one panel family. Specifiers should confirm the exact emergency option needed for each area at order stage.

Why might a specifier choose Pure Panel over a panel with more wattage or colour temperature options?

Pure Panel is offered as a single 30W, 4000K specification rather than a range of wattages and colour temperatures. It suits general commercial projects where a straightforward, reliable panel is more useful than extensive customisation.
