Sky Panel Lights
Single, four or six 600x600 panels. Custom scenes and configurations also available

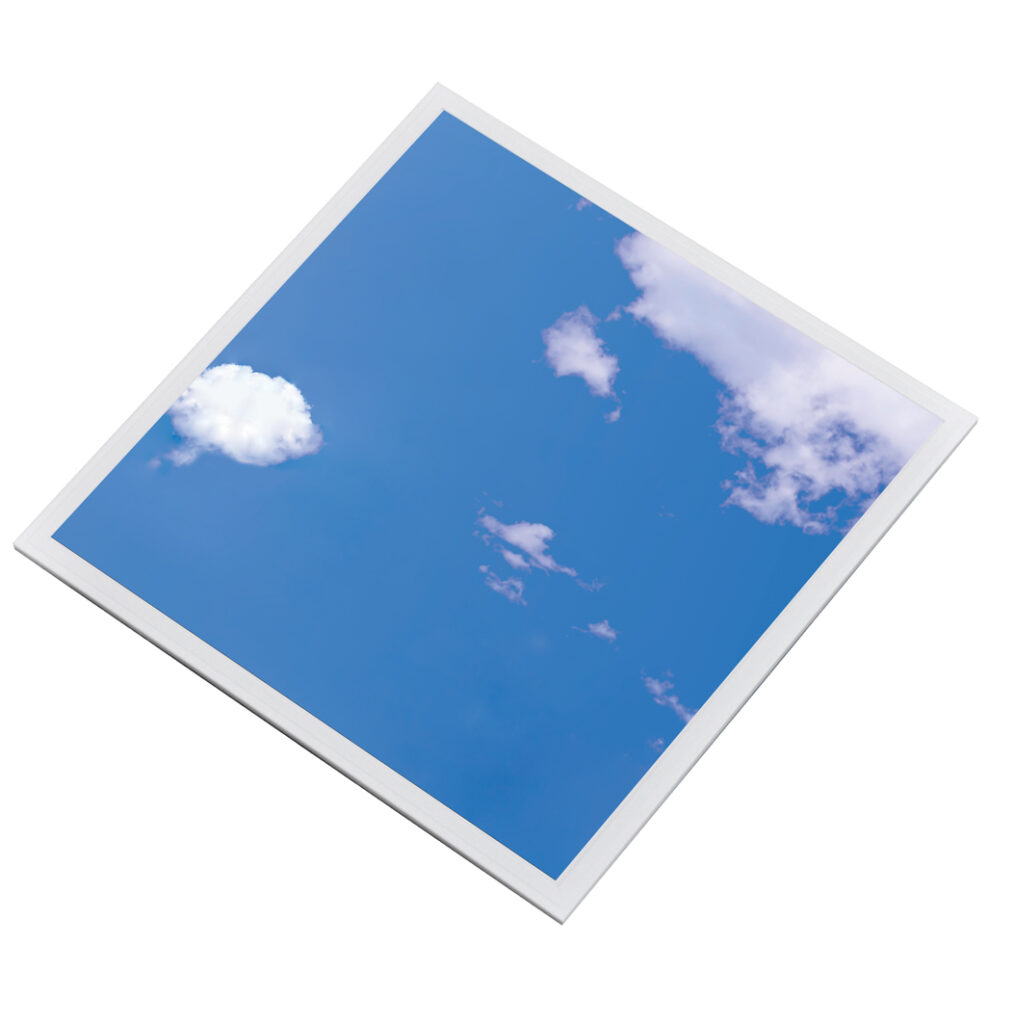

- Transform spaces with Sky Panel: Backlit recessed 600mm x 600mm LED light
- Sky-inspired Atmosphere: High-resolution artificial skylight effect on diffuser
- Enhance Well-being: Reduces anxiety, boosts productivity, and mimics daylight benefits
- Indoor Daylight Experience: Enjoy positive daylight effects indoors
Specification
Light Source Information
- Direct light output
- LED output of 32W delivering ~ 3025 lm
- Efficacy of 95lm/W
- External drivers supplied
- >80 colour rendering index
- Colour Temperatures of 4000K
- LEDs with a ≤6 step Macadam ellipse tolerance
Design
- Backlit for increased uniformity
- White frame
- IP40 Rated
- Flicker free to reduce eyestrain
Mounting Options
- Lay in grid ceiling
- Suspended
Optics
- Opal PMMA diffuser
Dimming
- Non-dimmable as standard
- Mains / DALI / 0-10V / DSI dimming available
Controls
- CP Sensor
- Customised solution
Miscellaneous
- 3hr Emergency available
- DALI addressable panel emergency pack
- Z10 remote control manual or advanced self-test emergency available
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- Set of 4,6 or 9 recessed LED 600mm x 600mm backlit panel luminaires with slim line aluminium body and artificial skylight effect printed on the diffuser. Suitable for lay in exposed T ceilings. Custom design are available upon request. – as RICOMAN’s Sky Panels.
Dimensions
Features
- Transform spaces with Sky Panel: Backlit recessed 600mm x 600mm LED light
- Sky-inspired Atmosphere: High-resolution artificial skylight effect on diffuser
- Enhance Well-being: Reduces anxiety, boosts productivity, and mimics daylight benefits
- Indoor Daylight Experience: Enjoy positive daylight effects indoors
- Seamless Integration: Lay in ceiling on T-grid ceilings
- Flexible Installation: Choose surface mount or recessed frame with Burgess ceiling solutions
- Sleek and Modern: Aluminium body finished in white
- Durable Build: IP40 protection guards against humidity and dust
- Eye Comfort: Flicker-free design minimizes eye fatigue
- Customizable Lighting: Explore dimming options
- Personalized Aesthetics: Inquire about custom print designs for a unique look
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R101294 | Set of 4 Sky Panels | 3025 | 32W | ~95Lm/W | – | White | 595 x 595 x 30.5 | Non emergency | – | 3 years | LDT ↓ | Datasheet ↓ |
| R101296 | Set of 6 Sky Panels | 3025 | 32W | ~95Lm/W | – | White | 595 x 595 x 30.5 | Non emergency | – | 3 years | LDT ↓ | Datasheet ↓ |
 | R101291/126 | 1200x600 Sky Panel | 3600 | 32W | ~95Lm/W | – | White | 1195 x 595 x 30.5 | Non emergency | – | 3 years | LDT ↓ | Datasheet ↓ |
| R101291/123 | 1200x300 Sky Panel | 1080 | 32W | ~95Lm/W | – | White | 1195 x295 x 30.5 | Non emergency | – | 3 years | LDT ↓ | Datasheet ↓ |
| R101299 | Set of 9 Sky Panels | 1080 | 32W | ~95Lm/W | – | White | 595 x 595 x 30.5 | Non emergency | – | 3 years | LDT ↓ | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What are Sky Panels and what effect do they create?
Sky Panels are backlit LED panel lights that use a printed sky effect on the diffuser, creating a natural feature lighting effect and a distinctive atmosphere in any workplace. They are supplied as a single panel or as a set of 4, 6 or 9 panels, allowing the effect to be scaled to the size of the ceiling area. Custom graphics are also available beyond the standard sky design.
What design options are available for Sky Panels beyond the standard sky image?
Alongside the standard sky design, Ricoman offers a fully custom graphic option, so a project can commission its own artwork rather than using the printed sky. This gives designers a way to create a themed feature ceiling suited to healthcare waiting areas, hospitality interiors or any workplace wanting a distinctive visual feature. High resolution artwork can be submitted to Ricoman for review before printing.
What sizes and set configurations are Sky Panels available in?
Sky Panels are available as a single panel or in sets of 4, 6 or 9 panels in the standard 600x600mm size, with single panels also offered in 1200x300mm and 1200x600mm formats. This lets a designer scale the feature area up or down depending on the size of the ceiling void being treated.
How are Sky Panels controlled and dimmed?
Sky Panels support mains dimming, DALI, 0-10V and DSI dimming, plus PIR and Casambi options, so the feature effect can be integrated into a standard lighting control scheme alongside general area lighting. This means the sky or custom graphic effect can be dimmed to suit different times of day or activities in the space.
Has Sky Panels been used in healthcare projects?
Yes, Sky Panels has been installed at Macclesfield Hospital, showing it working in a healthcare setting where a calming sky effect can help ease anxiety in clinical environments such as scanning rooms or children's wards.
