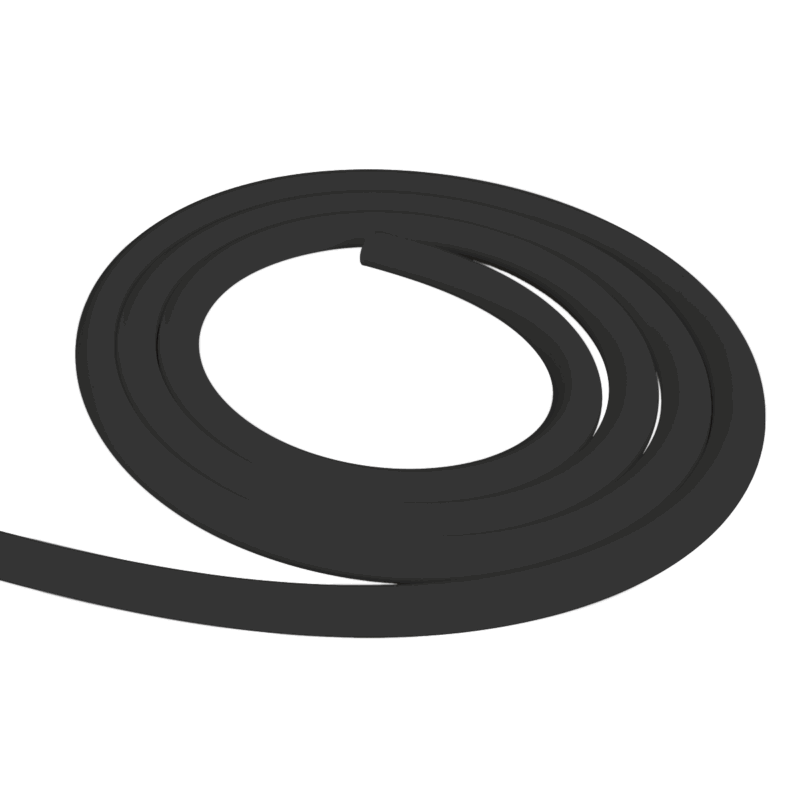

Astrowave-RGB/SPI
Creative colour changing lighting solution that can be used as pendant or mounted on walls, ceilings and floors
- RGB or SPI pixel addressable with 15 preset dynamic scenes
- IP65 rated, 360° silicone diffuser, pendant, surface & wall mounting
- Compatible with DMX, Casambi & RF remote control
Specification
Controls – RGB version
- Radio frequency
- DMX compatibility
- Casambi (App or wall control)
- (Drivers also required, subject to configuration, please get in touch)
Controls – SPI version
- Radio frequency remote control
- Customised sequences system available
- (Drivers also required, subject to configuration, please get in touch)
Design

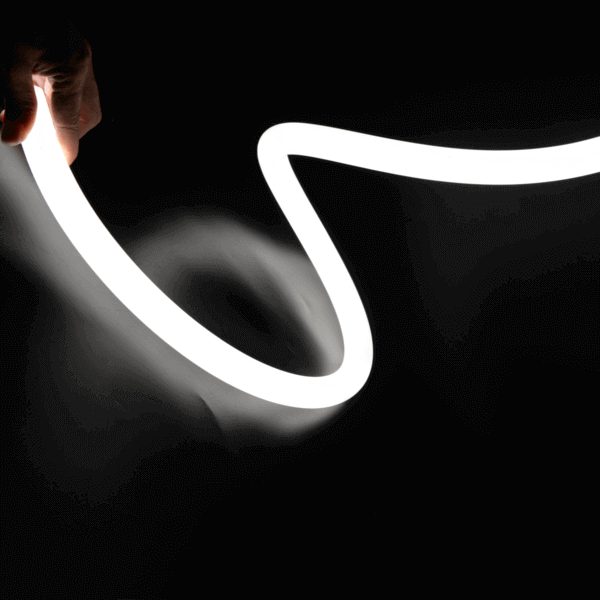

- 360° silicone flexible tube

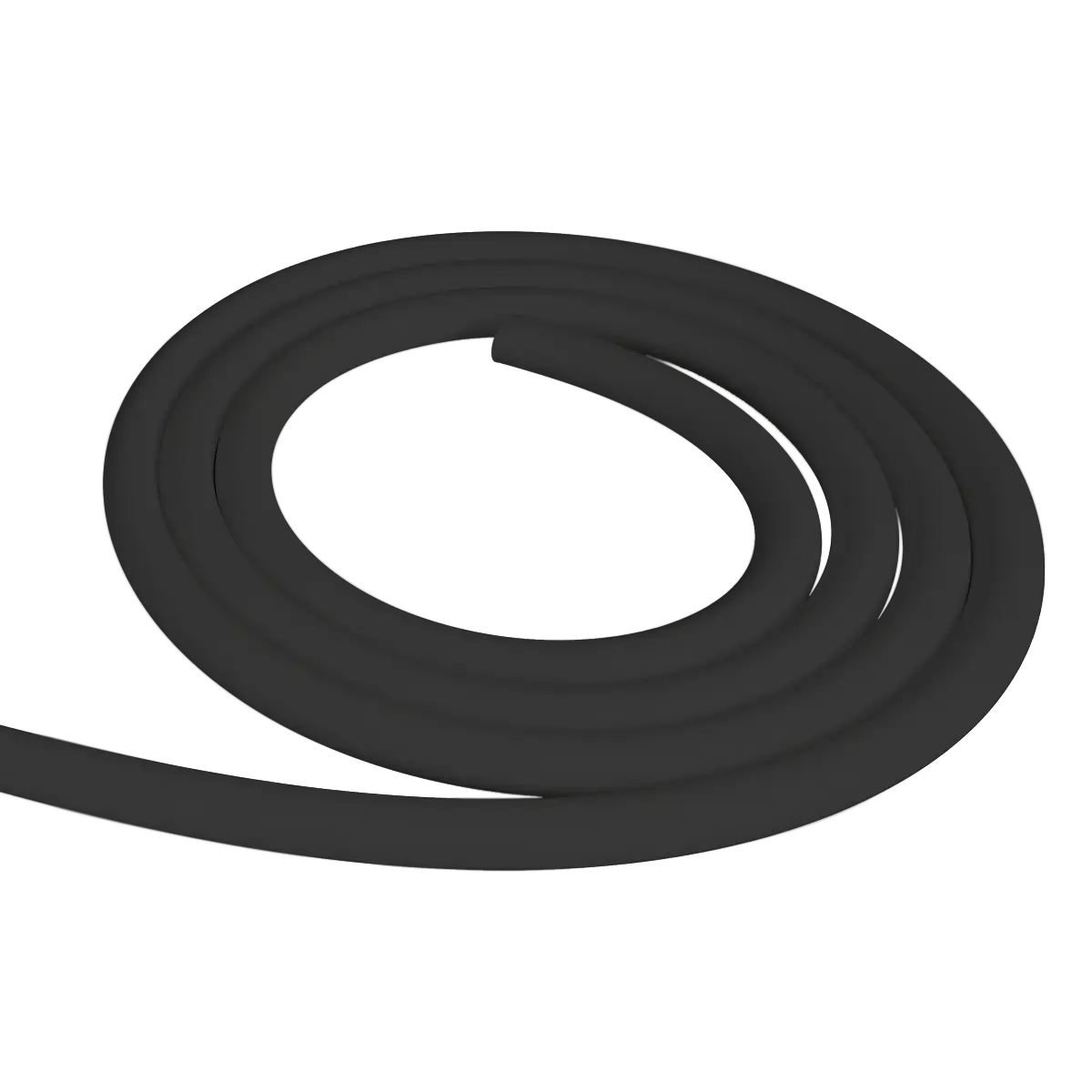

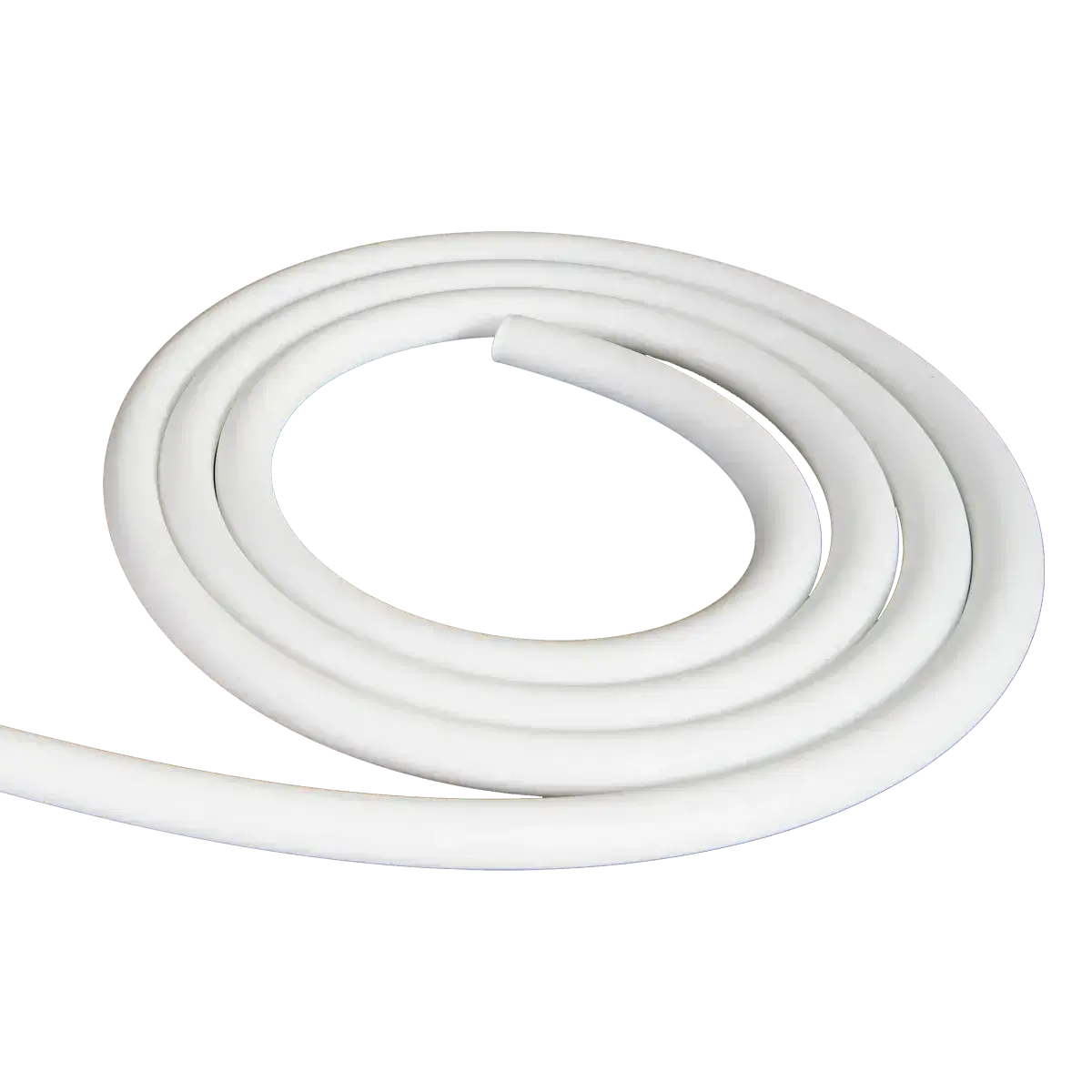

- Choice of white or black diffuser
- IP65 rated (Recommended for indoor use only)
- Surface / Suspended / Pendant installation
- Choice of mounting accessories
Optics
- Silicone diffuser
Miscellaneous
- 5 year warranty
- To specify state:
- Astrowave RGB/SPI 360° rope lighting solution, easy to mount as pendant, on wall/ceiling/floor. Flexible to be cut in custom lengths to create your unique design. Available in colour changing (RGB) or pixel addressable (SPI) version with a number of control options.
Dimensions
Features

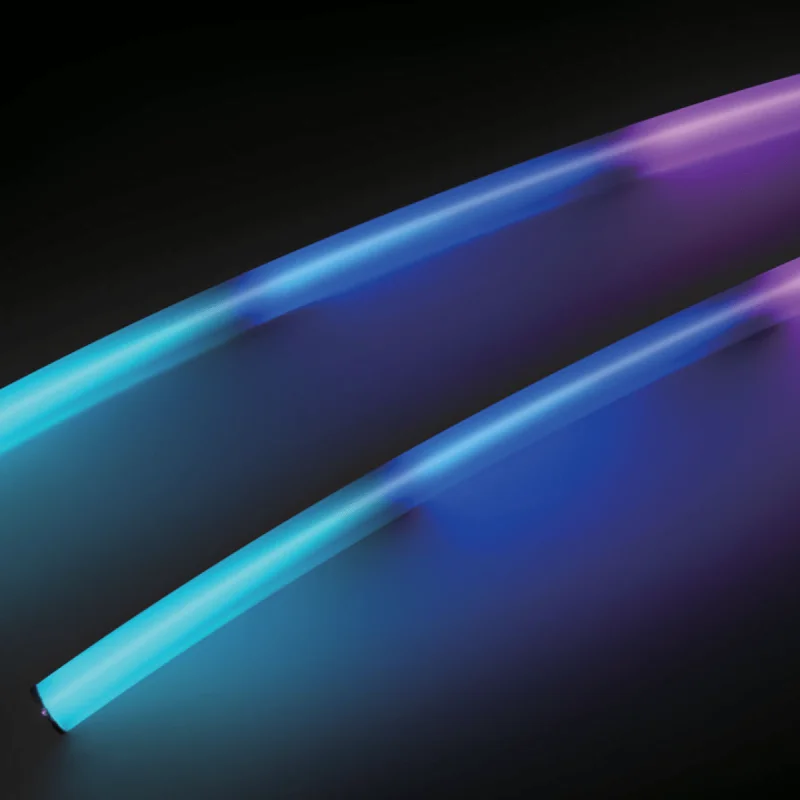

- Astrowave comes in SPI (pixel addressable) or simple RGB option

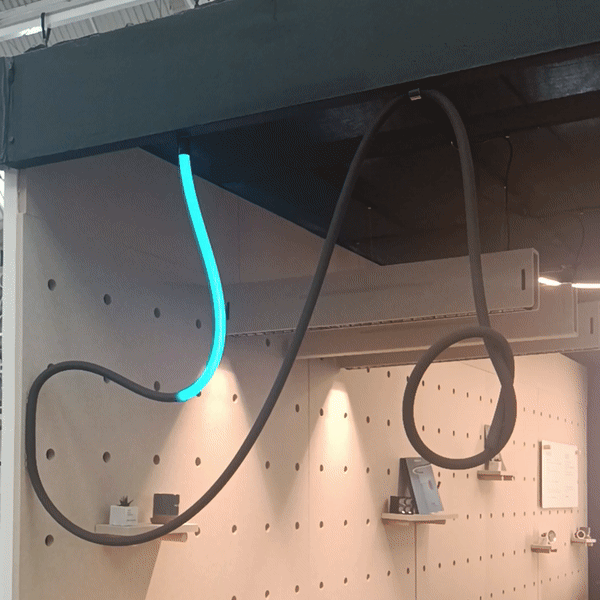

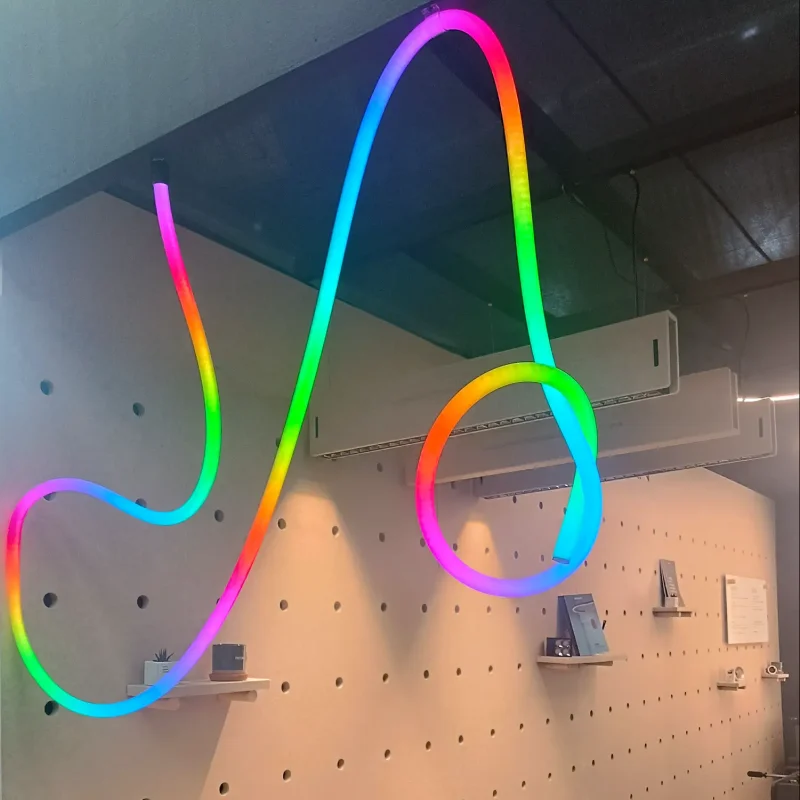

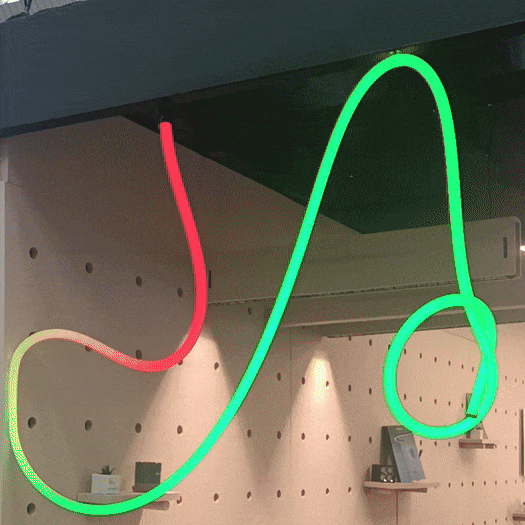

- SPI can create stunning dynamic effects
- Choose from 15 preset scenes on the remote control or speak to us about a customised solution
- Remote control can adjust the speed/brightness and colour sequence (SPI)
- 360° rope light with a unique and diverse range of accessories to allow multiple mounting methods
- Mounting and connection accessories allow for a unique lighting design creation
- Up to 5m reels of 25mm diameter available

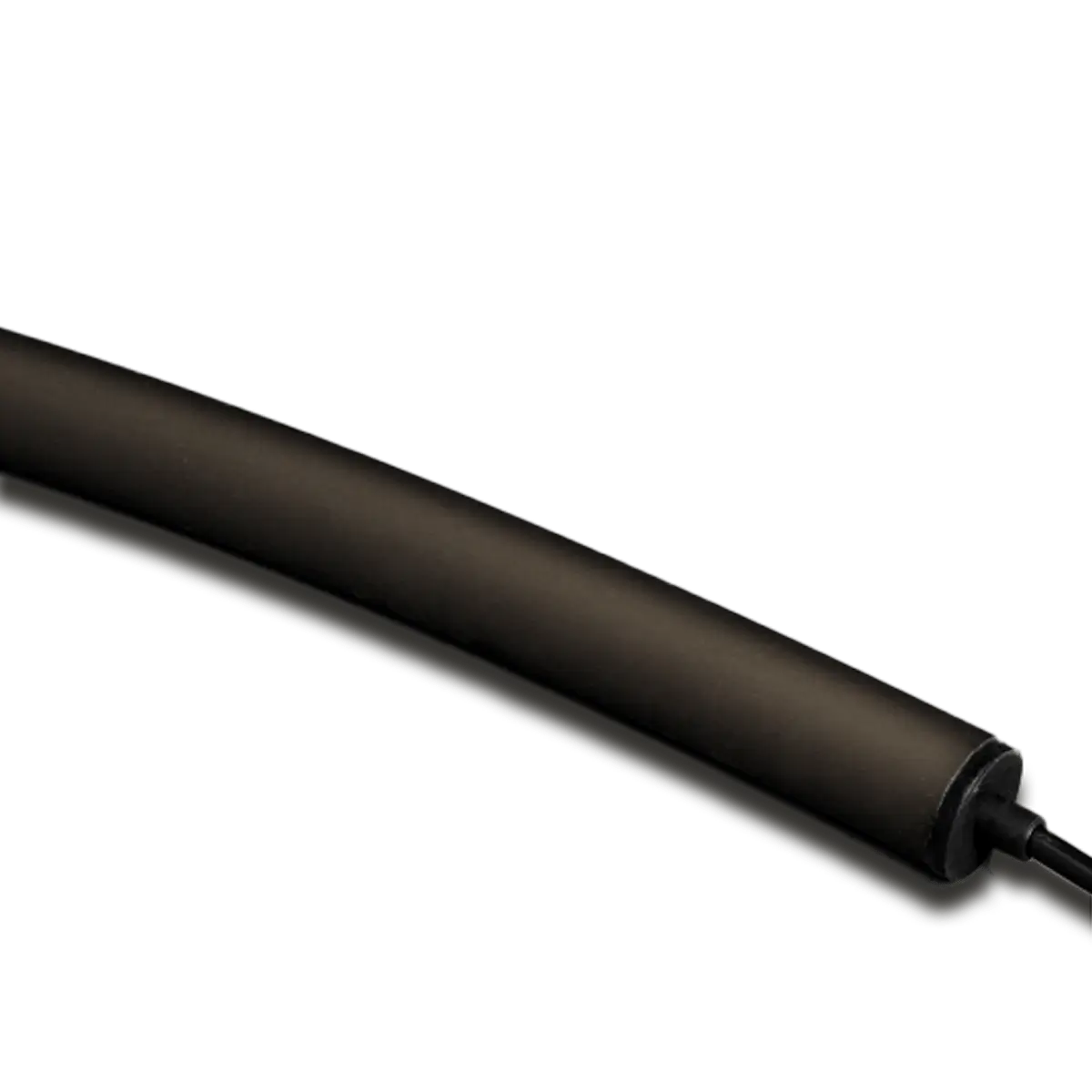

- 50cm entry cable with options of side entry and end cap entry
- Can be used for a range of purposes from ambient lighting to accent lighting
- Ask about our bespoke design and 3D visualisation service
Downloads
Astrowave Family Data Sheet (PDF) · 437 KBR75-01 Installation Instructions (PDF) · 460 KBR75-02 Installation Instructions (PDF) · 570 KBR75-03 Installation Instructions (PDF) · 451 KBR75-04 Installation Instructions (PDF) · 379 KBR75-05 & R75-10 Installation Instructions (PDF) · 417 KBR75-06 Installation Instructions (PDF) · 632 KBR75-07 Installation Instructions (PDF) · 482 KBR75-08 & R75-09 Installation Instructions (PDF) · 618 KBBrochure (PDF) · 1.9 MBBIM / Revit (RFA) · request
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R751000/RGB/WT/SE | Astrowave RGB White Diffuser Side Entry | 950Lm/M | 14.4W/M | ~68Lm/W | RGB | White Diffuser and end cap | Up to 5m length, 25mm diameter | – | – | 5 years | — | Datasheet ↓ |
| R751000/RGB/WT/ECE | Astrowave RGB White Diffuser End Cap Entry | 950Lm/M | 14.4W/M | ~68Lm/W | RGB | White Diffuser and end cap | Up to 5m length, 25mm diameter | – | – | 5 years | — | Datasheet ↓ |
 | R751000/RGB/BK/SE | Astrowave RGB Black Diffuser Side Entry | 950Lm/M | 14.4W/M | ~68Lm/W | RGB | Black Diffuser and end cap | Up to 5m length, 25mm diameter | – | – | 5 years | — | Datasheet ↓ |
| R751000/RGB/WT/ECE | Astrowave RGB Black Diffuser End Cap Entry | 950Lm/M | 14.4W/M | ~68Lm/W | RGB | Black Diffuser and end cap | Up to 5m length, 25mm diameter | – | – | 5 years | — | Datasheet ↓ |
| R751000/SPI/WT/SE | Astrowave SPI White Diffuser Side Entry | 950Lm/M | 14.4W/M | ~68Lm/W | SPI | White Diffuser and end cap | Up to 5m length, 25mm diameter | – | – | 5 years | — | Datasheet ↓ |
| R751000/SPI/WT/ECE | Astrowave SPI White Diffuser End Cap Entry | 950Lm/M | 14.4W/M | ~68Lm/W | SPI | White Diffuser and end cap | Up to 5m length, 25mm diameter | – | – | 5 years | — | Datasheet ↓ |
| R751000/SPI/BK/SE | Astrowave SPI Black Diffuser Side Entry | 950Lm/M | 14.4W/M | ~68Lm/W | SPI | Black Diffuser and end cap | Up to 5m length, 25mm diameter | – | – | 5 years | — | Datasheet ↓ |
| R751000/SPI/WT/ECE | Astrowave SPI Black Diffuser End Cap Entry | 950Lm/M | 14.4W/M | ~68Lm/W | SPI | Black Diffuser and end cap | Up to 5m length, 25mm diameter | – | – | 5 years | — | Datasheet ↓ |
