PULSAR

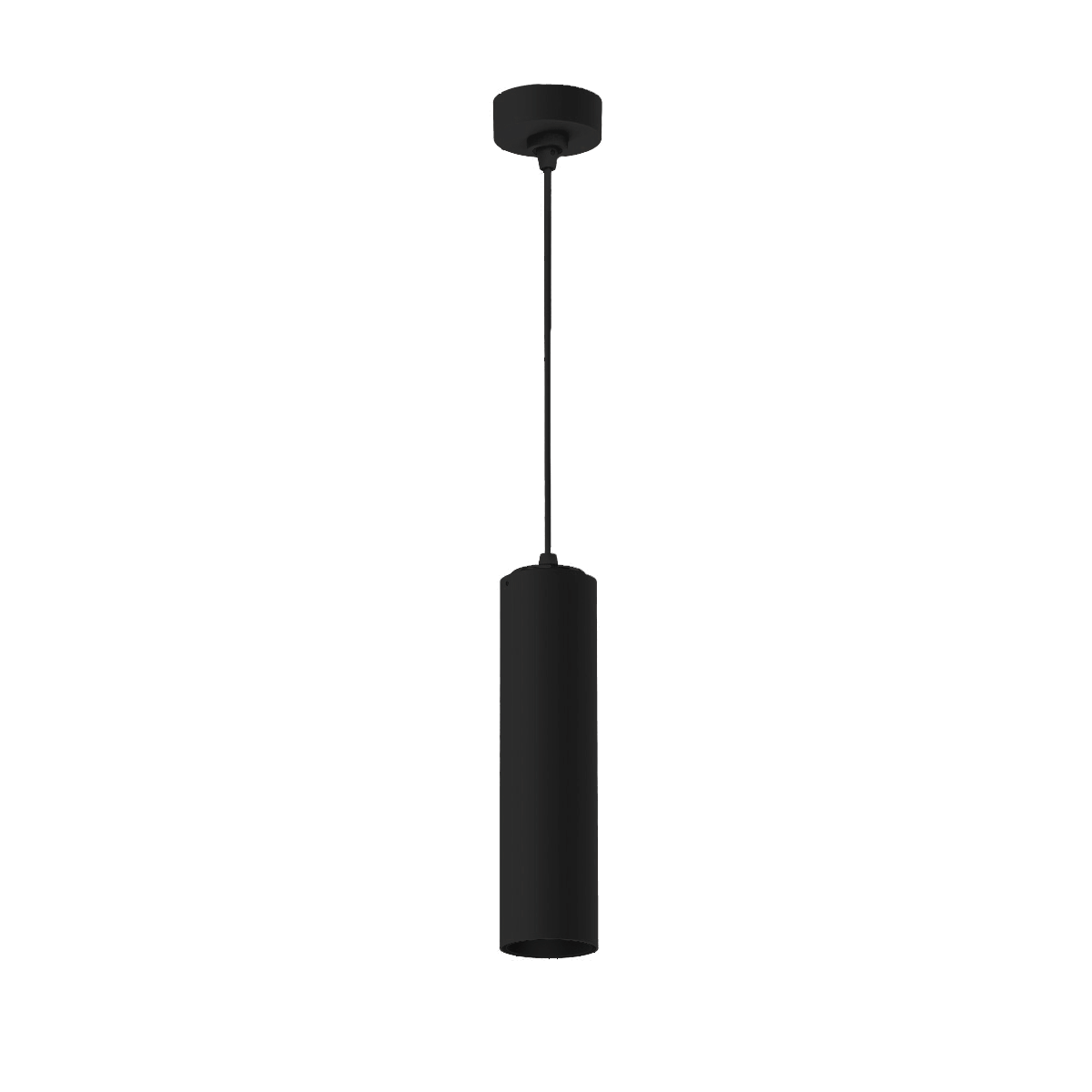

Architectural mini pendant combining efficacy with elegance

  • Switchable beam angles for accent, ambient or task lighting : Easily adaptable to suit any application or interior scheme

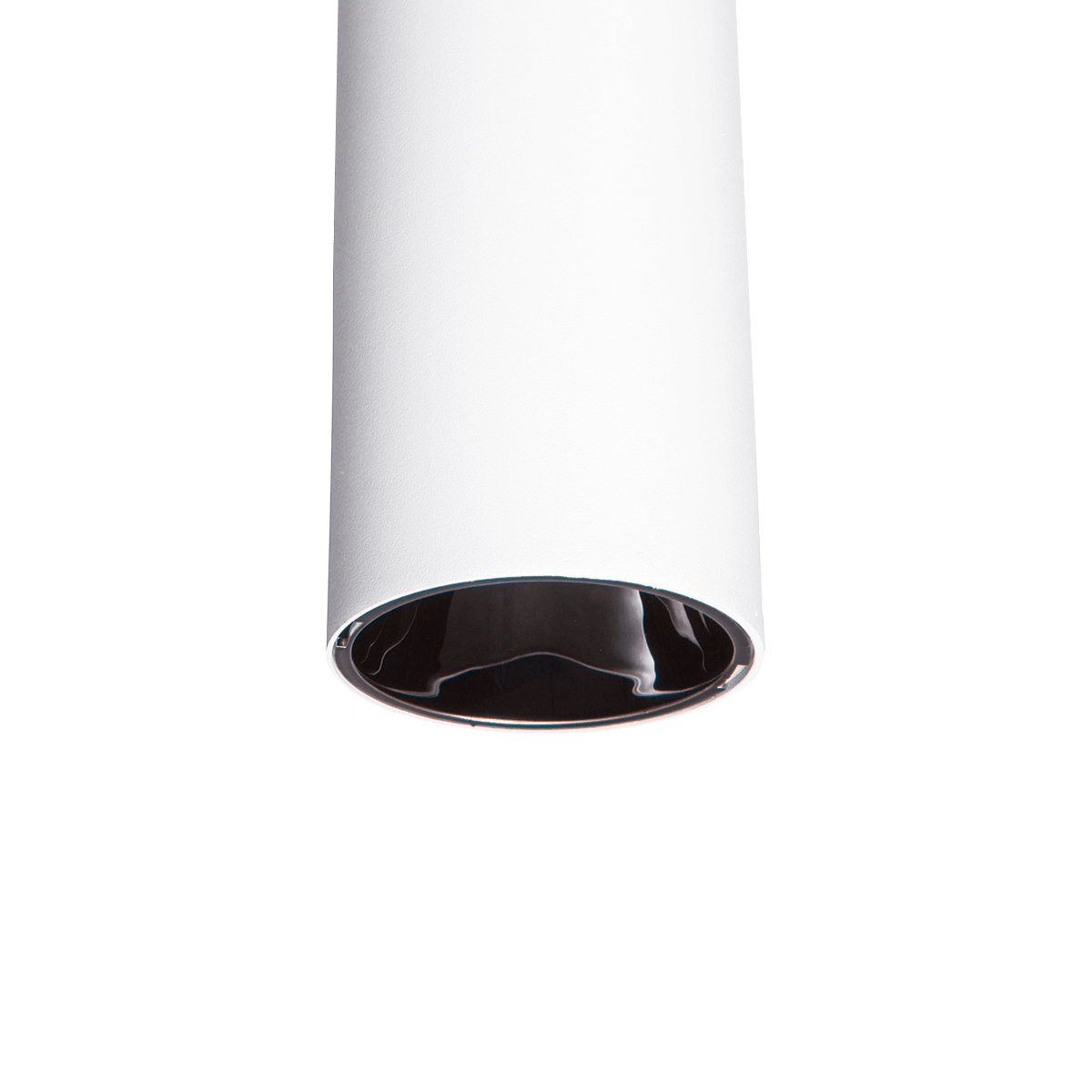

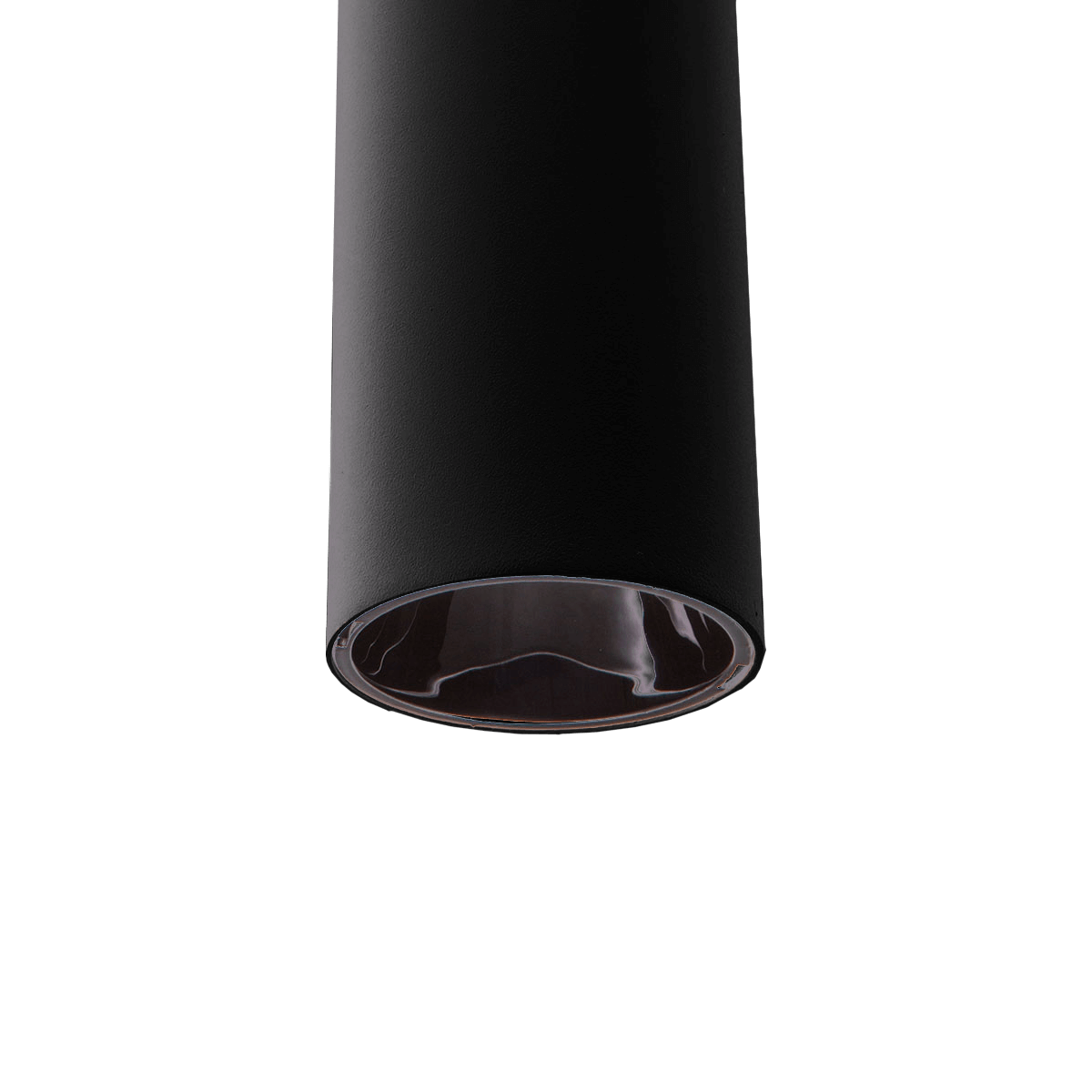

  • Elegant cylindrical body in white or black : Cast aluminium designed to complement any interior aesthetic.
  • One family, multiple mounting options: Surface, recessed, track or pendant - one cohesive look throughout.

Specification

Light Source Information

  • Direct light output
  • 10W delivering 900lm
  • Efficacy of 90lm/W
  • Driver supplied
  • >90 colour rendering index
  • 3000K and 4000K colour temperature
  • Tridonic driver as standard
  • L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
  • Single Bin Bridgelux COB with a ≤3 step Macadam ellipse tolerance

Design

  • Matte white (RAL 9016) or matte black (RAL9005) body
  • IP20 rated
  • 1500mm cable, height adjustable at point of installation (recessed, surface mounted and track version available)

Optics

  • Customisable with 15°, 24°, 38° and 55° beam angles
  • PMMA diffuser
  • Gun metal reflector

Dimming

  • Non dimmable

Miscellaneous

  • Standard Warranty: 5 years
  • Emergency Warranty: 3 years
  • To specify state:
  • Elegant cylindrical pendant mounted downlight with a cast aluminium body, spectacular gun metal reflector and integral driver. Clean aesthetic which features a 1500mm adjustable flex and pendant head included – as RICOMAN’s Pulsar Pendant.

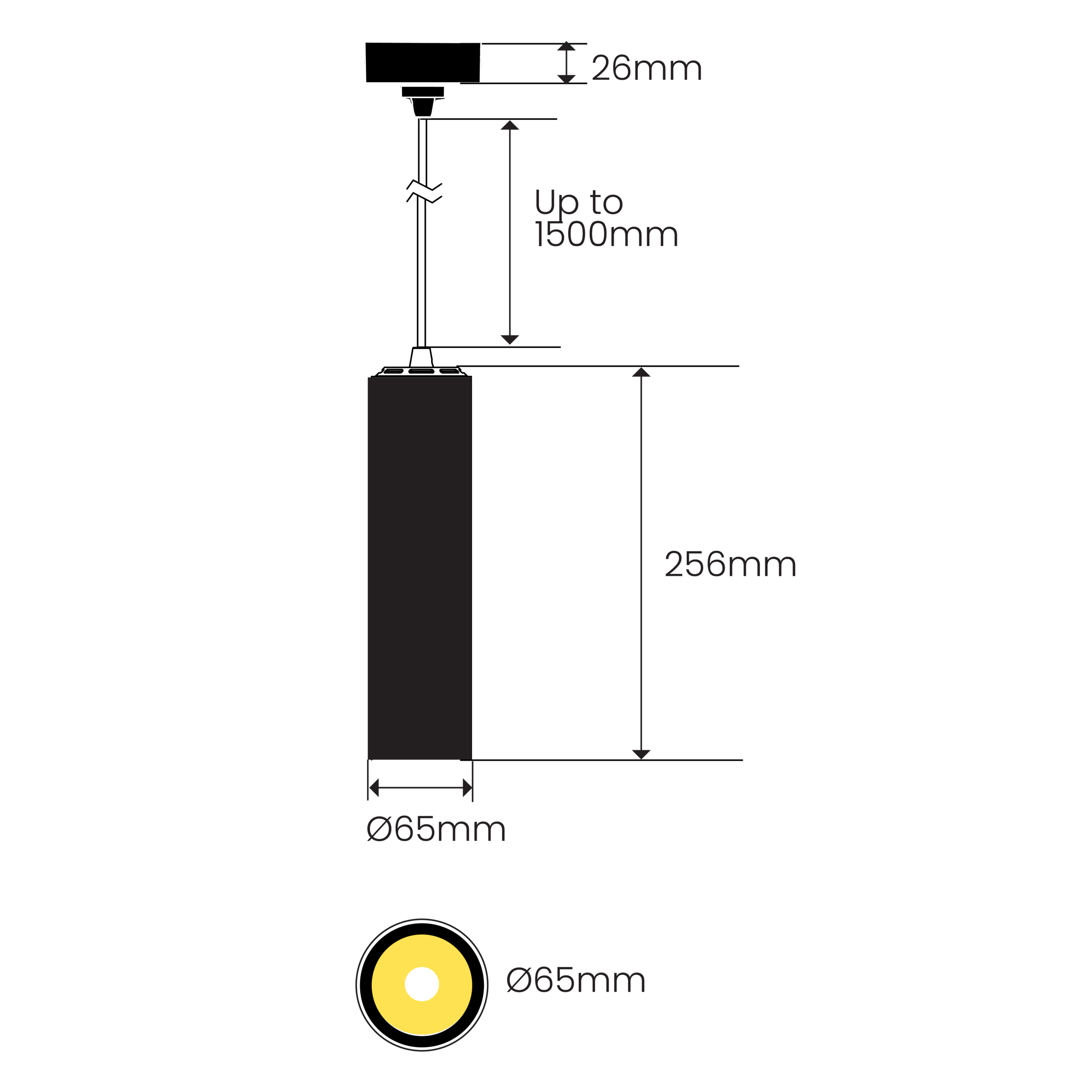

Dimensions

PULSAR dimensions

256 x 65 with up to 1500mm cable

Features

  • Stylish, contemporary design
  • 1500mm cable, height adjustable at point of installation
  • Durable aluminium construction
  • White or black finish
  • 10W delivering 900 lumens
  • Spectacular gun metal reflector finish
  • Available in 3000K | 4000K
  • Excellent colour rendering index, CRI>90
  • L70 B50 = 100,000 hours    |    L90 B50 = 42,000 hours
  • Single Bin Bridgelux COB with a ≤3 step Macadam ellipse tolerance
  • Also available in: surface mounted | track mounted | recessed

Configure Your Product

Part CodeDescriptionLumensWattageEfficacyColour TempColour FinishDimensions (mm)EmergencyReflectorWarrantyLDTDatasheet
R096201/BKPulsar Pendant 10W 4000K90010W~90Lm/W4000KMatte Black (RAL9005)L150 x Ø65Non emergency5 yearsLDT ↓Datasheet ↓
R096201Pulsar Pendant 10W 4000K90010W~90Lm/W4000KMatte White (RAL9016)L150 x Ø65Non emergency5 yearsLDT ↓Datasheet ↓
R096201/3KPulsar Pendant 10W 3000K89510W~90Lm/W3000KMatte White (RAL9016)L150 x Ø65Non emergency5 yearsLDT ↓Datasheet ↓
R096201/BK/3KPulsar Pendant 10W 3000K89510W~90Lm/W3000KMatte Black (RAL9005)L150 x Ø65Non emergency5 yearsLDT ↓Datasheet ↓

Frequently asked questions

What is the Pulsar pendant and where is it designed to be used?

Pulsar is a modern pendant that combines efficacy with elegance, using a minimalistic, contemporary design and durable aluminium construction. It is intended to add a touch of subtle, stylish architectural lighting in both domestic and commercial spaces. This dual suitability makes it a practical choice for design and build firms working across hospitality, retail or residential style commercial fit outs.

Is Pulsar available in mounting formats other than pendant?

Yes, the same style of luminaire is also available in surface mounted, recessed and track mounted versions. This means a designer can specify a consistent Pulsar look across a scheme even where ceiling conditions vary, using the pendant version in some areas and the surface, recessed or track mounted version elsewhere. It gives contractors one product family to source and install rather than mixing unrelated ranges to match a single design intent.

What beam angle and finish options does Pulsar offer?

Pulsar is available in black or white finish, and offers a choice of 15, 24, 38 (standard) or 55 degree beam angles. This range of beam angles lets a specifier fine tune the light spread for a specific task, such as a narrower beam over a bar counter or a wider spread for general ambient lighting. The finish and beam angle can be combined to suit both the visual style and the functional lighting requirement of the space.

Why choose Pulsar over a larger decorative pendant for accent lighting?

Pulsar's minimalistic, contemporary design and compact 10W output mean it can provide precise accent lighting, using its narrower 15 or 24 degree beam angles, without becoming a bulky visual statement in the space. This suits hospitality, retail or residential-style commercial fit-outs where the goal is understated, functional accent lighting rather than a large feature pendant competing for attention. Its consistency with the surface, recessed and track mounted versions of the same design also means the same restrained look can be carried across a mixed scheme.

Can Pulsar be used for both accent lighting and general ambient lighting in the same scheme?

Yes, because Pulsar offers a choice of 15, 24, 38 or 55 degree beam angles from the same fitting, a designer can use the narrower angles to pick out a bar counter, artwork or display and the wider 55 degree angle for softer, more general ambient lighting elsewhere in the same space. This means one product range can cover both accent and general lighting roles in a scheme, rather than mixing unrelated fittings to achieve each effect. The minimalistic, contemporary design stays consistent across all beam angle options, so the visual look of the scheme does not change even as the lighting role does.
