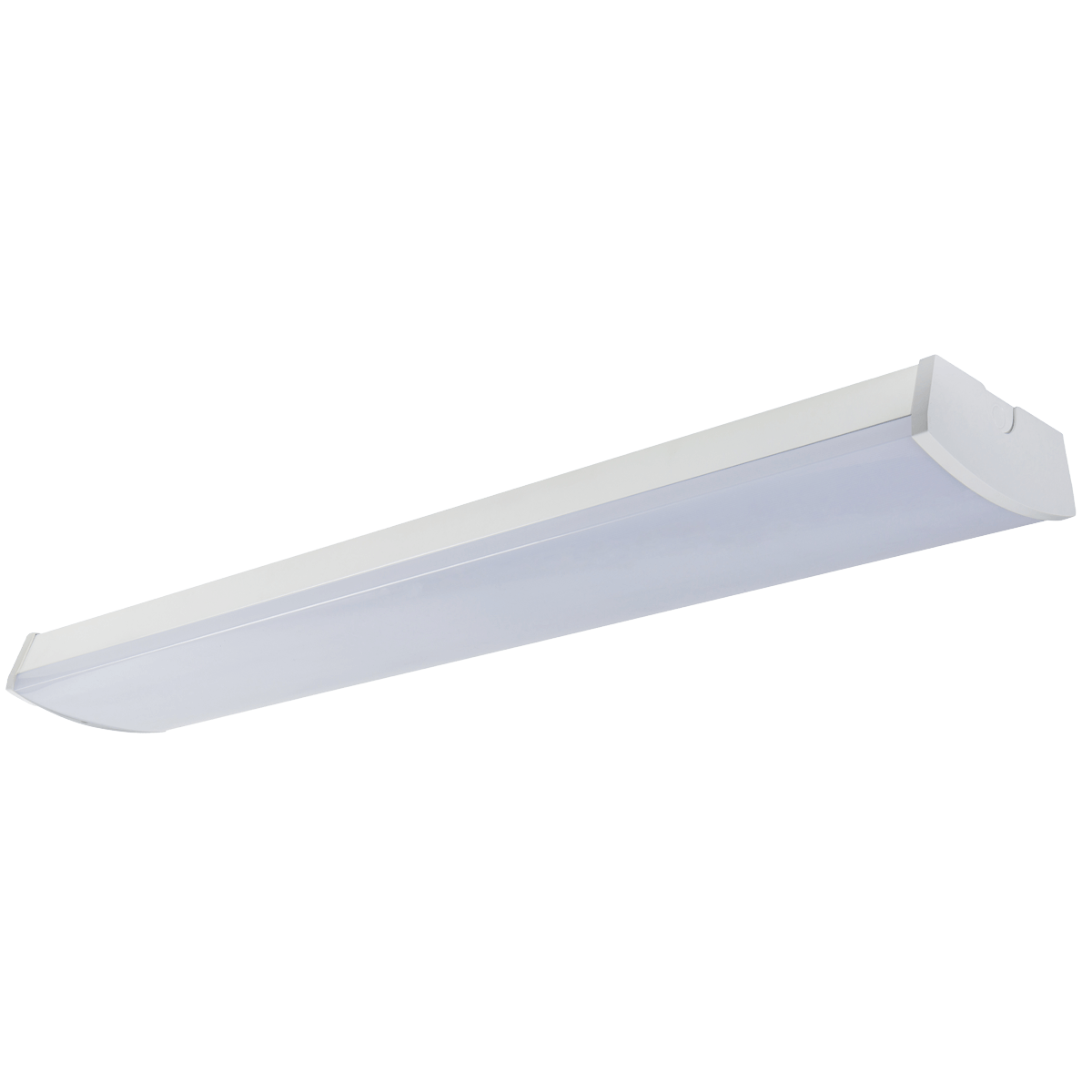

Academy
Curved profile linear luminaires with opal diffusers for surface mounting often used for school and hospital lighting.
- TPa-rated opal diffuser for glare-free comfort : Perfect for classrooms and offices where visual comfort is a priority.
- Push-in terminals for fast, hassle-free installation : Saves valuable time on site without compromising reliability.
- Three sizes with surface or suspended mounting : Available in 1200mm, 1500mm, and 1800mm to suit any ceiling type or space.
Specification
Light Source Information
- Direct light output
- LED outputs available from 2400lm to 8160lm
- Standard or higher wattage
- Efficiency of 120lm/W
- Internal Drivers supplied
- >85 colour rendering index
- Colour Temperature 4000K
- L70 B50 = 70,000 hours | L90 B50 = 25,000 hours
- Epistar LEDs with a ≤4 step Macadam ellipse tolerance
Design
- IP20 rated
- IP08 rated
- Folded steel body

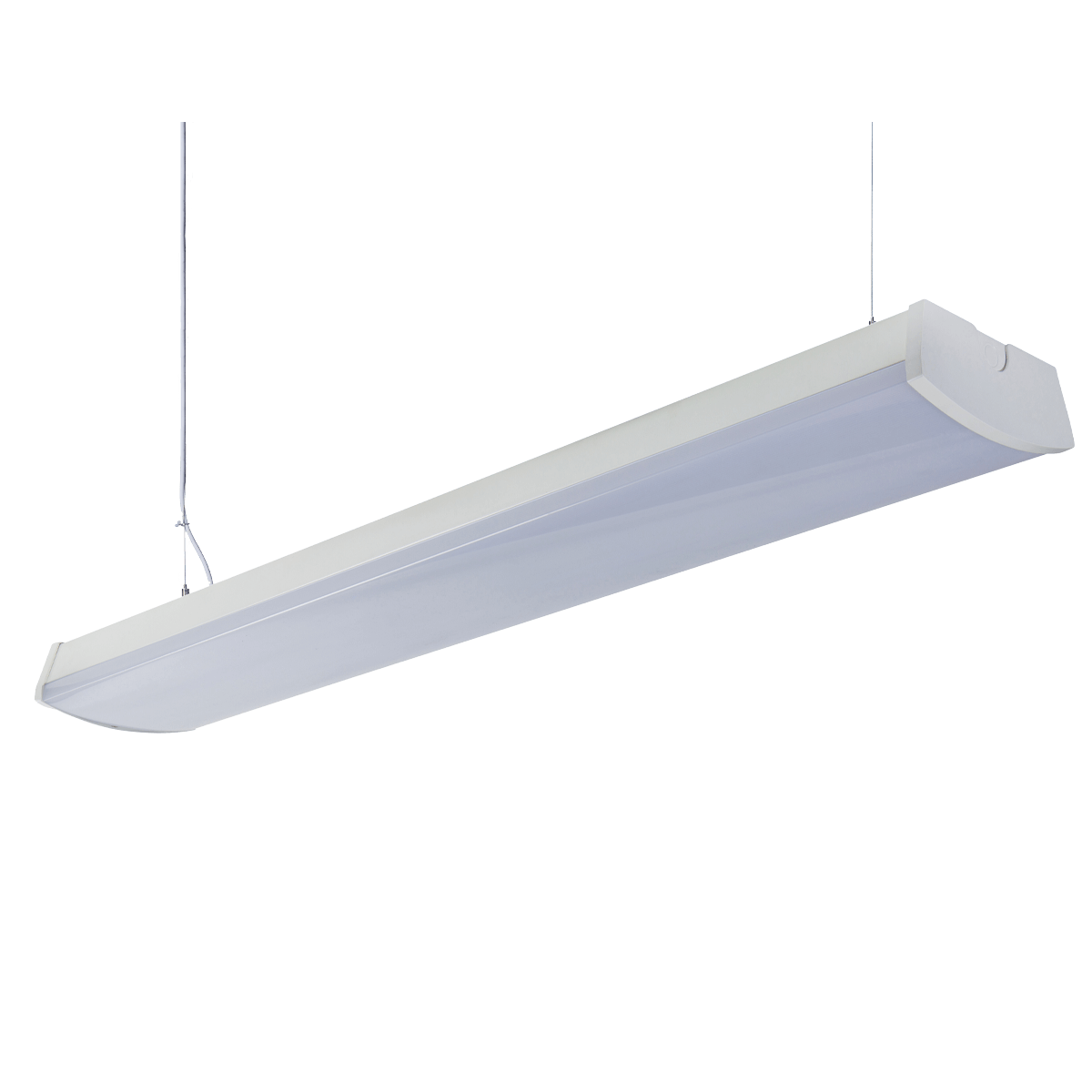

- Surface-mounted or suspended (1.5m)
- Can be connected to a BESA box
- Available in 3 linear sizes 1200mm, 1500mm and 1800mm
Optics
- TPa rated diffuser
- Opal glare control diffuser
- 140 degree beam angle
Installation
- Push-in terminals for quick and simple installation
Controls
- MW Sensor option
- Customised solution
Dimming
- Non-dimmable as standard
- DALI / 0-10V / DSI dimming available
Integral Emergency
- 3hr Emergency available
- DALI addressable panel emergency pack
- Z10 remote control manual or advanced self-test emergency available
Miscellaneous
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- Surface-mounted or suspended IP20 LED luminaire with curved opal glare control diffuser retained along its length end caps. Available in high or low output in lengths of 1200mm, 1500mm and 1800mm – as RICOMAN’s Academy range
Features
- Exceptional efficacy of 120 lumens per watt
- 4000K
- TPa rated polycarbonate opal diffuser
- Flicker-free to minimise eye strain
- Smooth and uniform light output with no dark spots
- Available in 1200mm | 1500mm | 1800mm
- Ability to connect to BESA boxes
- Standard or high output versions
- Dimming options available
- Integral emergency options available: Standard | DALI | Remote control testing
- Optional integrated sensor options
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R250012/20W | Academy Linear 1200mm 20W 4000K | 2416 | 20W | ~120Lm/W | 4000K | White | L1178 x W205 x H87mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R250012/40W | Academy Linear 1200mm 40W 4000K | 4812 | 40W | ~120Lm/W | 4000K | White | L1178 x W205 x H87mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R250015/30W | Academy Linear 1500mm 30W 4000K | 3619 | 30W | ~120Lm/W | 4000K | White | L1478 x W205 x H87mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R250015/60W | Academy Linear 1500mm 60W 4000K | 7226 | 60W | ~120Lm/W | 4000K | White | L1478 x W205 x H87mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R250018/40W | Academy Linear 1800mm 40W 4000K | 4818 | 40W | ~120Lm/W | 4000K | White | L1778 x W205 x H87mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R250018/68W | Academy Linear 1800mm 68W 4000K | 8145 | 68W | ~120Lm/W | 4000K | White | L1778 x W205 x H87mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What is Academy and where is it typically used?
Academy is a curved profile LED linear luminaire with opal TP(a) diffusers, built for surface mounting or suspension across three different lengths. Its clean architectural profile makes it a common choice for school and hospital lighting where a robust yet unobtrusive fitting is needed. Ricoman backs Academy with a 5 year warranty, giving specifiers confidence for education and healthcare projects.
What is Academy's efficacy and diffuser fire rating?
Academy delivers an efficacy of around 111 to 125 lumens per watt, keeping running costs down on projects lit for long hours such as schools and hospitals. Its polycarbonate diffuser is TP(a) rated, giving specifiers the fire safety documentation many public-sector projects require. This combination of efficiency and compliance data supports its use in education and healthcare settings.
What control and emergency options can Academy be specified with?
Academy supports DALI 2, 0-10V and DSI dimming, along with wireless Casambi control, so it can be integrated into most standard lighting control strategies. It can also be specified with a PIR sensor, integral emergency operation, DALI emergency, or a Z10 remote control integral emergency version for testing without physical access. Covering this many functions from one fitting reduces the number of separate products needed on a school or hospital corridor.
What should installers know before fitting Academy?
Academy can be surface mounted, suspended, or fitted into BESA boxes, with side cable entry to keep wiring tidy during first fix. Its steel body with plastic end caps keeps weight manageable, ranging from 2.70kg to 4.40kg depending on length, and the optional 1.5m suspension kit supports pendant installations. These options give contractors flexibility when fitting Academy into existing ceiling layouts.
What warranty and build standards does Academy meet?

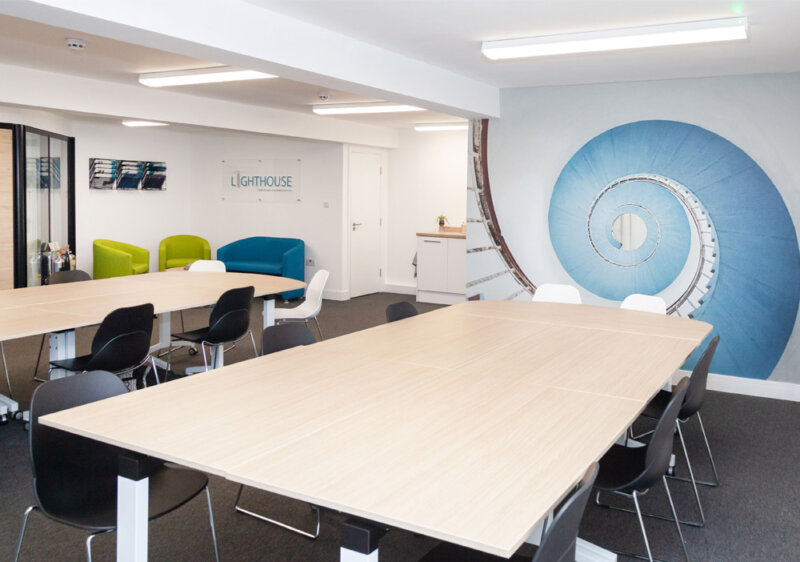

Academy is backed by a 5 year warranty and an L70 B50 rating of 70,000 hours, giving specifiers a long service life to quote on education and healthcare projects. It carries an IK08 impact rating and a CRI above 85 Ra, supporting both durability and accurate colour rendering. It has already been used in installations such as Lighthouse offices in Leeds.
