Galaxia

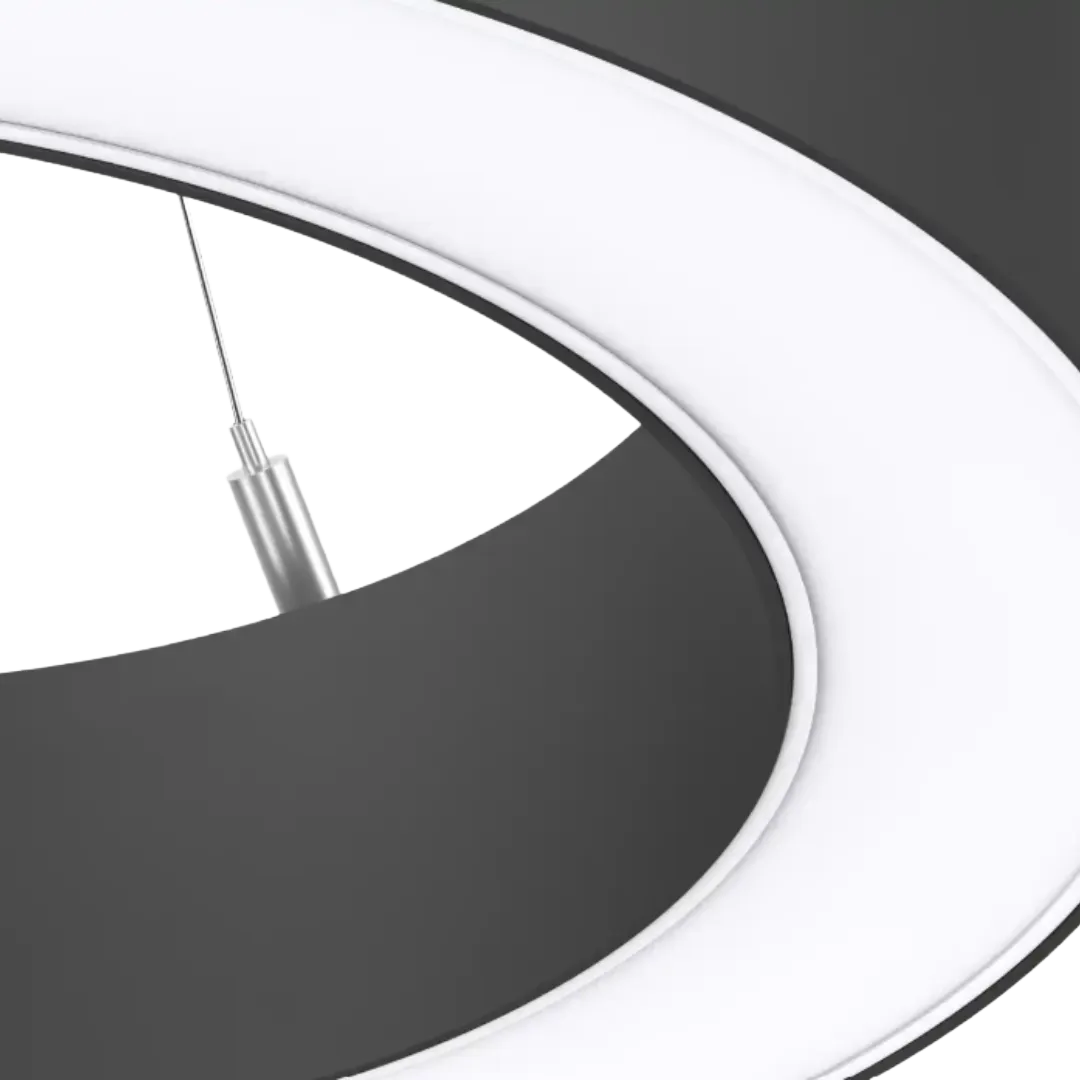

Up Ring Pendant LED luminaire with a direct and indirect light.
- Stylish, contemporary design
- 800mm diameter
- Available in 3000K | 4000K
- Durable aluminium construction
Specification
Light Source Information
- 35W ( 25W Direct + 10W Indirect) delivering up to 3255 lumens
- 70W ( 49W Direct + 21W Indirect) delivering up to 6510 lumens
- Internal drivers supplied
- >80 colour rendering index
- Colour Temperatures 3000K or 4000K
Design
- Black RAL9005
- IP20 Rated
- Suspended / Pendant
- Dimensions of ⌀800 x 75 mm
Dimming
- Non dimmable as standard
- DALI, 0-10 volt, DSI dimming options
Controls
- Custom solutions
Integral Emergency
- 3hr Emergency available
- DALI addressable emergency
- Z10 remote control manual or advanced self-test emergency available
Miscellaneous
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- Large circular feature pendant available in black finish with a soft uniform direct and indirect light output. Constructed from aluminium housing with a 800mm diameter. Available in 3000K or 4000K – as RICOMAN’s Galaxia.
Dimensions
Features
- Stylish, contemporary design
- 800mm diameter
- Available in 3000K | 4000K
- Durable aluminium construction
- Multiple fixing options: Ceiling rose or suspension cables
- Dimming options available
- Emergency option available
- Flicker-free integral driver
- Direct and Indirect light
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R820302/4K/70W | Galaxia Up Ring Feature Pendant 70W 4000K | 6337 | 70W | ~93 Lm/W | 4000K | Black | Ø800mm x 75mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R820301/3K/70W | Galaxia Up Ring Feature Pendant 70W 3000K | 5651 | 70W | ~83 Lm/W | 3000K | Black | Ø800mm x 75mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R820301/3K/35W | Galaxia Up Ring Feature Pendant 35W 3000K | 2905 | 35W | ~83 Lm/W | 3000K | Black | Ø800mm x 75mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R820302/4K/35W | Galaxia Up Ring Feature Pendant 35W 4000K | 3255 | 35W | ~93 Lm/W | 4000K | Black | Ø800mm x 75mm | – | – | 5 years | LDT ↓ | Datasheet ↓ |
You may also like
Frequently asked questions
Where is Galaxia suitable for?

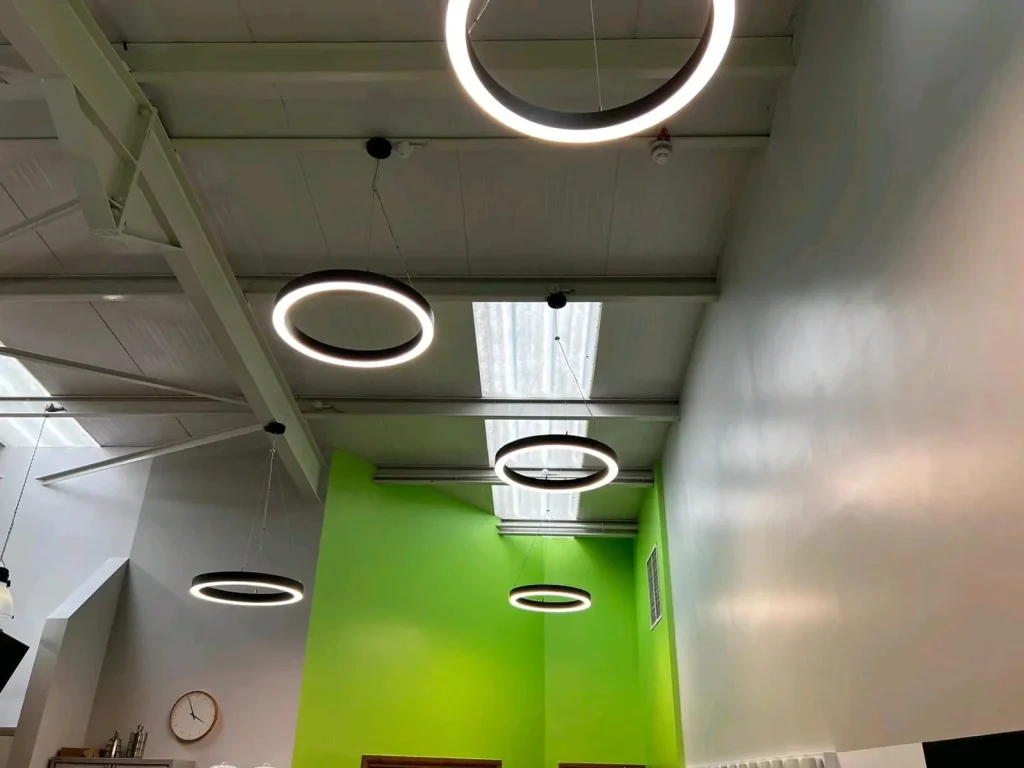

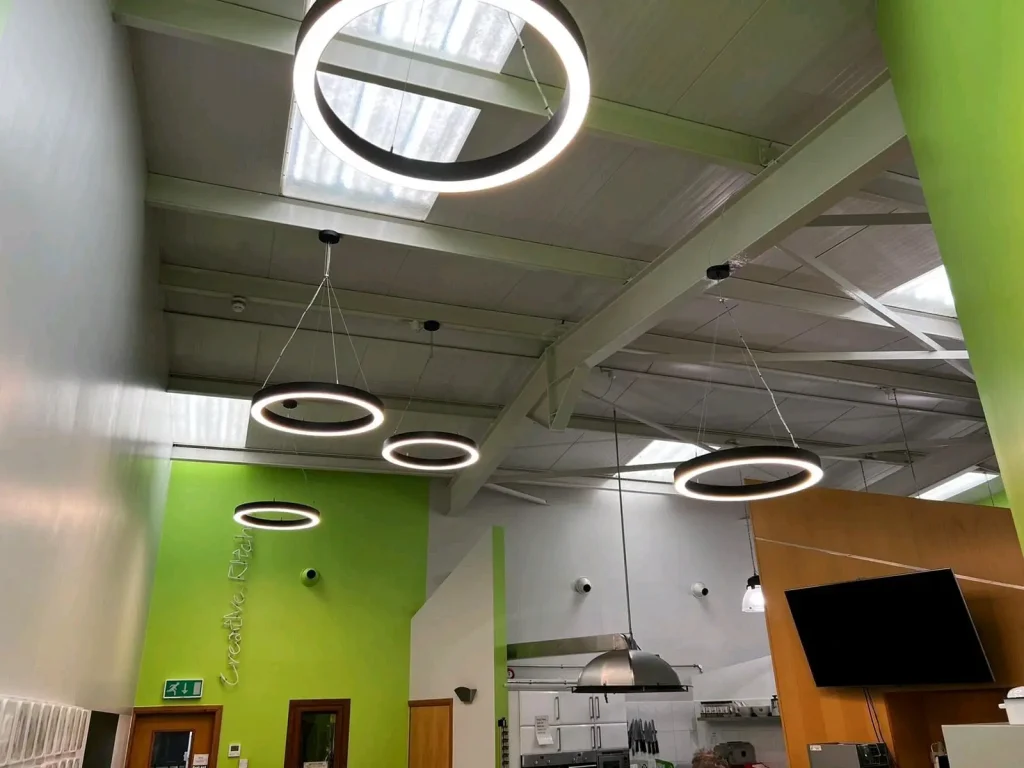

Galaxia is an interior luminaire rated IP20, designed as a feature pendant for receptions, open plan offices, communal areas and similar spaces. The ring form gives both direct light onto the working plane and indirect light washing the ceiling, so it lifts the space above as well as lighting the floor below.
What wattage and light output does Galaxia deliver?
Galaxia is available in two wattages, each in two colour temperatures. At 70W it delivers 6337 lumens in 4000K or 5651 lumens in 3000K. At 35W it delivers 3255 lumens in 4000K or 2905 lumens in 3000K. Efficacy is approximately 93 lm/W at 4000K and 83 lm/W at 3000K. Output is split between direct and indirect, with the 70W version running 49W direct and 21W indirect.
Can Galaxia be dimmed or specified with emergency lighting?
Galaxia is non-dimmable as standard, with DALI, 0-10V and DSI dimming available as options. Integral 3 hour emergency can be specified, including DALI addressable emergency and Z10 remote control manual or advanced self-test versions. The emergency function carries a 3 year warranty against the standard 5 years on the luminaire.
What are Galaxia's core technical specifications?
Galaxia has a colour rendering index above 80, runs on 220 to 240V with internal drivers supplied, and carries CE, RoHS and UKCA certification. Standard warranty is 5 years.
How is Galaxia suspended and what are the dimensions?

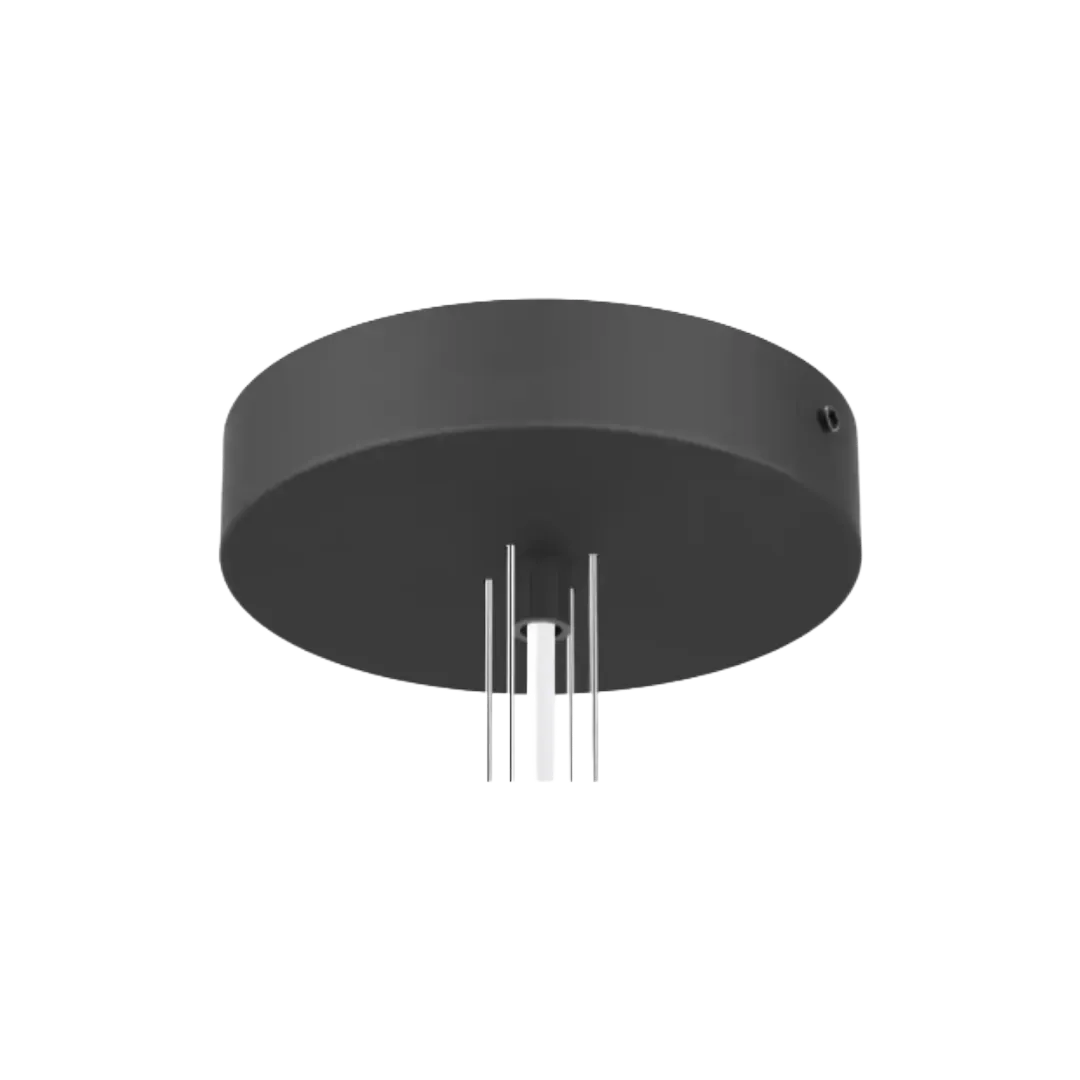

The ring is 800mm in diameter and 75mm deep, suspended from a 150mm ceiling rose on cables with a maximum drop of 2000mm. The housing is aluminium with a polycarbonate diffuser, finished in black RAL9005.
