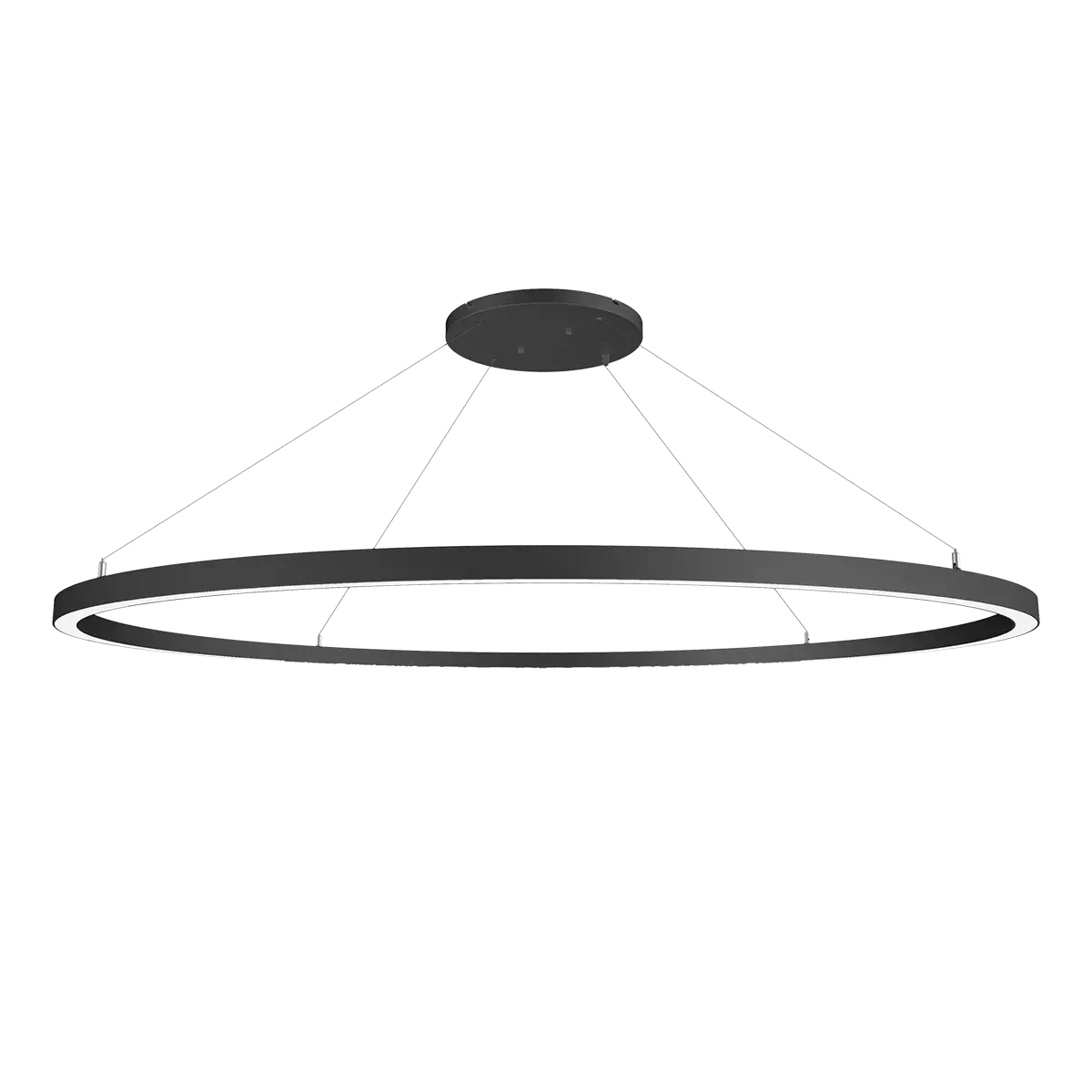

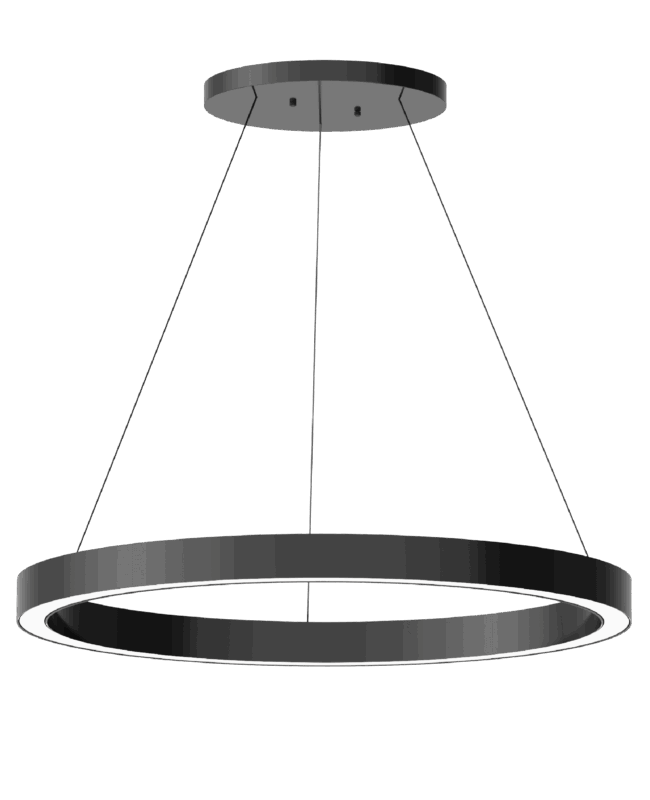

Flow+ Ring
Flow+ takes curved linear lighting full circle. Available as a Surface, Pendant or Ceiling Rose ring from Ø450mm up to Ø3000mm, it delivers a smooth, unbroken halo of light for feature pendants, reception ceilings and statement centrepieces. Aluminium construction with a silicone diffuser, 2700K–4000K or RGB, DALI and Casambi ready.
- CRI >90 so finishes, fabrics and skin tones read accurately in the spaces where people notice.
- A range of diameters from 450mm to 3000mm
- 2700K, 3000K and 4000K colour temperature options
- Available in RGB
Specification
Light Source Information
- 20W/M delivering 135Lm/W
- External drivers supplied (Driver box available)
- >90 colour rendering index
- Colour Temperatures 2700k, 3000K, 4000k, 5000k or 6000K
- RGB options available
Design
- Finishes available: Black
- Ring sizes of: 450mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 2000mm and 3000mm.
- A profile of 35mm x 35mm
- IP20 Rated
Dimming
- Non-dimmable as standard
- DALI and Casambi dimming options available
Miscellaneous
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- More shapes available within the Flow+ range including L shapes, Arcs, Rings and Straight profiles.
- To specify state:
- Ring Linear LED luminaire available in black. Constructed from aluminium housing with a silicone diffuser and downwards lighting direction.
Dimensions
Features
- CRI >90 so finishes, fabrics and skin tones read accurately in the spaces where people notice.
- A range of diameters from 450mm to 3000mm
- 2700K, 3000K and 4000K colour temperature options
- Available in RGB
- Aluminium black body profile
- Flexible silicone diffuser for no light leakage. A continuous circle of light with no visible joins or dark spots.
- Pendant, surface-mounted or recessed versions
- Remote driver
- A range of accessories are available
- One product, three mounting methods. Specify the same ring recessed, surface mounted or suspended and keep a single visual language across a whole building. Also available in straight, wiggle, L-shapes and other style designs.
- Rings over 1200mm arrive as pre-formed arcs with suspensions, which makes a very large feature manageable on site with normal access equipment.
- 5 year warranty
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R3835352D45/4K | Flow+ Pendant Ring 450mm Diameter, 35x35 4000K | 2150 | 25W | 135Lm/W | 4000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R3835352D45/3K | Flow+ Pendant Ring 450mm Diameter, 35x35 3000K | 2150 | 25W | 135Lm/W | 3000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R3835352D60/4K | Flow+ Pendant Ring 600mm Diameter, 35x35 4000K | 3010 | 35W | 135Lm/W | 4000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R3835352D60/3K | Flow+ Pendant Ring 600mm Diameter, 35x35 3000K | 3010 | 35W | 135Lm/W | 3000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R3835352D80/4K | Flow+ Pendant Ring 800mm Diameter, 35x35 4000K | 4128 | 48W | 135Lm/W | 4000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R3835352D80/3K | Flow+ Pendant Ring 800mm Diameter, 35x35 3000K | 4128 | 48W | 135Lm/W | 3000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R3835352D100/4K | Flow+ Pendant Ring 1000mm Diameter, 35x35 4000K | 5160 | 60W | 135Lm/W | 4000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R3835352D100/3K | Flow+ Pendant Ring 1000mm Diameter, 35x35 3000K | 5160 | 60W | 135Lm/W | 3000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R3835352D120/4K | Flow+ Pendant Ring 1200mm Diameter, 35x35 4000K | 6192 | 72W | 135Lm/W | 4000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R3835352D120/3K | Flow+ Pendant Ring 1200mm Diameter, 35x35 3000K | 6192 | 72W | 135Lm/W | 3000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R3835352D150/4K | Flow+ Pendant Ring 1500mm Diameter, 35x35 4000K | 7912 | 92W | 135Lm/W | 4000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R3835352D150/3K | Flow+ Pendant Ring 1500mm Diameter, 35x35 3000K | 7912 | 92W | 135Lm/W | 3000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R3835352D200/4K | Flow+ Pendant Ring 2000mm Diameter, 35x35 4000K | 9976 | 116W | 135Lm/W | 4000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R3835352D200/3K | Flow+ Pendant Ring 2000mm Diameter, 35x35 3000K | 9976 | 116W | 135Lm/W | 3000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R3835352D300/4K | Flow+ Pendant Ring 3000mm Diameter, 35x35 4000K | 15996 | 186W | 135Lm/W | 4000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
| R3835352D300/3K | Flow+ Pendant Ring 3000mm Diameter, 35x35 3000K | 15996 | 186W | 135Lm/W | 3000K | Black RAL 9005 | 35 x 35 | – | – | 5 years | LDT ↓ | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What sizes do Flow+ ring pendants come in?
Flow+ Rings are available in 450, 600, 800, 1000, 1200, 1500, 2000 and 3000mm diameters as standard, and custom diameters are available because we bend every ring in-house in Manchester. Light output runs from 2150 lumens on a 450mm ring up to 15996 lumens on a 3000mm ring. That range means the ring can be sized to the room instead of the room being planned around the fitting.
Are Flow+ Rings dimmable?
Rings are non-dimmable as standard, with DALI and Casambi both available as options. DALI suits buildings with a central control system and scheduled scenes. Casambi suits refurbishments and spaces where running control cabling would be disruptive, since it is controlled wirelessly.
Do Flow+ Rings come with drivers?
The Flow+ Rings are ordered with drivers with are external.
Do you offer a lighting design for ring layouts?
Yes. Our in-house lighting design team can model ring layouts and return calculations showing illuminance and uniformity. Rings behave differently from linear runs because the light comes from a curve rather than a line, so a calculation is worth doing before the diameters and drop heights are fixed.
