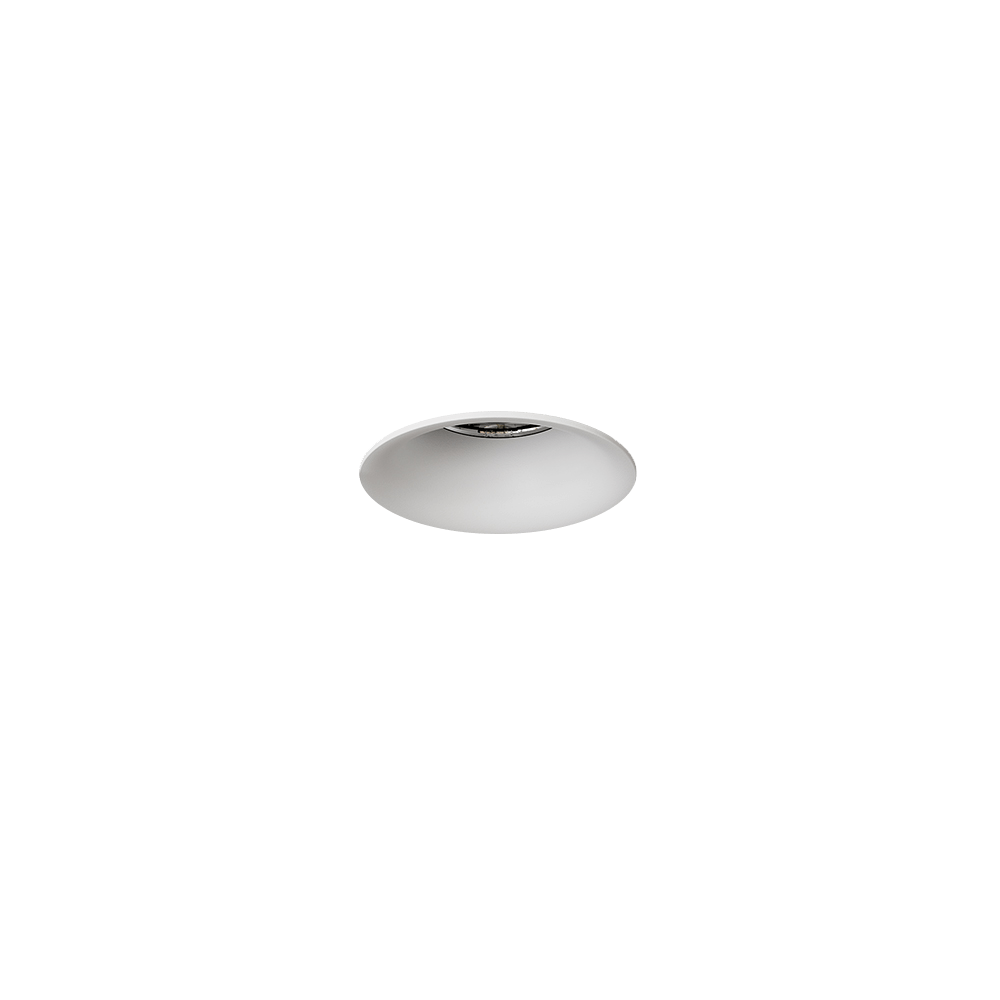

Mosaic Mini Spot

Mosaic, Micro Downlights offer compact, high-performance illumination with multiple reflector types, beam angles, and finishes. Available in four sizes and wattages, they provide precise, adaptable lighting for detailed architectural applications.

  • Four wattages available: 3.5W, 7W, 9W and 15W
  • Chose from Plaster In, Tiltable, Round or Flat Bezel
  • Matte Black, Matte White, Polished Chrome Gold and Rose Gold finishes available
  • Available in 2700K / 3000K / 4000K

Specification

Light Source Information

  • . Available in 4 sizes (XS – ∅32mm, S – ∅41mm, M – ∅52mm, L – ∅62mm)
  • 3.5W | 7W | 9W | 15W delivering up to 1375lm
  • Efficacy of up to 80lm/W
  • Drivers supplied
  • 85 colour rendering index
  • . UGR<19
  • Colour Temperature options of 2700K, 3000K and 4000K
  • L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
  • CREE LEDs with a ≤3 Step Macadam ellipse tolerance

Design

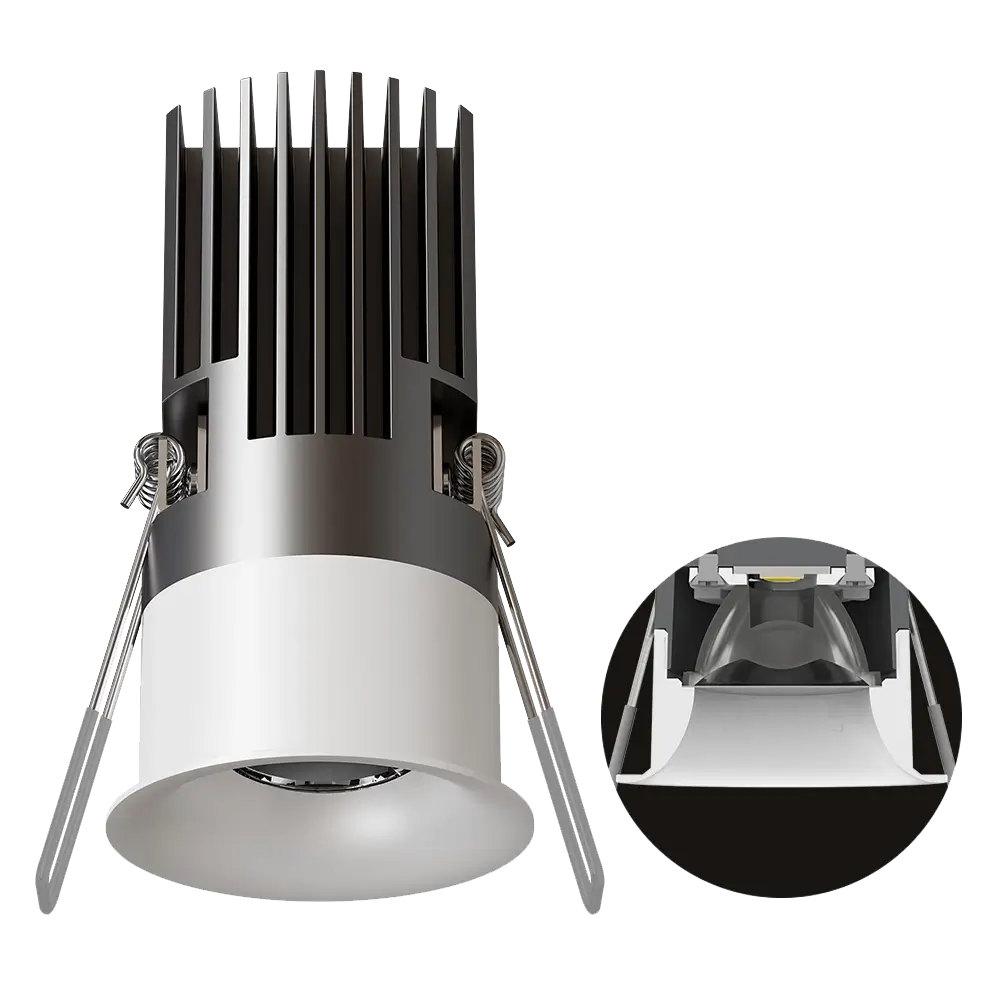

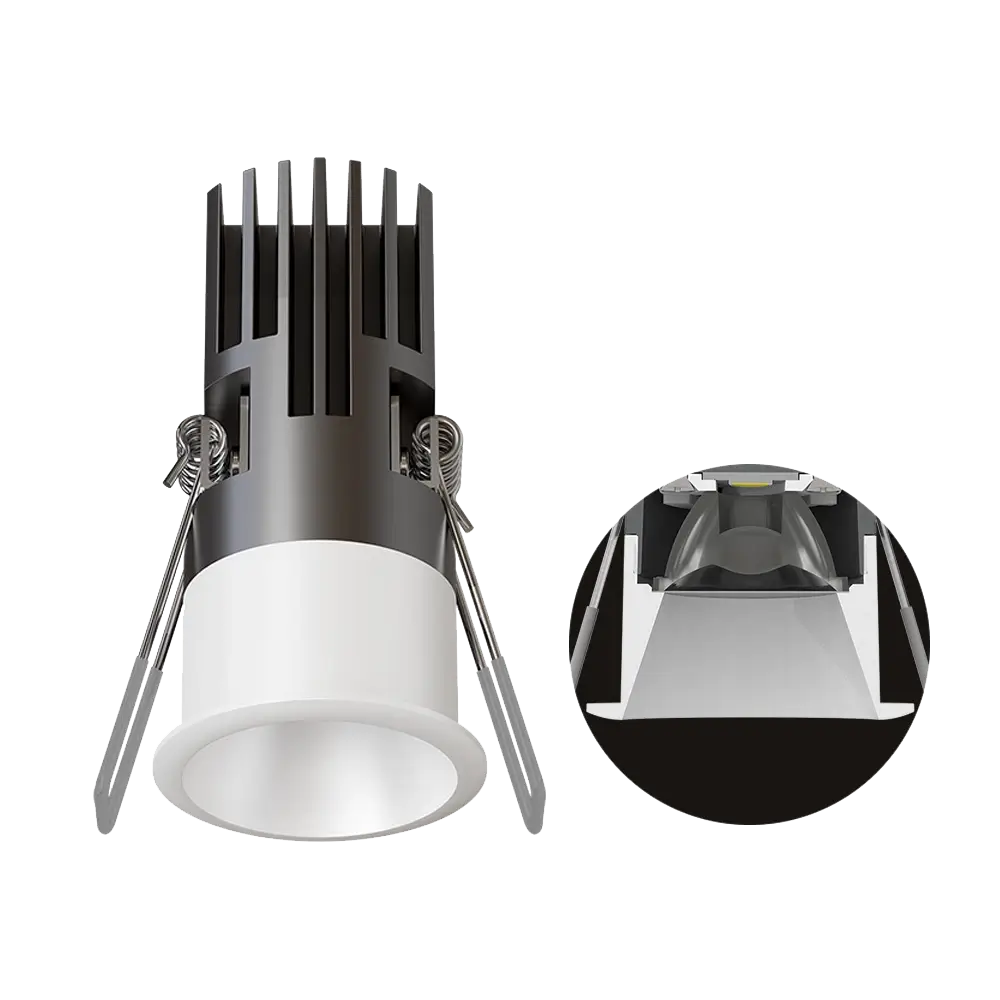

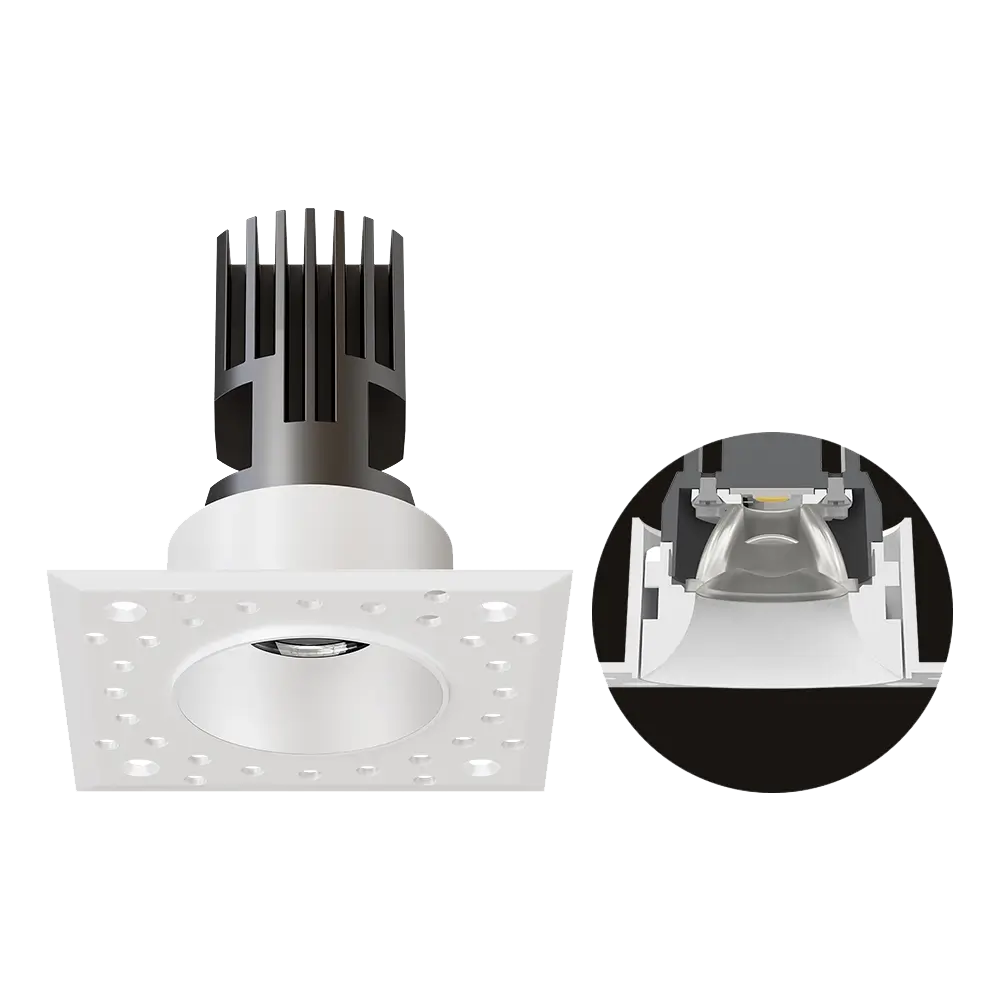

  • Round Bezel, Flat Bezel, Tiltable and Plaster In options
  • IP20 rated

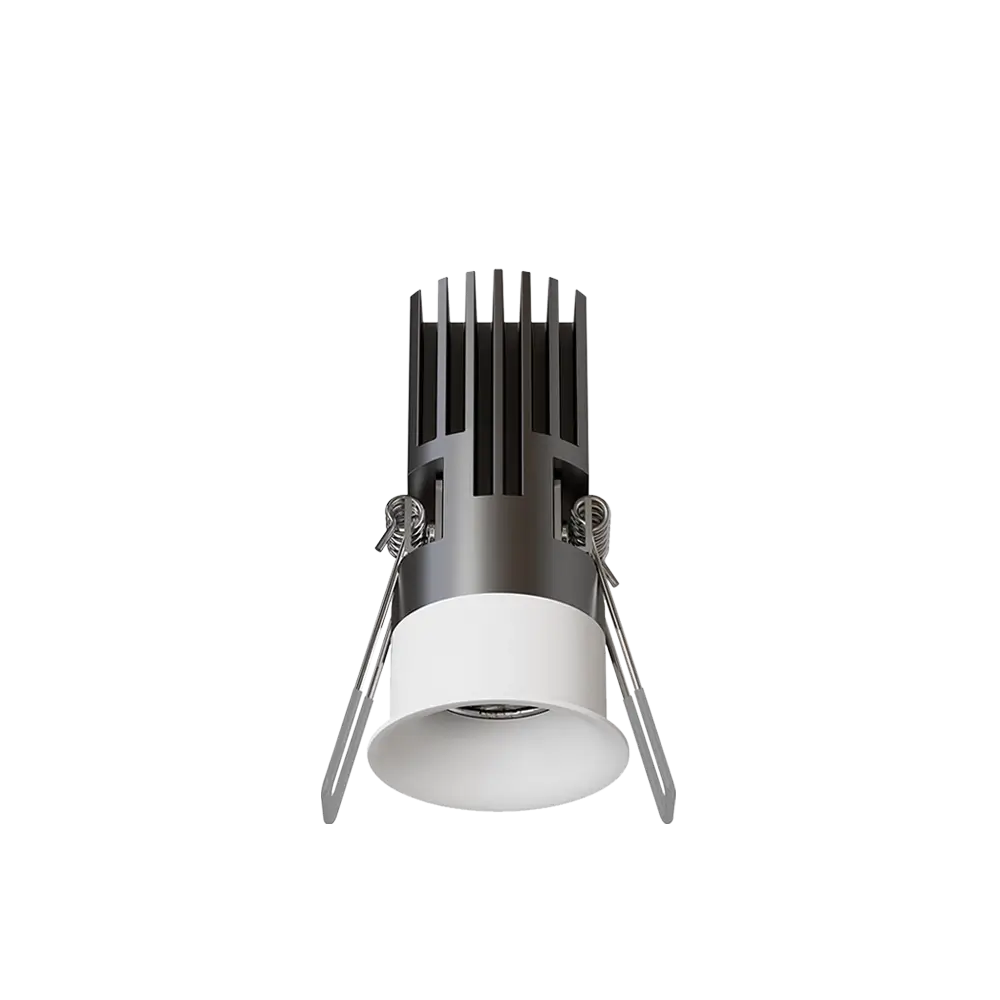

  • Ceiling recess-mounted

Optics

  • PMMA diffuser as standard
  • Reflector finishes: Matte Black, Matte White, Polished chrome and Gold
  • Beam angles: Narrow, Spot and Flood

Dimming

  • Mains Dimming
  • Casambi
  • Standard Warranty: 5 years
  • To specify state:
  • A range of mini recessed individually adjustable LED downlights with narrow, spot and flood beam angles in polished chrome/black/white and Gold finish. Option for Curved, flat, tiltable or plaster in profiles in 3.5W/7W/9W/15W – As RICOMAN’s Mosaic range

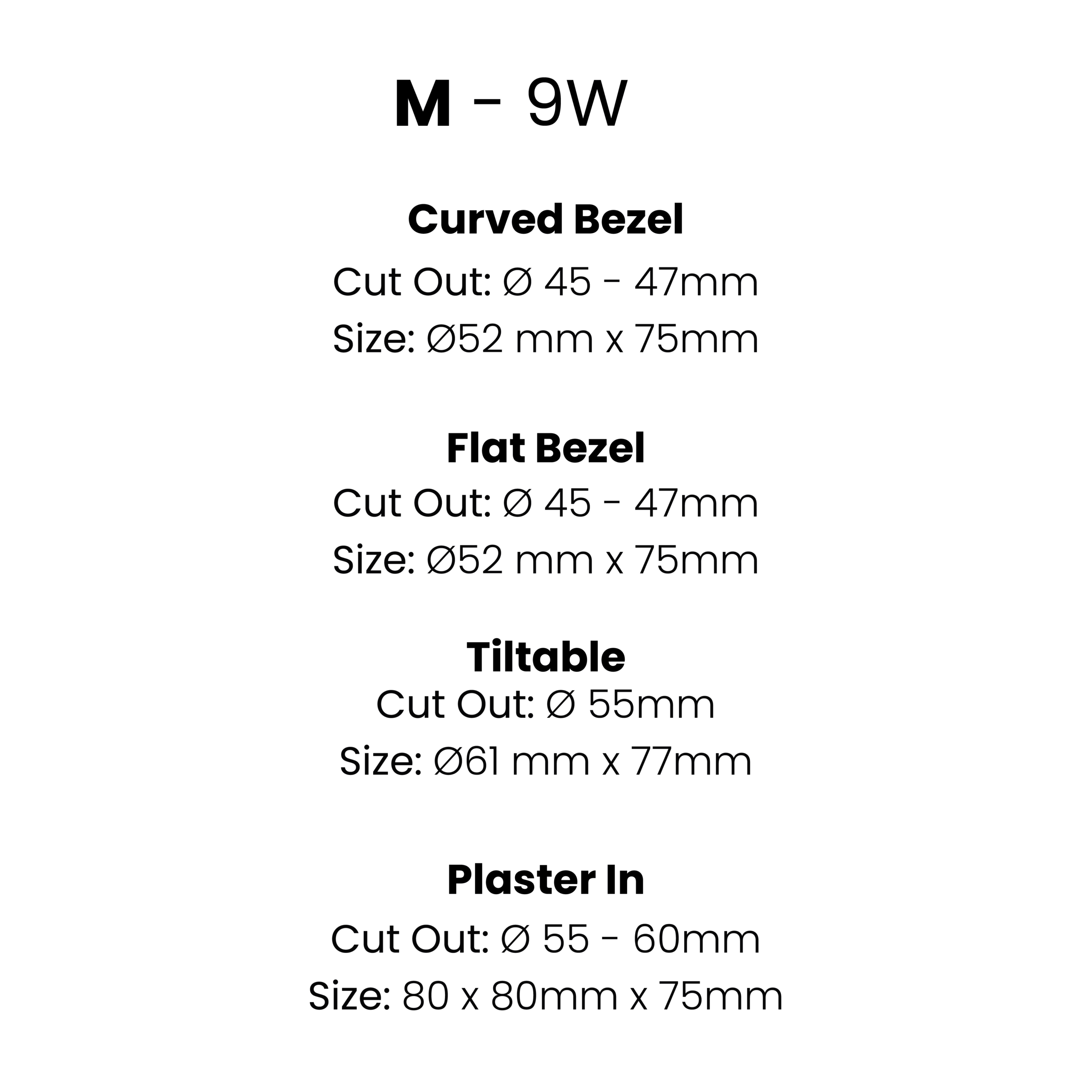

Dimensions

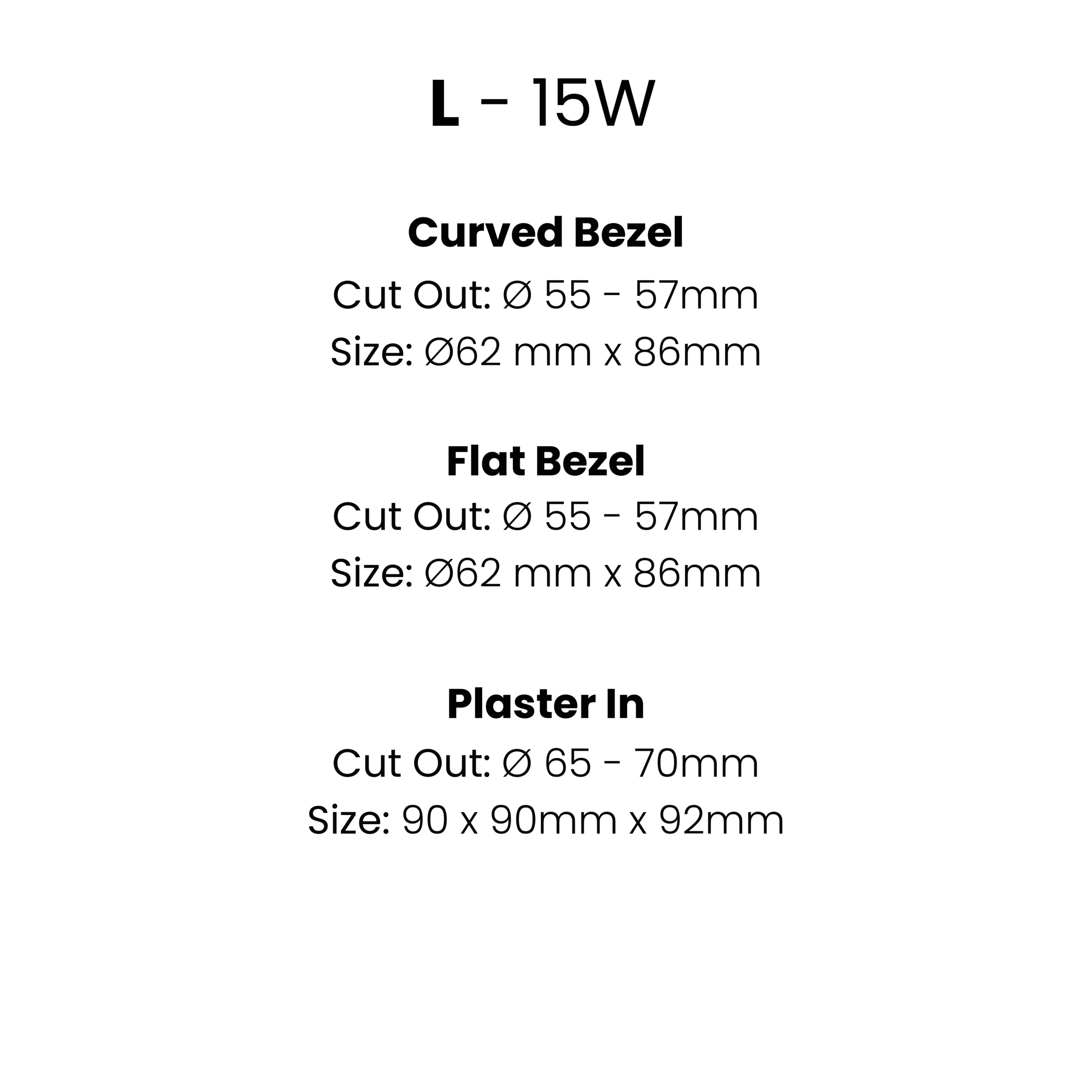

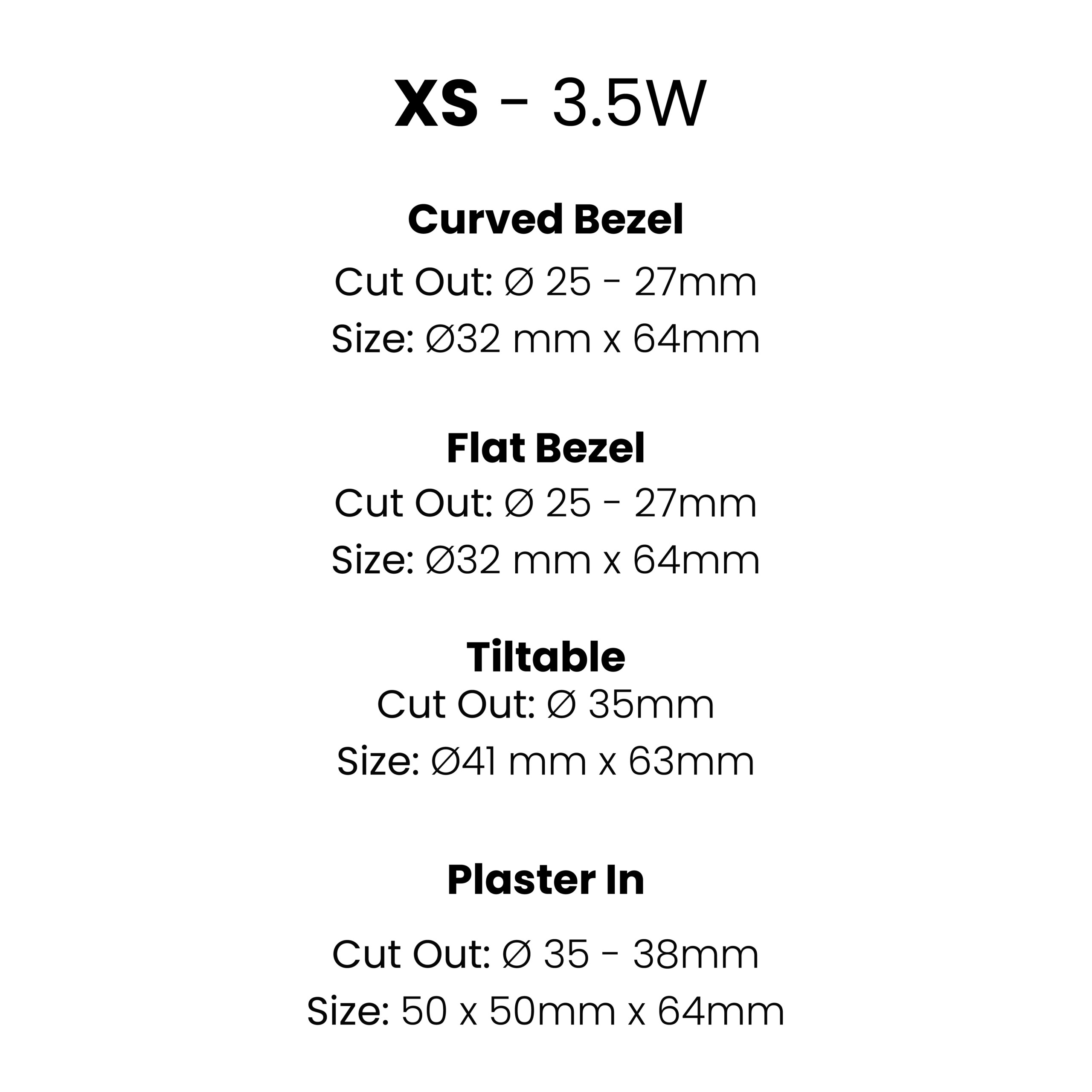

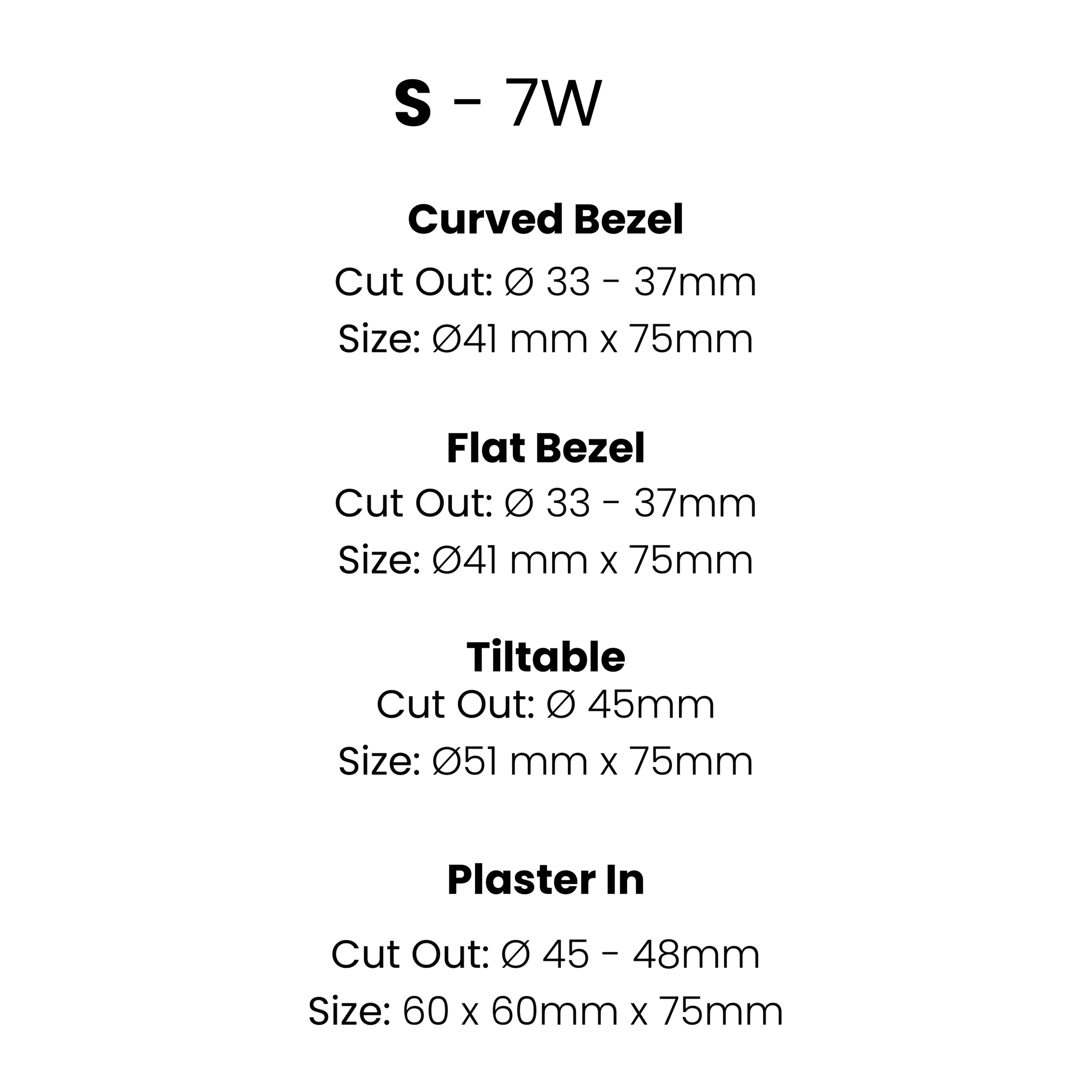

Mosaic Mini Spot dimensionsMosaic Mini Spot dimensionsMosaic Mini Spot dimensionsMosaic Mini Spot dimensions

Features

  • Narrow |  Spot  |  Flood  – Beam angle options
  • XS – 3.5W |  S – 7W  |  M – 9W  |  L – 15W  – Output versions
  • Matte Black|  Polished Chrome  |  Matte White | Gold –  Reflector Finishes
  • Curved |  Flat | Tiltable | Plaste In – Bezels

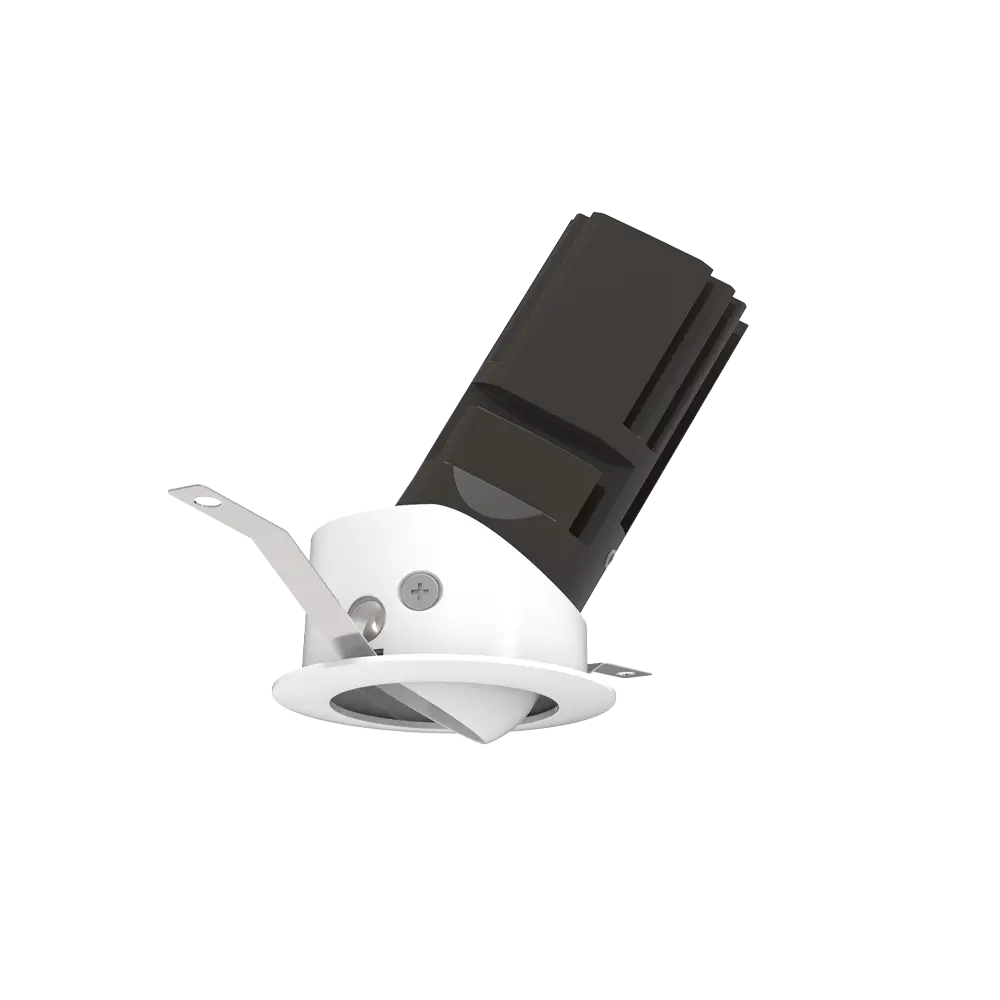

  • 30° Tiltable head for directional light control
  • Mains  | CASAMBI  – Dimming options
  • 2700K | 3000K | 4000K – Colour Temperature
  • L70 B50 = 100,000 hours    |    L90 B50 = 42,000 hours
  • Single bin CREE COB with a ≤3 step Macadam ellipse tolerance
  • UGR

Configure Your Product

Loading the configurator…

Frequently asked questions

What is Mosaic and what makes it different from a standard downlight?

Mosaic is a new range of compact downlights designed for seamless customisation, giving specifiers the ability to shape light precisely across a scheme rather than fitting a single fixed product everywhere. It is built in four sizes and wattages, XS at 3.5W, S at 7W, M at 9W, and L at 15W, each with a choice of beam angles and reflector colours. This lets a project use one consistent, coordinated downlight family across areas with very different light output needs.

Where would Mosaic typically be used?

Mosaic is a compact downlight range built for detailed, cohesive lighting schemes, with four sizes, multiple beam angles and five reflector finishes letting one product family cover everything from a small feature detail to a wider area of general light. This makes it well suited to spaces where lighting needs to feel considered and consistent, such as boutique retail, hospitality interiors, residential-style commercial spaces and reception areas. Being able to vary size and reflector colour within the same range means a single scheme can stay visually coherent across different ceiling zones.

What housing and reflector colour options does Mosaic offer?

Mosaic is available in curved bezel, flat bezel, tiltable, and plaster-in housing formats, with reflector finishes in matte black, matte white, polished chrome, rose gold, or gold. Beam angles vary by size, with narrow, spot, and flood options across the S, M, and L sizes and narrow or flood options on the XS size. This combination of housing, finish, and beam angle lets designers build a precise, coordinated look across a scheme rather than relying on a single fixed configuration.

Can Mosaic be used consistently across different areas of the same building?

Yes, because Mosaic comes in four sizes and wattages from XS up to L, a single scheme can use smaller sizes for tight or detailed areas and larger sizes for more general lighting, while keeping the same reflector finish and design language throughout. This is useful on projects with varying ceiling depths or room functions, where a single downlight size wouldn't suit every area. It avoids mixing unrelated product ranges just to accommodate different spaces within the same building.

Can a small downlight be used as a decorative design feature rather than just functional lighting?

Yes. Ricoman's lighting design team has used the 3.5W XS Mosaic specifically for this, most recently on an office reception project in Dubai where it was arranged in clusters of mini downlights to create a feature rather than standard ceiling lighting. The challenge with using multiple fittings decoratively is usually overpowering the space or throwing off uniformity and lux levels, but the low wattage of the XS size lets you create visual impact while keeping the lighting balanced and functional. It suits hospitality settings, office receptions and high-end residential projects, particularly feature ceilings or layouts where the design calls for something more considered than a standard grid of downlights.
