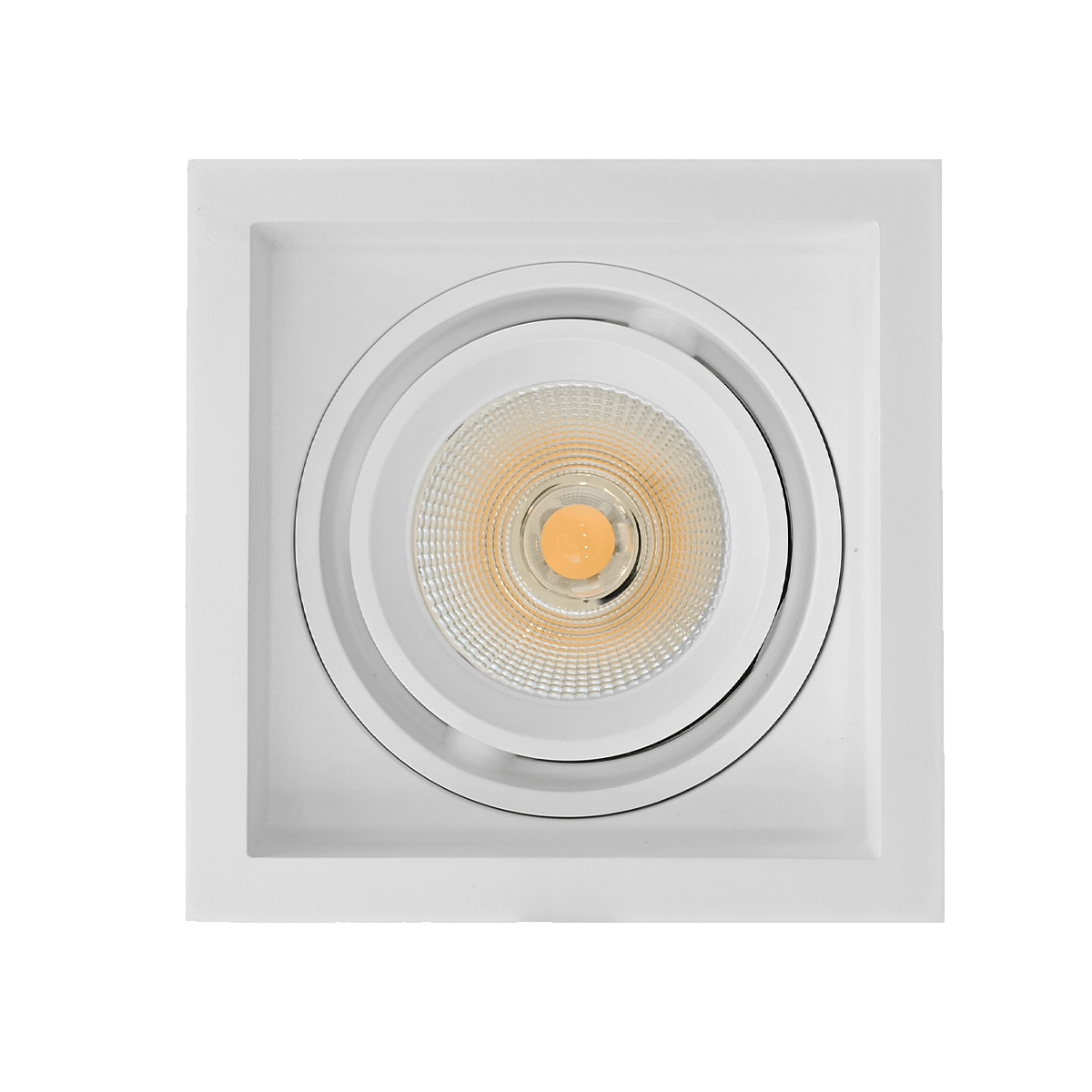

Protium Max
Single, double or triple head adjustable gimbal downlight
- Extra‑Large Adjustable Gimbal Downlight - A large recessed LED gimbal downlight with adjustable light distribution for flexible accenting and general lighting
- Multiple Sizes & Outputs - Available in a range of sizes with low and high output options, offering choice of 25 W to 120 W and colour temperatures to suit different spaces.
- Specification‑Ready Performance - Features high efficacy (>100 lm/W), excellent colour rendering (CRI > 90 Ra), rotation and tilt adjustment, dimming types and emergency options available for commercial fit‑outs.
Specification
Light Source Information
- Direct light output
- From 25W delivering 2520lm up to 120W delivering 12083lm
- Efficacy of 101 lm/W
- Drivers supplied
- >91 colour rendering index
- Colour Temperature options of 3000K and 4000K
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- Single Bin Bridgelux COB with a ≤3 step Macadam ellipse tolerance
Design
- White frame and lamps
- IP20 Rated
- Ceiling recess mounted

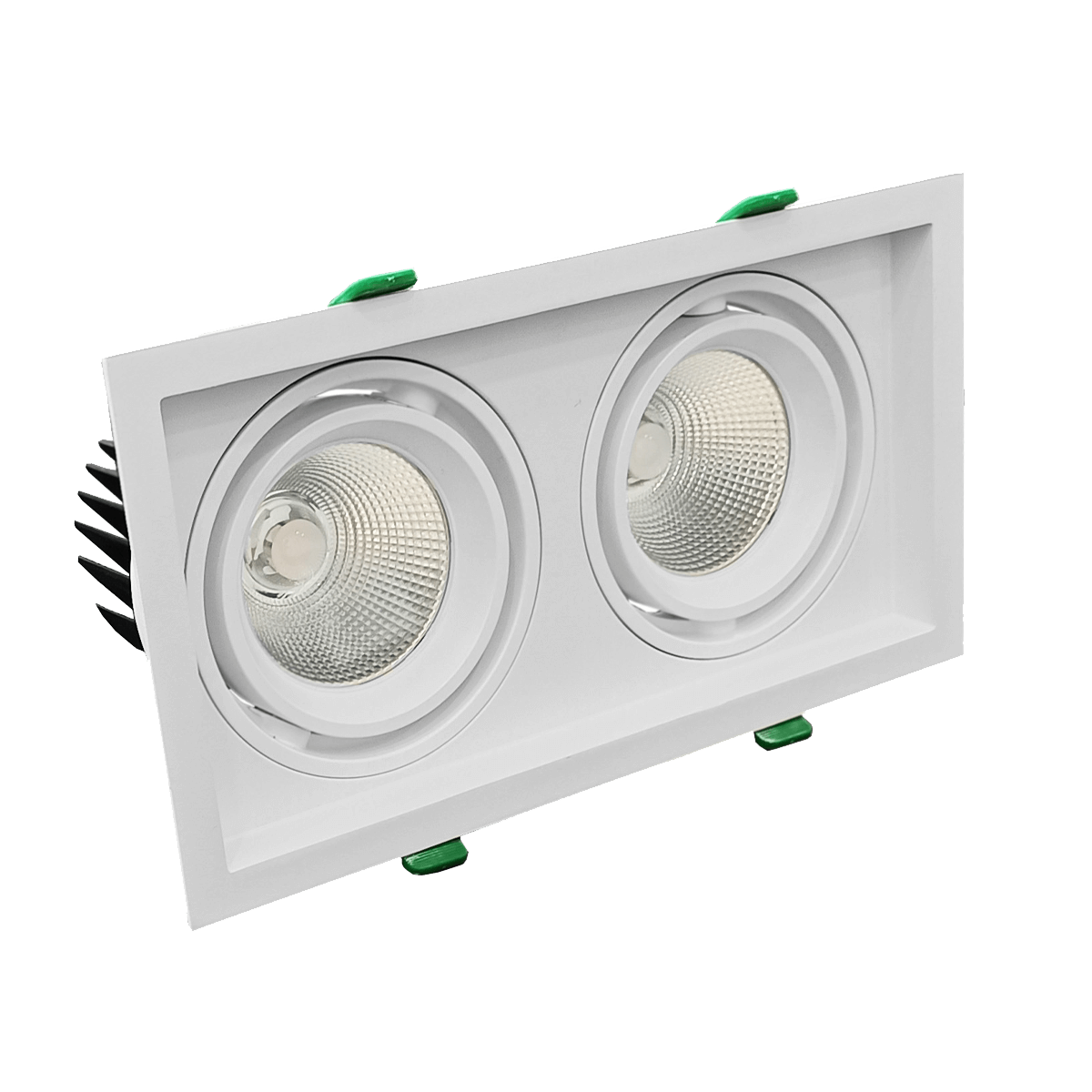

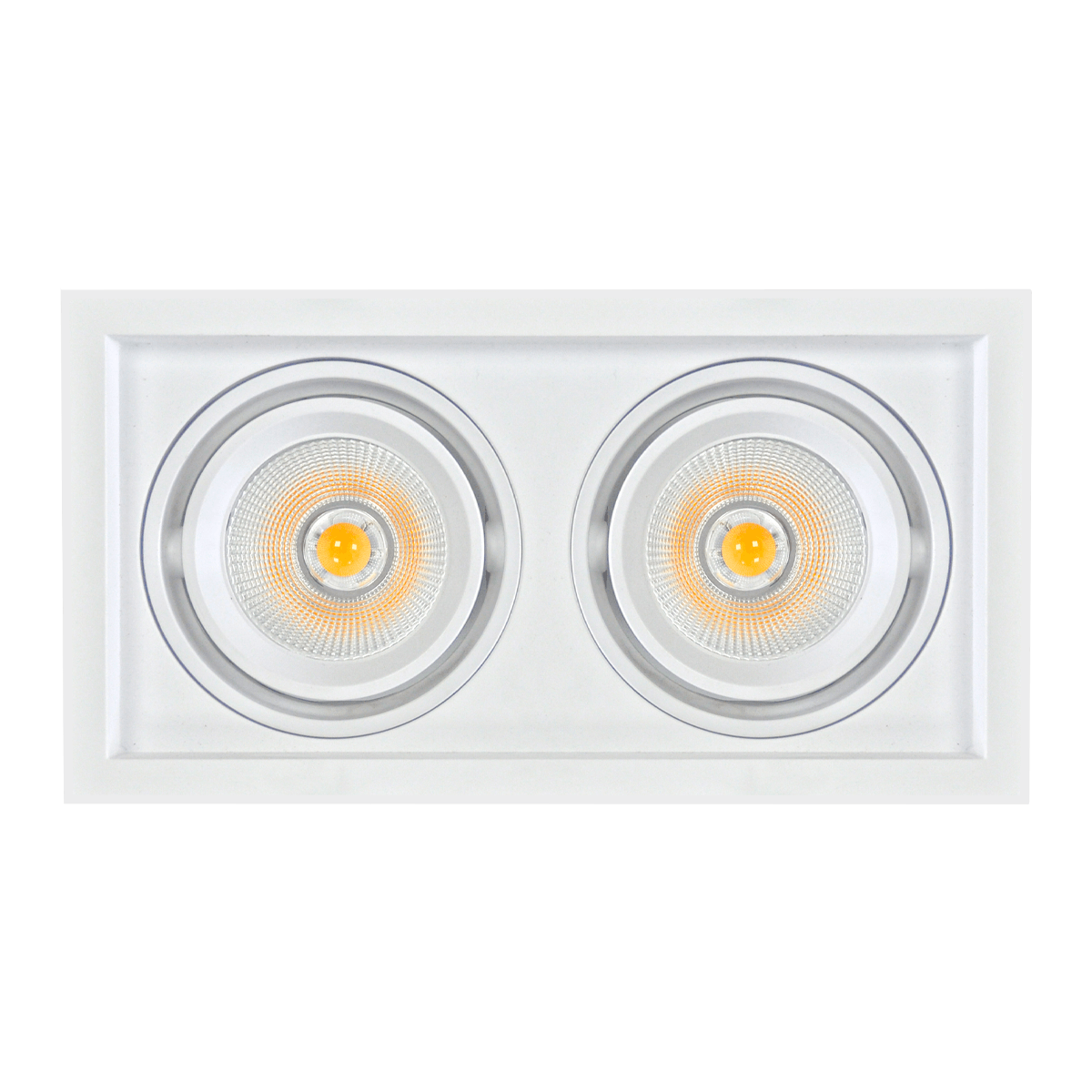

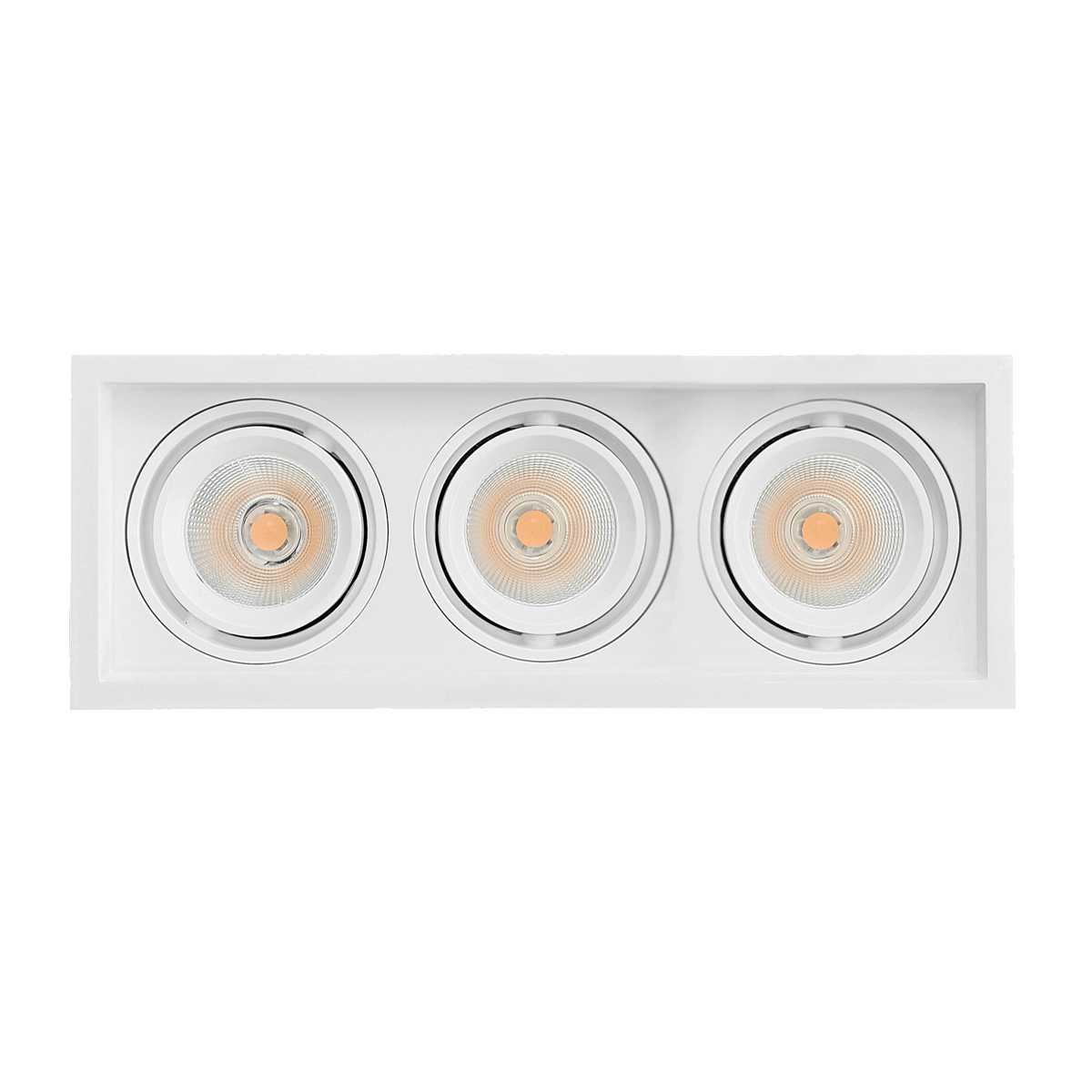

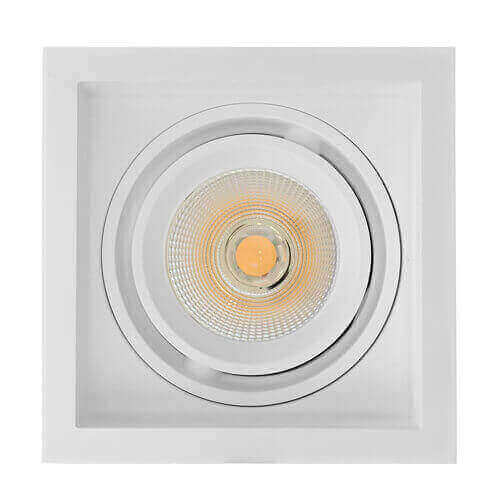

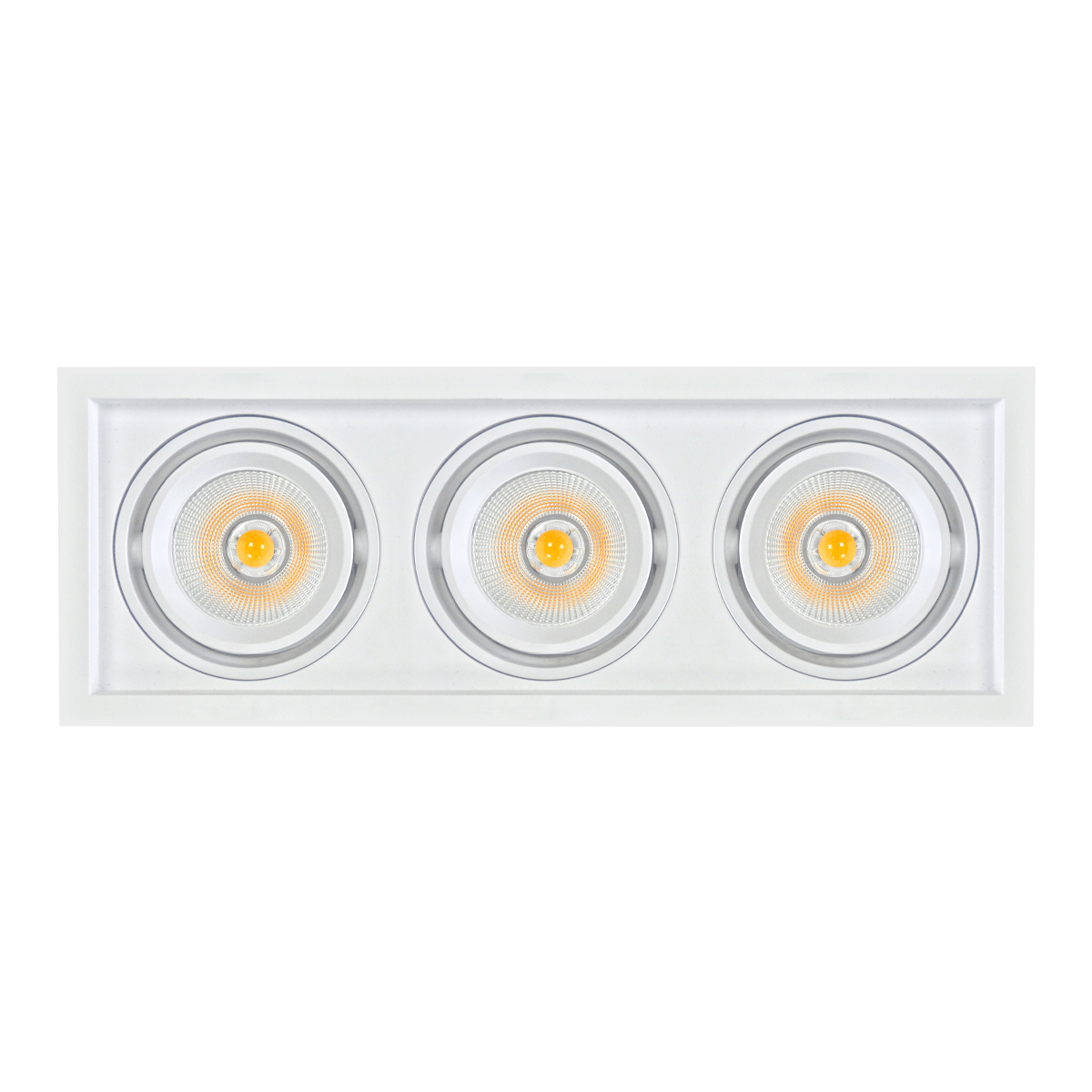

- Single, double or triple configurations
- Rotates 355° tilts 0-30°
Cutout
- Single – 160 x 160mm
- Double – 315 x 160mm
- Triple – 460 x 160mm
- Optics
- Acrylic diffuser as standard
Dimming
- Non dimmable as standard
- Mains, DALI, 0-10V, DSI dimming available
Controls
- CP Sensors
- Custom solutions
Miscellaneous
- 3hr emergency available
- DALI Addressable emergency available
- Z10 remote control manual or advanced self-test emergency available
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- Recessed extra-large LED gimbal downlight with adjustable light distribution options. Aluminium body with integral LED light engine and remote driver for flexibility and rapid installation – as RICOMAN’s Protium Max range.
Dimensions
Features
- Low output 25W | 50W | 75W
- High output 40W | 80W | 120W
- Excellent colour rendering index, CRI >90
- Available in single, double or triple configurations
- Rotates 355° tilts 0-30°
- Emergency options available: Standard | DALI | Remote control testing
- Dimming types available
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- Single Bin Bridgelux COB with a ≤3 step Macadam ellipse tolerance
- Available in smaller dimensions as Protium range
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R093011/3K/25W | Protium Max Single Downlight 25W 3000K | 2504 | 25W | ~100 Lm/W | 3000K | White | H133 x L175 x W175mm | Non emergency | Single Head | 5 years | LDT ↓ | Datasheet ↓ |
| R093011/4K/25W | Protium Max Single Downlight 25W 4000K | 2520 | 25W | ~100 Lm/W | 4000K | White | H133 x L175 x W175mm | Non emergency | Single Head | 5 years | LDT ↓ | Datasheet ↓ |
| R093011/3K/40W | Protium Max Single Downlight 40W 3000K | 3977 | 40W | ~100 Lm/W | 3000K | White | H133 x L175 x W175mm | Non emergency | Single Head | 5 years | LDT ↓ | Datasheet ↓ |
| R093011/4K/40W | Protium Max Single Downlight 40W 4000K | 3997 | 40W | ~100 Lm/W | 4000K | White | H133 x L175 x W175mm | Non emergency | Single Head | 5 years | LDT ↓ | Datasheet ↓ |
 | R093012/3K/50W | Protium Max Double Downlight 50W 3000K | 5016 | 50W | ~100 Lm/W | 3000K | White | H133 x L330 x W175mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R093012/4K/50W | Protium Max Double Downlight 50W 4000K | 5025 | 50W | ~100 Lm/W | 4000K | White | H133 x L330 x W175mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R093012/3K/80W | Protium Max Double Downlight 80W 3000K | 7981 | 80W | ~100 Lm/W | 3000K | White | H133 x L330 x W175mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R093012/4K/80W | Protium Max Double Downlight 80W 4000K | 7995 | 80W | ~100 Lm/W | 4000K | White | H133 x L330 x W175mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
 | R093013/3K/75W | Protium Max Triple Downlight 75W 3000K | 7561 | 75W | ~101 Lm/W | 3000K | White | H133 x L475 x W175mm | Non emergency | Triple Head | 5 years | LDT ↓ | Datasheet ↓ |
| R093013/4K/75W | Protium Max Triple Downlight 75W 4000K | 7589 | 75W | ~101 Lm/W | 4000K | White | H133 x L475 x W175mm | Non emergency | Triple Head | 5 years | LDT ↓ | Datasheet ↓ |
| R093013/3K/120W | Protium Max Triple Downlight 120W 3000K | 12001 | 120W | ~100 Lm/W | 3000K | White | H133 x L475 x W175mm | Non emergency | Triple Head | 5 years | LDT ↓ | Datasheet ↓ |
| R093013/4K/120W | Protium Max Triple Downlight 120W 4000K | 12083 | 120W | ~101 Lm/W | 4000K | White | H133 x L475 x W175mm | Non emergency | Triple Head | 5 years | LDT ↓ | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
How does Protium Max differ from the standard Protium?
Protium Max is an extra large version of the recessed gimbal downlight, aimed at applications needing higher output or larger scale directional lighting than the standard Protium range. Like Protium, it features adjustable light distribution and an integral LED light engine with a remote driver for easy installation. It is available in three head sizes, each offered in two output levels, giving a wider spread of wattage options than the standard range.
What wattage options does Protium Max offer?
Protium Max is available with a single head at 25W or 40W, a double head at 50W or 80W, and a triple head at 75W or 120W, giving specifiers a broad range within one extra large gimbal downlight family. Two colour temperature options, 3000K or 4000K, are available across all sizes. This range allows the fitting to be scaled to higher light level requirements than the standard Protium series.
What installation features does Protium Max share with Protium?
Protium Max uses the same integral LED light engine and remote driver arrangement as Protium, designed for easy installation despite the larger physical size of the fitting. This means installation practices familiar from the standard Protium range carry over to the extra large version. Adjustable gimbal heads allow the beam direction to be set on site after fitting.
Can Protium Max be dimmed or specified for emergency circuits?
Protium Max supports dimmable options, including mains, DALI, 0-10V, or DSI dimming, along with an emergency lighting version, matching the control flexibility of the standard Protium range. This allows the extra large gimbal downlight to be specified consistently alongside smaller Protium fittings on the same project. Options are selected per head configuration and wattage at order stage.
When should I specify Protium Max instead of the standard Protium?
Protium Max is built for applications needing more light output or a larger physical scale than the standard Protium range, while keeping the same adjustable gimbal concept and easy installation using an integral LED light engine and remote driver. It suits larger commercial spaces, higher ceilings, or feature areas where standard Protium's 22W to 66W range is not sufficient, since Protium Max scales from 25W up to 120W. The choice between the two comes down to the scale of the space rather than a difference in functionality.
