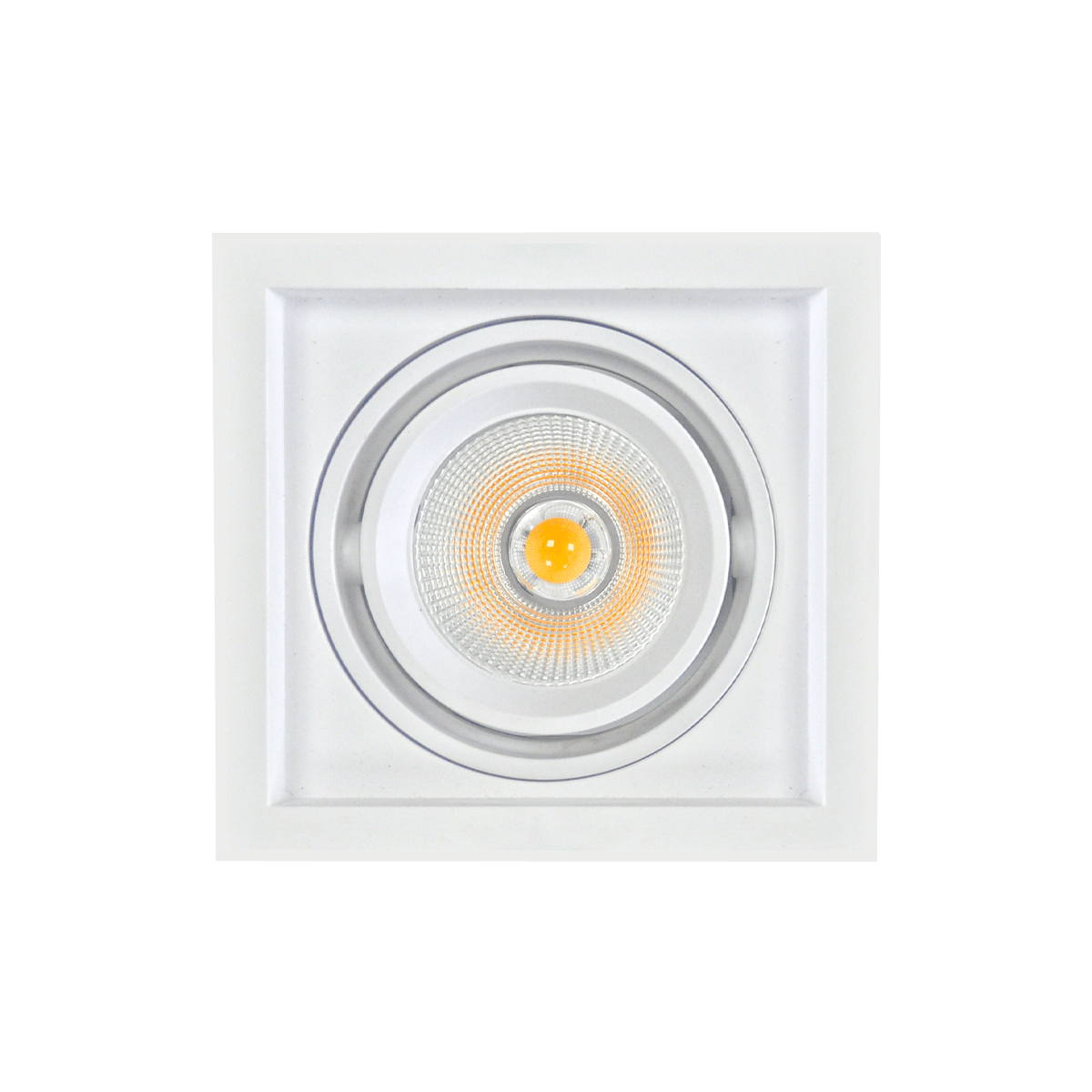

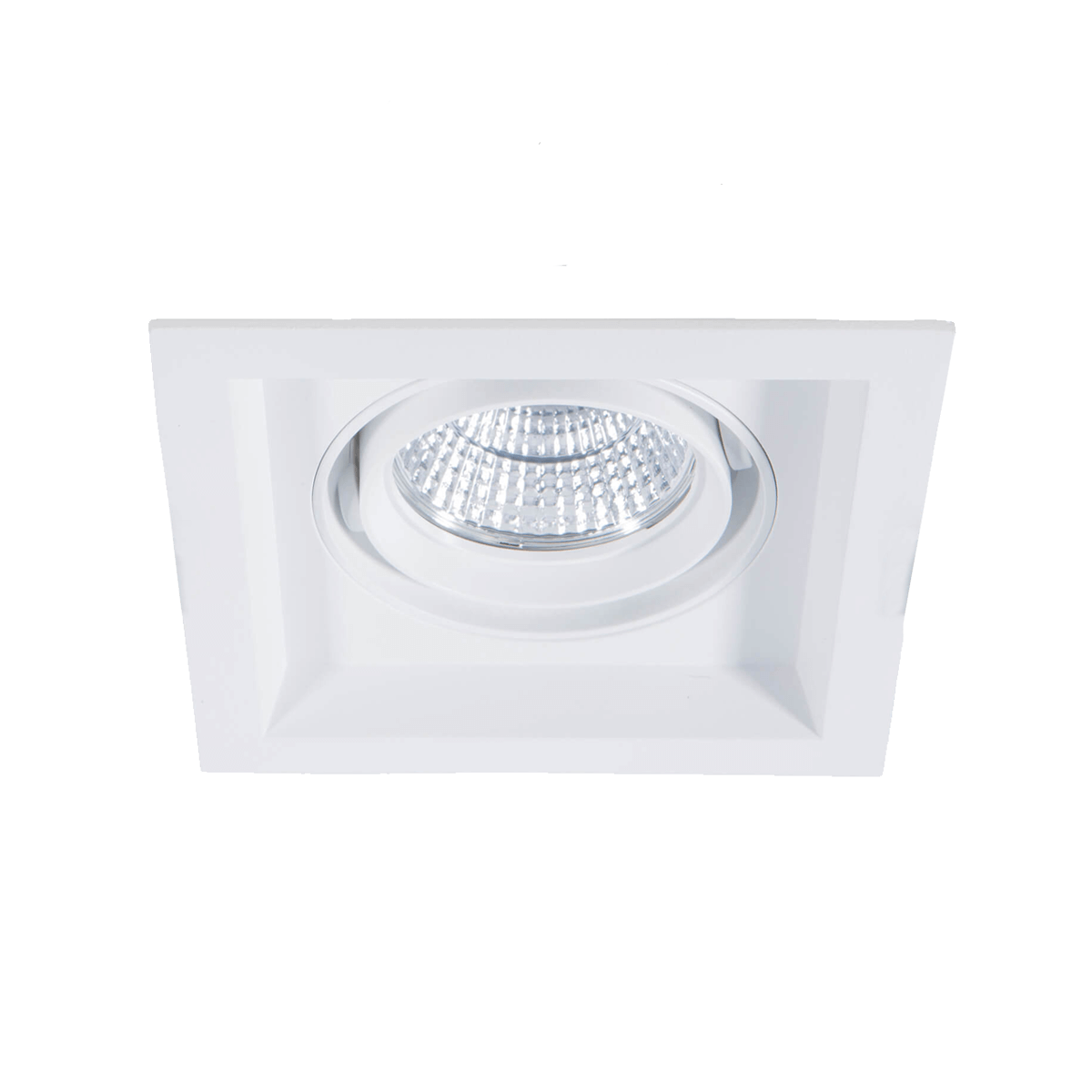

Protium
Single, double or triple head adjustable gimbal downlight
- 22W | 44W | 66W
- Excellent colour rendering index, CRI >90
- Available in single, double or triple configurations
- Rotates 355° tilts 0-30°
Specification
Light Source Information
- Direct light output
- 22W delivering 2310lm per lamp head
- Efficacy of up to 105lm/W
- Drivers supplied
- >90 colour rendering index
- Colour Temperature options of 3000K and 4000K
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- Single Bin Bridgelux COB with a ≤3 step Macadam ellipse tolerance
Design
- White frame and lamps
- IP20 Rated
- Ceiling recess mounted
- Single, double or triple configurations
- Rotates 355° tilts 0-30°
Cutout
- Single -125 x 125 mm
- Double – 255 x 125 mm
- Triple – 360 x 125 mm
- Optics
- Acrylic diffuser as standard
- Honeycomb louvre diffuser available -TP(a) rated
Dimming
- Non dimmable as standard
- Mains, DALI, 0-10V, DSI dimming available
Controls
- CP Sensors
- Custom solutions
Miscellaneous
- 3hr emergency available
- DALI Addressable emergency available
- Z10 remote control manual or advanced self-test emergency available
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- Recessed LED gimbal downlight with adjustable light distribution options. Aluminium body with integral LED light engine and remote driver for flexibility and rapid installation – as RICOMAN’s Protium range.

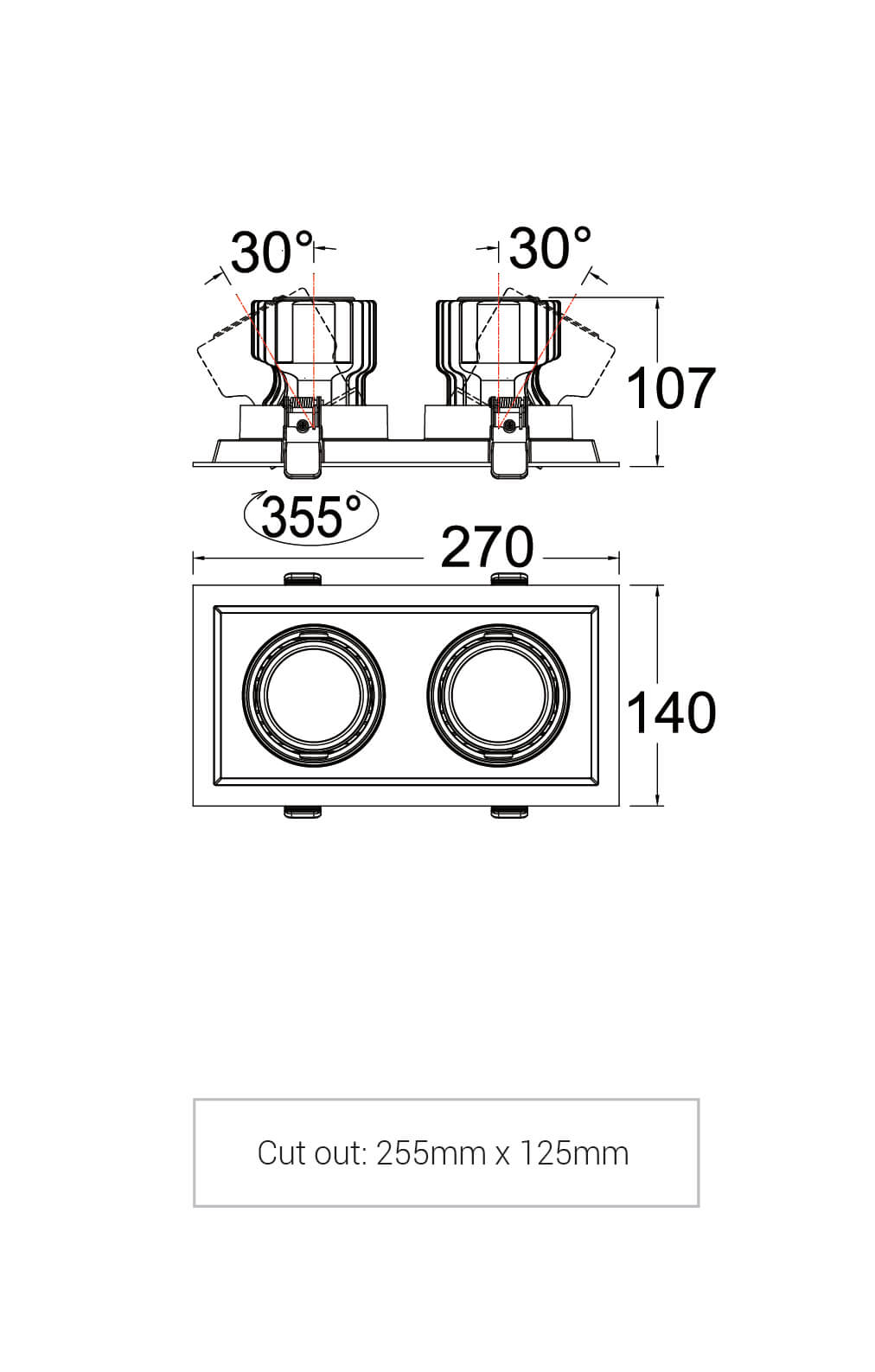

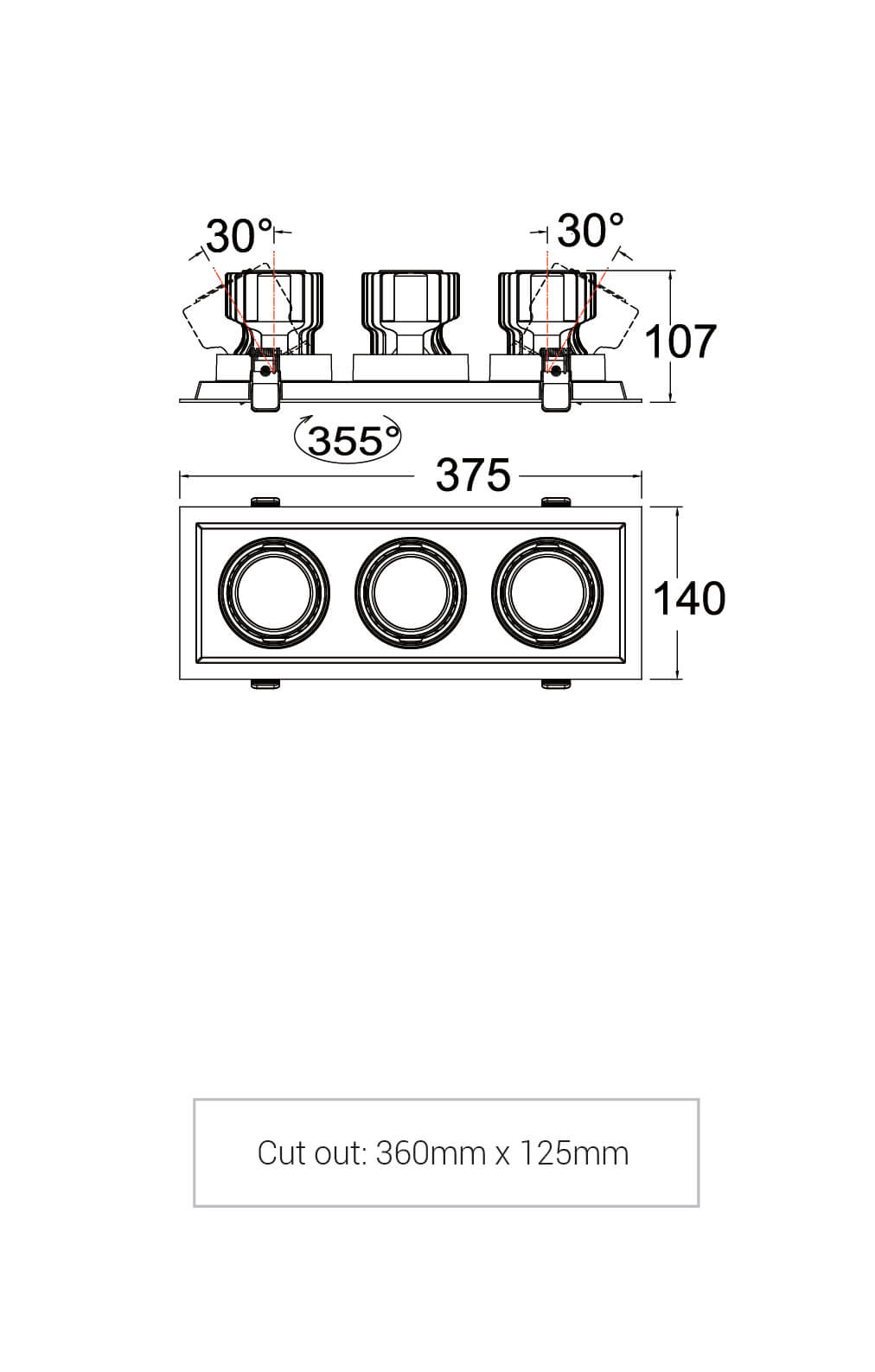

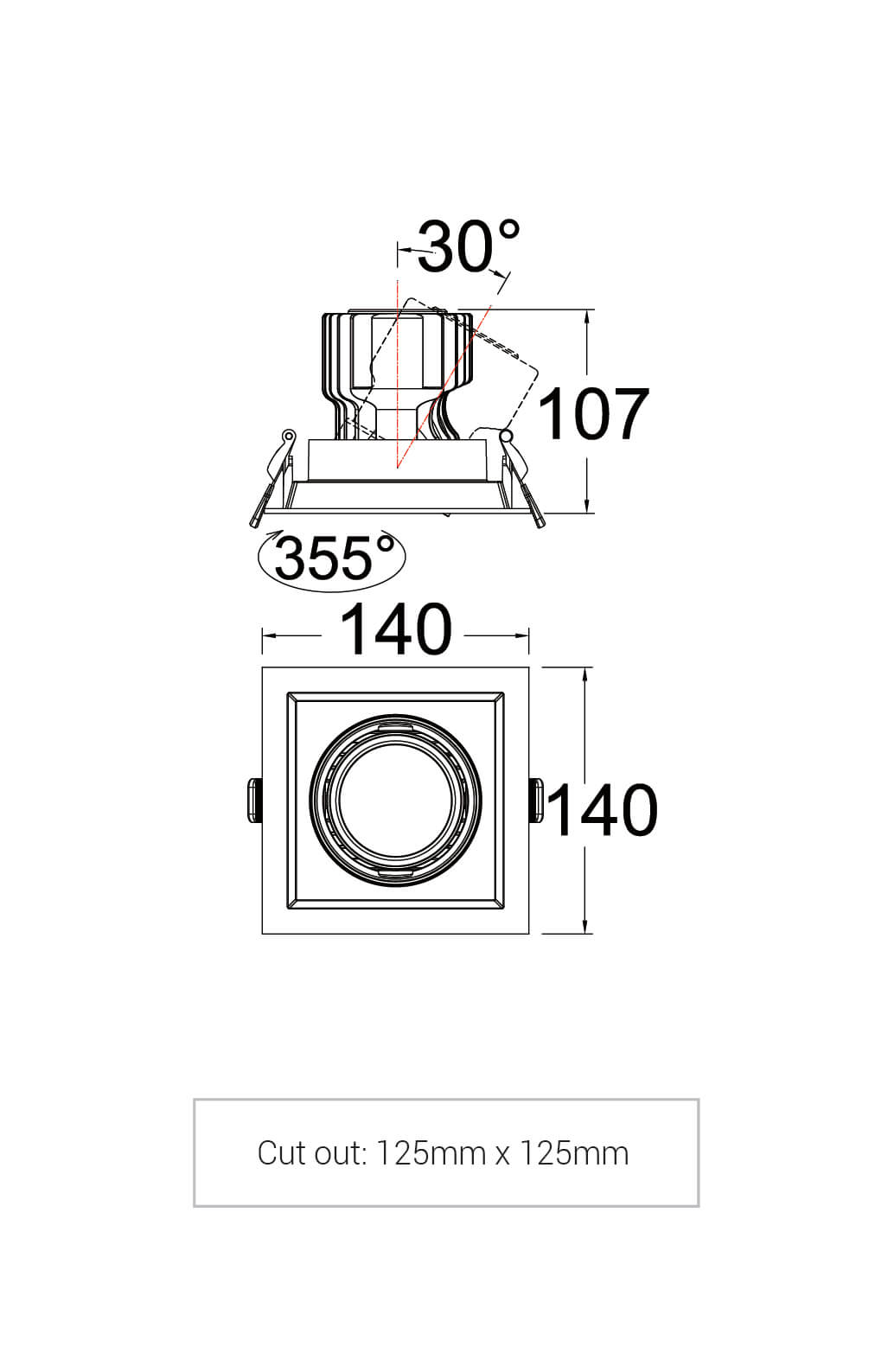

Dimensions
Features
- 22W | 44W | 66W
- Excellent colour rendering index, CRI >90
- Available in single, double or triple configurations
- Rotates 355° tilts 0-30°
- Emergency options available: Standard | DALI | Remote control testing
- Dimming types available
- Honeycomb louvre diffuser available
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- Single Bin Bridgelux COB with a ≤3 step Macadam ellipse tolerance
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

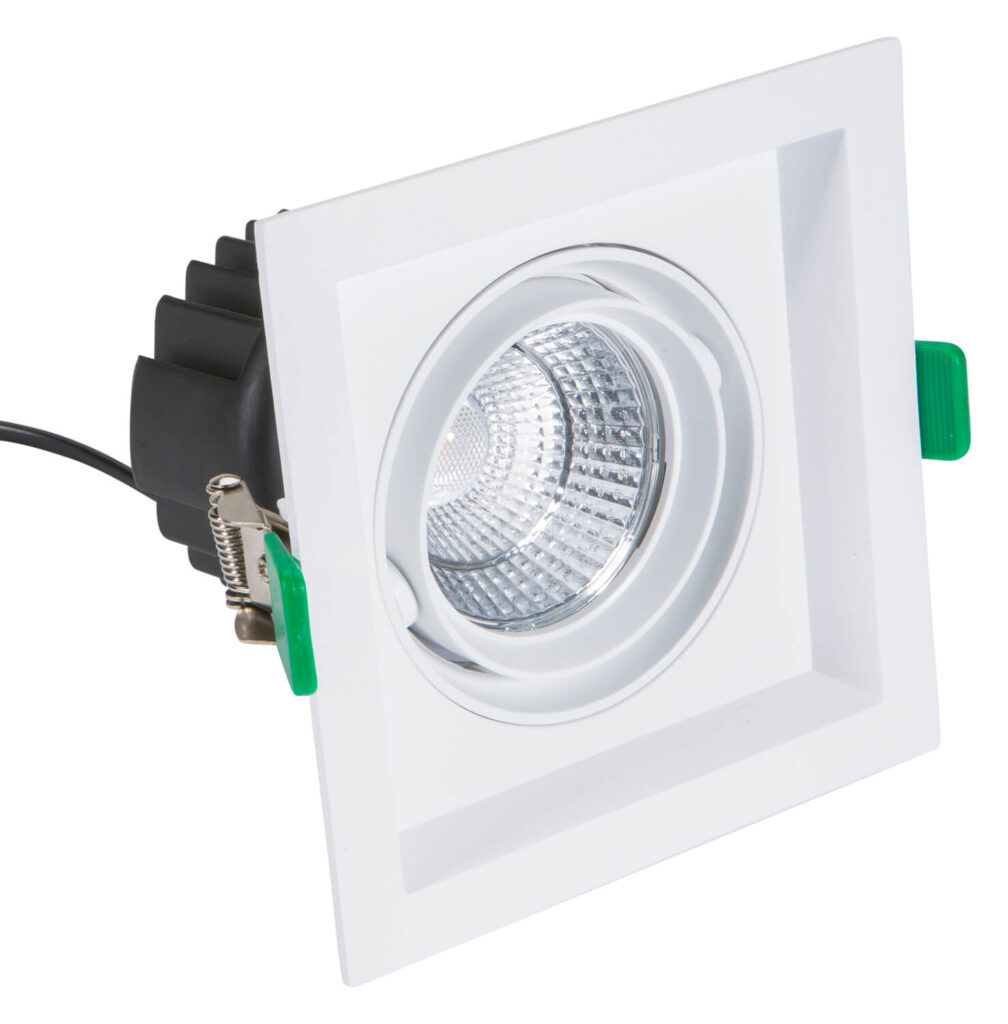

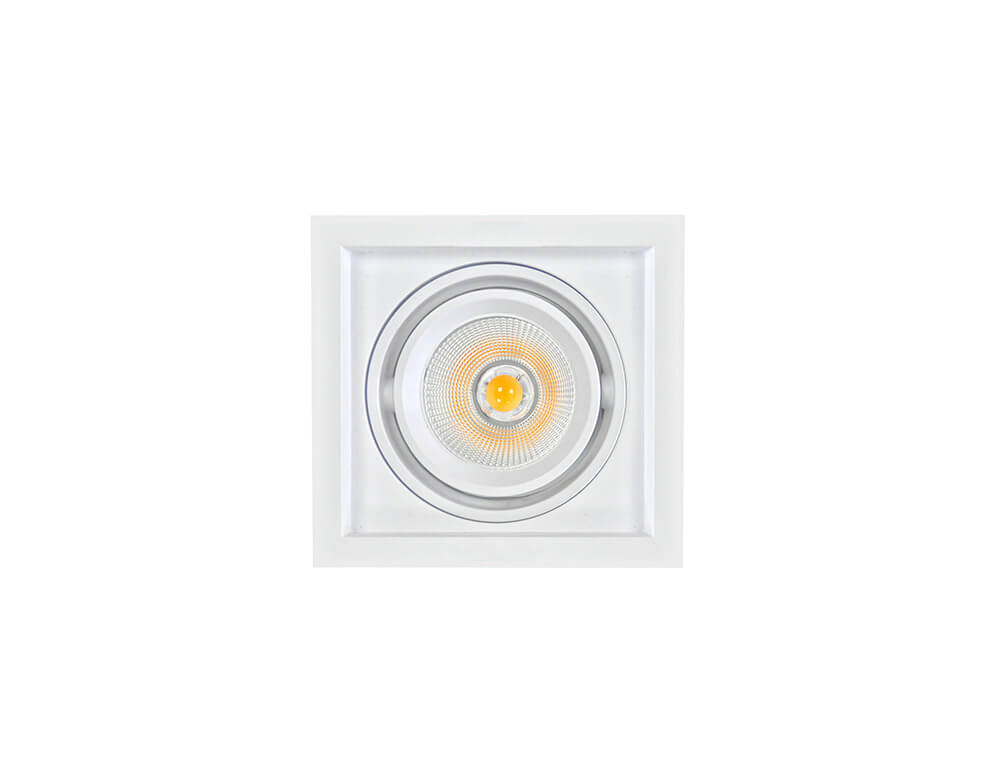

 | R093001/3K | Protium Gimbal Single Downlight 22W 3000K | 2310 | 22W | ~105Lm/W | 3000K | White | H107 x L140 x W140mm | Non emergency | Single Head | 5 years | LDT ↓ | Datasheet ↓ |
| R093001/4K | Protium Gimbal Single Downlight 22W 4000K | 2310 | 22W | ~105Lm/W | 4000K | White | H107 x L140 x W140mm | Non emergency | Single Head | 5 years | LDT ↓ | Datasheet ↓ |

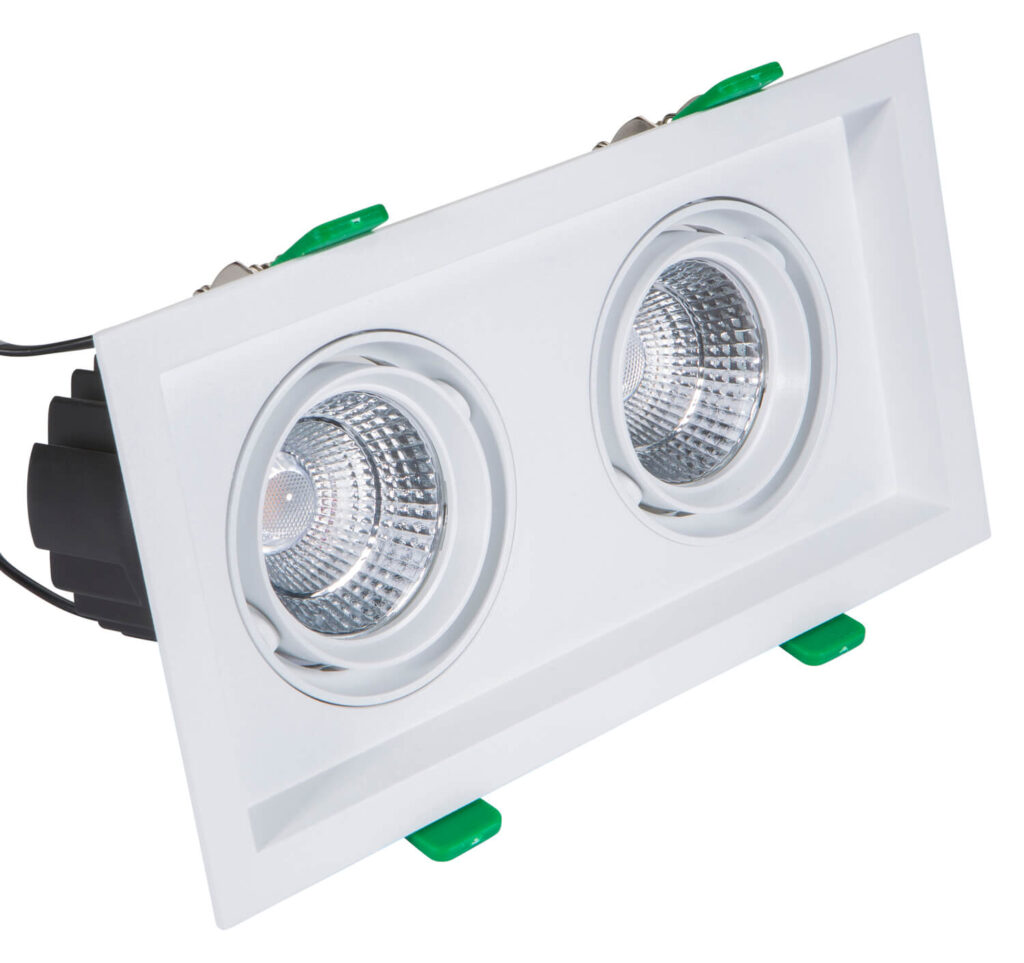

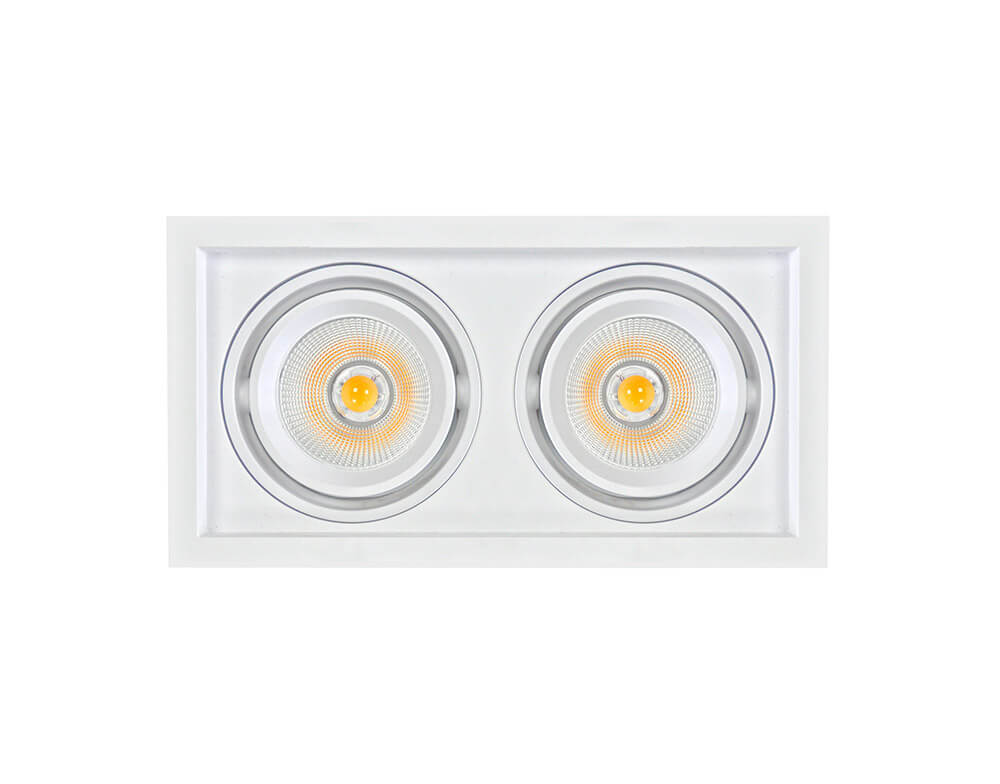

 | R093002/3K | Protium Gimbal Double Downlight 44W 3000K | 4620 | 44W | ~105Lm/W | 3000K | White | H107 x L270 x W140mm | Non emergency | Twin Head | 5 years | LDT ↓ | Datasheet ↓ |
| R093002 /4K | Protium Gimbal Double Downlight 44W 4000K | 4620 | 44W | ~105Lm/W | 4000K | White | H107 x L270 x W140mm | Non emergency | Twin Head | 5 years | LDT ↓ | Datasheet ↓ |

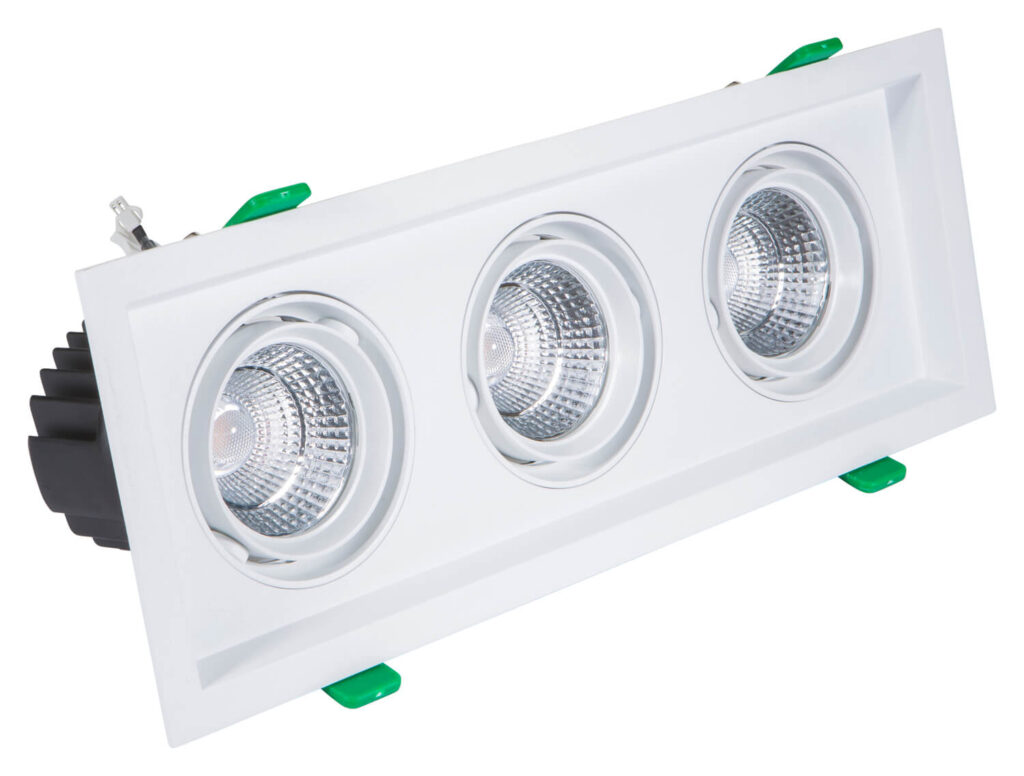

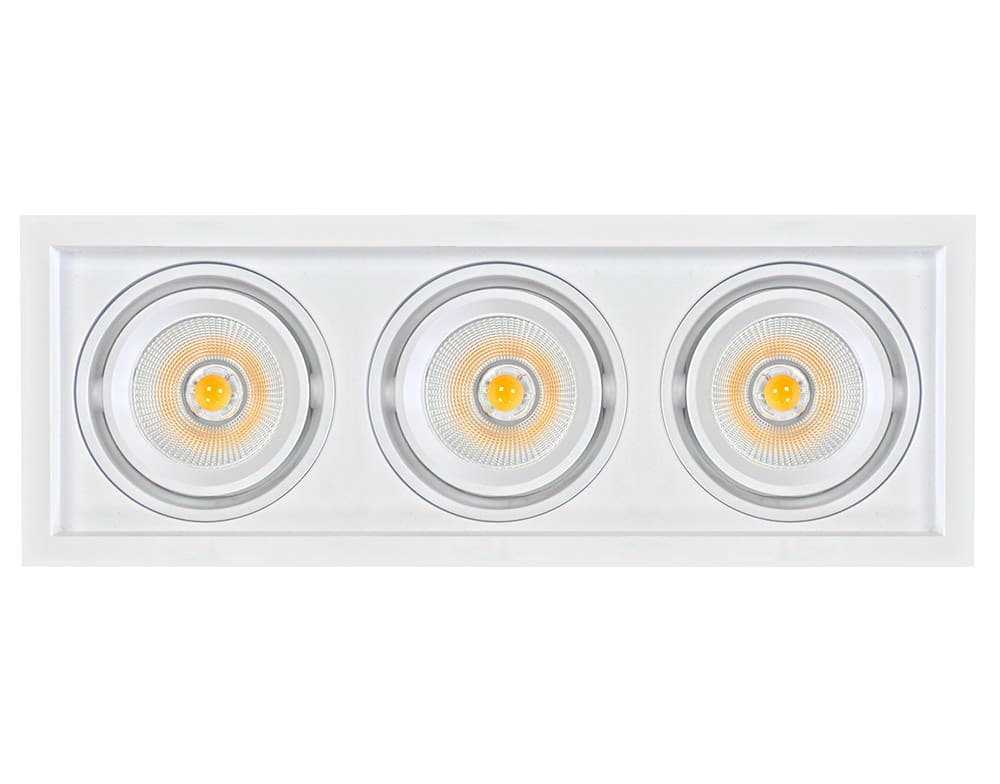

 | R093003/3K | Protium Gimbal Triple Downlight 66W 3000K | 6930 | 66W | ~105Lm/W | 3000K | White | H107 x L375 x W140mm | Non emergency | Triple Head | 5 years | LDT ↓ | Datasheet ↓ |
| R093003 /4K | Protium Gimbal Triple Downlight 66W 4000K | 6930 | 66W | ~105Lm/W | 4000K | White | H107 x L375 x W140mm | Non emergency | Triple Head | 5 years | LDT ↓ | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What is a gimbal downlight and why choose Protium?
Protium is a recessed gimbal downlight, meaning the light head can be tilted and rotated within the fitting to direct the beam where needed, rather than being fixed straight down. This adjustable light distribution makes it useful for highlighting specific areas, artwork, or display features within a recessed ceiling format. It features an integral LED light engine and remote driver, designed for easy installation.
What head configurations does Protium offer?
Protium is available with a single, double, or triple head configuration, with wattages of 22W, 44W, and 66W respectively, delivering 2310, 4620, and 6930 lumens. This allows one gimbal downlight family to scale from single-point accent lighting up to larger multi-head fittings covering wider areas. All configurations share the same adjustable light distribution feature.
What installation and adjustment benefits does Protium offer?
Protium features an integral LED light engine paired with a remote driver, designed for easy installation, and each head rotates through 355 degrees with roughly 30 degrees of tilt. This separation of light engine and driver can simplify fitting in ceiling voids with limited space, while the wide adjustment range allows final beam direction to be set after the fitting is installed. It suits accent lighting tasks where the exact target position is confirmed on site.
What environments is Protium suitable for?
Protium is rated IP20 and IK05 for interior use, with an ambient operating range of minus 20 to plus 45 degrees Celsius, narrowing to 0 to 40 degrees Celsius when specified with the emergency option. This makes it suited to standard interior commercial spaces rather than bathrooms, exteriors or areas with a higher risk of impact. Checking the ambient range against the space is worth doing early, particularly where emergency lighting is also being specified.
When would I choose Protium over Protium Max?
Protium suits accent lighting tasks needing single, double, or triple head configurations at 22W, 44W, or 66W, making it a good fit for standard retail displays, artwork, or feature walls. Protium Max offers the same adjustable gimbal concept and easy installation but scales up to 25W to 120W across the same three head formats for bigger spaces or higher ceilings. Choosing between them comes down to the scale of the space and the light output needed rather than a difference in how the fitting works.
