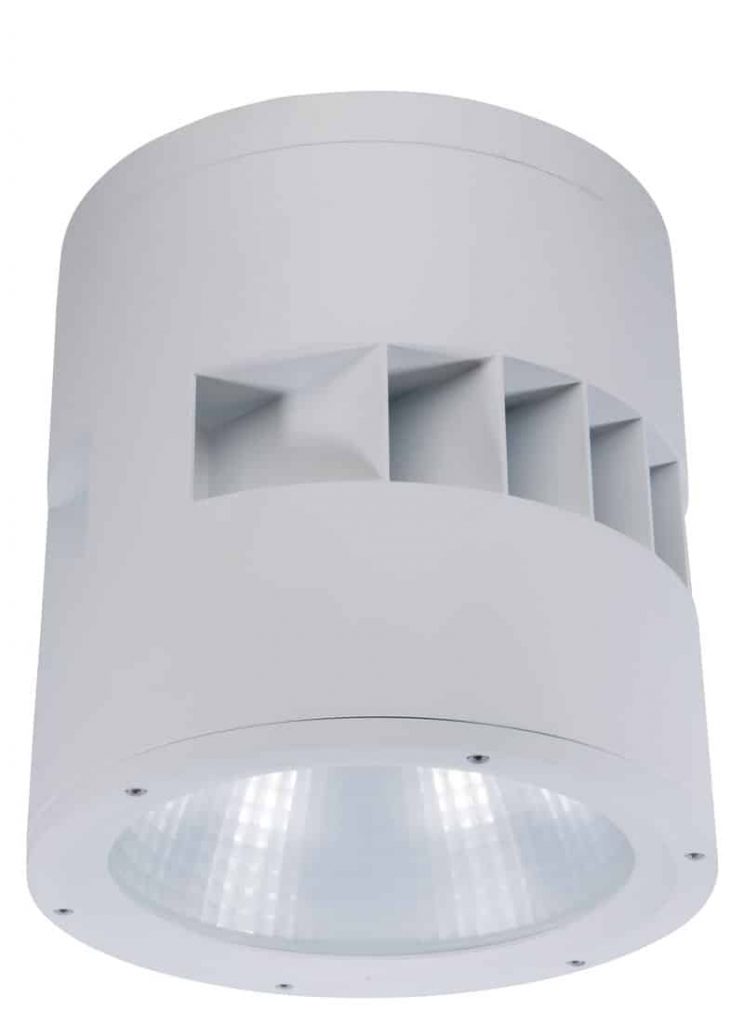

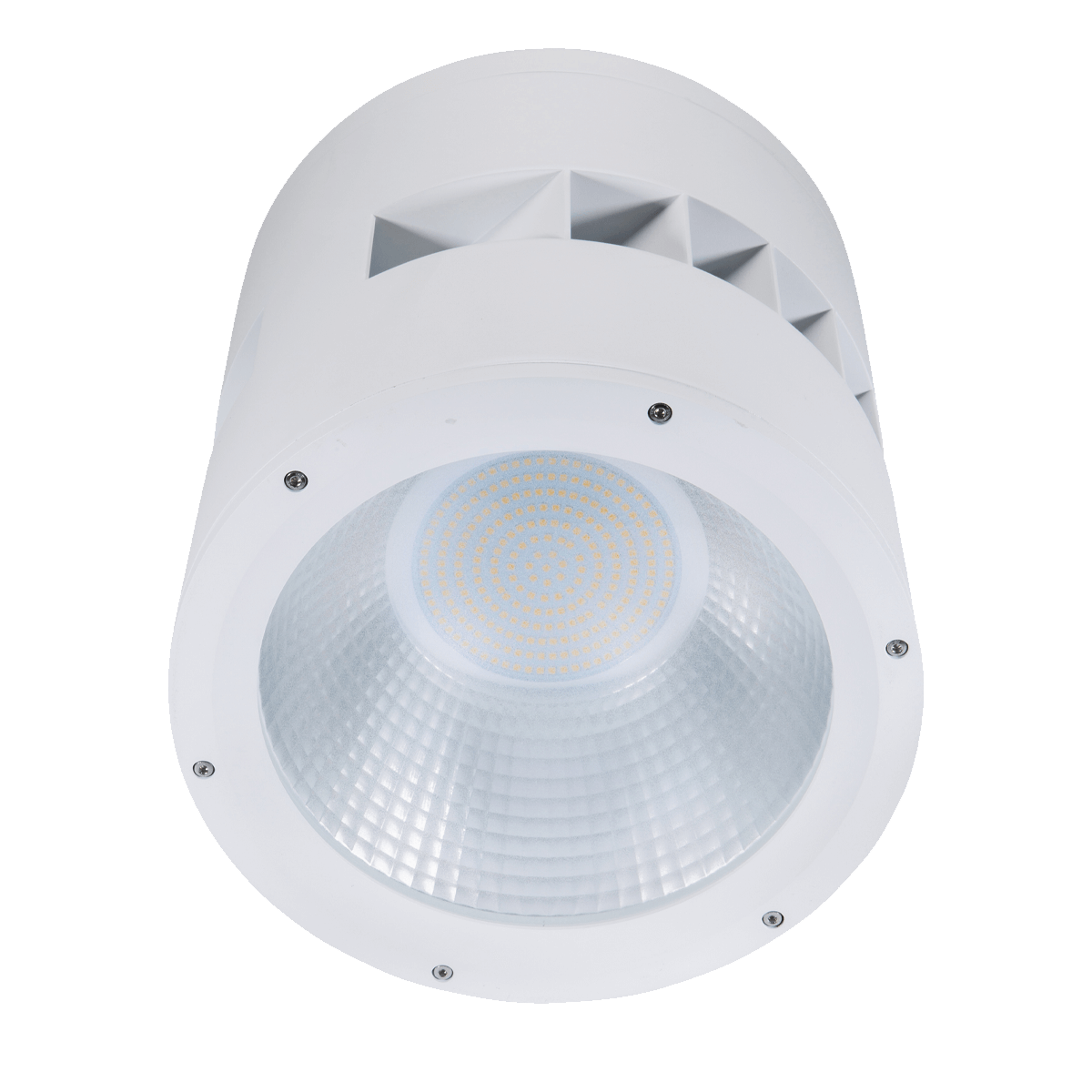

MODUS MAX
An extremely high powered IP65 circular downlight
- Powerful High‑Output Lighting - Designed for large spaces with high lumen performance and energy‑efficient LED output.
- IP65 Protection & Suspended Mounting - Durable for wet and dusty environments with easy chain or rod suspension for commercial ceilings.
- Spec‑Ready Options - Available in multiple wattages and colour temperatures with dimmable controls to suit office, retail and industrial fit‑outs.
Specification
Light Source Information
- Direct light output
- 70W delivering 8050lm
- 100W delivering 11,50lm
- 150W delivering 16,500lm
- Efficacy of 115lm/W
- Drivers supplied
- >85 colour rendering index
- 3000K or 4000K colour temperature
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- Single Bin Bridgelux with a ≤3 step Macadam ellipse tolerance
Design

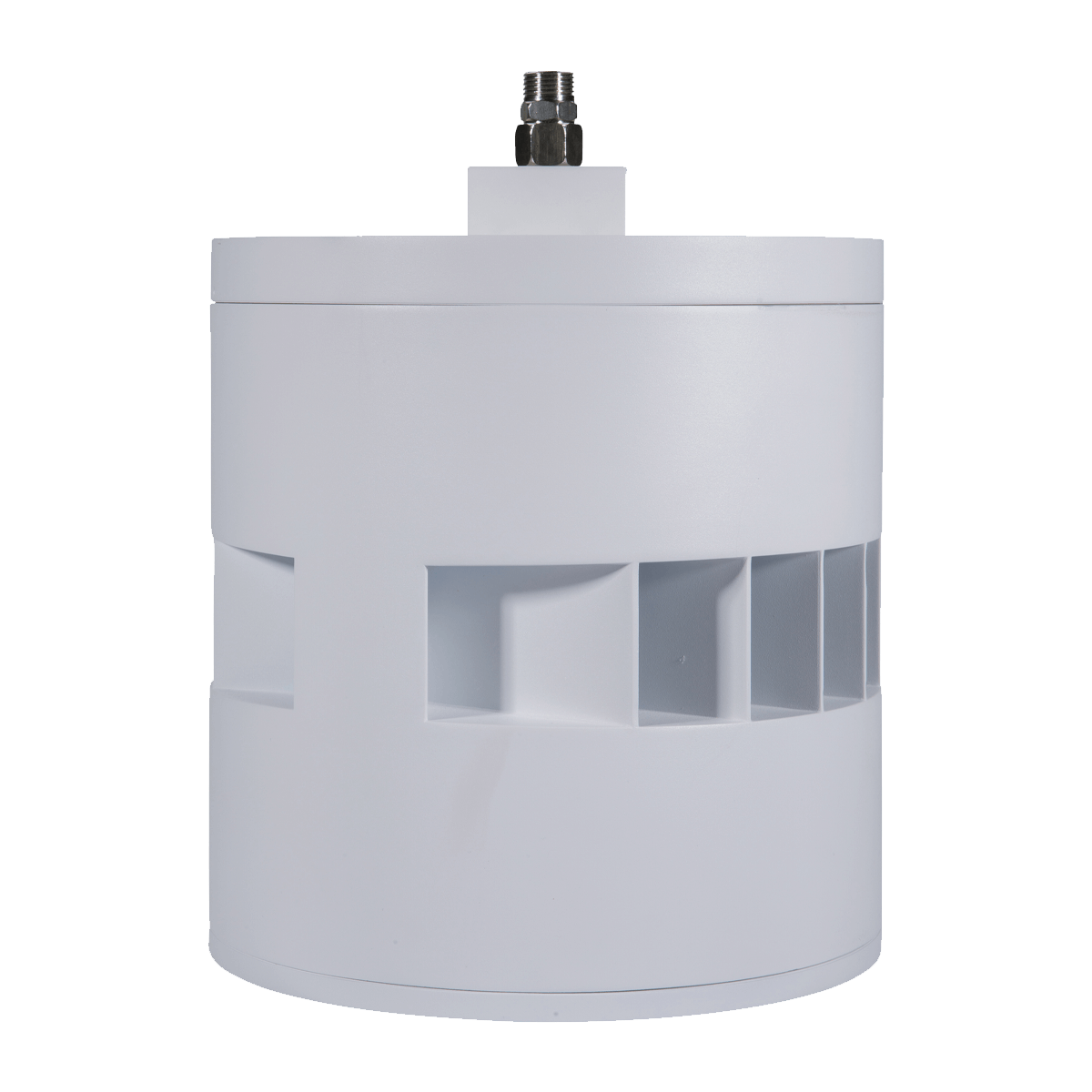

- White aluminium body
- IP65 rated
- Suspended (chain or rod)
- Dimensions
- ø260 x 275mm
Optics

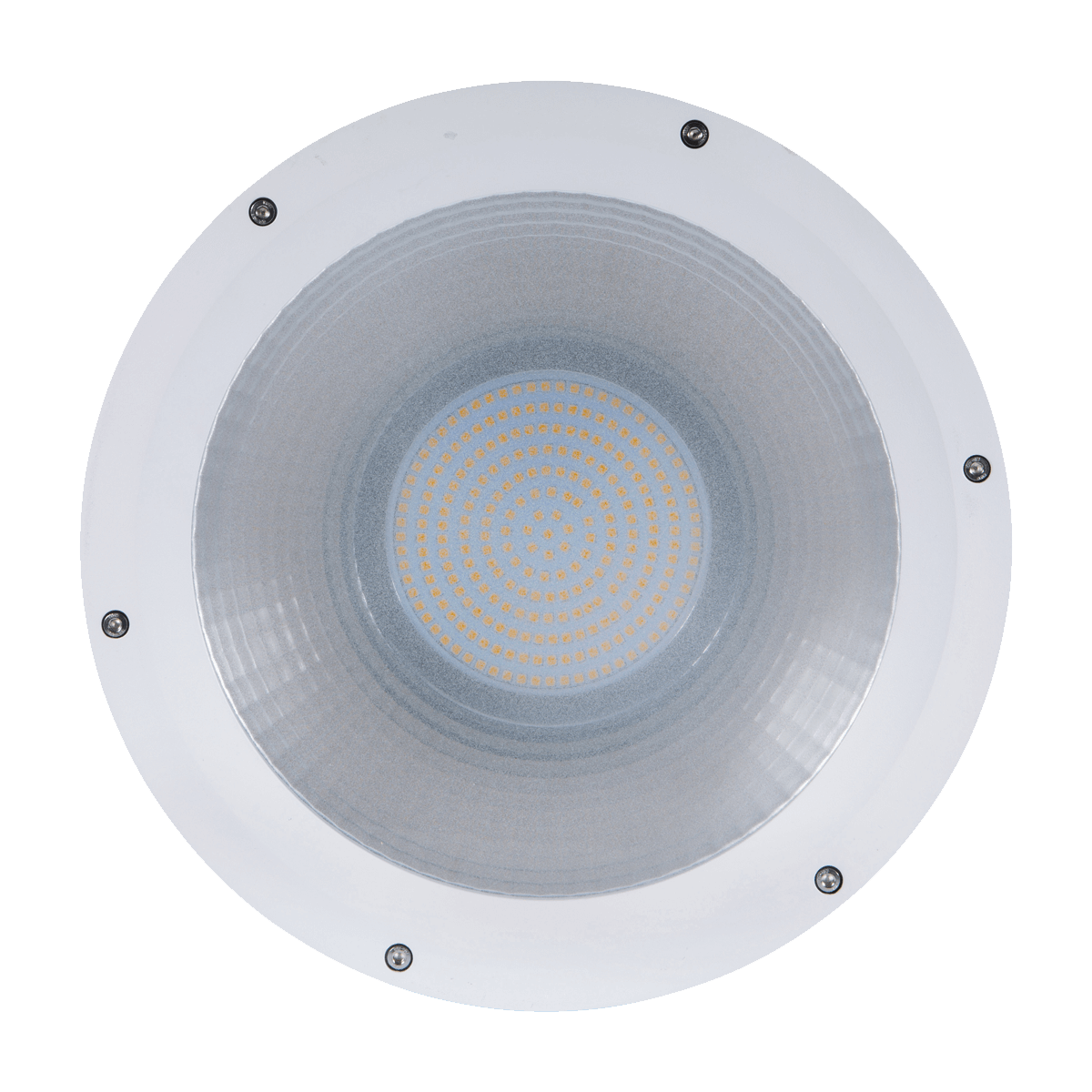

- Glass diffuser TPa rated
- Beam angle: 57 degrees
Dimming
- Non dimmable as standard
- DALI available
Miscellaneous
- Emergency available
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- IP65 high output circular downlight available in 70W, 100W or 150W and 3000K or 4000K colour temperature – as RICOMAN’s Modus Max Downlight
Dimensions
Features
- Stylish, contemporary design
- IP65 for maximum protection against humidity and dust
- Chain or rod suspended
- 70W, 100W or 150W delivering up to 16,500 lumens
- 3000K or 4000K
- CRI >85
- DALI Dimming options available
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R096950/4K/70W | Modus Max IP65 Suspended Downlight 70W 4000K | 8072 | 70W | ~115Lm/W | 4000K | White | Ø260 x H275mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096950/4K/100W | Modus Max IP65 Suspended Downlight 100W 4000K | 11608 | 100W | ~115Lm/W | 4000K | White | Ø260 x H275mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096950/4K/150W | Modus Max IP65 Suspended Downlight 150W 4000K | 17252 | 150W | ~115Lm/W | 4000K | White | Ø260 x H275mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096950/3K/70W | Modus Max IP65 Suspended Downlight 70W 3000K | 8006 | 70W | ~115Lm/W | 3000K | White | Ø260 x H275mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096950/3K/100W | Modus Max IP65 Suspended Downlight 100W 3000K | 11398 | 100W | ~115Lm/W | 3000K | White | Ø260 x H275mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R096950/3K/150W | Modus Max IP65 Suspended Downlight 150W 3000K | 16989 | 150W | ~115Lm/W | 3000K | White | Ø260 x H275mm | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What is Modus Max designed for?
Modus Max is a circular, high output IP65 downlight designed for large areas, available in 70W, 100W, or 150W versions to suit spaces needing significant light output from a single fitting. This makes it suitable for warehouses, large commercial floors, or other high-ceiling spaces where fewer, higher-output fittings are preferred over many smaller downlights. Its IP65 rating and IK09 impact resistance support use in demanding environments.
How can Modus Max be installed in high or open ceilings?
Modus Max can be suspended using either a chain, which is included as standard, or an optional suspension rod, giving flexibility for mounting in spaces with high ceilings or exposed structure where a fully recessed fitting is not practical. At 7.2kg, this suspended mounting suits industrial or large open-plan commercial spaces. The suspension rod accessory is ordered separately where rod mounting is preferred.
Why choose Modus Max over standard downlights for a large open space?
A single Modus Max fitting can deliver up to around 17,000 lumens, which would otherwise need several standard downlights to achieve, reducing both the fitting count and the installation time on large open-plan spaces. Fewer fittings also means less ongoing maintenance across a large ceiling area. This makes it a more efficient specification wherever ceiling height and floor area are both significant.
What control options does Modus Max support?
Modus Max offers optional DALI dimming for centralised control of light levels across a large installation. Colour temperature can be specified as 3000K or 4000K, and output ranges from around 7700 lumens at 70W up to around 17,000 lumens at 150W. This makes it straightforward to match light output to the specific area being lit.
How does Modus Max compare to the standard Modus downlight?
Modus Max shares the same white aluminium body and glass TP(a) diffuser design as Modus but scales up considerably, offering 70W, 100W, or 150W outputs compared with Modus's 14W or 28W. It is designed to be suspended by chain or rod rather than surface mounted or pendant fitted, making it suited to warehouses and other large, high-ceilinged spaces. Modus is the better choice for standard rooms, while Modus Max fits larger commercial or industrial areas needing more light from fewer fittings.
