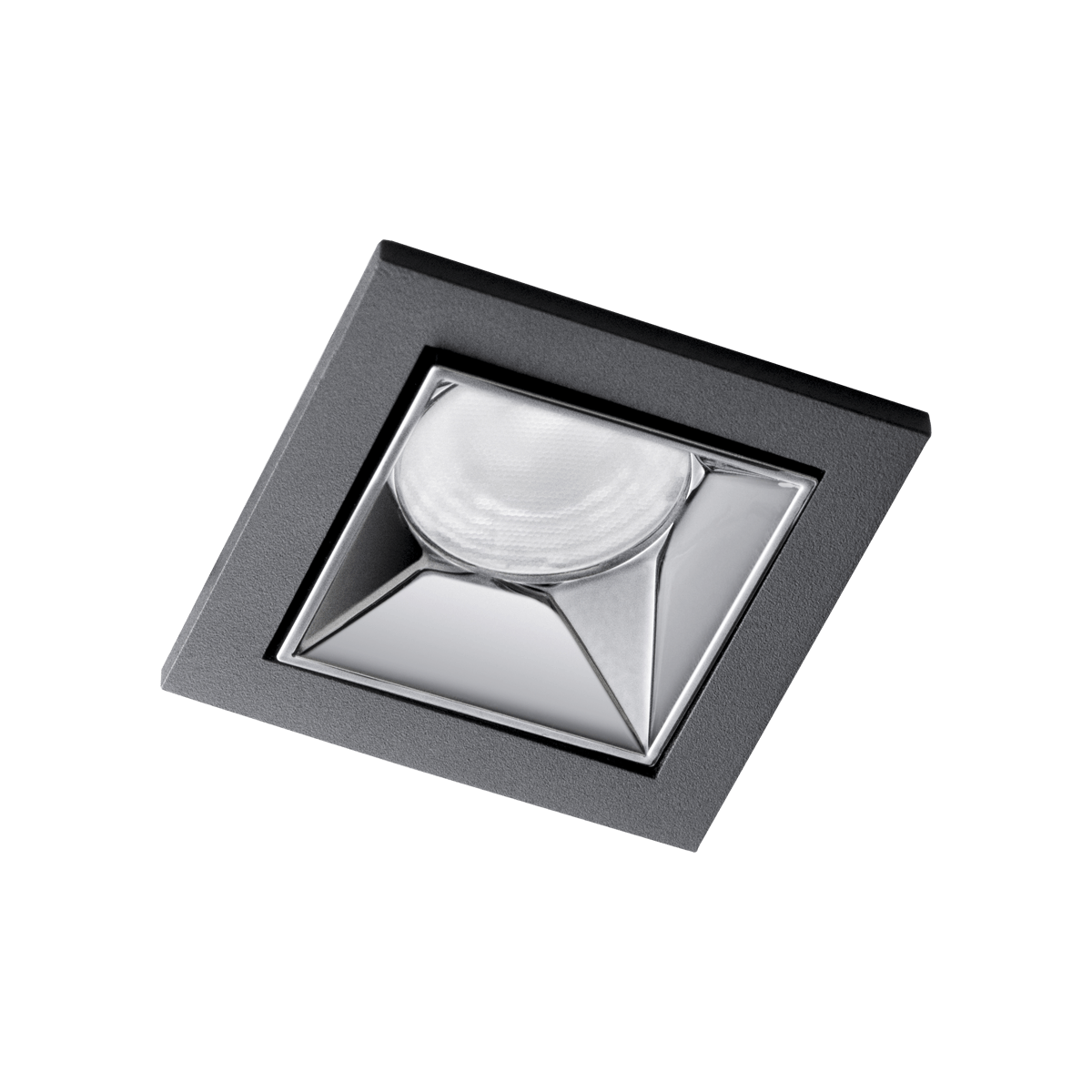

E-Pro Recessed
Cellular round aperture downlight

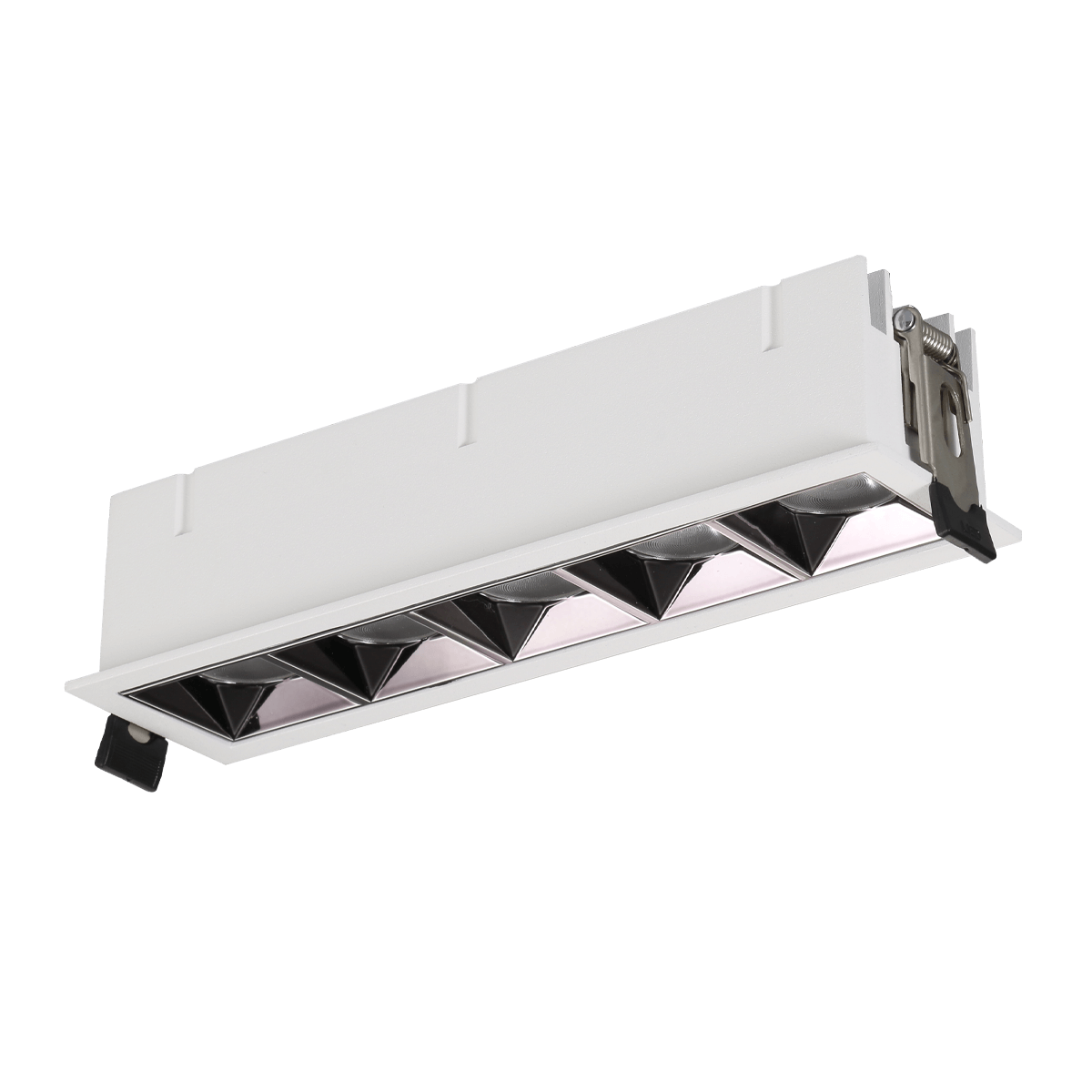

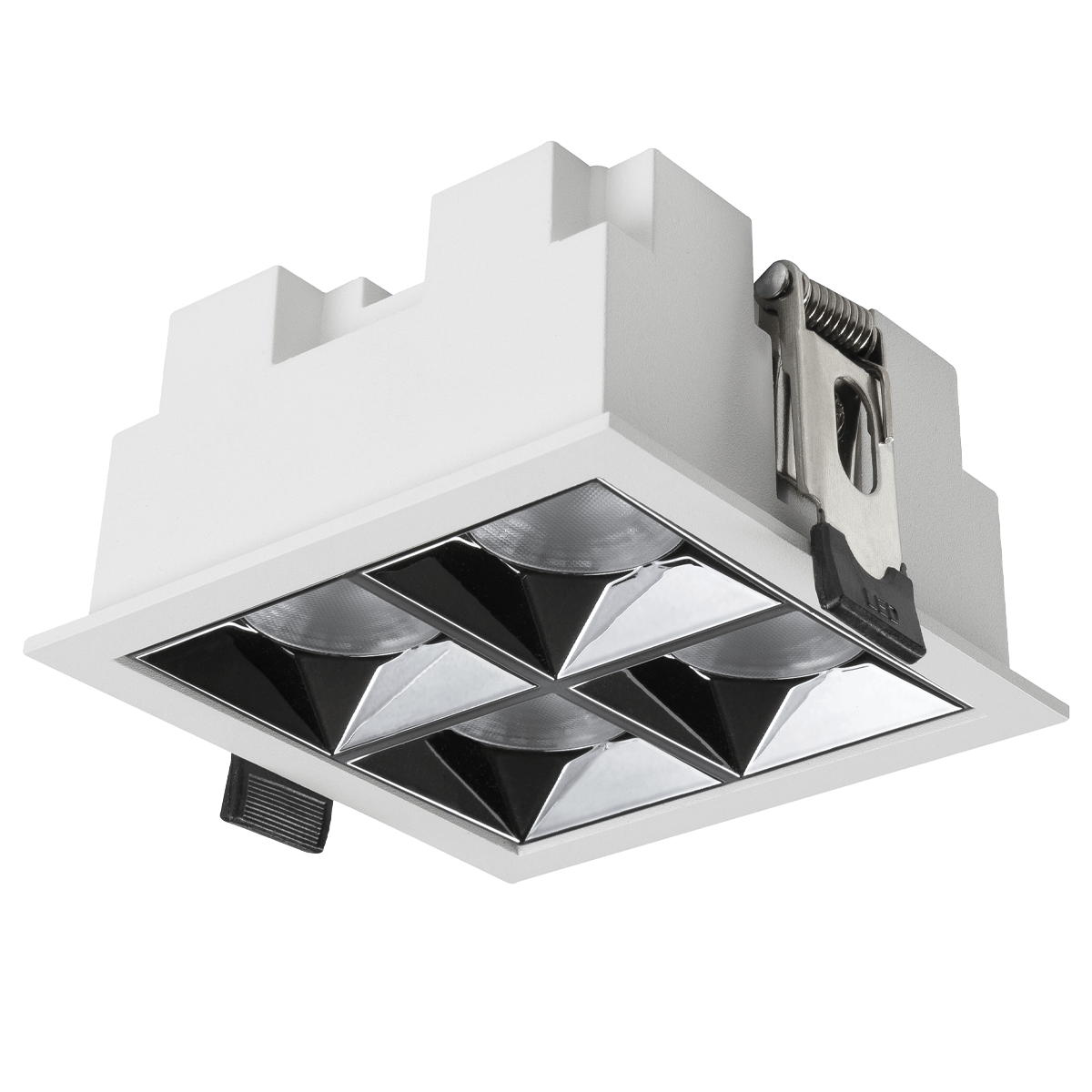

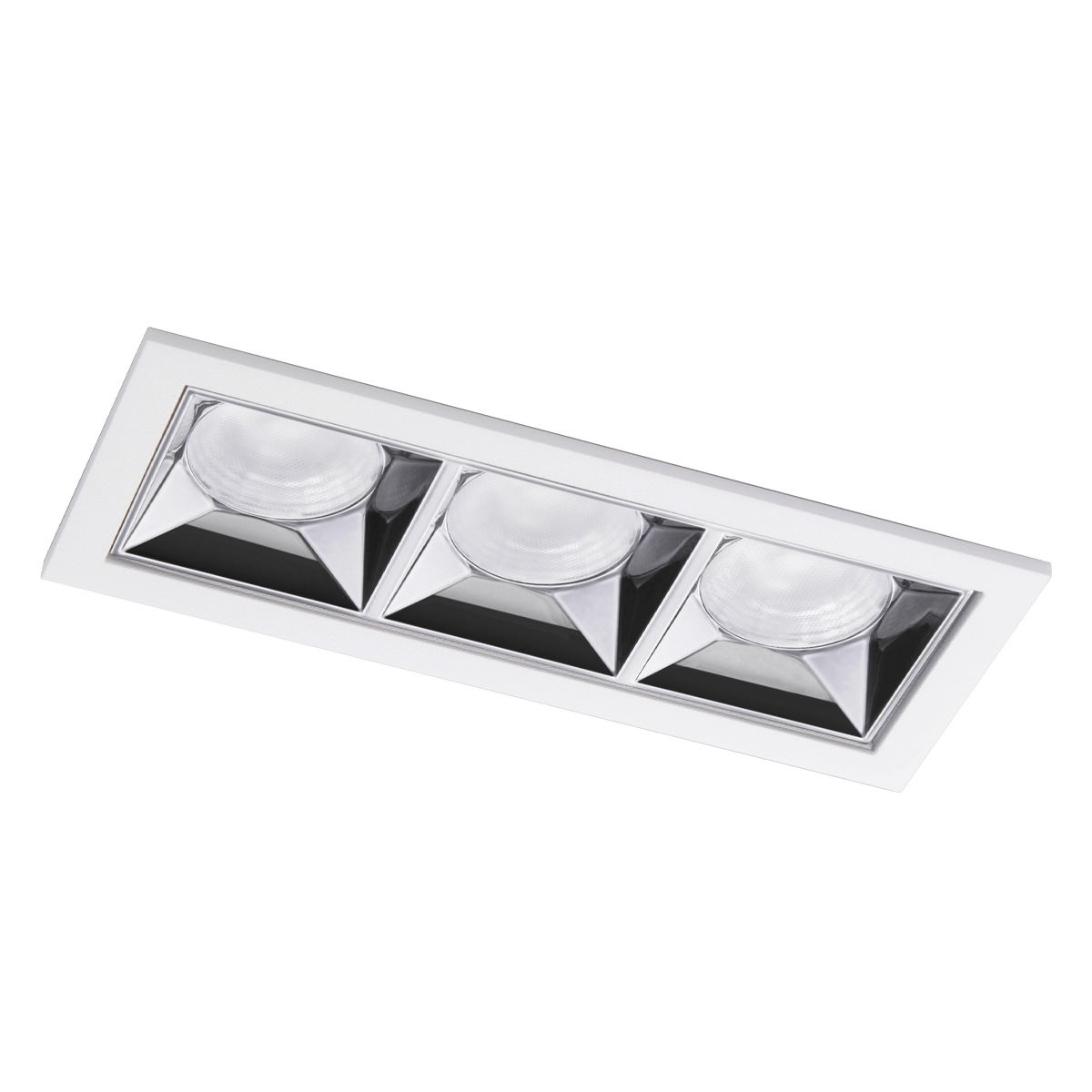

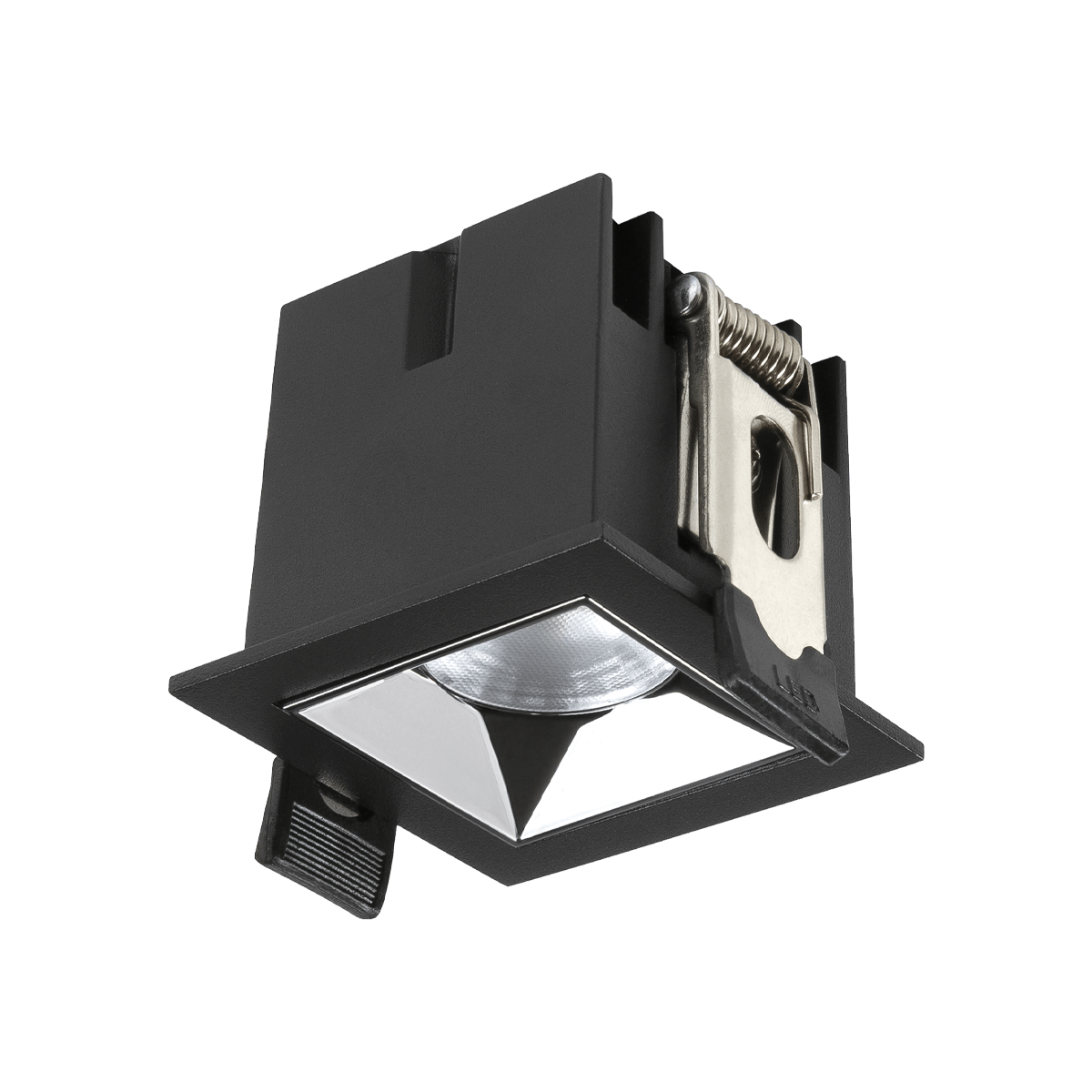

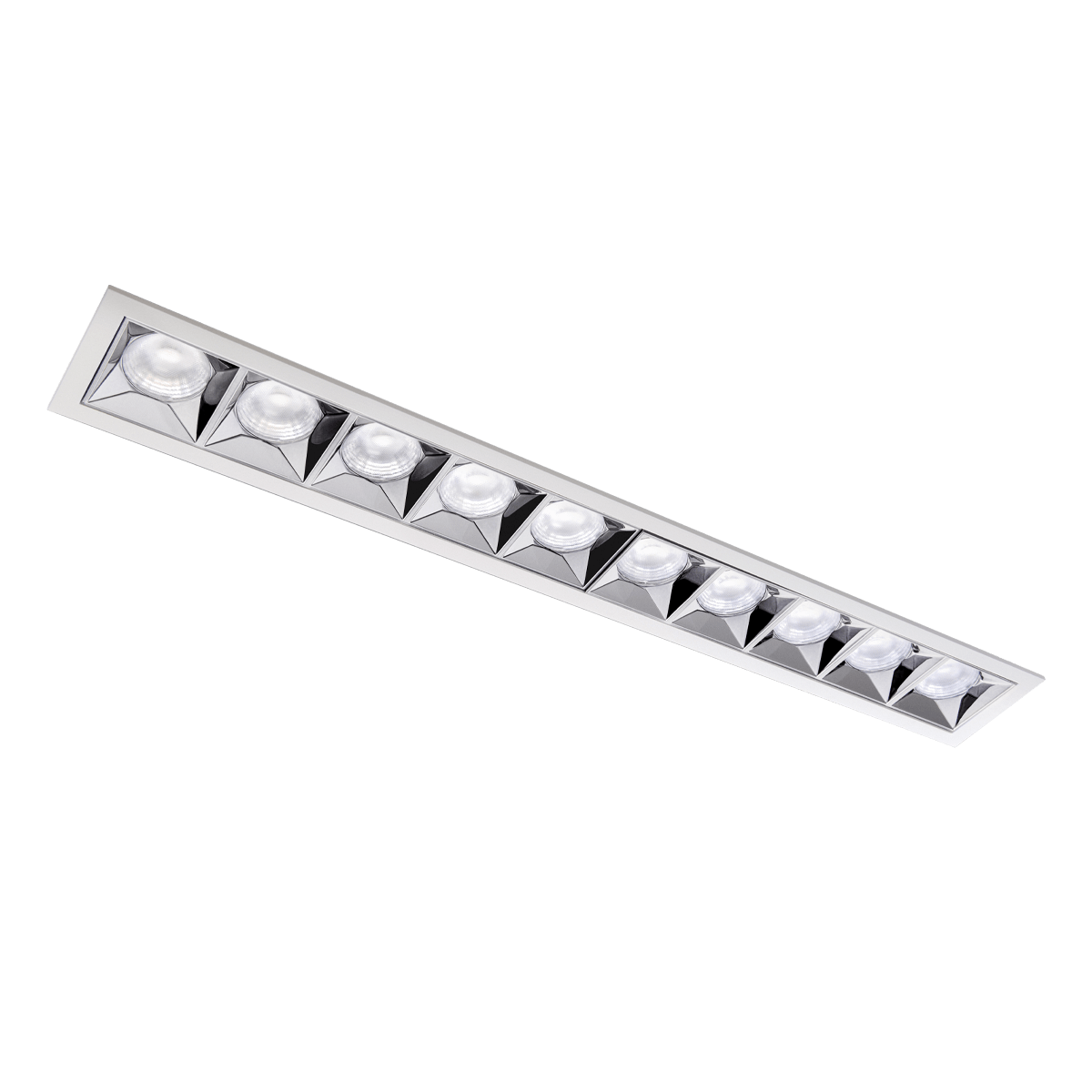

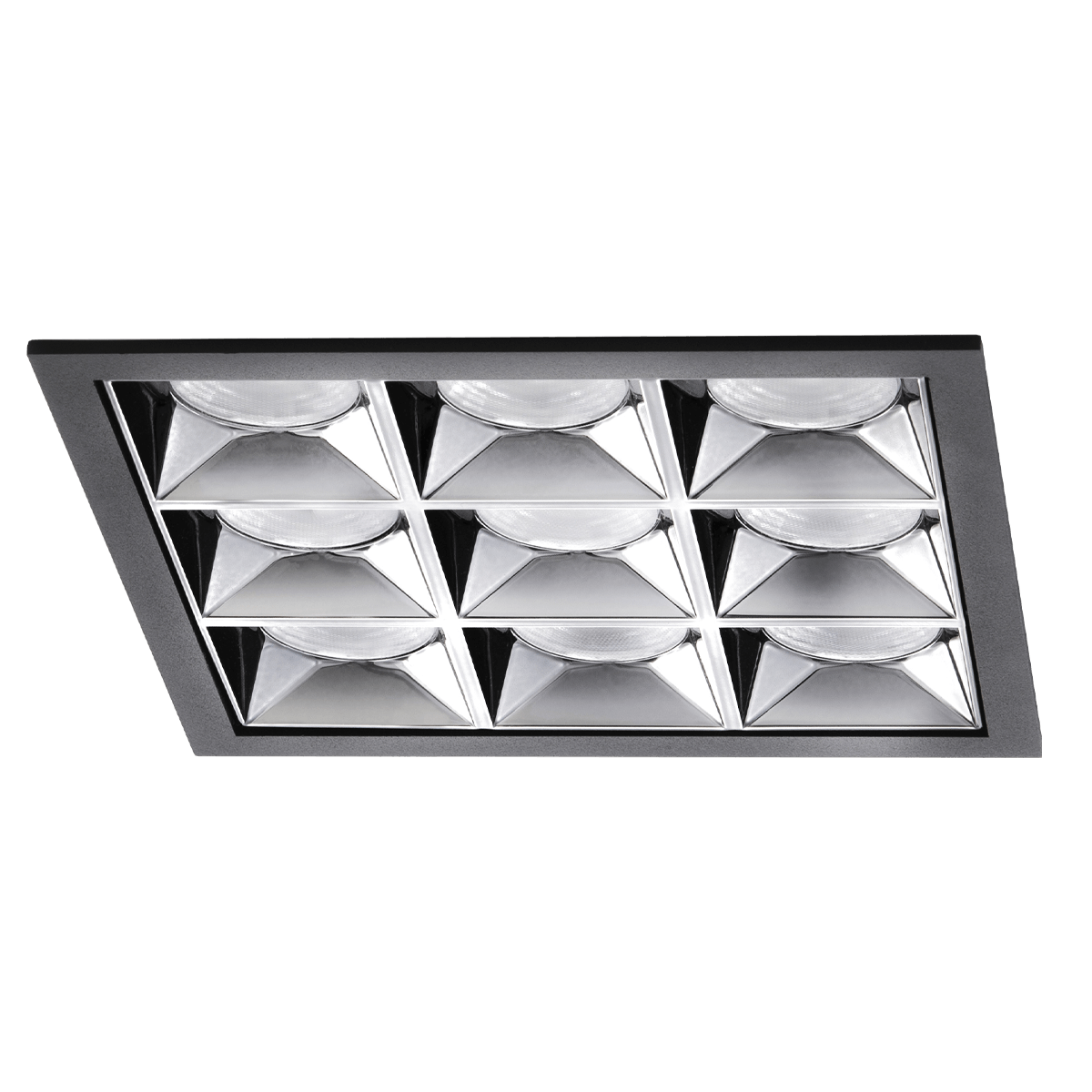

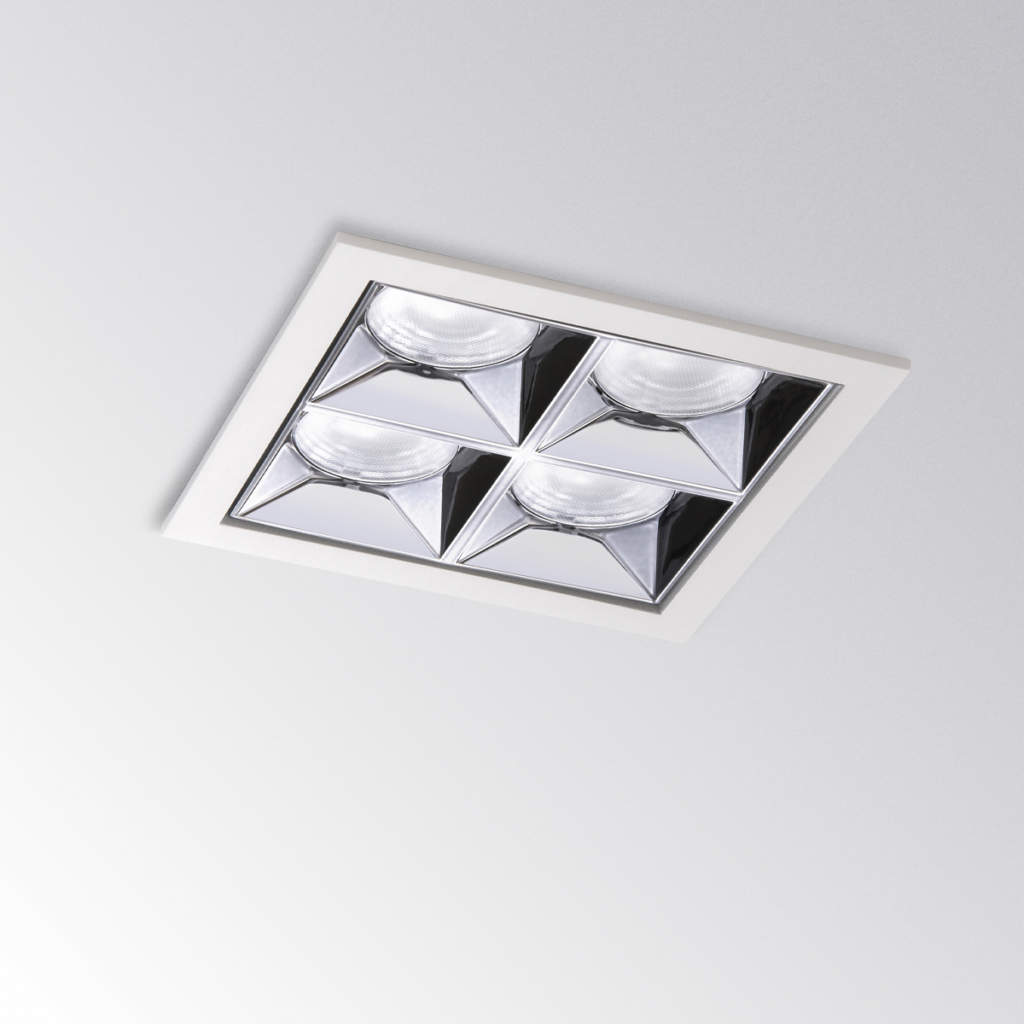

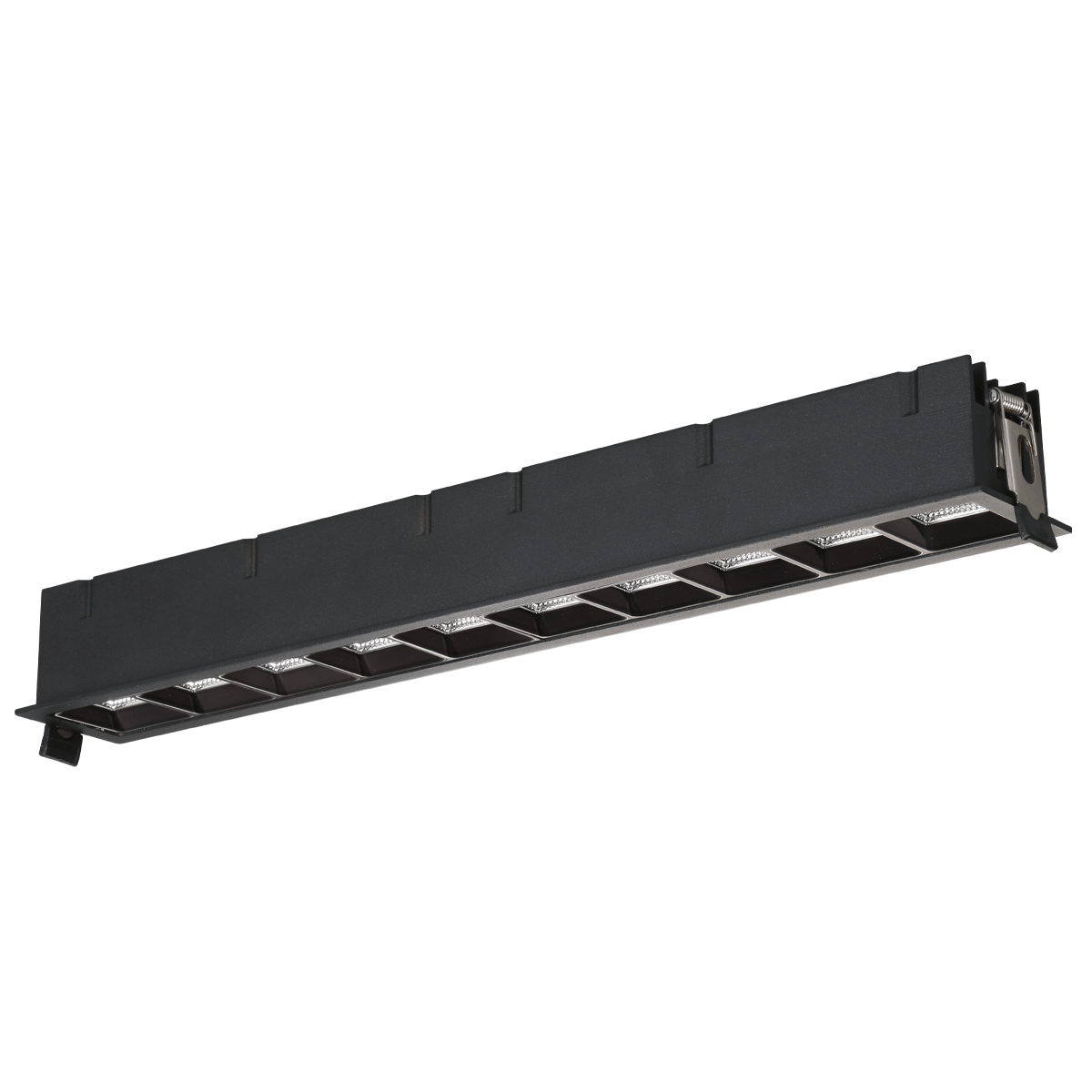

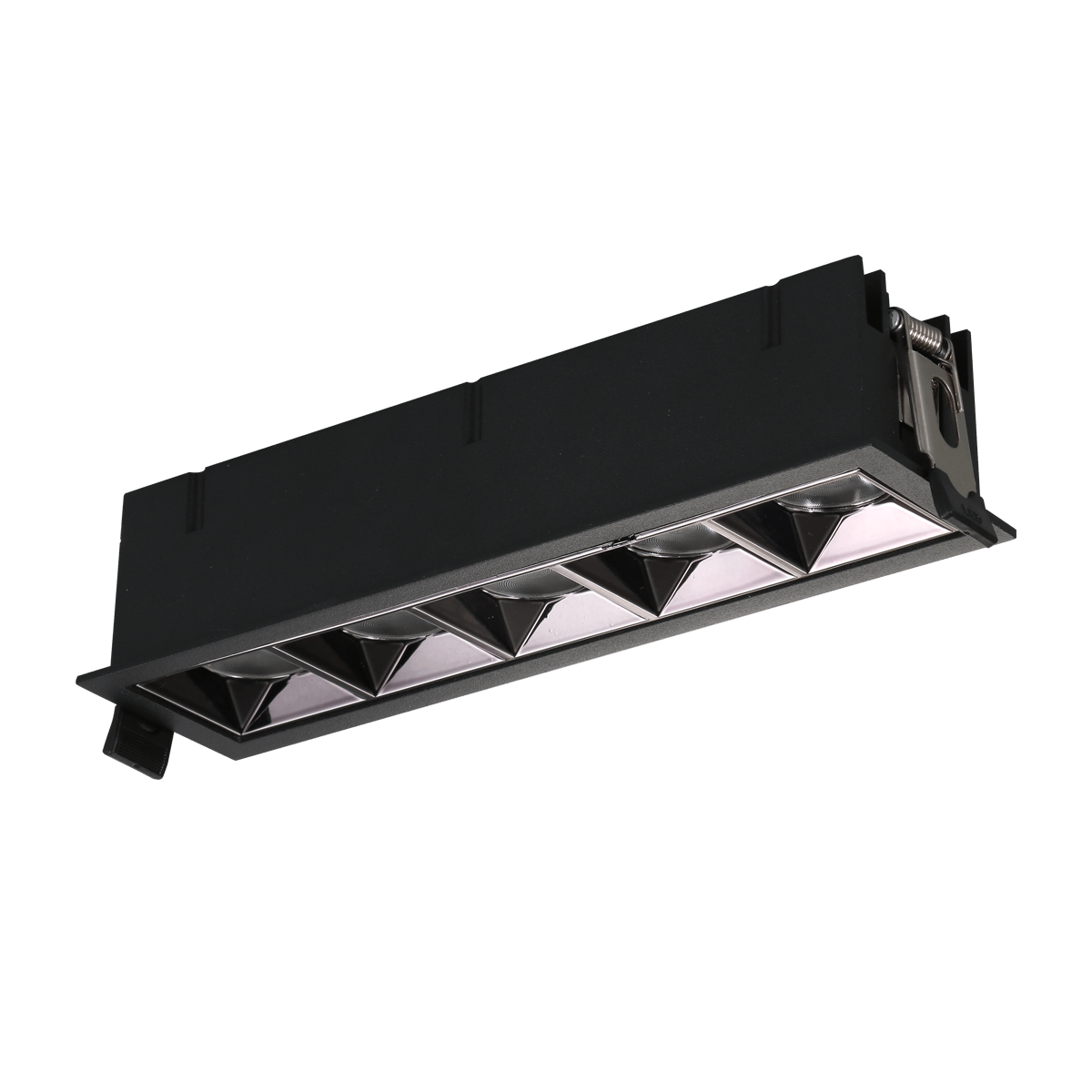

- Choose from cell options in single, 2x2, and 3x3 configurations, or linear formats including 1x3, 1x5, and 1x10
- Black or White housing options available
- Efficacy of 105 Lm/W
Specification
Light Source Information
- Direct light output
- 6W to 40W delivering 635 lm to 4289 lm at 4000K
- Efficacy of ~105lm/W
- >90 colour rendering index
- Colour temperature 3000K or 4000K
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
Design
- Aluminium body
- IP40 rated (front)
- Recessed mounting
- Remote driver
Cutout
- 125mm x50mm (3-cell), 200mmx50mm(5-cell), 390mm x 50mm (10-cell)
Optics
- Polycarbonate TP(a) rated round aperture diffuser
- Gyn metal reflector
- Beam angle: 50 degrees
Electrical
- Protection Class III
Dimming
- Non dimmable as standard
- DALI and other dimming options available
Miscellaneous
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- A range of recessed LED downlights in black or white finish and linear multiple cellular options. Round aperture optics for excellent glare control with a <3 step Macadam ellipse tolerance – as RICOMAN’s E-Pro recessed range.
Dimensions
Ø85 x H75
Features
- The versatile square lighting system is a great choice for a range of applications due to its flexible design. The system offers single, 2×2, and 3×3 cell sizes, available in both standard and high output options, with power ranging from 8W to 36W. These squares are capable of delivering between 527 and 8302 lumens with an impressive efficacy of 105 Lm/W. To ensure optimum glare control, the squares feature superior round aperture optics, along with elegant gun metal reflectors. The lighting system has an aluminum body that offers excellent thermal control, making it an efficient and long-lasting option. Additionally, the system offers 3000K or 4000K color temperatures and can be installed recessed or surface mounted, with white or black color finishes available. The lighting system also comes with linear cell designs, a light source with a ≤3 step Macadam ellipse tolerance, and DALI and other dimming options. Moreover, the system provides emergency options for added safety.
Configure Your Product
Loading the configurator…
Accessories
You may also like
Frequently asked questions
What is the E-Pro range designed for?
E-Pro is a range of linear and square cellular downlights for architectural interiors where a discreet and low glare fitting matters. The E-pro fitting can be used to achieve UGR below 19. It suits office ceilings, reception areas, and other spaces where visual comfort around screens is a specification priority. The range is available in a wide choice of cell configurations, so one product family can be used consistently across different room shapes.
What cell configurations and mounting options does E-Pro offer?
The recessed E-Pro range is available in single cell, 1x3, 1x5, 1x10, 2x2, and 3x3 cell configurations, while the surface mounted version is offered in single cell, 2x2, and 3x3 formats. This gives specifiers layouts from small individual fittings to long linear runs, and lets ceiling void depth or structure guide the choice between recessed and surface mounting. Finishes are available in black RAL9005 or matte white RAL9016 to suit the surrounding ceiling.
What makes E-Pro's optics different from a standard downlight?
E-Pro uses purpose designed optics to hold glare below a UGR of 19 for the fitting, which is relevant in spaces such as offices with screen based work where visual comfort is a specification priority. This low glare performance is combined with the flexibility of multiple cell layouts rather than being limited to one fixed format. The result is a consistent, discreet appearance across an architectural ceiling scheme.
What dimming and colour temperature options are available with E-Pro?
E-Pro can be specified with DALI, 0-10V, or DSI dimming, or with Casambi wireless control, so it can integrate with standard commercial lighting control systems. Colour temperature options are 3000K or 4000K, giving flexibility to match warmer or cooler commercial environments. Wattage varies by cell configuration, from a single cell option up to the largest multi-cell formats.
What are the technical performance figures for E-Pro?
E-Pro delivers an efficacy of around 100 to 106 lm/W with a CRI above 90 Ra and a 50 degree beam angle, giving strong colour rendering suited to design led interiors. It is rated IP40 with an IK07 impact rating, a 100,000 hour L70 B50 lifetime, and a 5 year warranty. These figures support specification in standard indoor commercial environments.
