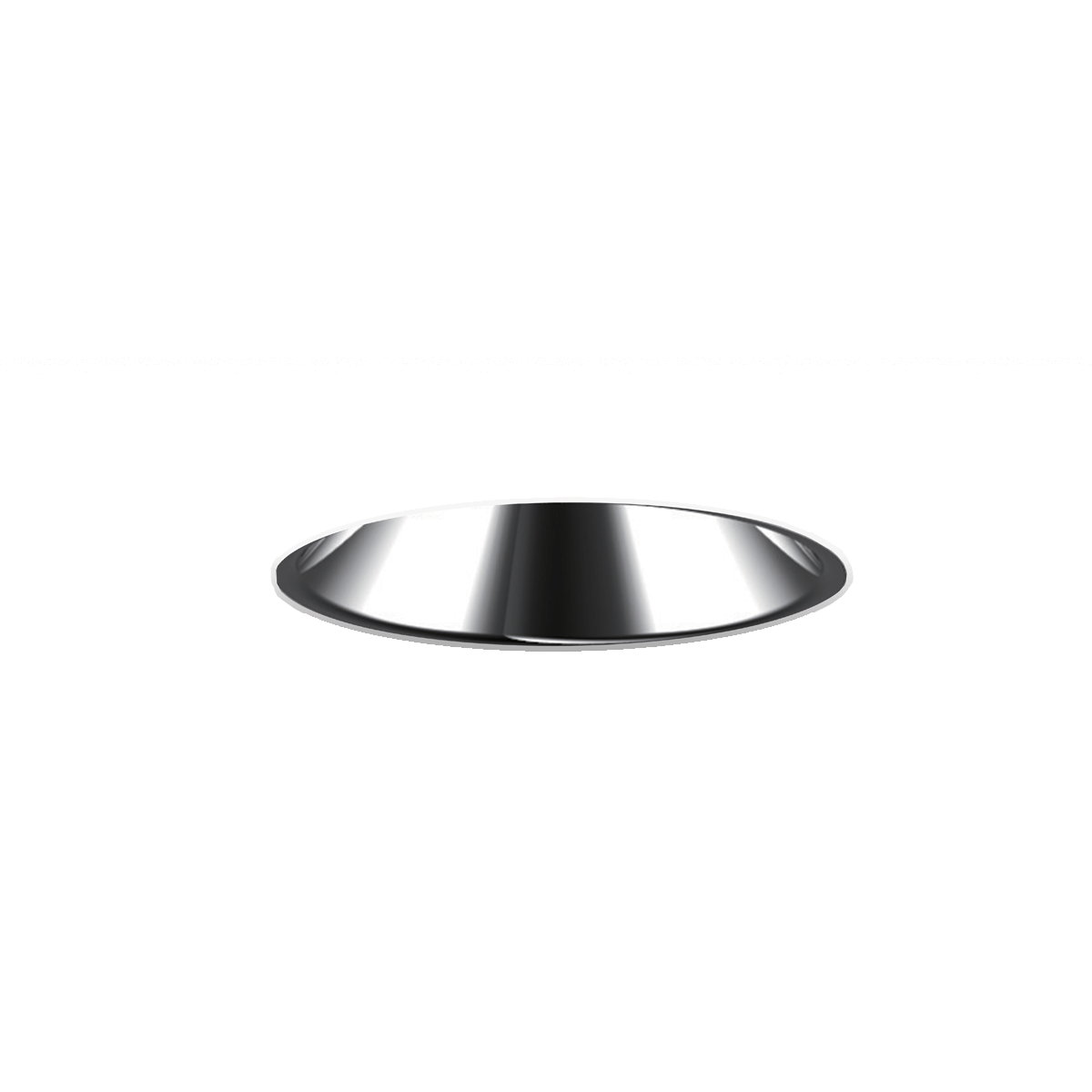

ENDOR
Recessed Customisable Downlight
- 15° | 38° | 55° – Beam angle options
- 12W | 24W | 32W | 42W – Output versions
- Titanium | Polished Chrome | Matte Silver – Reflector Finishes
- Downlight | Wallwasher – Reflector shapes
Specification
Light Source Information
- Direct light output
- Deeply recessed light source for enhanced glare control
- 12W | 24W | 32W | 42W delivering up to 4198lm
- Efficacy of up to 106lm/W
- Drivers supplied
- 85 colour rendering index
- Colour Temperature options of 3000K and 4000K
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- CREE LEDs with a ≤3 step Macadam ellipse tolerance
Design
- White bezel
- IP20 rated – IP65 available in the 12W version
- Ceiling recess mounted
Cutout
- 12W = ø75mm
- 24W = ø100mm
- 32W = ø125mm
- 42W = ø150mm
Optics
- PMMA diffuser as standard
- Reflector shapes: downlight or wallwasher
- Reflector finishes: titanium, polished chrome, matte silver
- Beam angles: 15, 38 or 55 degrees
- Honeycomb louvre diffuser available -TP(a) rated
Dimming
- Non dimmable as standard
- Mains, DALI, 0-10V, DSI dimming available
Miscellaneous
- 3hr emergency available
- DALI Addressable emergency available
- Z10 remote control manual or advanced self-test emergency available (only on >12W)
- Casambi and antimicrobial coating available
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- A range of round recessed individually adjustable LED downlight or wallwasher luminaires with 15/38/55 degree beam angles in polished chrome/titanium/matte silver finish. Superb optical performance from high performance CREE COB LED modules and Tridonic drivers delivering 12W/24W/32W/42W with an efficacy of 100 lumens per watt. – As RICOMAN’s Endor range.
Dimensions
Features
- 15° | 38° | 55° – Beam angle options
- 12W | 24W | 32W | 42W – Output versions
- Titanium | Polished Chrome | Matte Silver – Reflector Finishes
- Downlight | Wallwasher – Reflector shapes
- 30° Tiltable head for directional light control
- Mains | DALI | 0-10V | DSI – Dimming options
- 3000K | 4000K – Colour Temperature
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- Single bin CREE COB with a ≤3 step Macadam ellipse tolerance
- Honeycomb louvre diffuser available
- Emergency options available: Standard | DALI | Remote control testing
- Also available in: Round rimless | Square
