SATURN
Exceptional versatility with rotation and angle adjustments
- Directional & Adjustable Lighting - Tiltable head and 340° rotation for precise accent, wall‑wash and feature lighting.
- High‑Quality Light & Efficiency - Excellent colour rendering (CRI > 90) and efficient LED performance ideal for retail, office and hospitality environments.
- Flexible Specification Options – Multiple wattages, colour temperatures and dimming/emergency options support tailored designs and easy installation.
Specification
Light Source Information
- Direct light output
- Lumen outputs from 1266lm to 4240lm
- Efficacy of up to 105lm/W
- Drivers supplied
- >90 colour rendering index
- Colour Temperature options of 3000K and 5000K
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- Single bin CREE COB with a ≤3 step Macadam ellipse tolerance
Design
- White frame with black internal (visible when scooped)
- IP20 Rated
- Ceiling recess mounted
- Single, double or triple configurations
- 18° to +45° tiltable head for directional light control
- 340° head rotation
Cutout
- 12W = ø90mm
- 24W = ø145mm
- 40W = ø170mm
Optics
- TP(a) rated diffuser
Dimming
- Non dimmable as standard
- Mains, DALI, 0-10V, DSI dimming available
Controls
- CP Sensors
- Custom solutions
Miscellaneous
- 3hr emergency available
- DALI Addressable emergency available
- Z10 remote control manual or advanced self-test emergency available
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- Recessed multi-directional wall wash/accent lighting with rotation and angle adjustments, ideal for wall wash and internal sign lighting. Adjustable head rotation of 340° and tiltable head of -18° to +45° for optimal directional light control – as RICOMAN’s Saturn range
Dimensions
Features
- 18° to +45° tiltable head for directional light control
- 340° head rotation
- 12W | 24W | 40W
- 3000K | 4000K | 5000K
- CRI >90 Ra
- Efficacy of ~105 Lm/W
- TPa rated diffuser
- Dimming types available
- Emergency options available: Standard | DALI | Remote control testing
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- Single bin CREE COB with a ≤3 step Macadam ellipse tolerance
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | R091802/105 | Saturn Downlight 12W 5000K | 1282 | 12W | ~106Lm/W | 5000K | White | Ø105 x H82 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R091801/105 | Saturn Downlight 12W 3000K | 1266 | 12W | ~105Lm/W | 3000K | White | Ø105 x H82 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R091803/158 | Saturn Downlight 24W 3000K | 2532 | 24W | ~105Lm/W | 3000K | White | Ø158 x H130 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R091806/188 | Saturn Downlight 40W 5000K | 4240 | 40W | ~106Lm/W | 5000K | White | Ø188 x H159 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R091804/158 | Saturn Downlight 24W 5000K | 2565 | 24W | ~106Lm/W | 5000K | White | Ø158 x H130 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R091805/188 | Saturn Downlight 40W 3000K | 4240 | 40W | ~106Lm/W | 3000K | White | Ø188 x H159 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R091806/188/4K | Saturn Downlight 40W 4000K | 4240 | 40W | ~106Lm/W | 4000K | White | Ø188 x H159 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R091803/158/4K | Saturn Downlight 24W 4000K | 2532 | 24W | ~105Lm/W | 4000K | White | Ø158 x H130 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| R091802/105/4K | Saturn Downlight 12W 4000K | 1266 | 12W | ~105Lm/W | 4000K | White | Ø105 x H82 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
| N/A | Saturn Downlight 40W 5000K | N/A | – | N/A | – | N/A | Non emergency | – | – | N/A | — | Datasheet ↓ |
| N/A | Saturn Downlight 24W 3000K | N/A | – | N/A | – | N/A | Non emergency | – | – | N/A | — | Datasheet ↓ |
| N/A | Saturn Downlight 12W 5000K | N/A | – | N/A | – | N/A | Non emergency | – | – | N/A | — | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What spaces is Saturn best suited to?

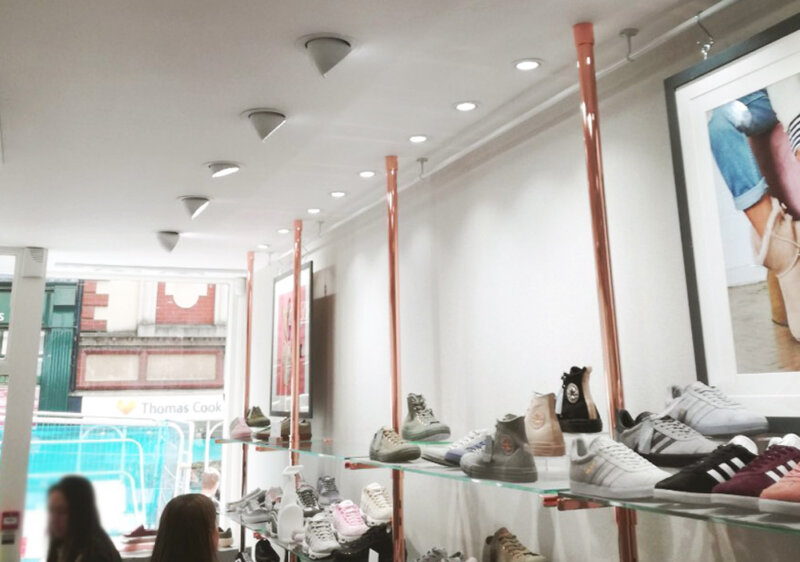

Saturn is designed for multi-directional wallwash and accent lighting, with 340 degrees of rotation and tilt from minus 18 to plus 45 degrees, making it well suited to retail, office and healthcare interiors where light needs to be aimed at a wall, display or feature rather than spread evenly across a room. It has been installed in settings including Radley Bag Store at Bicester Village, GovData Offices, and Little Hulton Medical Centre, showing it working across retail, commercial and healthcare environments. This range of real applications gives specifiers confidence it performs consistently outside a single sector.
How much adjustment does Saturn's head allow?
Saturn's head can rotate through 340 degrees and tilt from -18 degrees to +45 degrees, giving specifiers a very wide range of aiming positions from a single recessed fitting. This level of adjustment is useful where the exact position of a sign, artwork, or feature is not fixed at the design stage, allowing final aiming on site. It suits applications needing precise, flexible accent lighting rather than fixed downward illumination.
What sizes and wattages does Saturn come in?
Saturn is available in three sizes with wattages of 12W, 24W, or 40W, and in 3000K, 4000K, or 5000K colour temperatures. This range allows the fitting to be scaled to different wall heights or feature sizes on the same project. Dimmable and emergency lighting options are also available across the range.
Why choose a Saturn downlight over a standard fixed downlight?
Saturn's rotating and tilting head lets it direct light exactly where it's needed, which a standard fixed downlight cannot do, making it better suited to walls, displays and features than flat, general illumination. This is particularly valuable in retail and healthcare settings where lighting is often used to draw attention or support wayfinding rather than simply light a floor area. Specifying Saturn instead of a fixed downlight avoids needing a second, separate accent lighting product in the same scheme.
Has Saturn been used in healthcare settings?
Yes, Saturn has been installed at Little Hulton Medical Centre, a project recognised as Healthcare Project of the Year in 2021. This shows the fitting holding up to the scrutiny and performance expectations of a healthcare environment, where lighting quality and reliability are closely assessed. It gives specifiers a strong reference point when considering Saturn for medical centres, clinics or other healthcare interiors.
