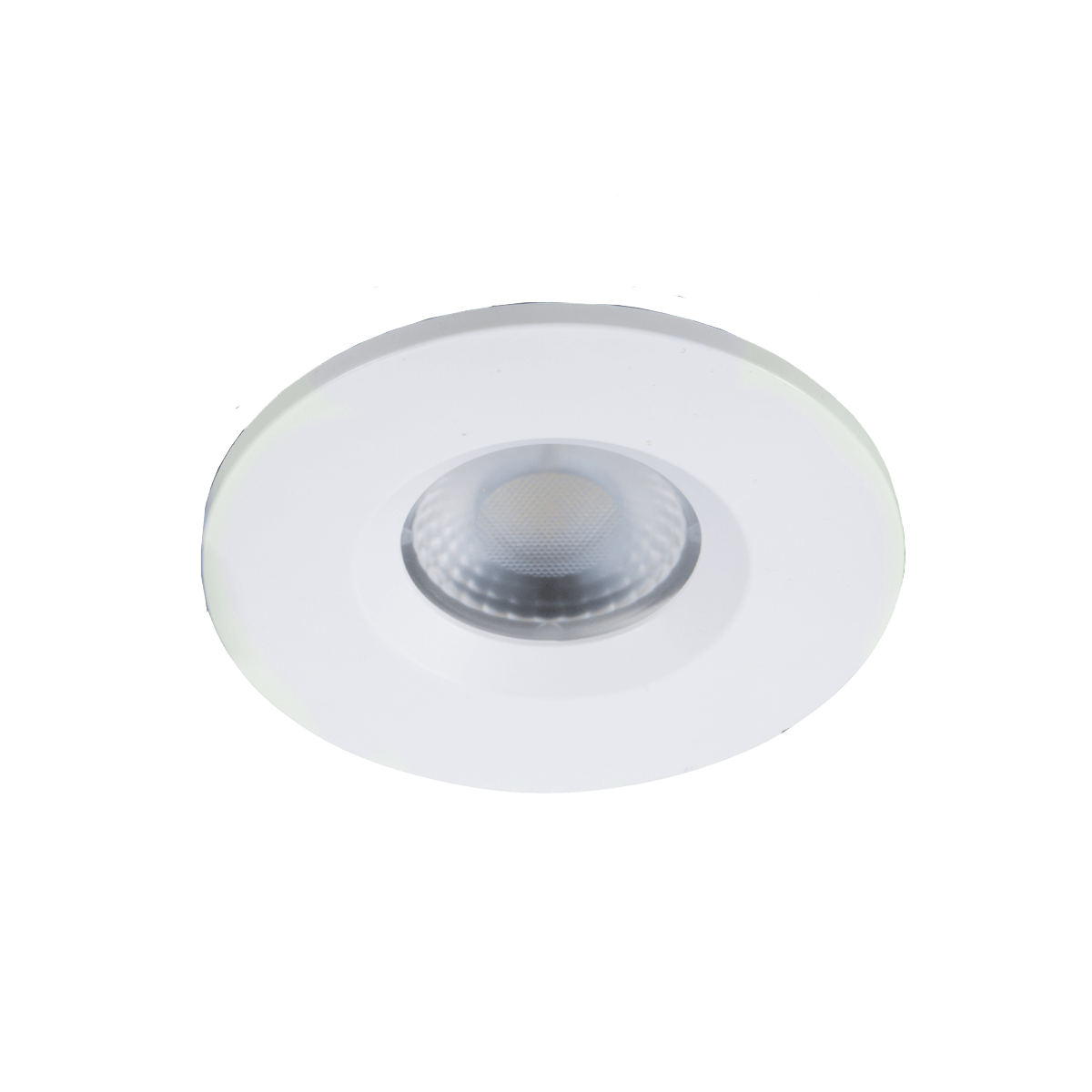

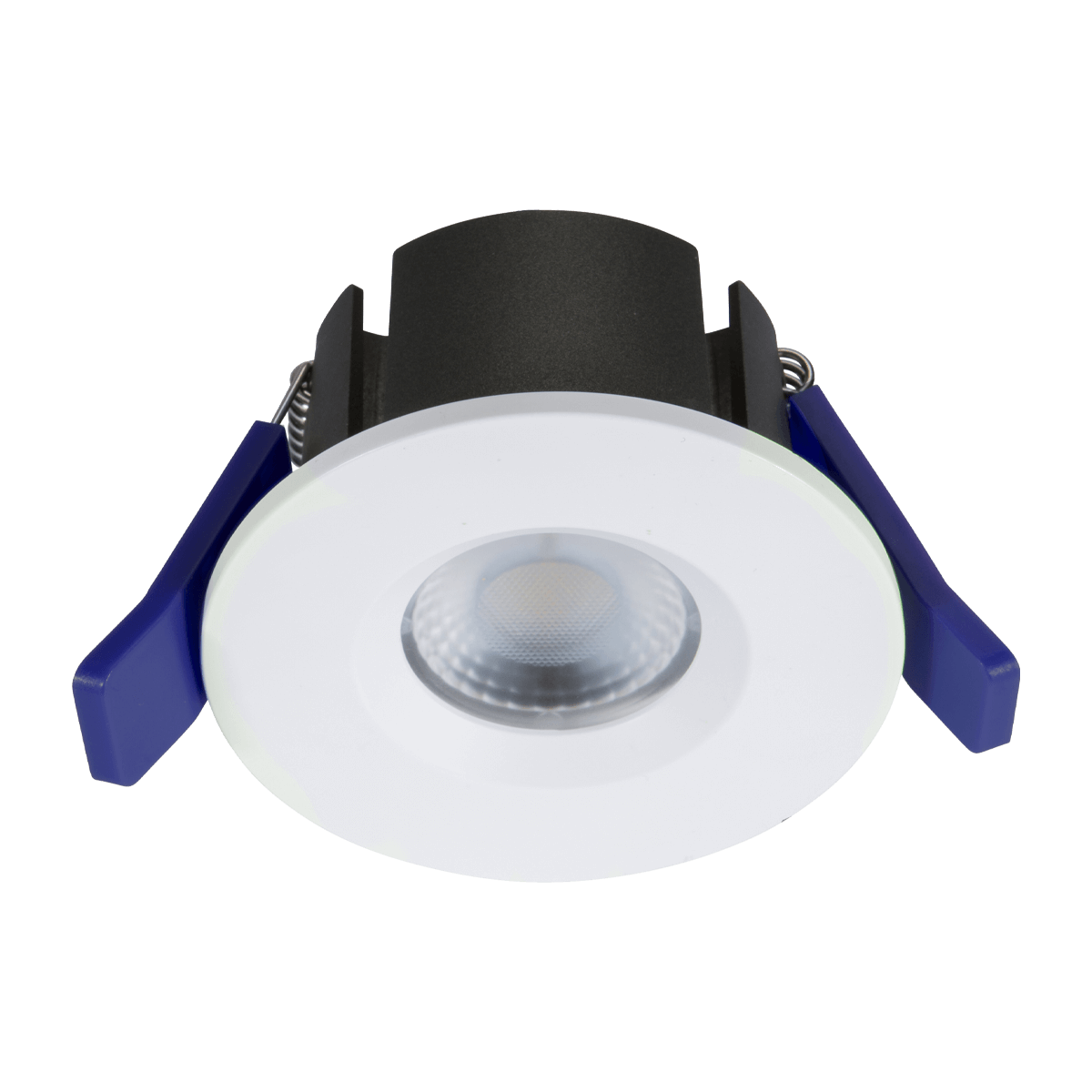

R3

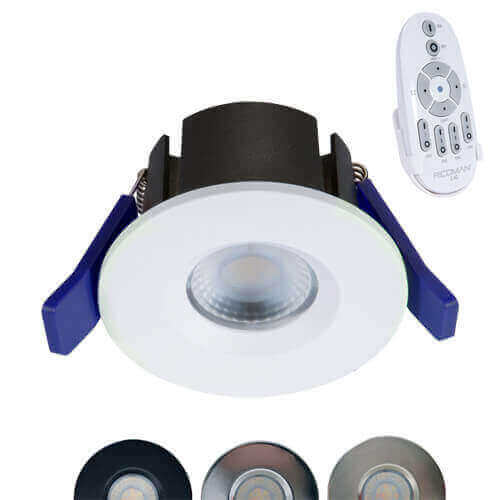

The epitome of an all-in one downlight: tunable white or fixed Kelvin, dimmable, IP65, fire rated with 4 interchangeable bezels
- Adaptive Tunable White Lighting - Easily switch between warm and cool colour temperatures on site to suit different zones and design schemes.
- IP65 & Fire‑Ready - Suitable for wet areas like bathrooms and corridors while helping maintain ceiling fire protection where required.
- Compact, Installer‑Friendly Design - Slim recessed form with high colour rendering for refined lighting schemes and efficient installation
Specification
Light Source Information
- Direct light output
- 6W delivering 591 lm at 4000K
- Efficacy of 100lm/W
- Drivers supplied
- >90 colour rendering index
- Tunable white: 3000K-5000K via remote control or 3000K | 4000K | 5000K via wall switch
- Tunable white: 100%-10% dimming via remote control or 100%| 10% (night mode) via wall switch
- Fixed colour temperature 3000K or 4000K
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- LEDs: Epistar (Tunable) | Samsung (Fixed Kelvin)
Design
- Aluminium body
- IP65 rated
- Recessed mounting
Cutout
- ø70mm
Optics
- Polycarbonate TP(a) rated diffuser
- Bezel finish: white as standard
- Add on bezels: chrome | brushed chrome | black
- Beam angle: 55 degrees
Dimming
- Tunable white: dimmable down to 10% via remote control (all intermediate stages) or 10% night mode (no intermediate stages) via wall switch
- Fixed colour temperature: mains dimmable
Miscellaneous
- 3hr Emergency available
- Standard Warranty: 5 years
- Emergency Warranty: 3 years
- To specify state:
- 6W interior LED IP65 fire rated downlight tunable white or fixed colour temperature 3000K to 5000K, dimmable down to night mode via wall switch or remote control. Available in white, black, chrome or brushed chrome – as RICOMAN’s R3.
Dimensions

Ø85 x H75
Features
- Option for tunable white 3000K-5000K | fixed colour temp 3000K or 4000K
- Dimming via remote control or on/off switch (tunable version) | dimmer switch (Fixed Kelvin version)
- Easy to use remote, controls up to 400 downlights
- Ideal for circadian/human centric lighting
- 6W delivering 591 lumens (at 4000K)
- 30 / 60 / 90 minutes fire rated
- IP65 rated, suitable for high humidity areas
- Lightly recessed optics, designed to control glare
- White bezel as standard, black, chrome or brushed chrome optional
- Easy magnetic interchangeable bezel mechanism
- Emergency option available
- The same remote control can also be used for Centorio downlight
- L70 B50 = 100,000 hours | L90 B50 = 42,000 hours
- Single bin Samsung COB with a ≤3 step Macadam ellipse tolerance
Configure Your Product
| Part Code | Description | Lumens | Wattage | Efficacy | Colour Temp | Colour Finish | Dimensions (mm) | Emergency | Reflector | Warranty | LDT | Datasheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() | R095601/TW | R3 IP65 Fire Rated Tunable White Downlight | 591 | 6W | ~99Lm/W | TW | White (Standard), Black, Chrome, Brushed Chrome, Antique Brass | Ø85 x H63 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
![]() | R095601/3K | R3 IP65 Fire Rated Downlight 3000K | 615 | 6W | ~102Lm/W | 3000K | White (Standard), Black, Chrome, Brushed Chrome, Antique Brass | Ø85 x H64 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |
![]() | R095601/4K | R3 IP65 Fire Rated Downlight 4000K | 591 | 6W | ~99Lm/W | 3000K, 3000K 3000K/4000K 4000K, 3000K/4000K, 4000K | White (Standard), Black, Chrome, Brushed Chrome, Antique Brass | Ø85 x H64 | Non emergency | – | 5 years | LDT ↓ | Datasheet ↓ |

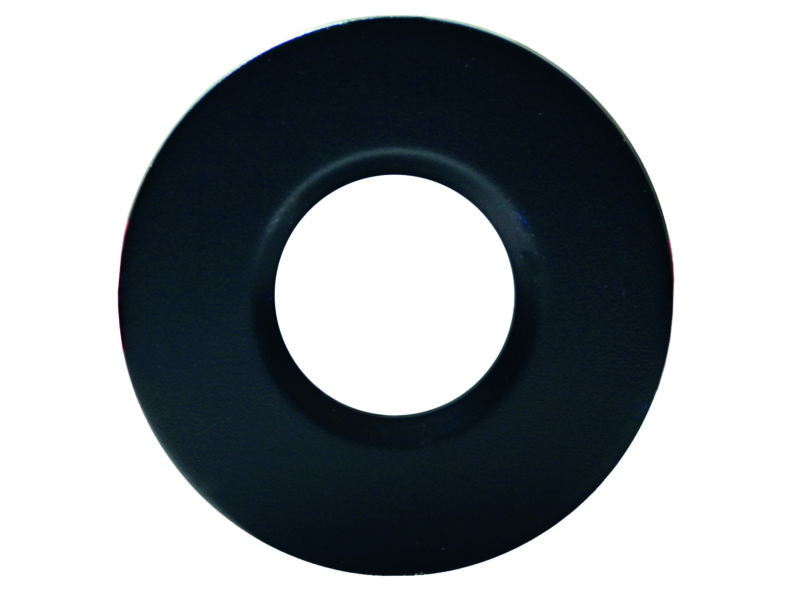

![]() | R095-03 | Magnetic black bezel for the R3 downlight | N/A | – | – | – | – | Ø85 | – | – | 3 | — | Datasheet ↓ |

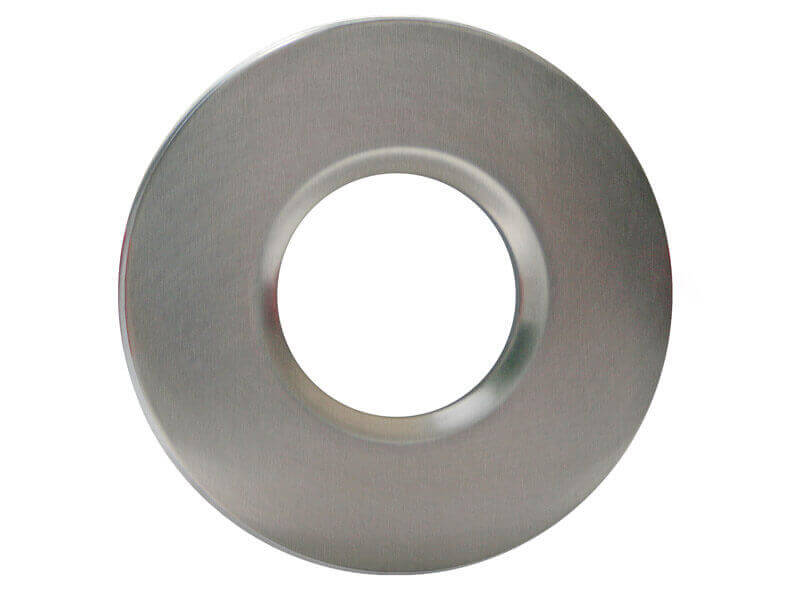

![]() | R095-02 | Magnetic brushed chrome bezel for the R3 downlight | N/A | – | – | – | – | Ø85 | – | – | 3 | — | Datasheet ↓ |

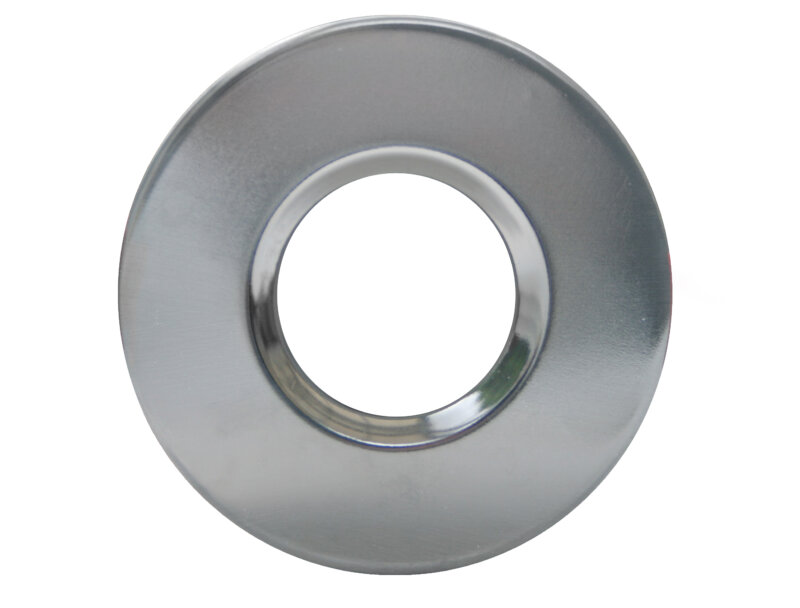

![]() | R095-01 | Magnetic chrome bezel for the R3 downlight | N/A | – | – | – | – | Ø85 | – | – | 3 | — | Datasheet ↓ |

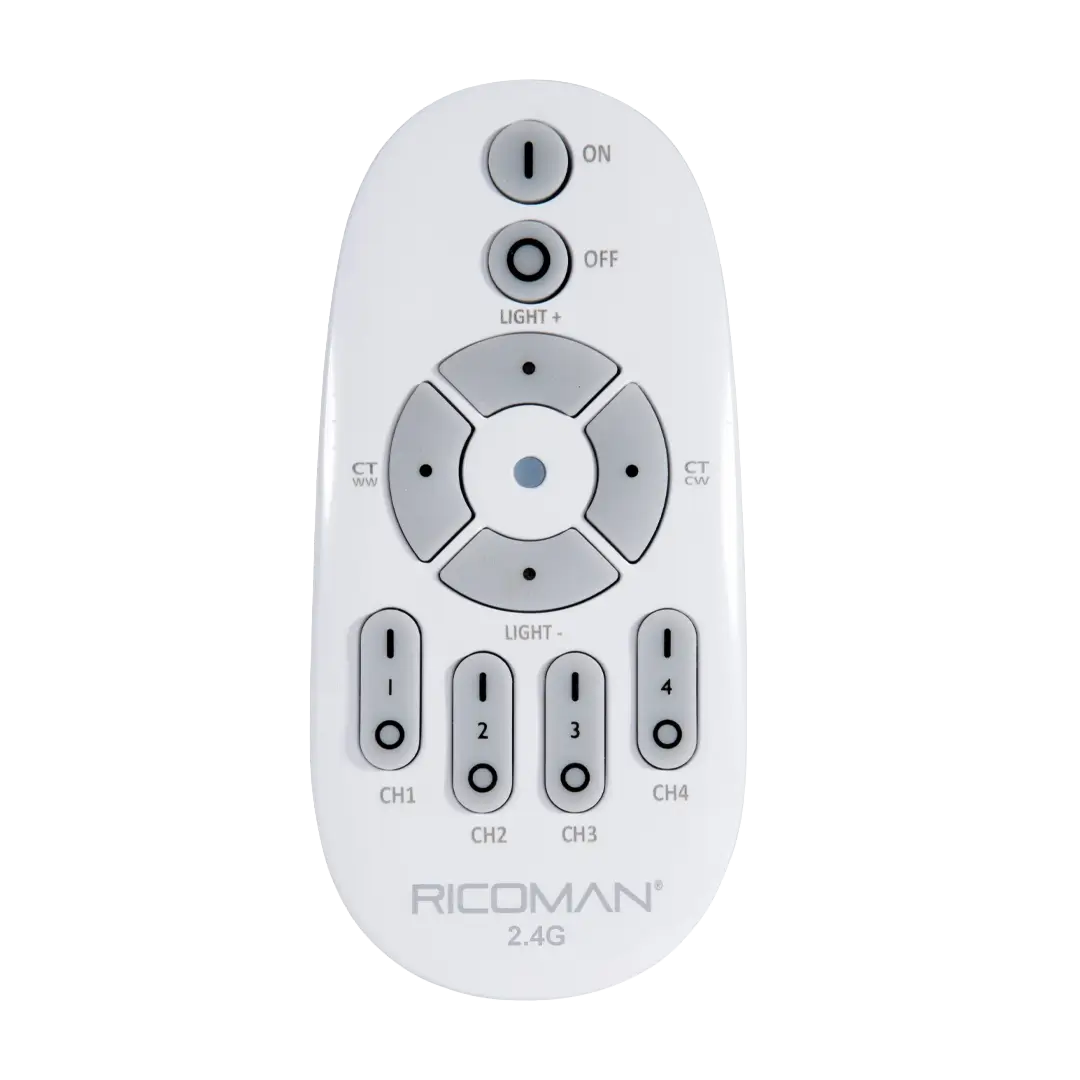

![]() | R09-882 | Tuneable White and Dimming Remote Control | N/A | – | – | – | – | – | – | – | 3 | — | Datasheet ↓ |
Accessories
You may also like
Frequently asked questions
What does "all-in-one" mean for the R3 downlight?
R3 is described as an all-in-one fire rated IP65 downlight, combining fire protection, water resistance, and tunable colour temperature control in a single fitting rather than requiring separate accessories to achieve each feature. This simplifies specification and ordering for contractors who need one product to satisfy multiple performance requirements. It is available in tunable or fixed colour temperature versions depending on project needs.
How is colour temperature adjusted on the R3 downlight?
R3 can be tuned from 3000K through to 5000K. A wall switch cycles through the settings in quick succession, moving from 3000K to 4000K to a dimmed night mode and on to 5000K, while a remote control smoothly dims from 100% down to 10% and adjusts colour temperature across the same range. This gives on-site flexibility to adjust the light to suit the time of day without rewiring or replacing fittings.
What bezel finishes are available for R3?
R3 offers a choice of four different bezels: white as standard, plus chrome, brushed chrome, and black options. This allows the same downlight platform to be finished to suit a range of different interior styles without changing the underlying fitting. It gives specifiers flexibility to match other metal finishes in a scheme.
What is the light output and rated lifetime of R3?
R3 produces 591 lumens from a 6W fitting with a CRI above 90 Ra and a 55 degree beam angle. It carries an L70 B50 rated lifetime of 70,000 hours and is backed by a 5 year warranty, giving specifiers a documented basis for lifetime and colour performance expectations. Its IP65 rating supports use in areas where moisture resistance is required alongside fire performance.
Can multiple R3 downlights be controlled together?
R3 shares a remote control with the Centorio range that can operate up to 100 downlights per channel across 4 individually switched rooms or circuits, up to 400 downlights in total. This is useful on projects with multiple rooms needing consistent colour temperature and dimming control without a full building management system. It suits fit-outs where simple, centralised control of several fittings is required.
How does R3 compare to Core within the range?
R3 and Core are both fire rated IP65 all-in-one downlights, but R3 offers continuous colour tuning from 3000K to 5000K with a 55 degree beam angle, a CRI above 90 Ra, and a 70,000 hour L70 B50 lifetime. Core is limited to a fixed switch between 3000K and 4000K, with a CRI above 80 Ra and a 50,000 hour L70 B50 lifetime. R3 also shares a remote control with Centorio for managing multiple downlights across several rooms.
